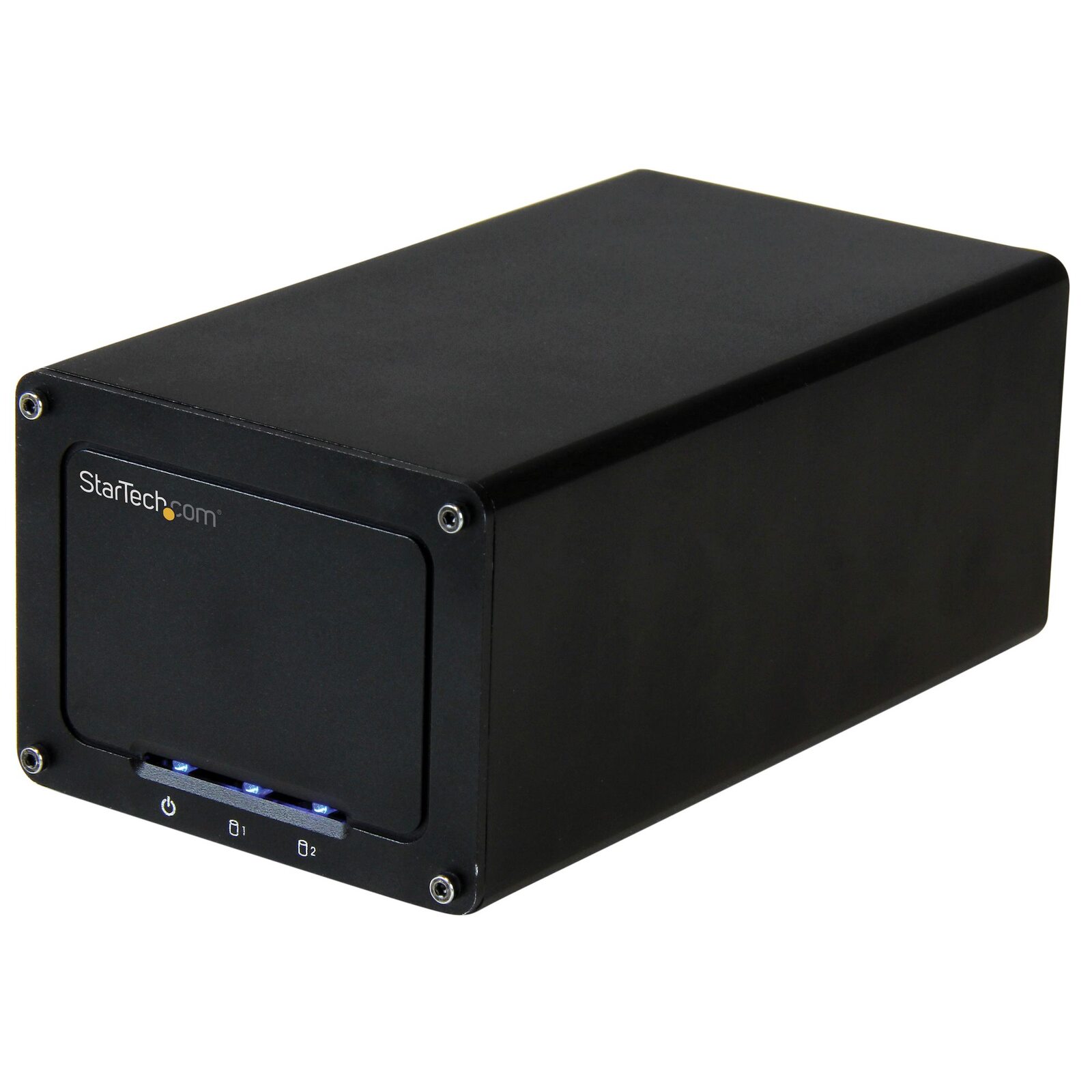

Star Tech 2-Drive External Enclosure for 2.5" SSD/HDDs - USB 3.1
Compact in size but big on performance, this dual-bay enclosure provides powerful external data storage, with ultra-fast data transfer speeds and configurable RAID modes. It’s ideal for small business and home office applications, or top-performing workstations for graphic designers, engineers and other business professionals.
Create a high-capacity, external data storage solution with support for two 2.5” SSDs/HDDs in a wide range of sizes from 5 to 12.5mm. Tested for compatibility with capacities up to 4TB at 7200 RPM, this aluminum enclosure delivers fast file transfer rates with USB 3.1 Gen 2 performance. It supports SATA I, II and III and is enhanced with UASP to maximize the performance and speed of your SATA III drives. It even has a fan, with built-in speed control, to keep things running smoothly.
USB 3.1 Gen 2 gives you greater bandwidth and speed, supporting transfer rates of up to 10Gbps - twice the speed of USB 3.0 (USB 3.1 Gen 1) technology. It lets you leverage the high performance of the latest SSDs and hard drives while alleviating bottlenecks in your data transfers.
The dual-bay drive enclosure comes with two USB cables for flexible use with the latest laptops and tablets equipped with a USB-C™ port, as well as legacy devices. It includes both USB-C to Micro B and USB-A to Micro B cables. The 2-bay enclosure is also compatible with a Thunderbolt™ 3 USB-C port.
Through RAID 0 support, the dual-bay enclosure lets you maximize the performance of your SATA III SSDs to achieve greater file transfer speeds. The dual-bay enclosure also supports RAID 1, Big (Spanning or Concatenation) and JBOD. With multiple RAID options, you can gain increased storage size, performance, or redundancy.
The enclosure is OS independent, requiring no additional software or drivers.

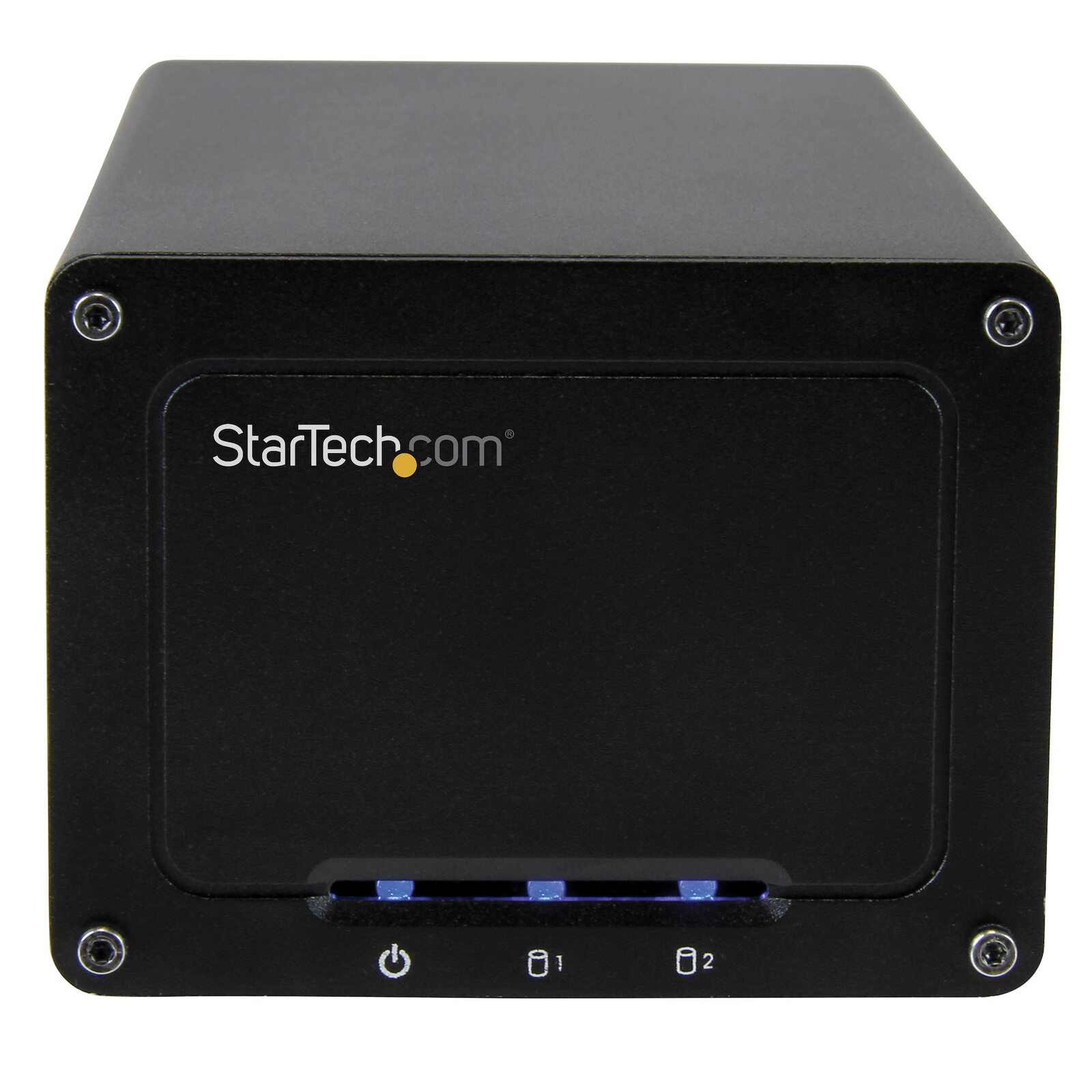

Indicators
LED Indicators : Power
Read and Write - HDD1
Read and Write - HDD2
Packaging Information
Package Height : 11.2 cm [4.4 in]
Package Length : 22.8 cm [9 in]
Package Width : 16.3 cm [6.4 in]
Shipping (Package) Weight : 910 g [32.1 oz]
Performance
4Kn Support : Yes
Hardware Raid Supported : Yes
Max Drive Capacity : Tested with drives up to 4TB @ 7200 RPM
Maximum Data Transfer Rate : 10 Gbps
MTBF : 50,000 hours
Supported RAID Modes : BIG (Spanning or Concatenation)
JBOD - (Just a Bunch of Disks)
RAID 0 (Striped Disks)
RAID 1 (Mirrored Disks)
TRIM Support : Yes
Type and Rate : USB 3.1 Gen 2 - 10 Gbit/s
UASP Support : Yes
Physical Characteristics
Color : Black
Material : Aluminum
Max Drive Height : 12.5 mm [0.5 in]
Product Height : 6 cm [2.4 in]
Product Length : 14.8 cm [5.8 in]
Product Width : 81 mm [3.2 in]
Weight of Product : 378 g [13.3 oz]
Power
Center Tip Polarity : Positive
Input Current : 0.6A
Input Voltage : 100 - 240 AC
Output Current : 2A
Output Voltage : 12V DC
Plug Type : B
Power Consumption (In Watts) : 60
Hardware
Number of Drives : 2
Interface : USB 3.1 Gen 2

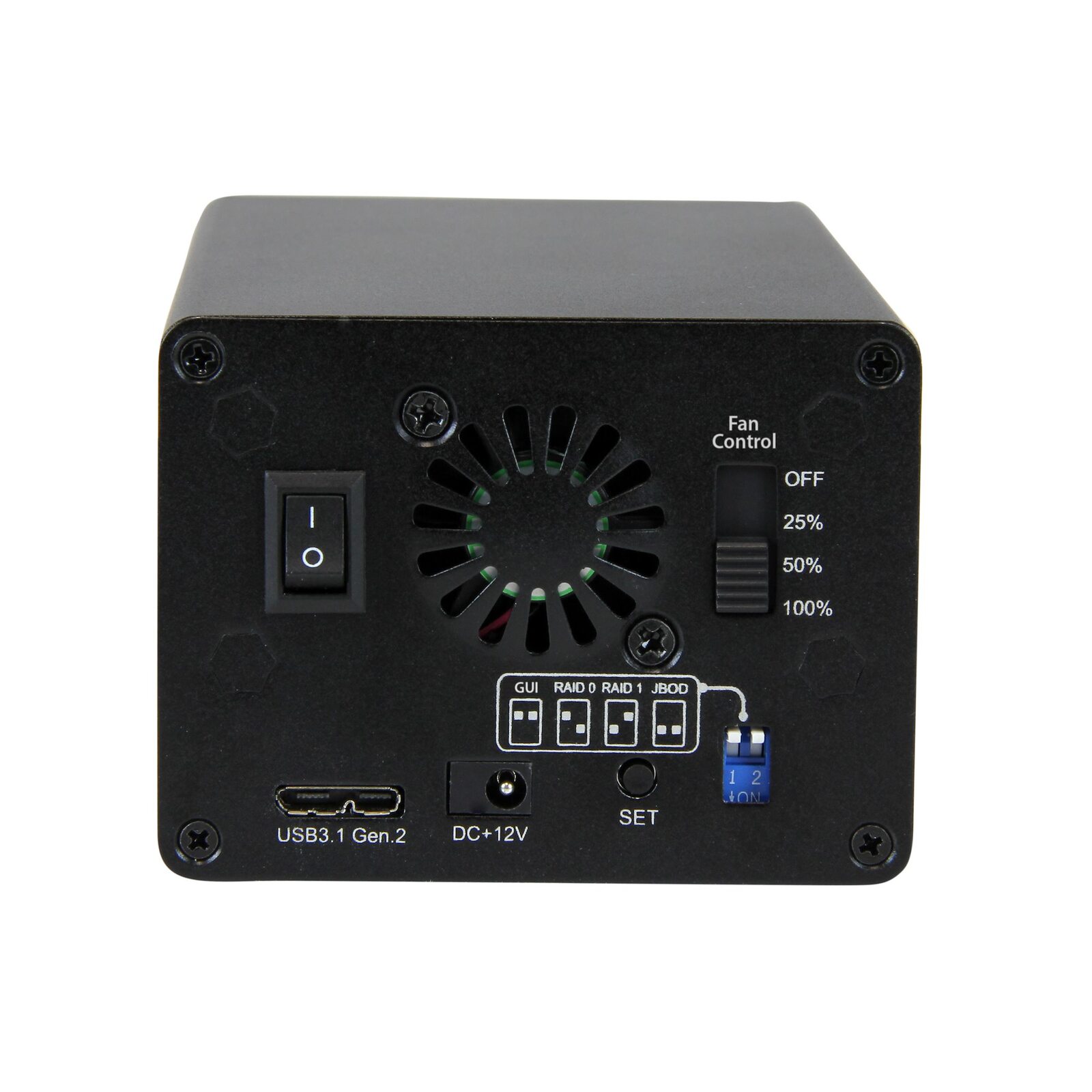

Fans : 30 mm
Fan(s) : Yes
Fan Bearing Type : Sleeve Bearing
Drive Size : 2.5in
Drive Installation : Fixed
Compatible Drive Types : SATA
Chipset ID : ASMedia - ASM1352R
Bus Type : USB 3.1 Gen 2
Environmental
Storage Temperature : -20°C to 50°C (-4°F to 122°F)
Operating Temperature : 5°C to 35°C (41°F to 95°F)
Humidity : 20~80% RH
Connector(s)
Host Connectors : USB 3.1 USB Type Micro-B (10 pin, Gen 2, 10 Gbps)
Drive Connectors : SATA Data & Power Combo (7+15 pin)
Power
Power Source : AC Adapter Included
Prominence
Description CDW 75 - 1st Line : StarTech.com USB 3.1 Hard Drive Enclosure for Dual 2.5" SATA Drives
Software
OS Compatibility : OS independent; No software or drivers required
Special Notes / Requirements
Note : Windows 7 and earlier Windows versions do not support TRIM with USB to SATA devices.
What's in the Box
Included in Package : allen keys

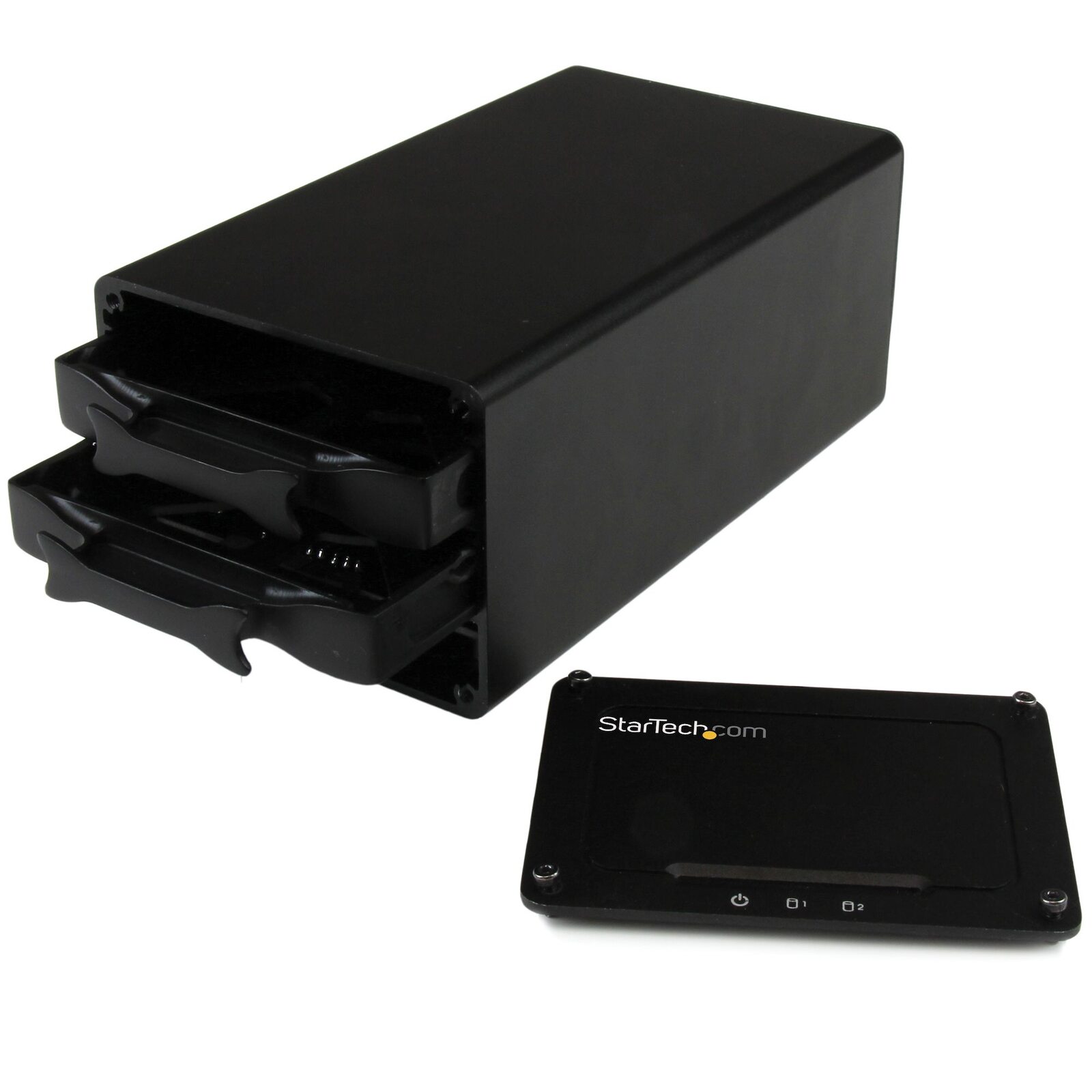

drive trays
instruction manual
universal power adapter (NA,EU,UK,ANZ) - 70 inches (cable)
USB 3.0 A to Micro B cable - 40.25 inches
USB 3.1 to SATA enclosure
USB C to Micro B cable - 40.25 inches
