7in HD Monitor with 3 AV Inputs & 4 PIN Connector

7in HD Monitor with 3 AV Inputs & 4 PIN Connector


The different ways you can use this media monitor are almost endless! Connect it to reversing cameras, DVD player, MP4 player, gaming unit, or something else entirely

Now only
$155

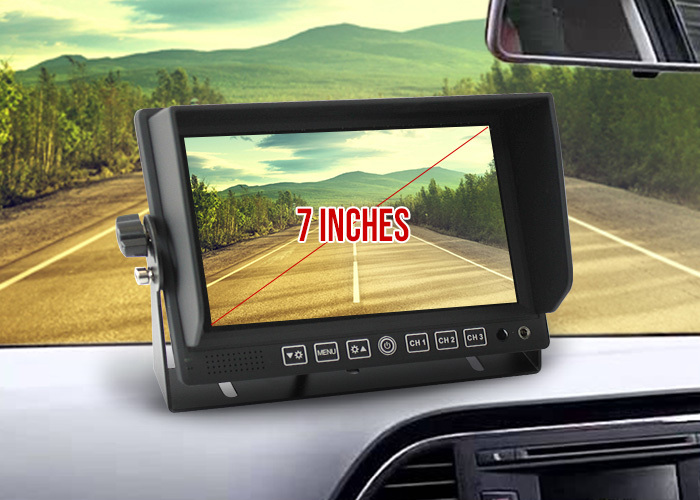

This 7 inch colour TFT monitor uses high definition colour LCD panel which offers almosr 4 times more pixels than other standard 7 inch screens. It has 3 AV inputs, 2 of which are sound enabled, which means that you can hook up the monitor to a DVD player, MP4 player, etc. to play videos. Or hook it up to a reverse camera with microphone for better security. It uses standard 4 PIN connectors to connect to the cameras which will provide power to each camera attached. There are trigger wires with adjustable time delays on the inputs to enable indicators to be used to trigger an AV channel. This 7 inch Monitor Reverse Camera Kit is suitable for 12V/24V vehicles. It has voltage overload protection and reverse polarity protection to ensure the monitor and cameras are not damaged by fitting errors. It is mounted by a substantial U-bracket and sunshade to keep the sun off the monitor. Stylish touch button control on front panel of monitor. It has built in light sensor with automatic adjustment, the monitor will dim itself automatically at night to avoid glare. This system also comes with 3 trigger wires for cameras. Once a trigger wire is activated, for example, when the reverse gear is induced it will show the rearview automatically. Or when the vehicle is put on the turn Right signal the monitor will switch to the Right camera automatically to give clear view on the right side of vehicle before making a turn.


The specifics

  • 7 Inch HD Monitor 12V/24V With 3 AV Inputs 4 PIN
  • High definition 800x480 pixels screen (2400Hx480V). Beware of other sellers claiming to sell 1440Hx234V screens. 1440Hx234V = 480x234 pixels = lower resolution screen.
  • Built in fusebox (No more messy box dangling on the dash)

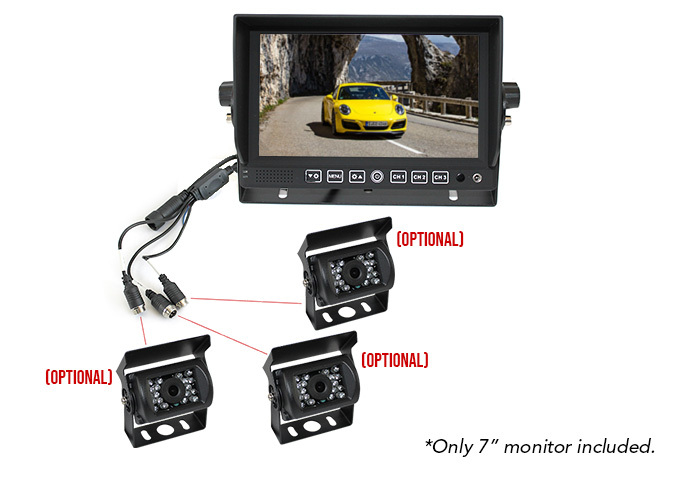

  • 3 AV inputs (Can be connected up to 3 reversing cameras)
  • Light sensor automatic adjustment (Monitor will dim itself automatically at night no more manual adjustment when the screen gets too bright at night)

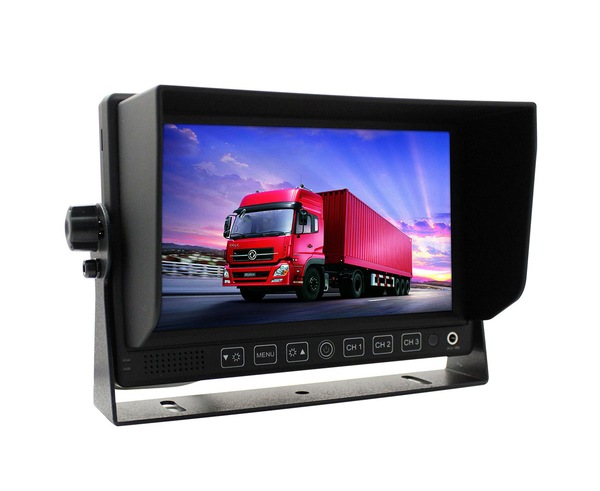

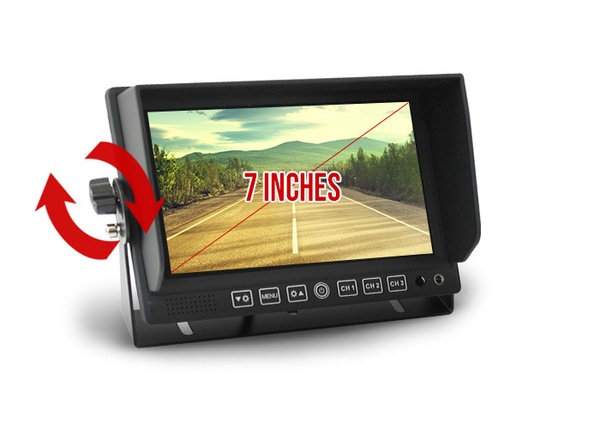

  • Rotational bracket- Allow monitor to be mount on the dash roof of truck/caravan/car or anywhere that you find suitable
  • Image can be adjusted for horizontal vertical mirror and normal viewing
  • This monitor can be used with truck/caravan/bus/car
  • 16:9/ 4:3 switch freely

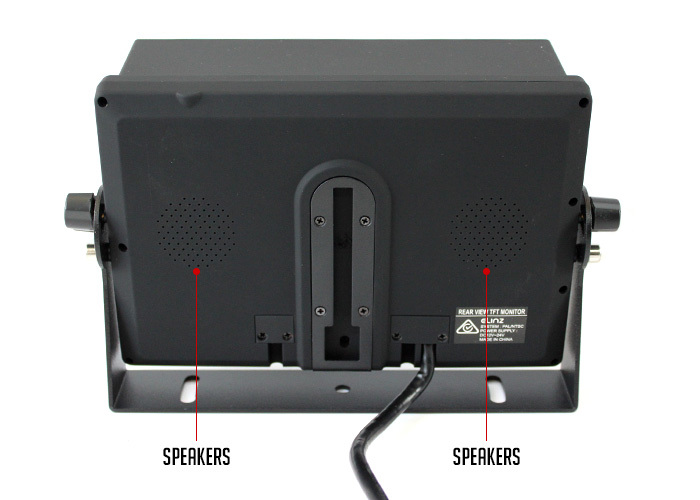

  • Built in loud speaker with AV-IN
  • 3 ways video input and 2 ways audio input
  • Power supply: DC 9V-32V
  • System: PAL/NTSC Auto-Switching
  • Show rearview automatically when the reverse gear is engaged
  • Easy to install- You can DIY as long as you can locate your vehicle's 12V/24V power source
  • OSD Menu
  • Wireless remote control
  • Varying languages display

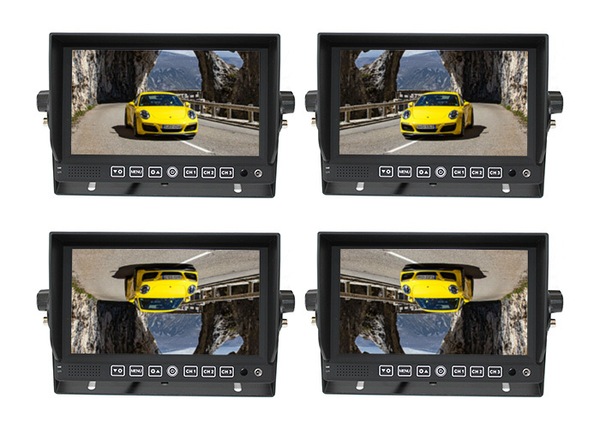

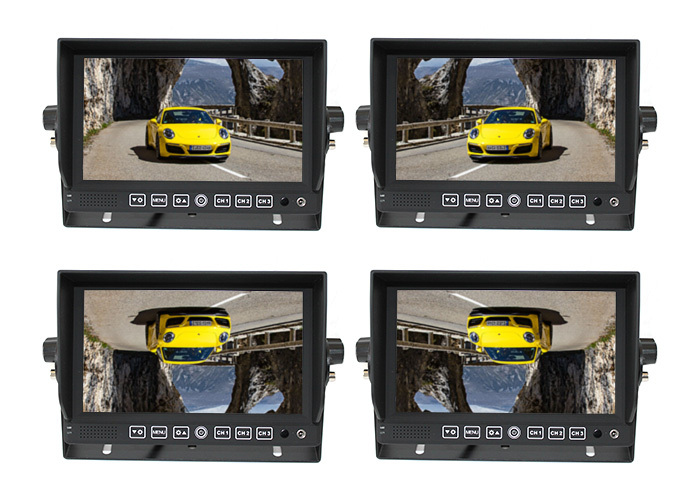

  • Four angle viewing switch: normal, reverse, inverted, inverted reverse

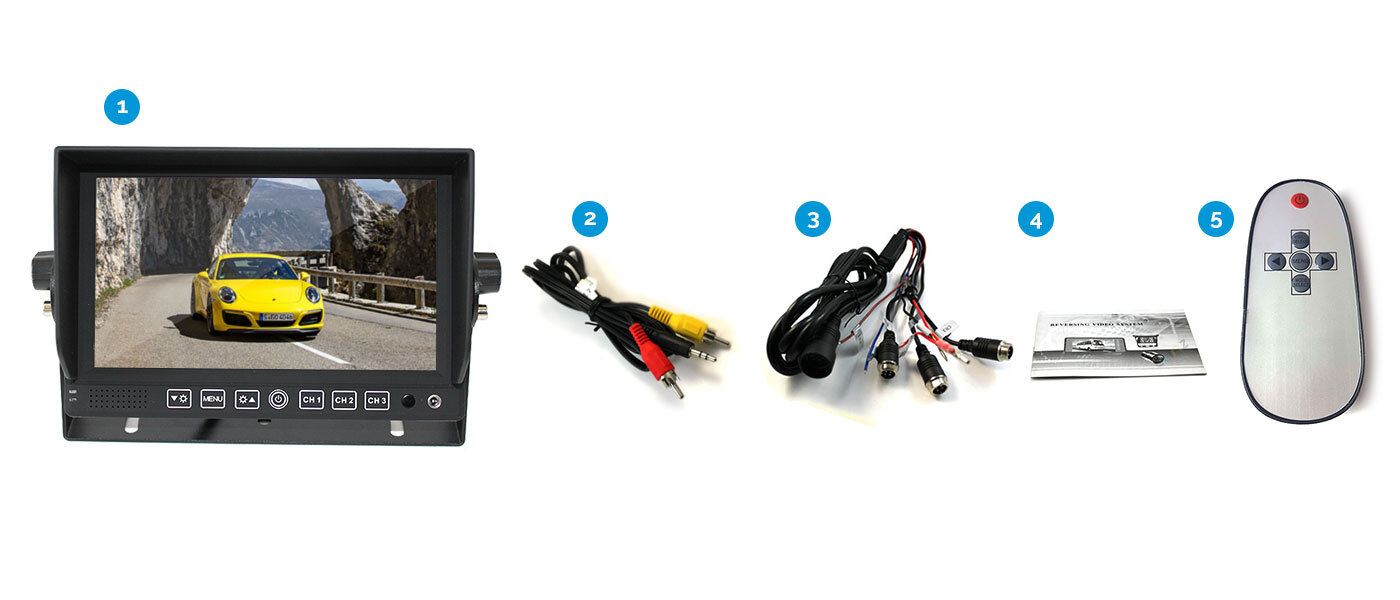

  • Note: This listing is for one 7 inch monitor only. Camera and cable are not included
  • This product includes a 12 month warranty

Reference ID: AGF759

Shipping Details

  • Please allow 7-14 Business Days for delivery
  • We ship across Australia, including major cities like: Sydney, Melbourne, Perth, Brisbane, Adelaide, Canberra, Newcastle and the Gold Coast
  • At MyDeal.com.au it is our top priority to provide customers with a secure and enjoyable shopping experience. If there are any problems with your purchase please do not hesitate to contact us and our friendly Customer Support Team will assist you promptly.
  • This product includes a 12 month warranty
