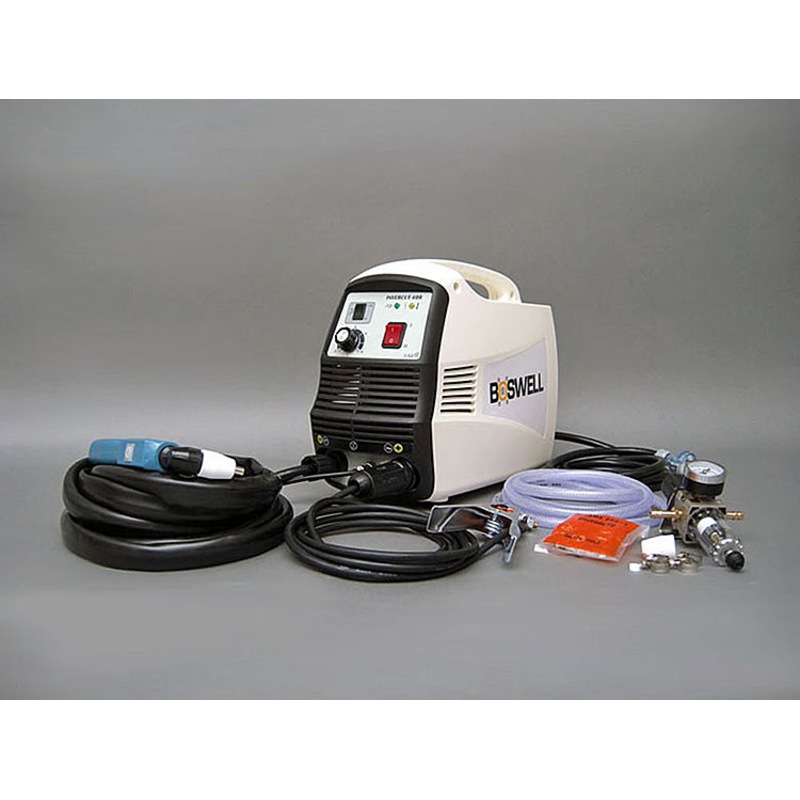

Boswell Inverter Plasma Cutter Welder 240V

Boswell Inverter Plasma Cutter Welder 240V

Cut through steel with little effort, with the powerful Boswell inverter plasma cutter. It can cut through thicknesses up to 16mm & creates little material distortion

Now only

Need to cut steel? Thinking about an oxy acetylene cutting torch to do the job? Consider this Invercut plasma cutter. Its pilot arc enables you to cut through rusted and painted surfaces which cannot be achieved with the standard contact arc technology. If features a new rugged designed ABS case and has been packed into a smaller space at only 8.2kgs. It is able to cope with input fluctuations of +/- 15% making it very generator friendly.

The specifics

  • Boswell Inverter Plasma Cutter Welder 240V
  • Single-phase 240V inverter technology
  • Generator friendly
  • Post flow time function
  • Smooth cutting with less distortion
  • Cut up to 16mm thickness
  • Ideal for sheet metal work
  • New ABS plastic case
  • Australian standard C-tick compliant
  • Technical Specifications:
    • Model: INVERCUT 40R
    • Input voltage: 1 phase AC240V 15A Plug
    • Frequency [Hz]: 50/60
    • Rated input current[A]: 30
    • Rated power [KVA]: 6.6
    • No-load voltage [V]: 230
    • Current range [A]: 20-40
    • Rated output voltage [V]: 96
    • Duty cycle (%): 60
    • No-load loss [W]: 40
    • Efficiency [%]: 80
    • Power factor: 0.73
    • Insulation grade: F
    • Protection grade: IP21
    • Arc initiation way: HF
    • Air compressor pressure: 4-4.5
    • Thickness [mm]: 1-16
    • Weight (kg): 8.2
    • Dimensions [mm]: 430 x 185 x 306
  • 12 month warranty
