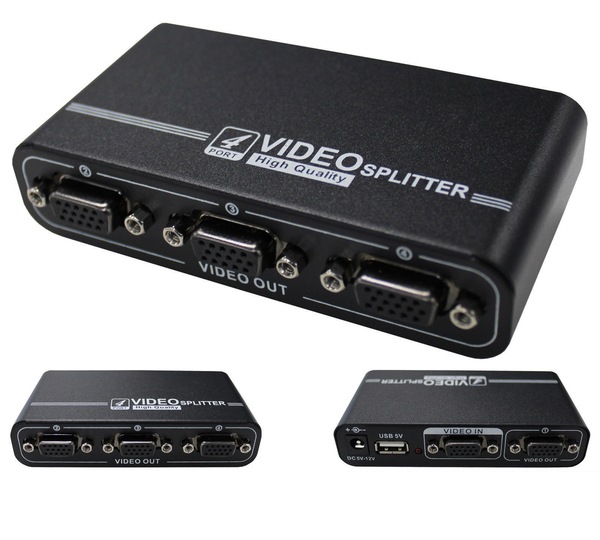

1 To 4 Port Vga Splitter High Resolution Support 1920 X 1440 550Mhz 50M 2/4 Port
|
General
|
||
| Input Conenctor | 1x VGA (HDB – 15 Female) | |
| Output Connectors | 4x VGA (HDB – 15 Female) | |
| Bandwidth (-3db) | 350MHz | |
| Output Impedance / Level | RGB: 75Ω, 0.7V p-p; HV SYNC: TTL Level | |
| Resolution | 1920 x 1440 DDC, DDC2, DDC2B (at PNP Port) | |
| Horizontal | 30 ~ 180 KHz | |
| Vertical | 43 ~ 250 Hz | |
| Transfer Distance | 50m (max.) | |
| Power Consumption | AC Adaptor: DC 5-12V, <1.7W | |
| Operating Temperature | 5 ~ 40°C | |
| Operating Humidity | 0 ~ 80% RH | |
| LED Indicator | Yes | |
| Housing | Metal | |
| Dimensions (W x H x D) | 110mm x 56mm x 25mm | |
| Weight | 170g | |
| Package Contents | ||
| Contents | VGA Splitter, AC Adaptor, Manual |
