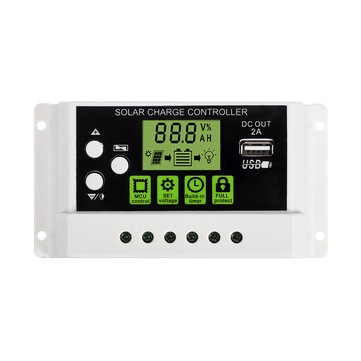

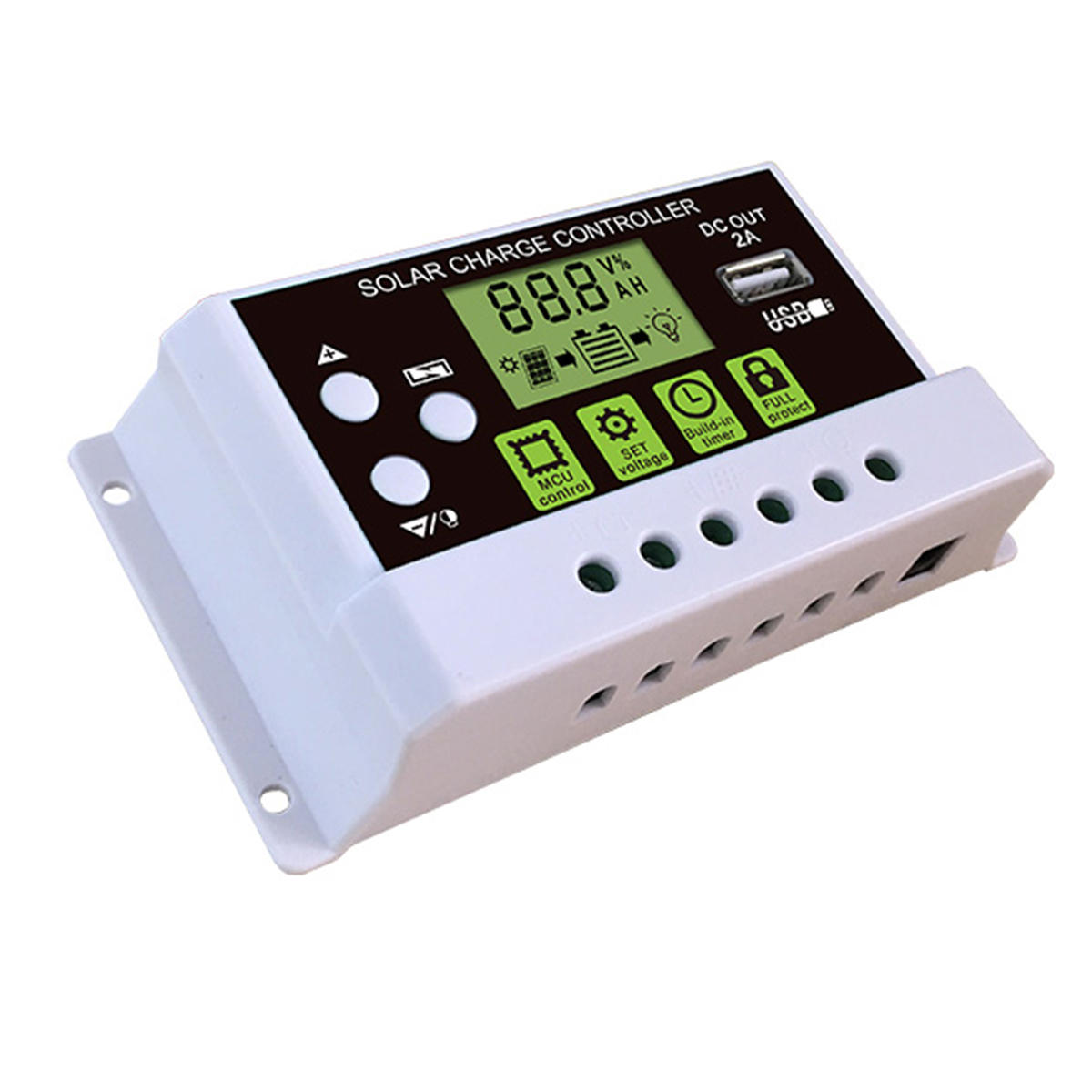

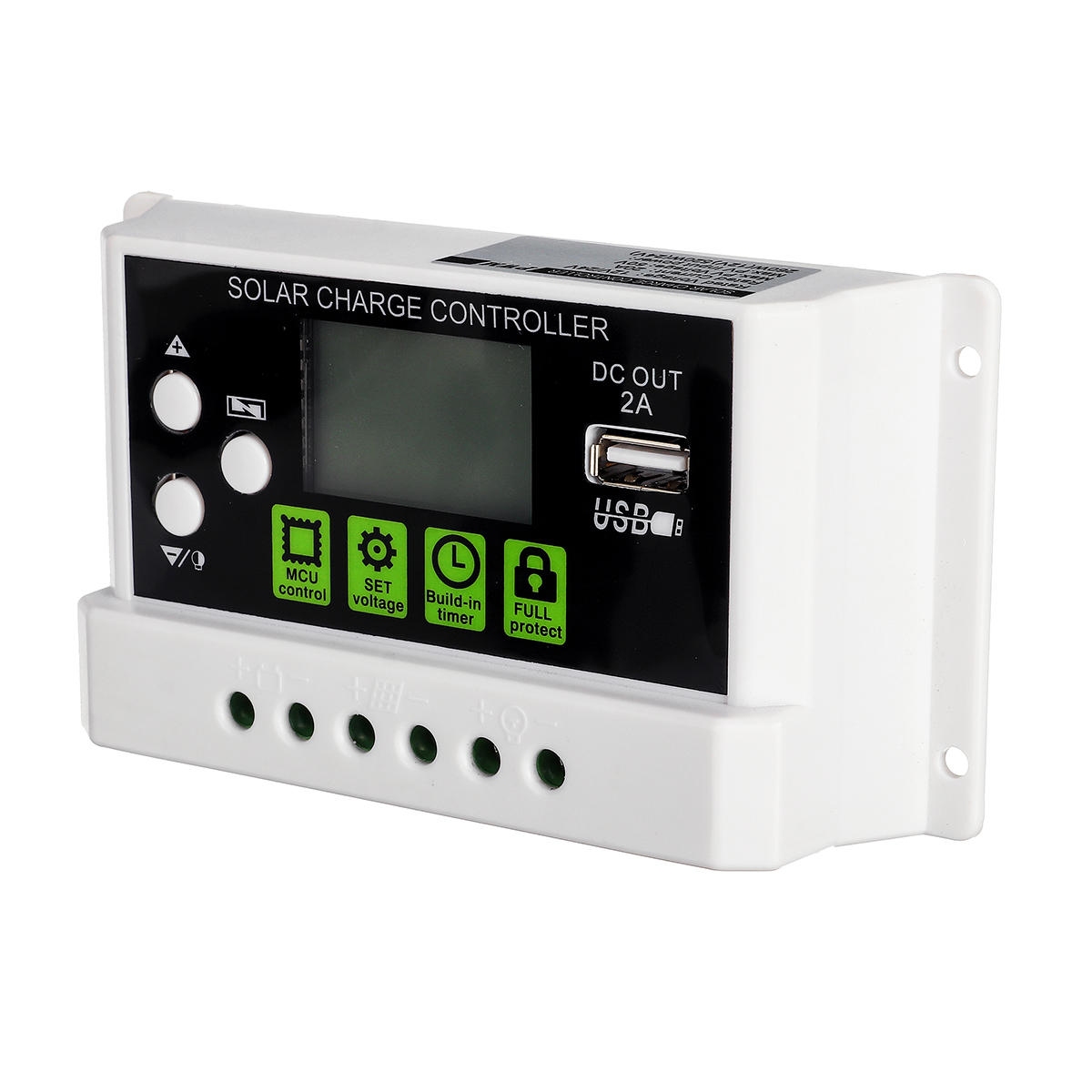

10A 12V/24V Pwm Solar Panel Charge Controller Li-Ion and Lead Acid Battery Charger Usb Lcd Display

10A 12V/24V LCD Display PWM Solar Panel Charge Controller Li-ion & Lead Acid Battery Compatible w USB DC Backlight LCD Display

KEY Point 1: Support Both Lithium Battery & Lead Acid Battery

The default charging mode is lithium battery, you can shift it to the Lead acid battery.

KEY Point 2: Data Recording:

New-developed CPU board is equipped with data recording and storage functions.The voltage and time of each charge will be recorded automatically, which will get ready for a automatic identification of the next connection.

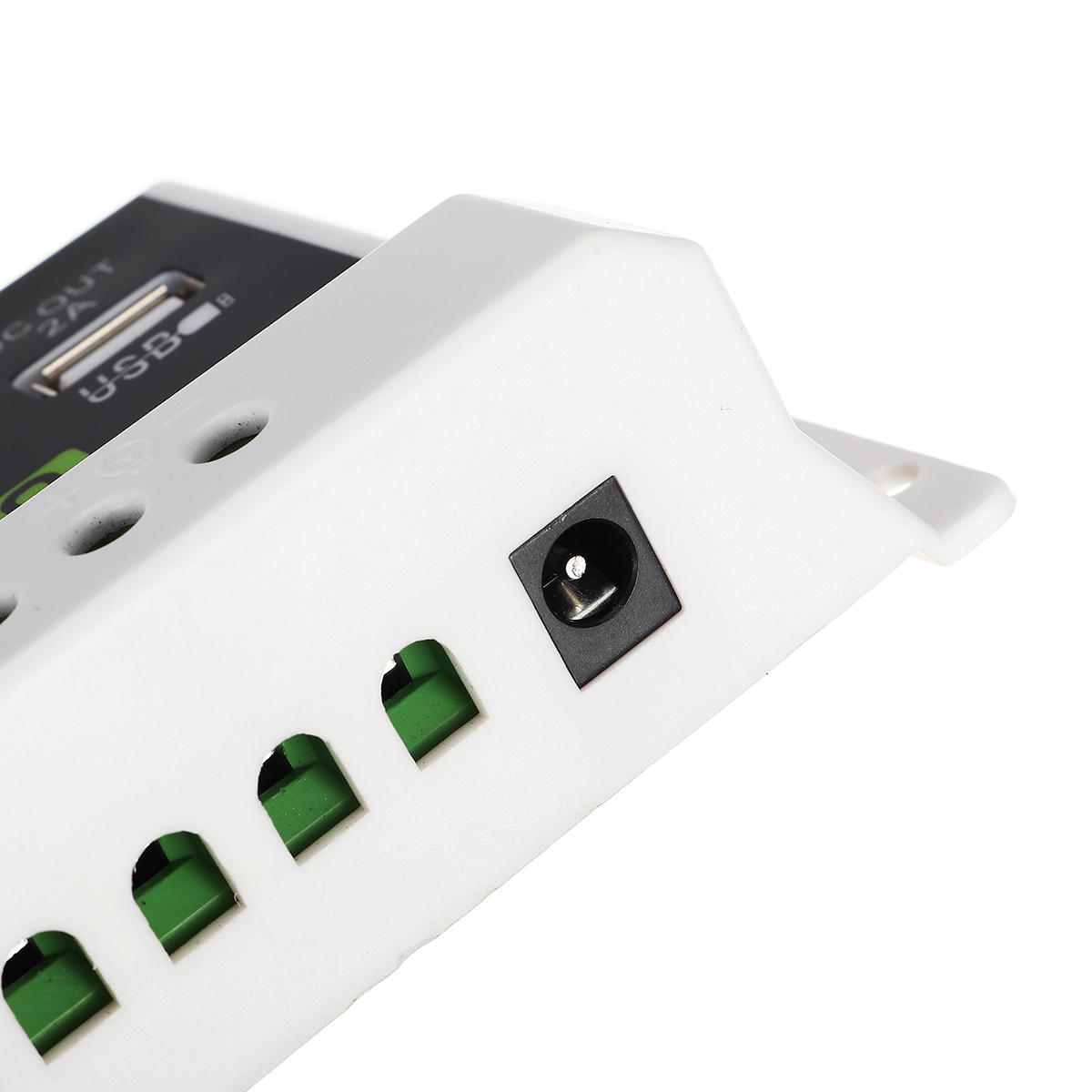

KEY Point 3: Extra DC 12V/24V Output

Convenient for electric device with 12V or 24V input, like fans, lights, etc..

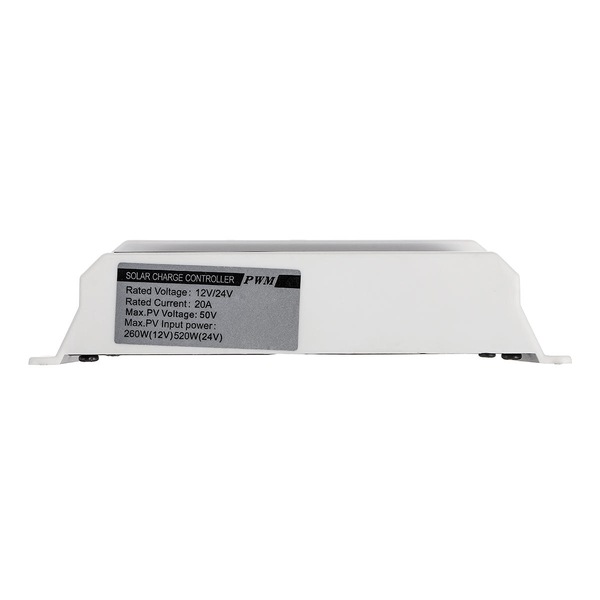

Specifications:

Model: KYZ-20A

Charge-Control Mode: PWM

Rated Voltage: 12/24V Auto-Adaptive

Charge Current: 10A??20A/30A??

Discharge Current: 10A

Max Solar Input: <50V

Max Solar Power: 130W(12V), 260W(24V)

Standby Current: <10mA

USB Ouput: 5V/2A Max

DC Output: 12V

Operating Temperature: -35�b??60�b?/span>

Size: 133x70x35mm

Weight: 131G

Parameter For Using Lithium Battery (Double in 24V System)

Equalization (LIt): 12.8V

Float: 12.0V (defaults, Adjustable range11.5-12.8V)

Undervoltage Protection: 10.7V (defaults, Adjustable range9.0-11.0V)

Disstarge Reconnect: 11.6V (defaults, Adjustable range11.0-11.7V)

Parameter For Using Lead acid battery

Equalization (bAt): 14.4V

Float: 13.7V (defaults, Adjustable range13-15V)

Undervoltage Protection: 10.7V (defaults, Adjustable range9.0-11.5V)

Disstarge Reconnect: 12.6V (defaults ,Adjustable range11.5-13V)

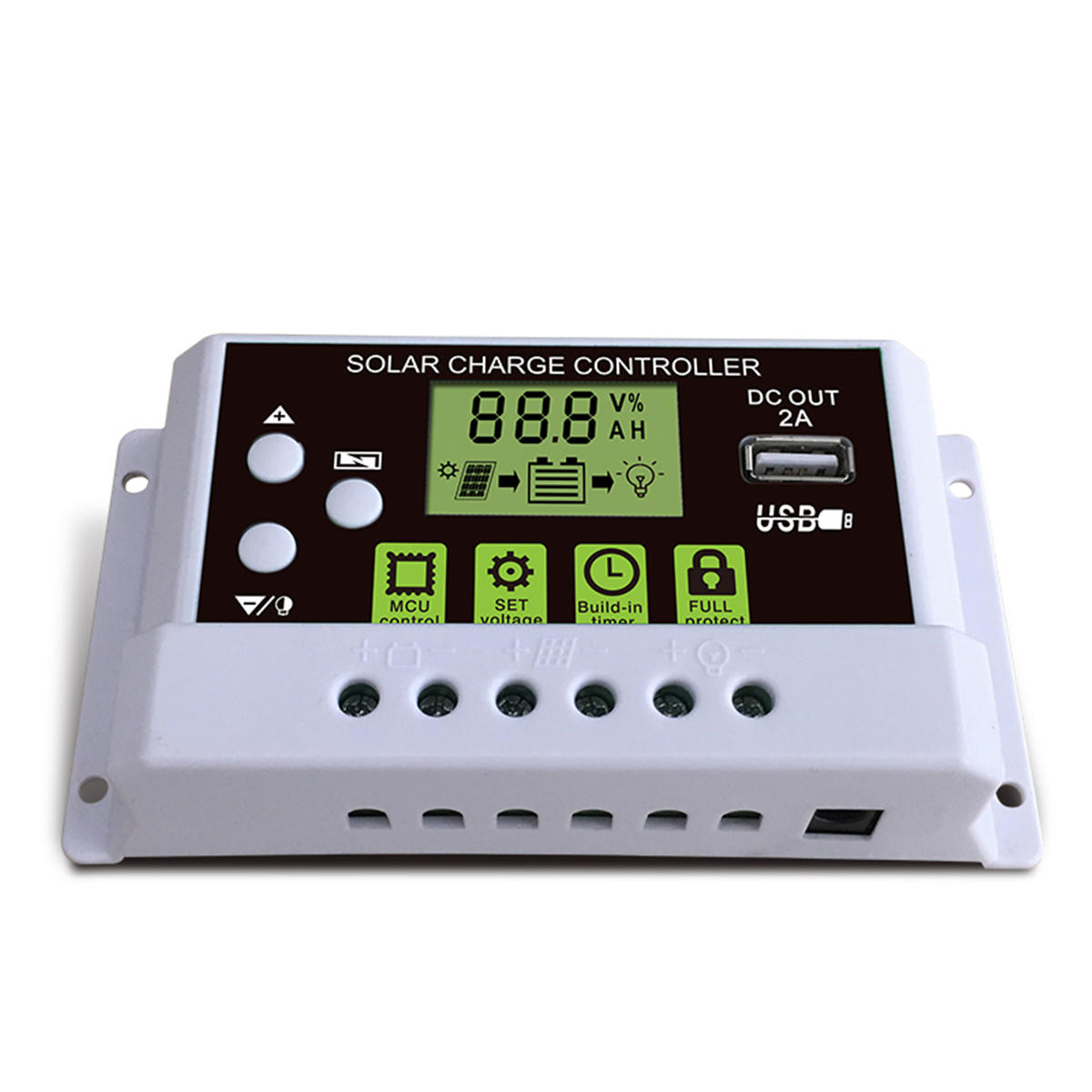

Feature:

1. Build-in industrial micro controller.

2. Big LCD display,all adjustable parameter.

3. Fully 3-stage PWM charge management.

4. Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.

5. Dual mosfet reverse current protection,low heat production.

6. Improved terminal position design, prevents the backrush of current from burning out the controller, and also protects the battery, making the charging process safer.

7. The screen comes with backlight which will light up when you click any of the buttons, making it easier to operate at night or in low-light locations.

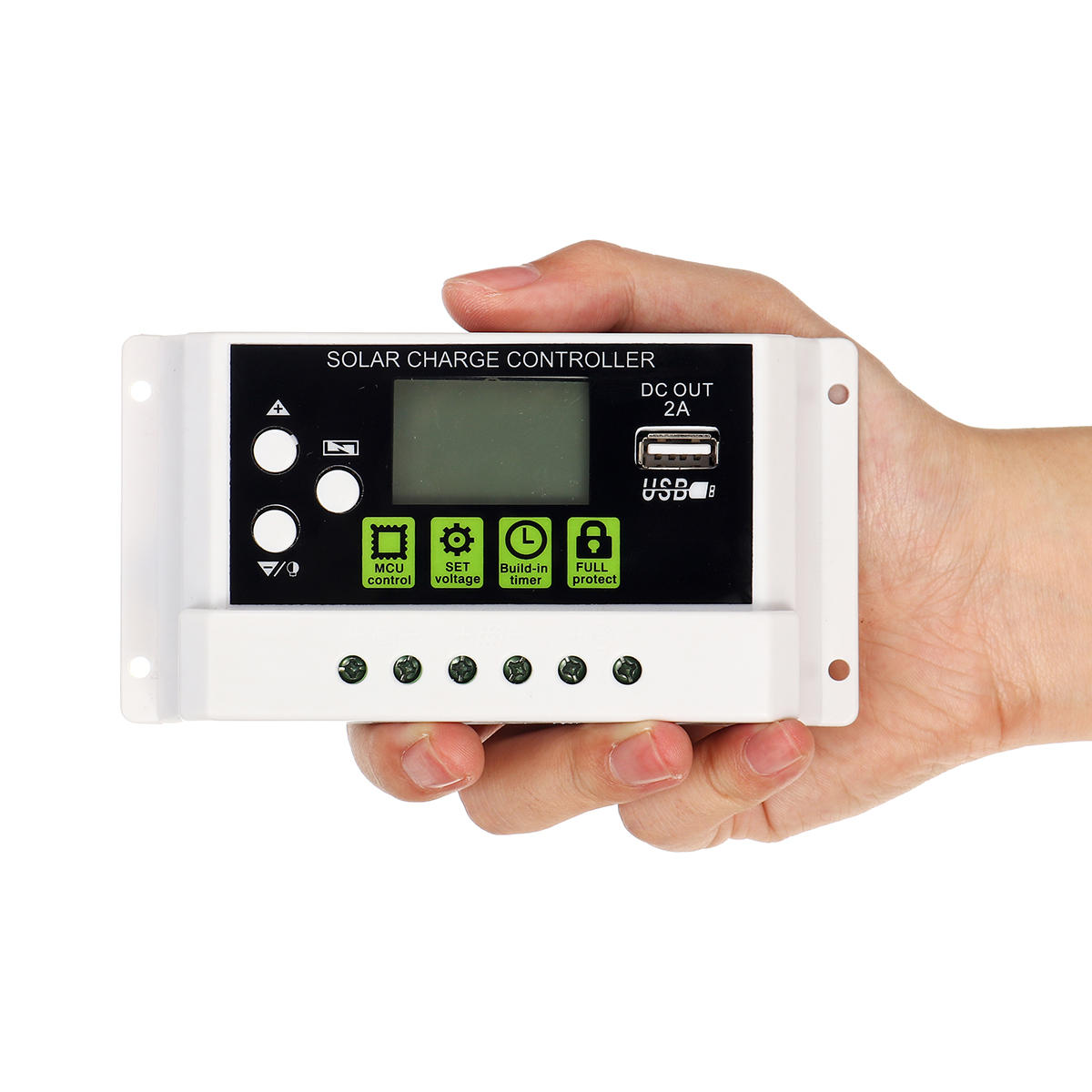

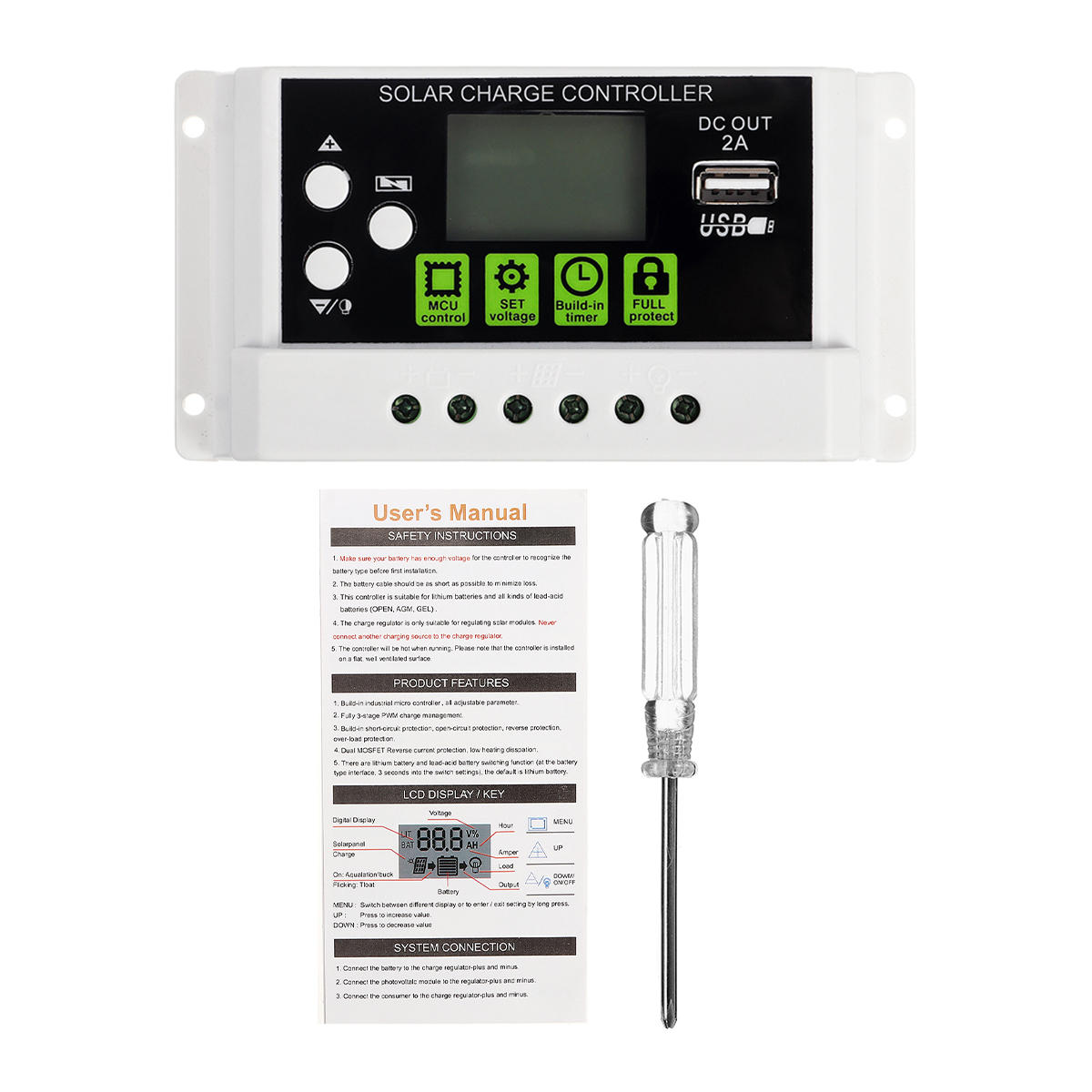

Package Included:

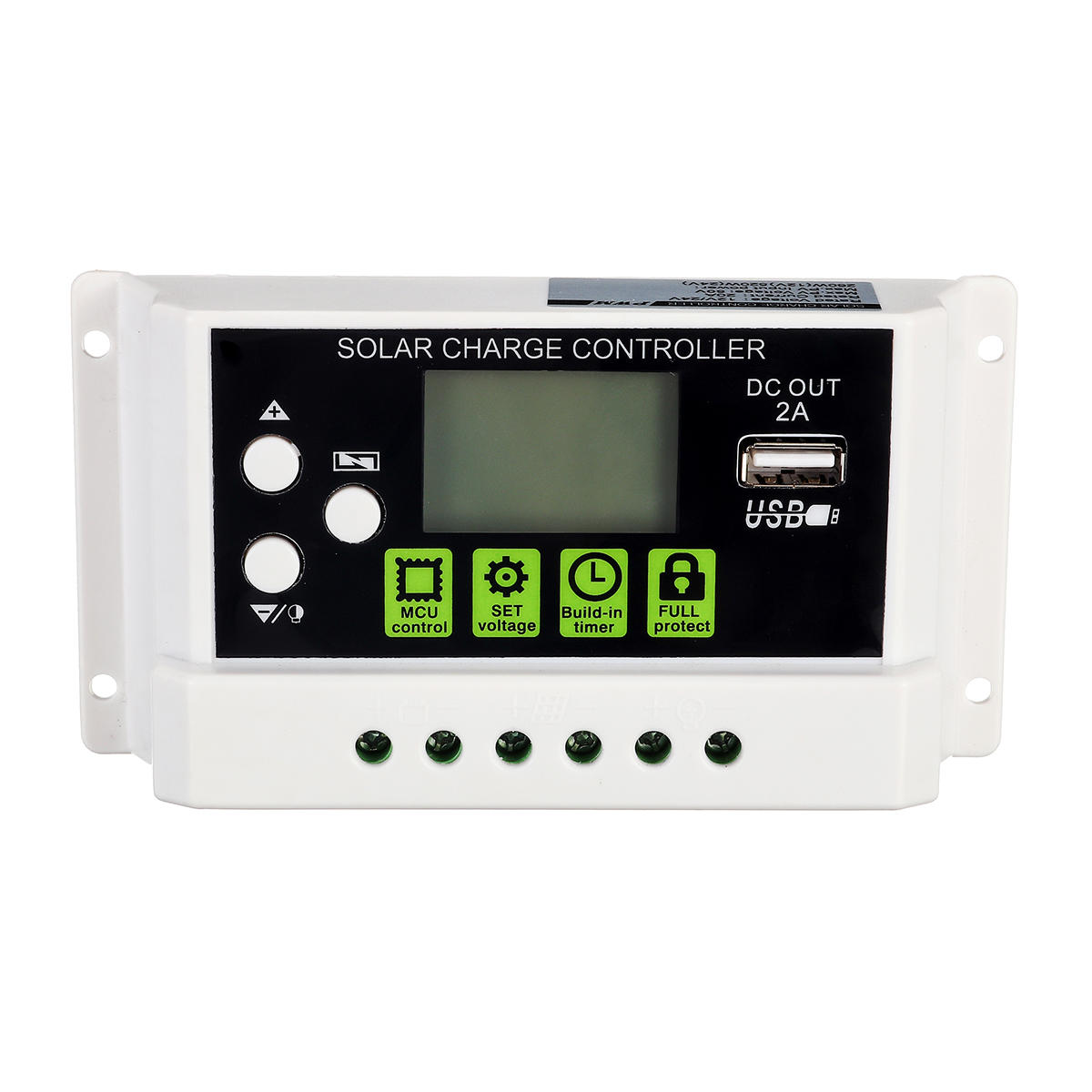

1x PWM Solar Charge Controller

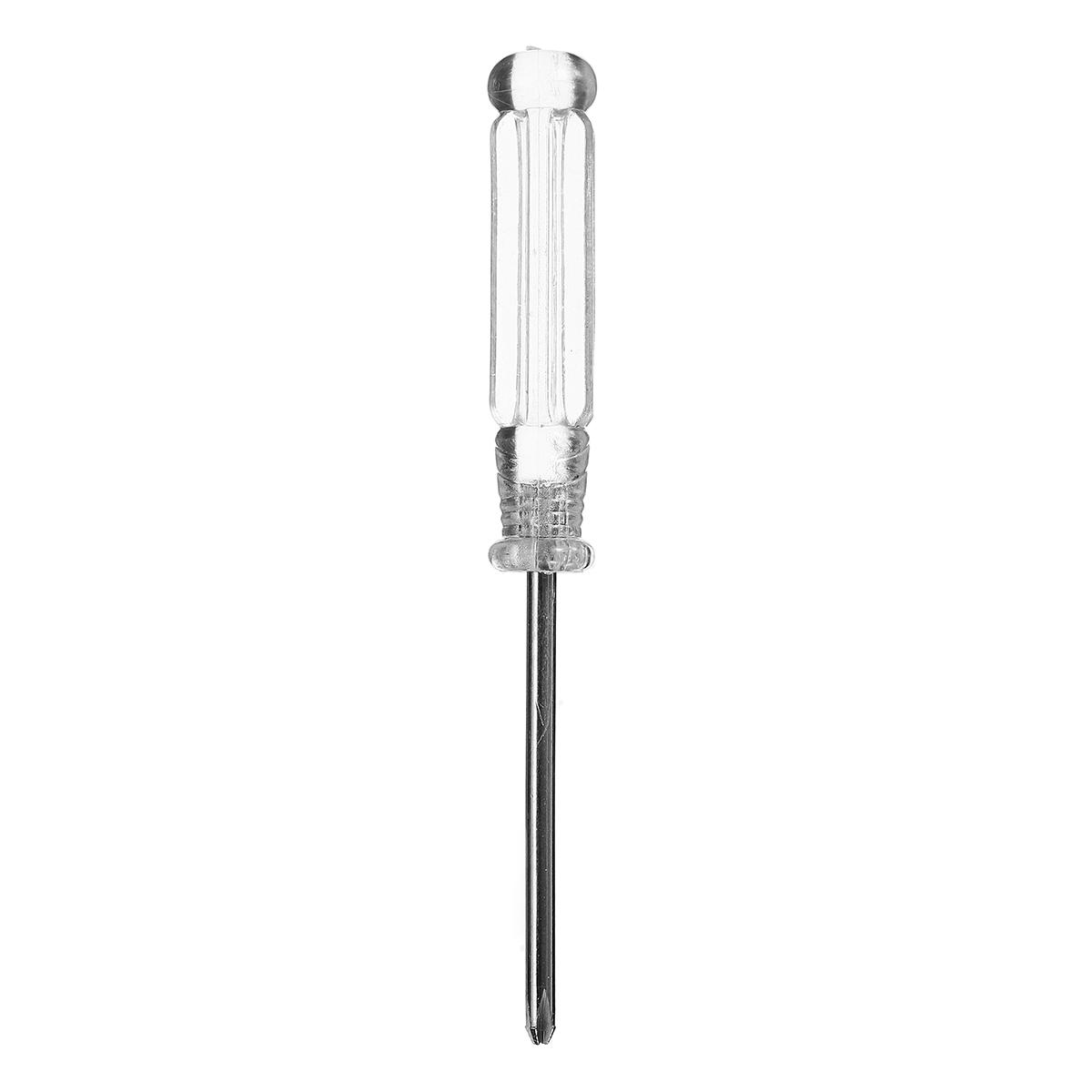

1x Screwdriver

1x Manual (in English & Chinese)

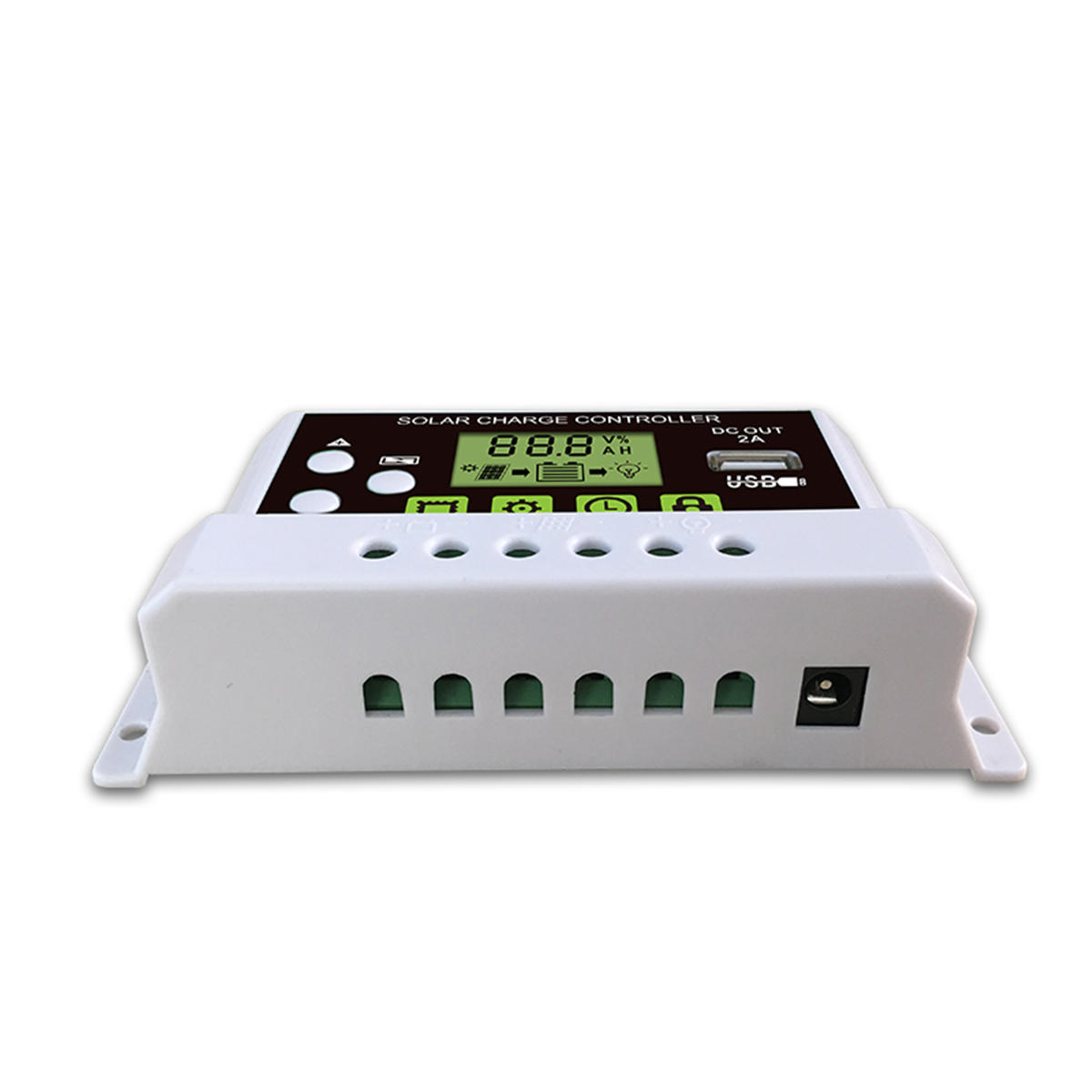

Connection Steps (VERY INPORTANT):

1.Connect the battery to the charge regulator-plus and minus.

2.Connect the photovoltaic module to the regulator-plus and minus.

3.Connect the consumer to the charge regulator-plus and minus.
