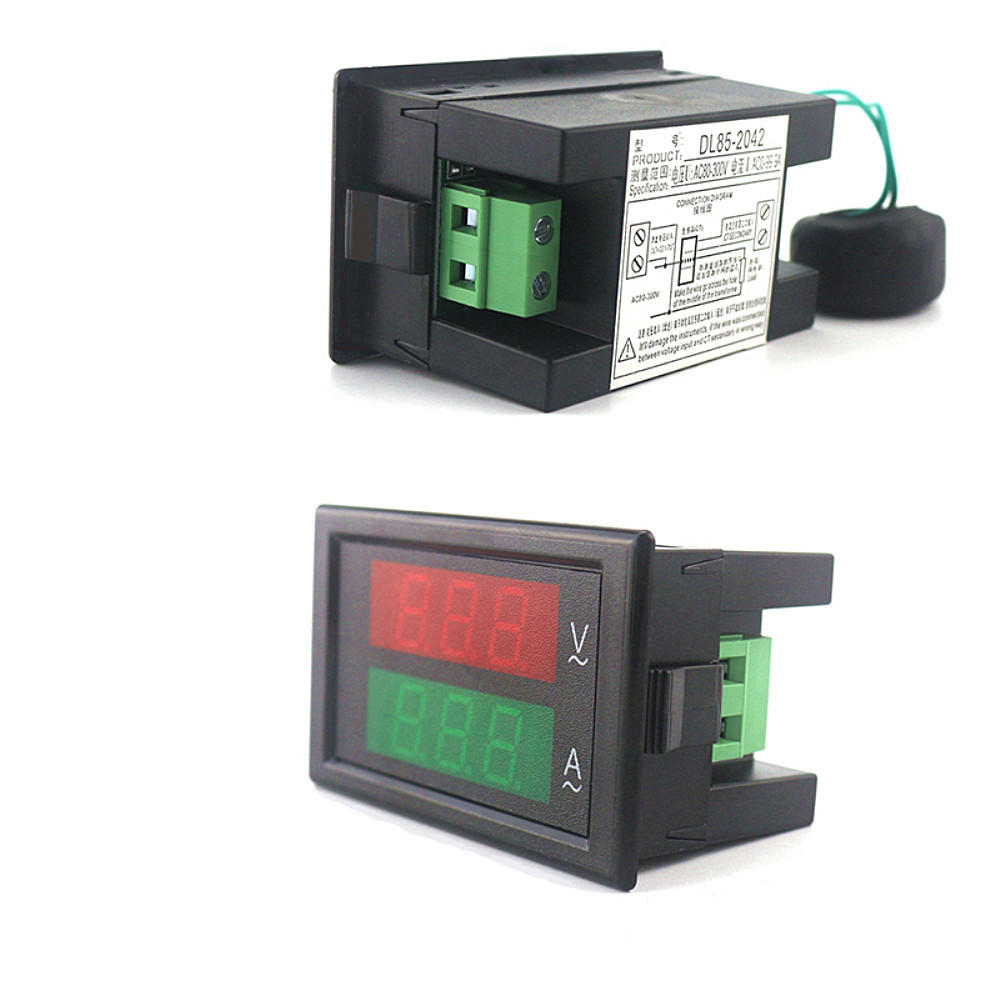

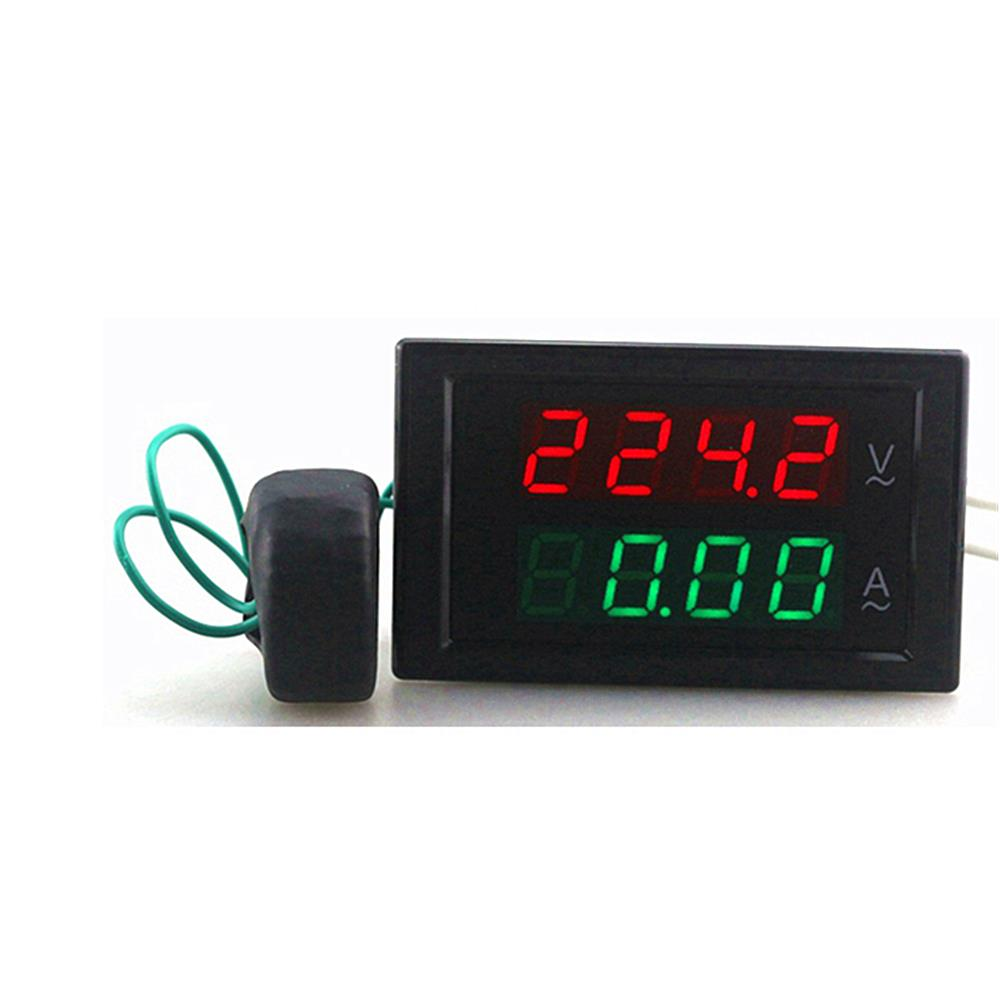

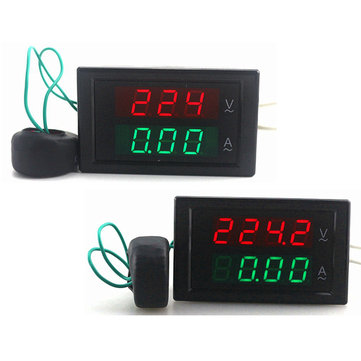

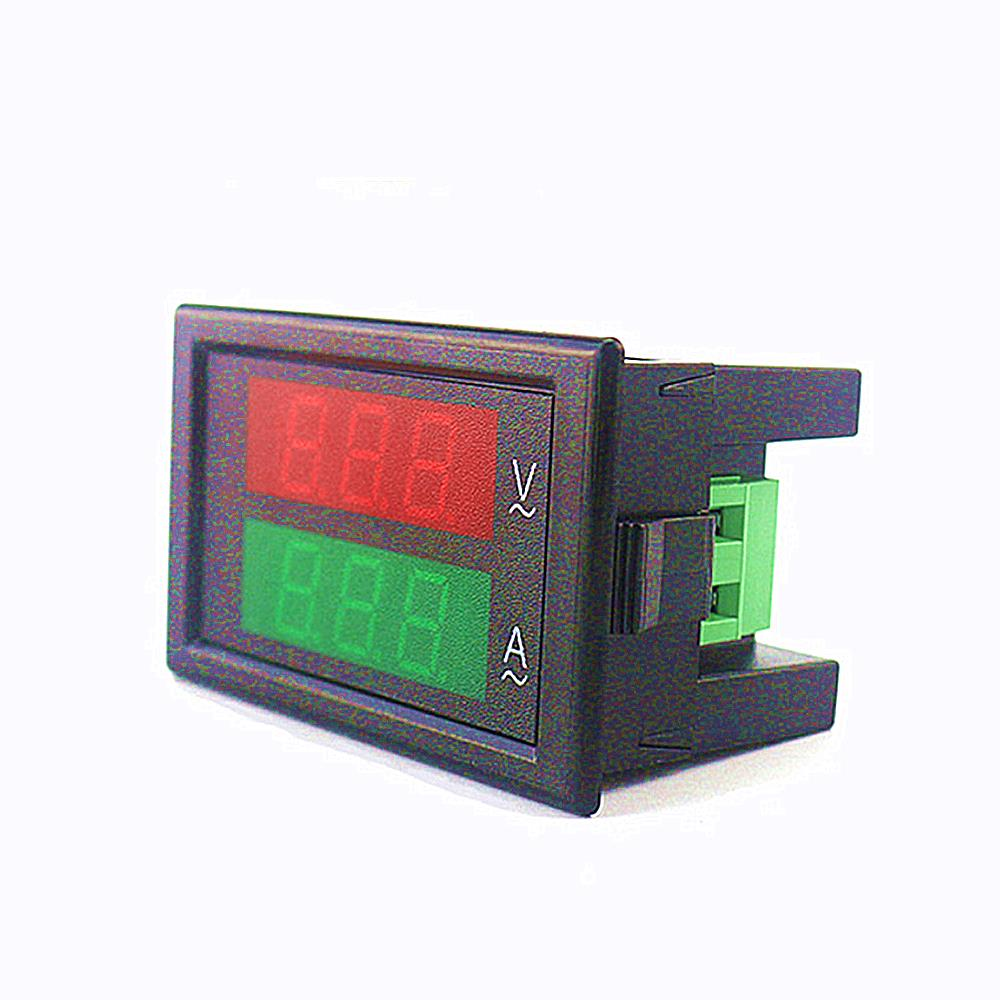

Dl69-2042 4-Digit Dual Display Current Voltmeter Ac 80-300V 0-100A Led Volt Voltage Current Meter

Specification:

Cutting size( Installation Size): 62mm × 37mm

Dimensions: 70x42x40mm

Range: AC80-300V  AC0-100A

Display color: Red GREEN
Display:4

Accuracy: 1 %(+/- 2 digit)

Measuring Speed: 2 times per second

Operating temperature: -10 ° c ~ 65 ° c

Use

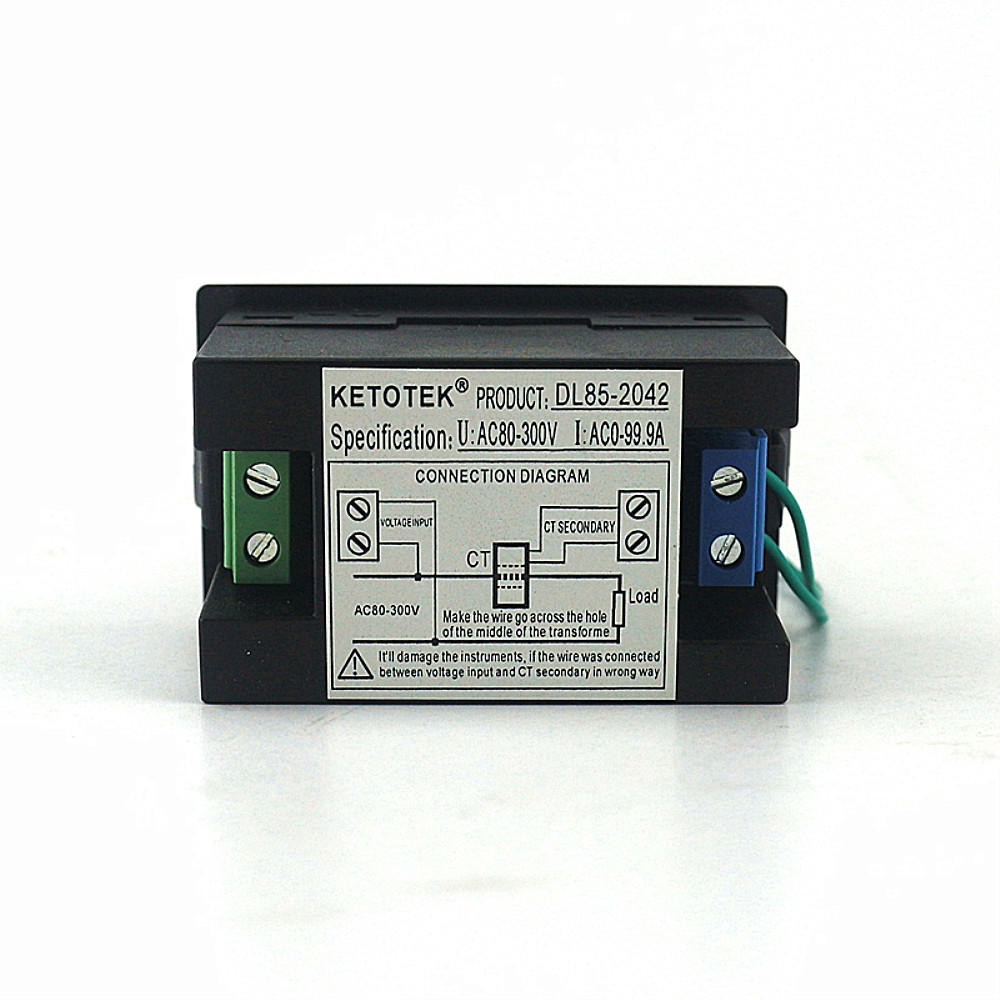

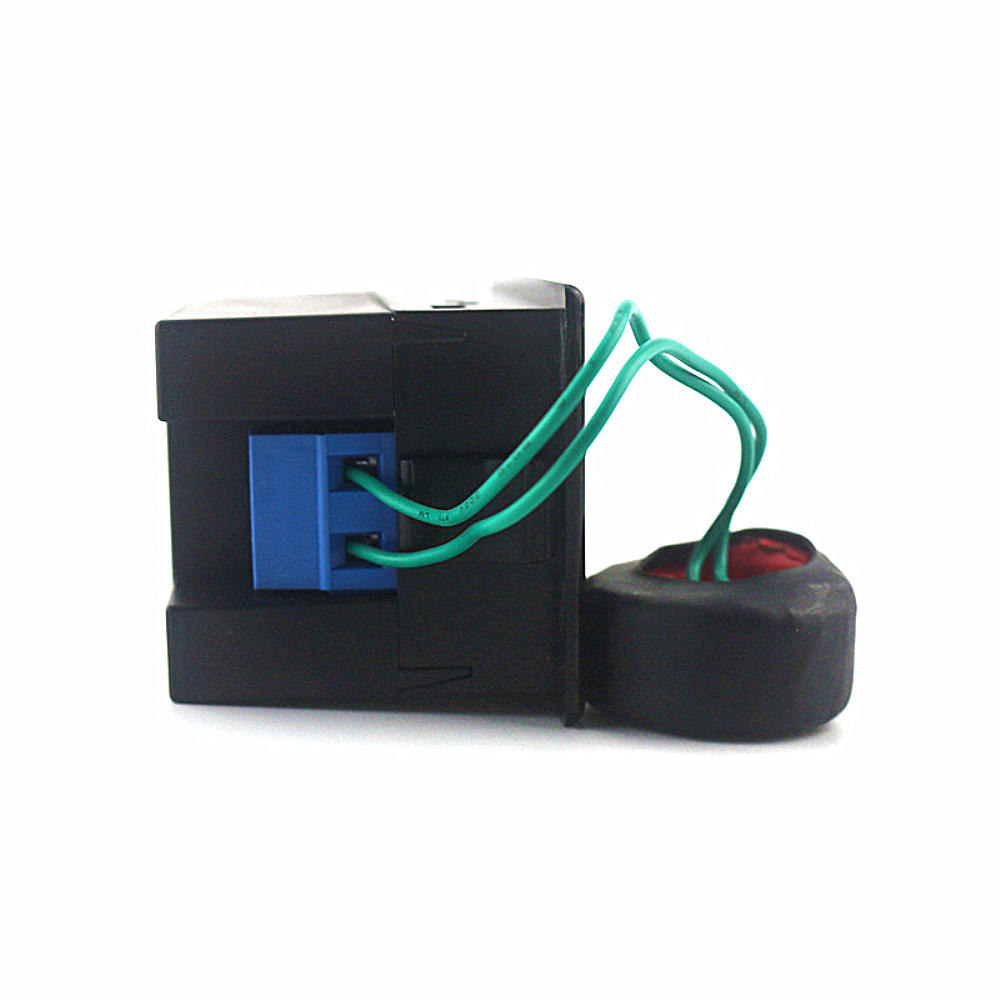

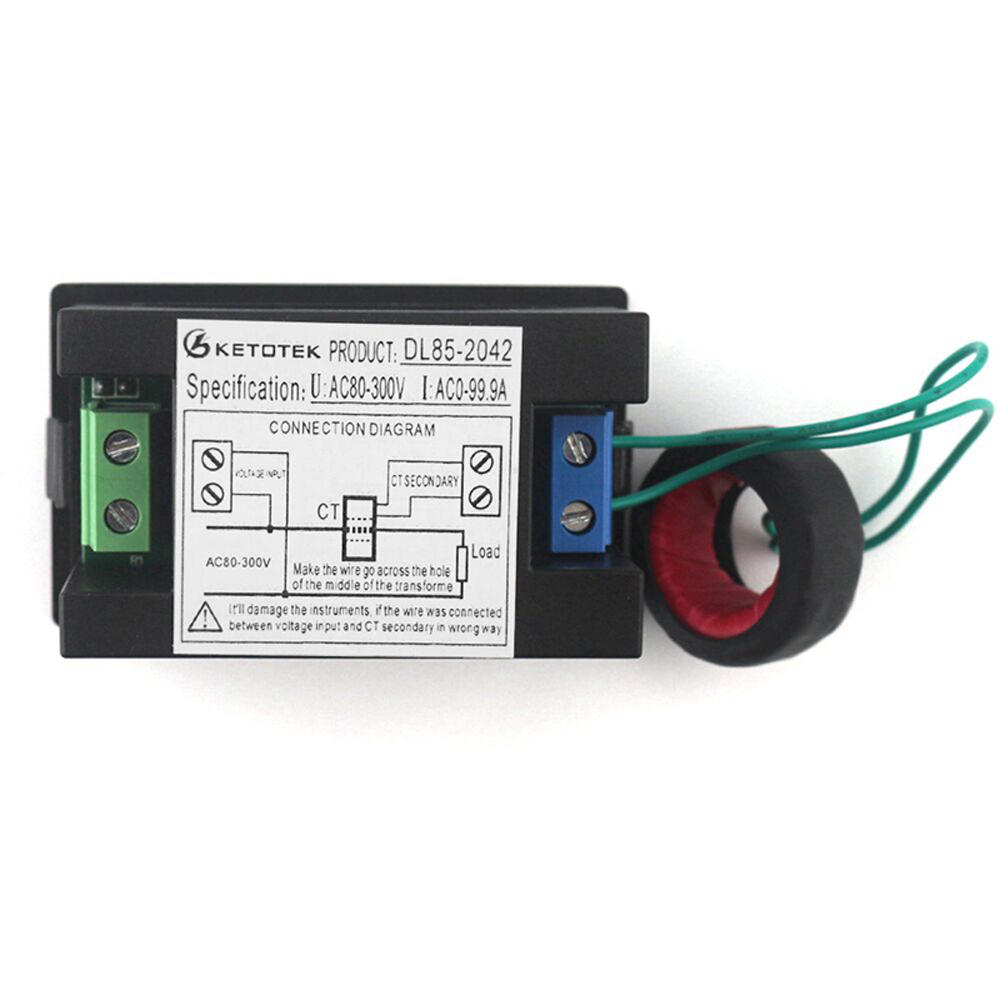

1. Connect the wire of the transformer to the blue terminal of the meter. The measure line must cross the hole of the current transformer.

2. Connect the measure voltage wire to the green terminal.

Note:

1. Wrong connection like Voltage connect to the blue terminal will destroy the meter.

2. The only use for 50HZ electric supply. Do not support for square wave, inverter output and other input, all of these will destroy the meter.

Package included:
1 x Digital Voltmeter
