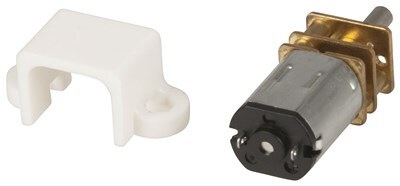

This small gearhead motor with bracket suits robotics and other maker applications. It runs from 6VDC, travels counter-clockwise, and provides a 1:30 gear ratio with a rated speed of 600RPM. Micro wheels to suit are available separately (use YG2902).
• Counter-Clockwise Rotation
• 0.5kg Torsion
Dimension details : Motor Dimensions |
Width : 13.00000000mm |
Height : 10.00000000mm |
Depth : 37.00000000mm |
AC Voltage : 5.40000000V, 6.60000000V |
DC Current Draw : 35.00000000mA, 40.00000000mA |
Type : Gear Array |
Gear Ratio : 1:30 |
Pre-assembled Gear : true |
Motor Type : Gearhead |
Motor Nominal Voltage : 6.00000000V |
No load current : 35.00000000mA |
No load RPM : 600.00000000RPM |
Max efficiency RPM : 600.00000000RPM |
Max. efficiency current : 40.00000000mA |
Dimension details : Mount Dimensions |
Width : 26.00000000mm |
Height : 12.00000000mm |
Depth : 12.00000000mm |
