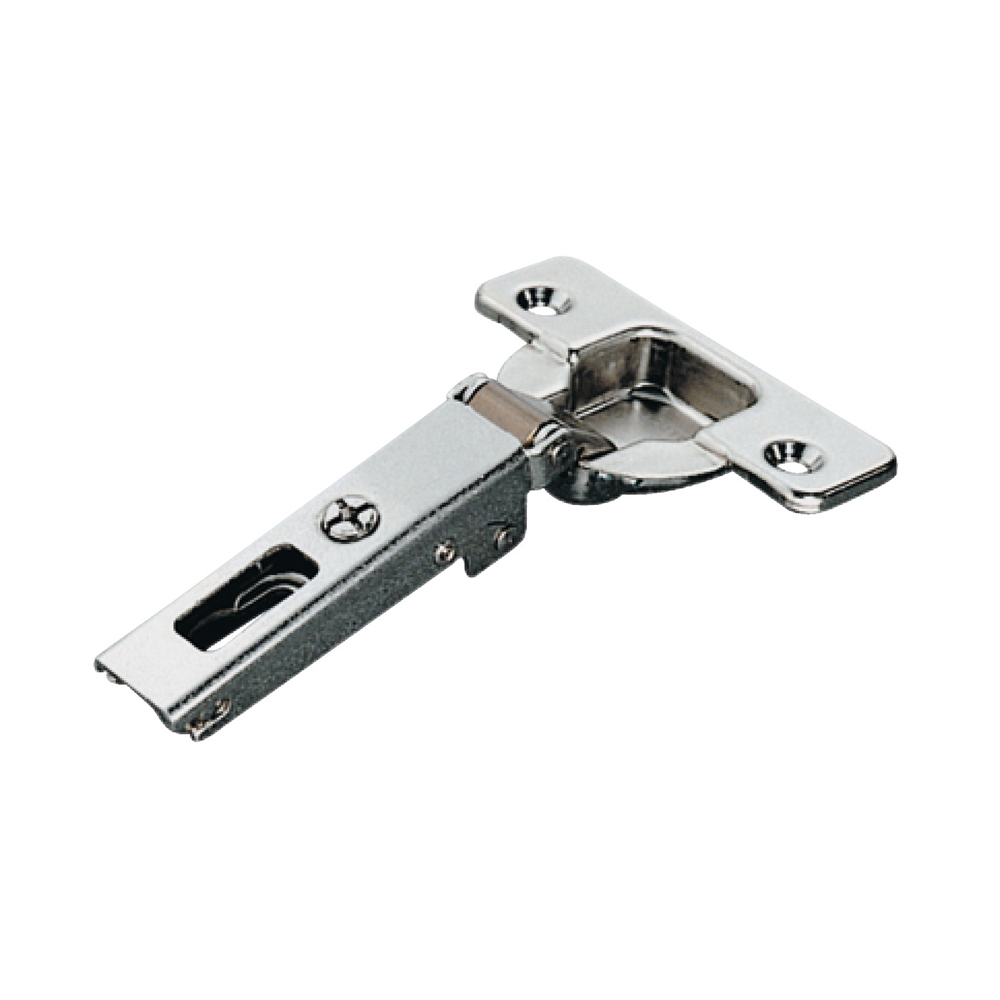

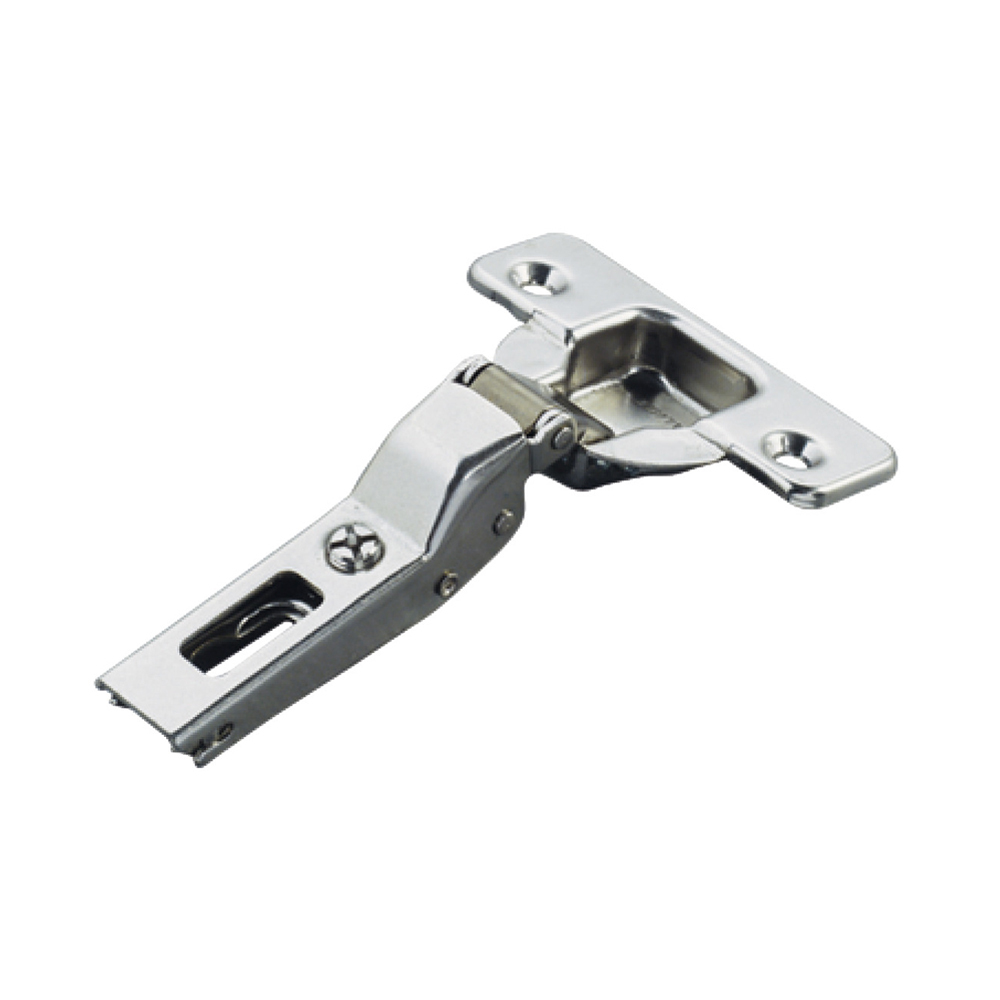

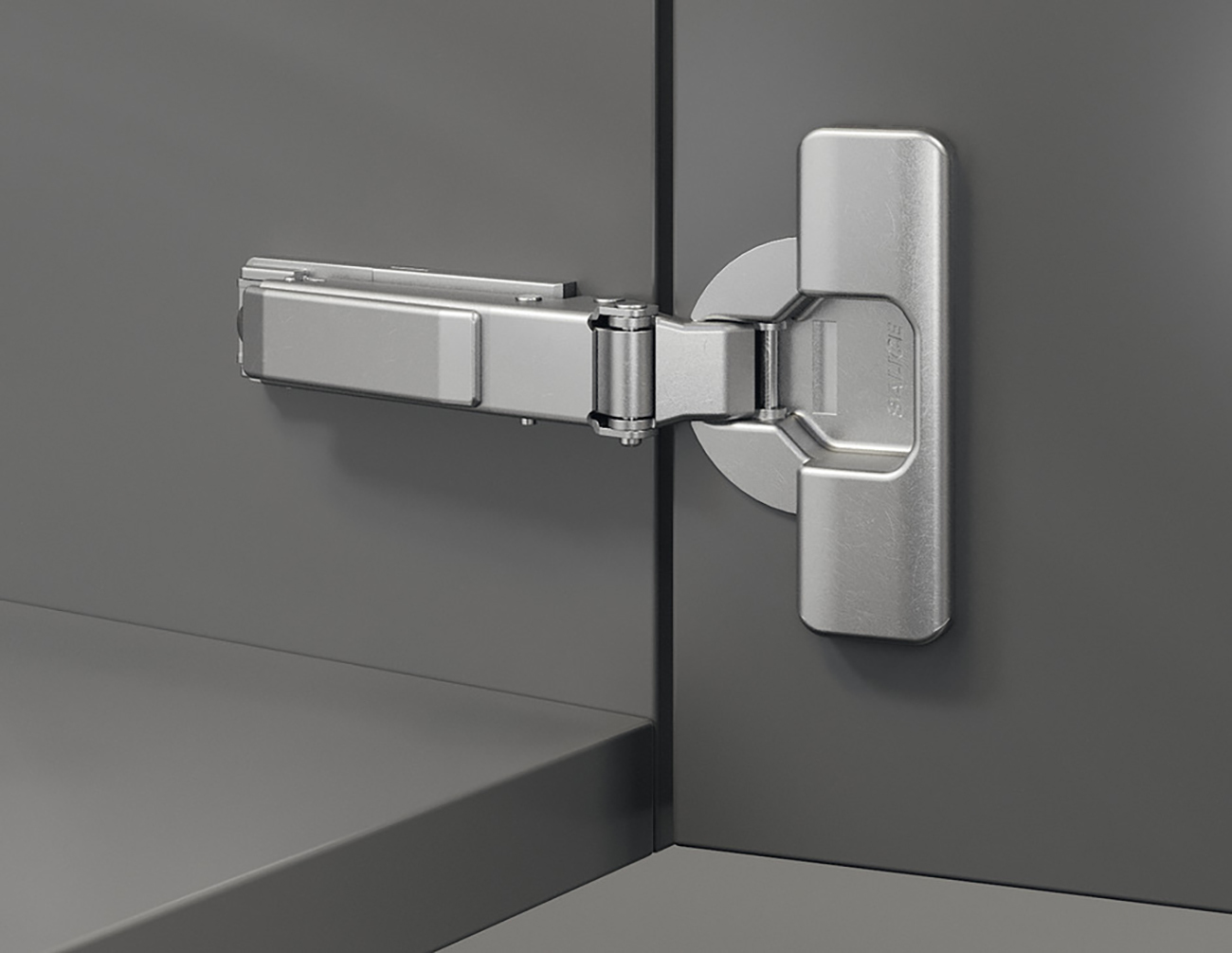

Hafele Duomatic 105 Degrees Concealed Hinge Nickel Plated

Hafele Duomatic Concealed Hinge
329.28.600

Duomatic Concealed Hinge is commonly used in cabinetry, furniture, and interior doors for aesthetic and space-saving benefits.

Duomatic Concealed Hinge Function - allowing a door to swing open and closed while being concealed within the door and frame, providing a clean and streamlined appearance. These hinges are adjustable to accommodate different door weights and sizes and typically offer features like soft-close mechanisms for smooth and quiet operation.

Specifications:

• Area of Application: For thin doors from 10 mm

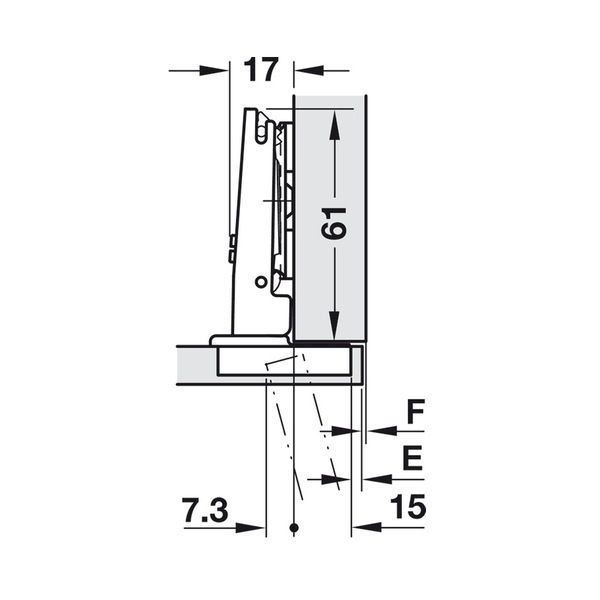

• Concealed Hinge Version: Full overlay
• Version: With automatic closing spring
• Crank Type: Straight
• For Door Material: Wood

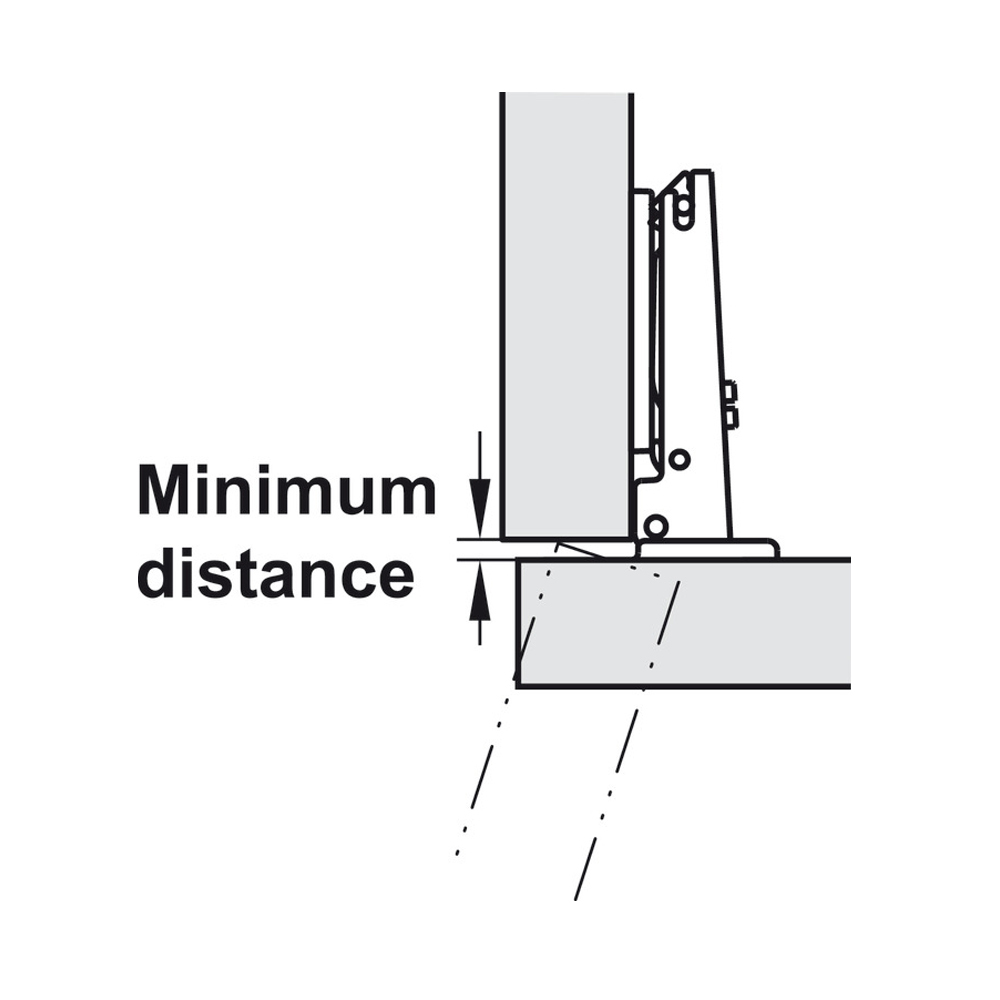

• Door Processing for Assembly: with cup drilling
• Material:
  • Cup: Zinc alloy
  • Hinge arm: Steel
• Opening Angle: 105 Degrees

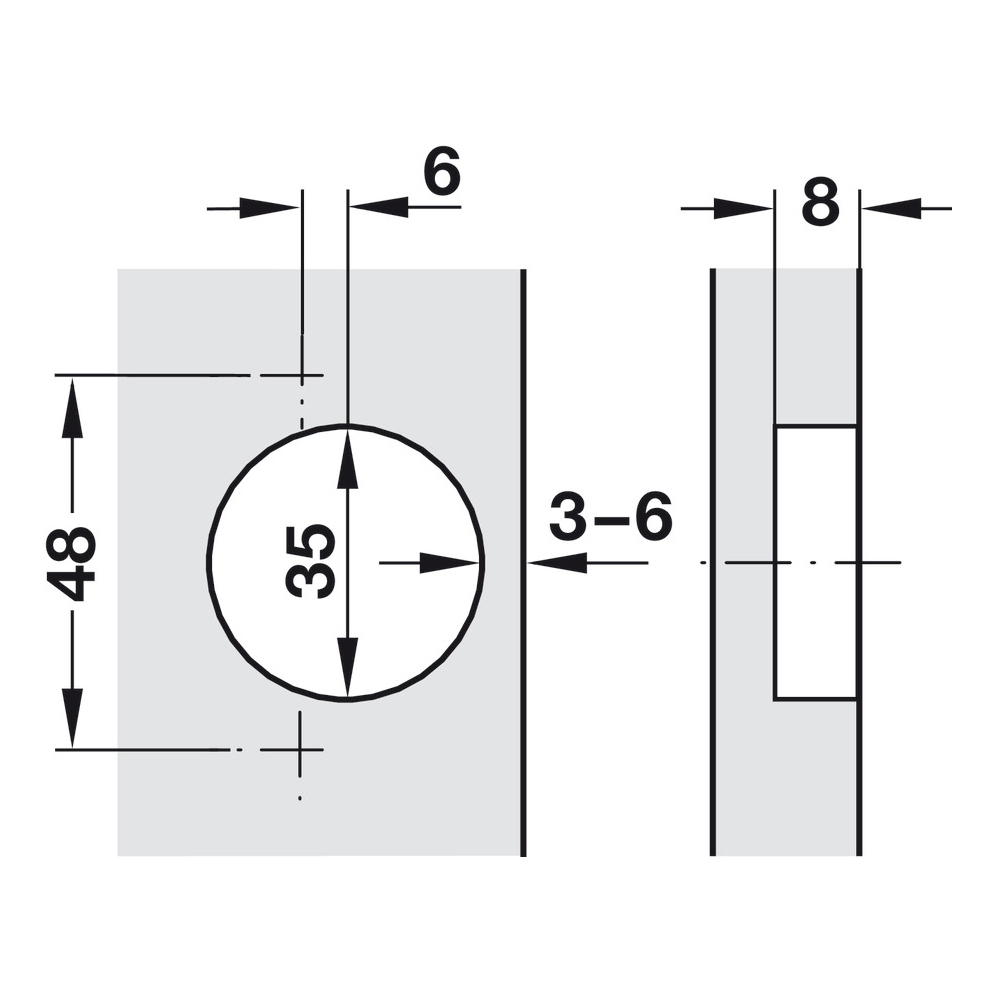

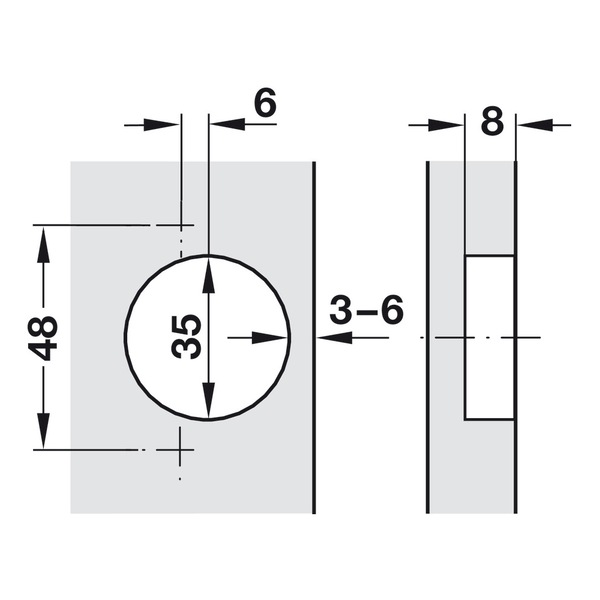

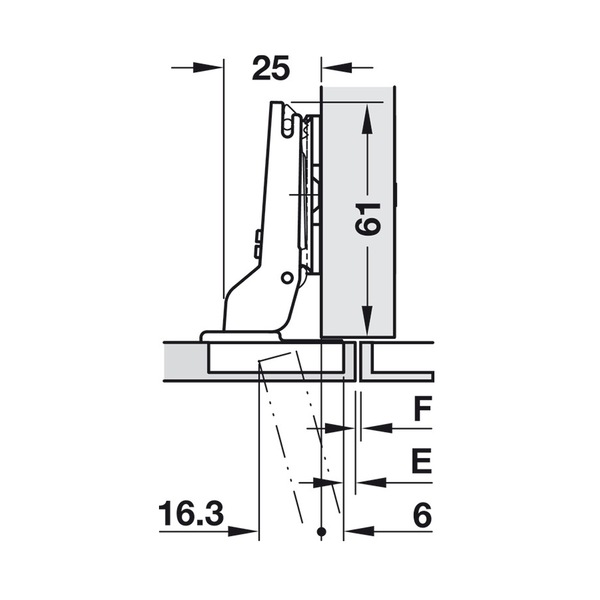

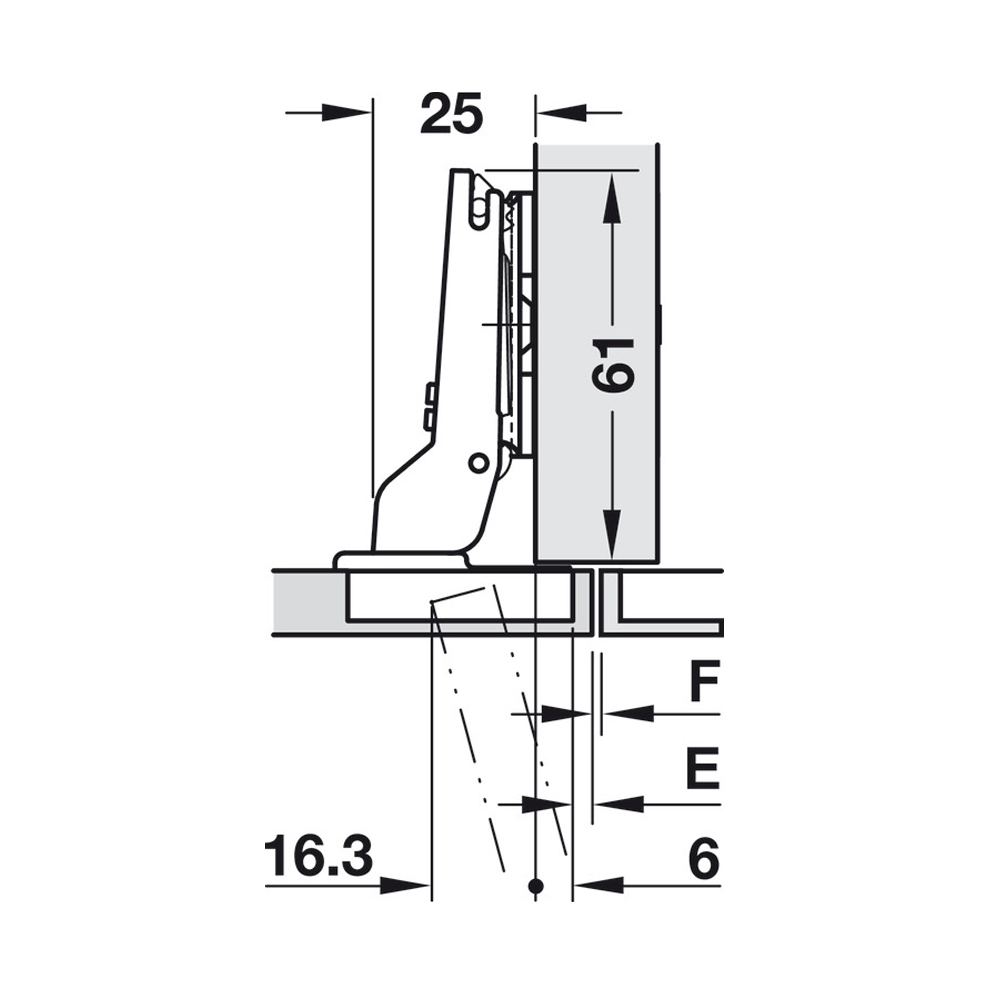

• Cup Drilling Depth: 8mm

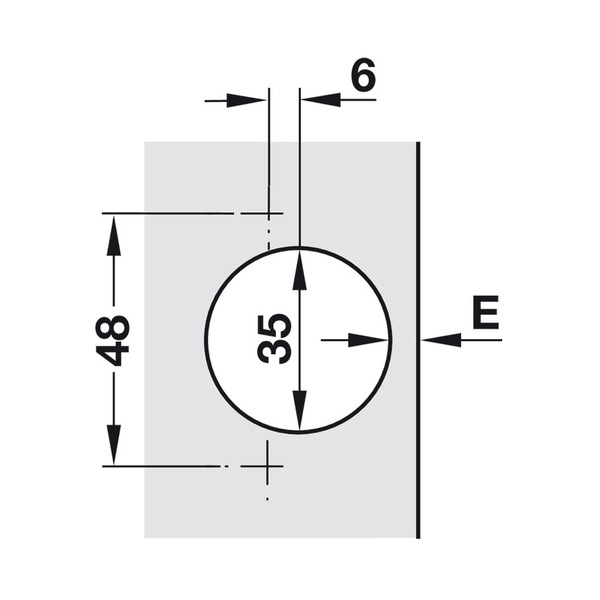

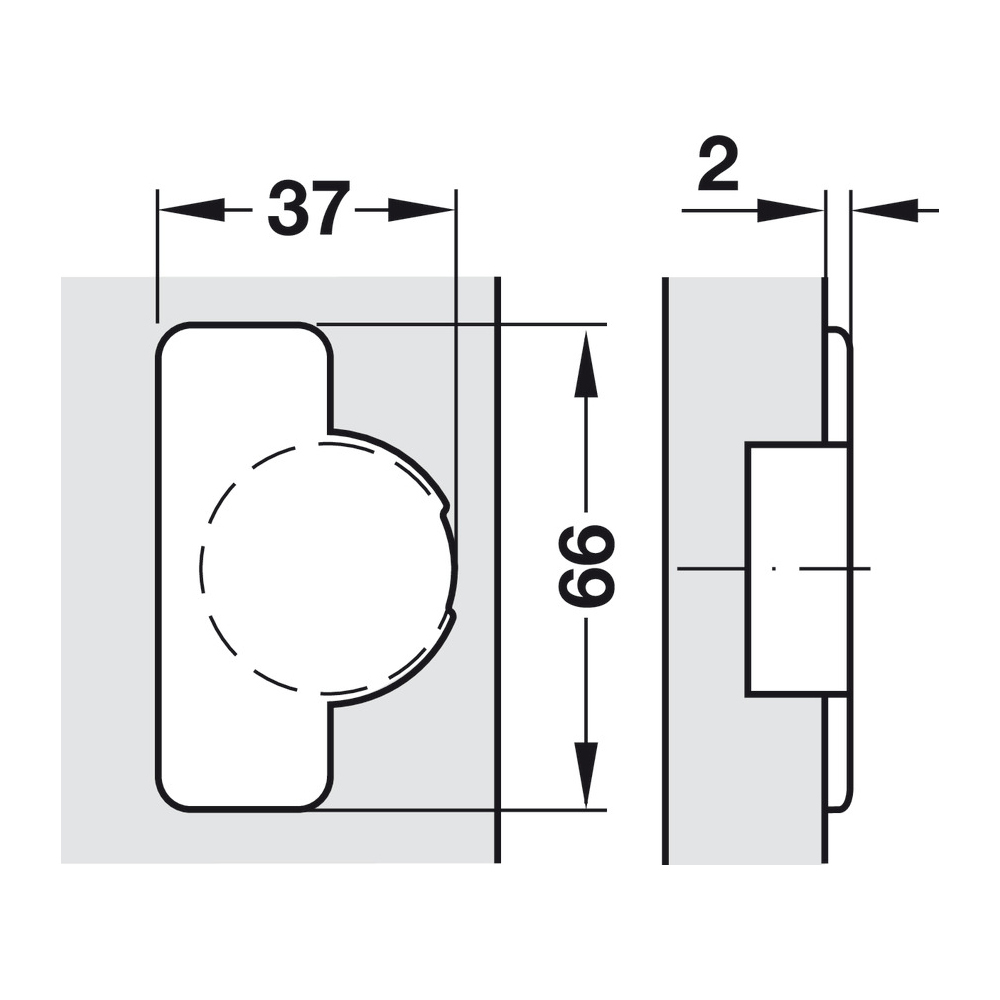

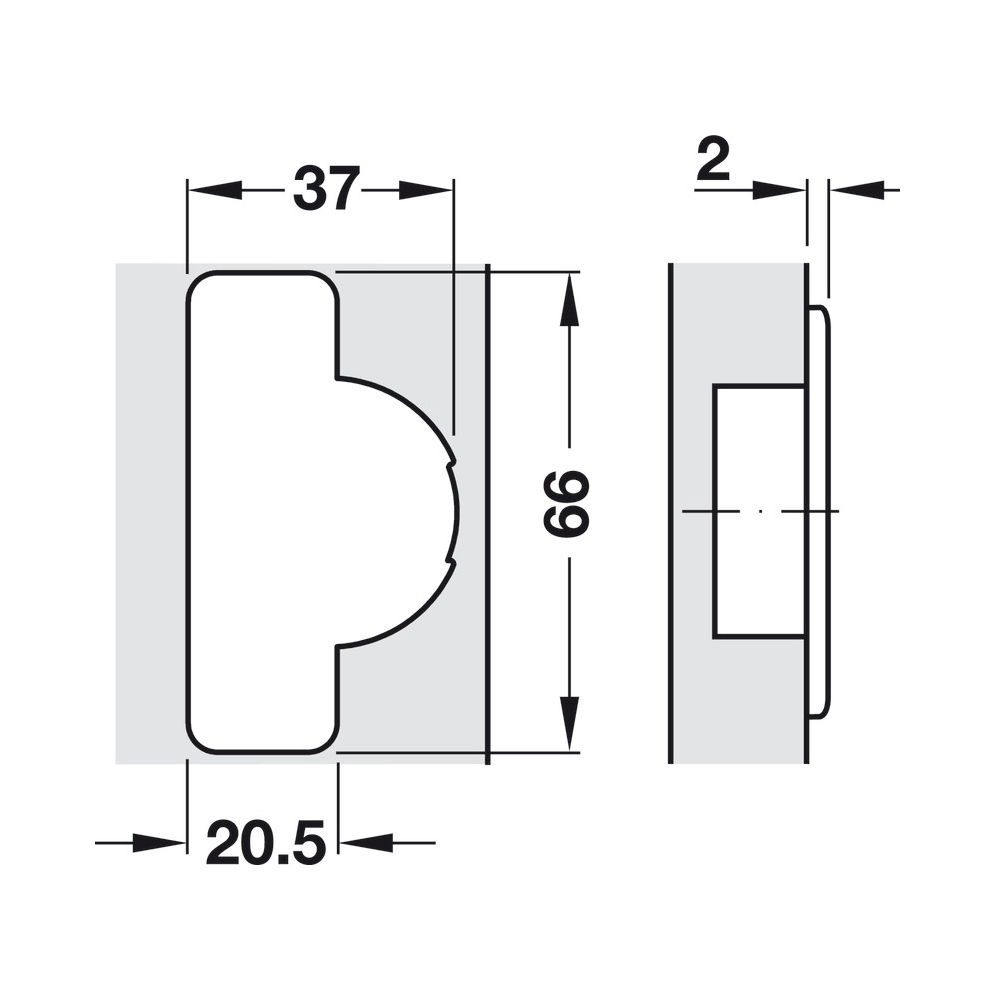

• Cup drilling Diameter: 35mm
• Cup Fixing: for screw fixing

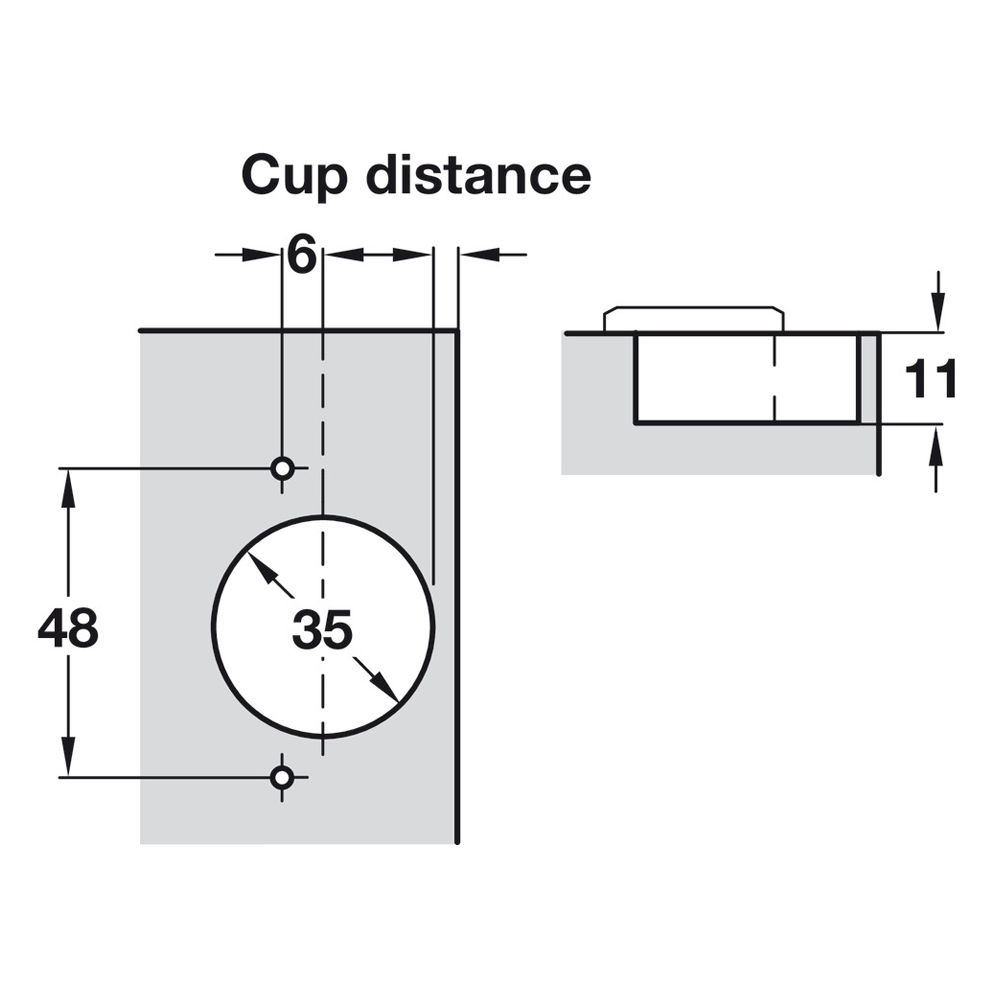

• Drilling Pattern: 48/6
• Adjustment Facility:
  • Side adjustment -1.5mm to 4.5mm
  • Height adjustment +- 2 mm
  • Depth adjustment with Duomatic A mounting plates +2.8 mm
  • Duomatic SM mounting plates from -0.5 to +2.8 mm
• Installation: Door on cabinet with slide-on system A or quick fixing system SM
• Finish: Nickel Plated
