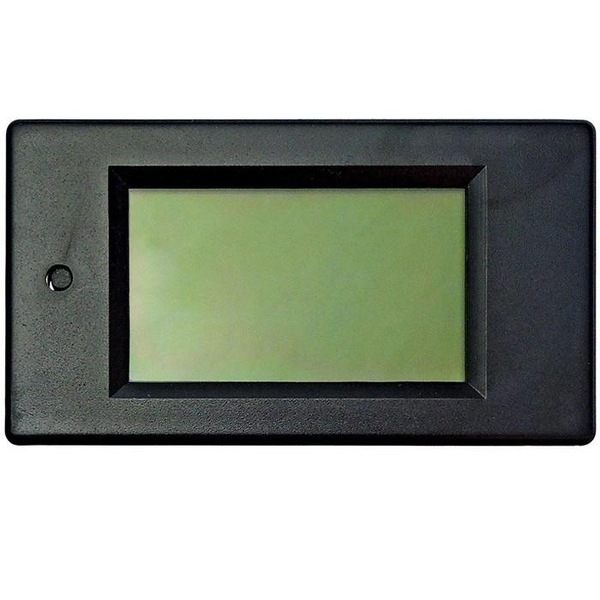

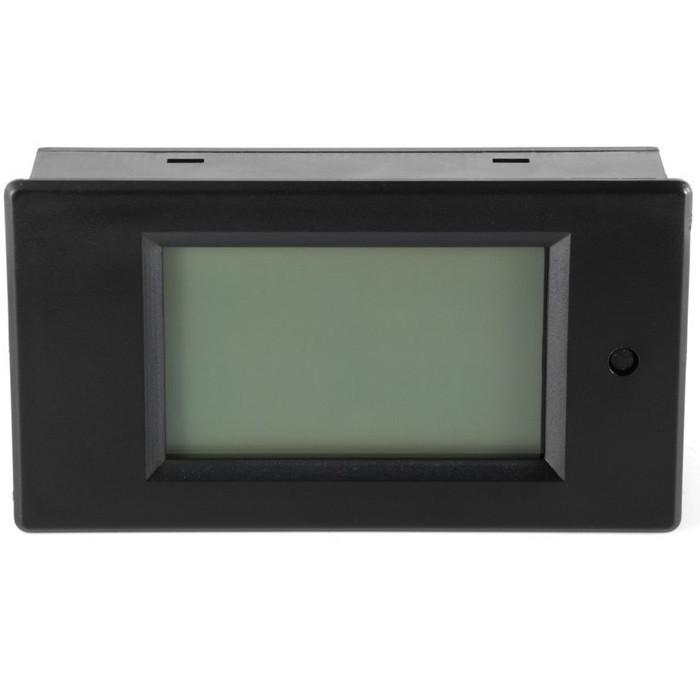

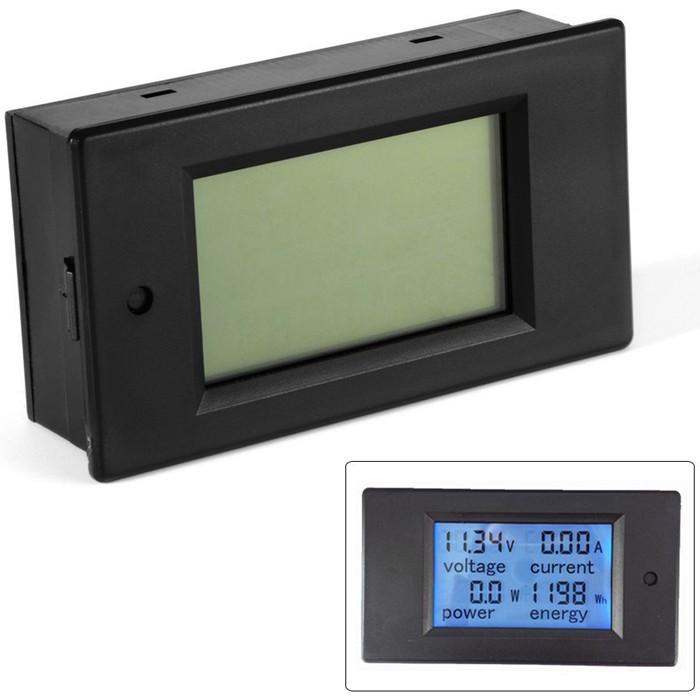

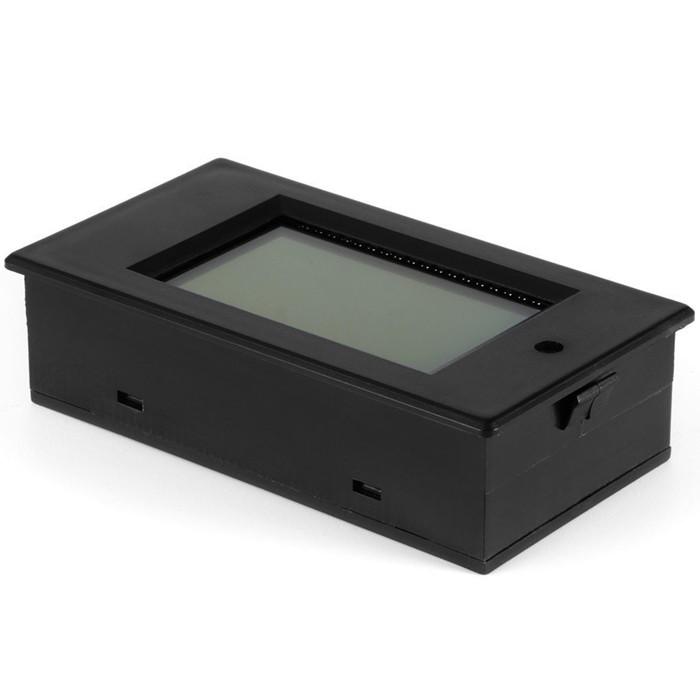

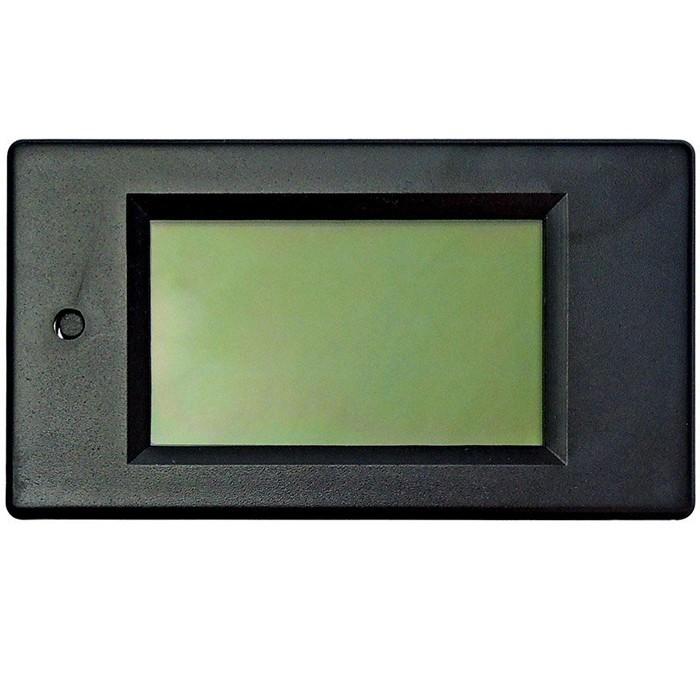

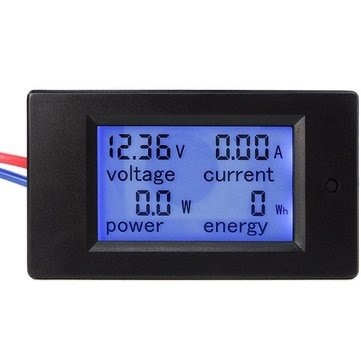

Pzem-031 Dc 6.5-100V 20A 4 In 1 Digital Display Lcd Screen Voltage Current Power Energy Meter

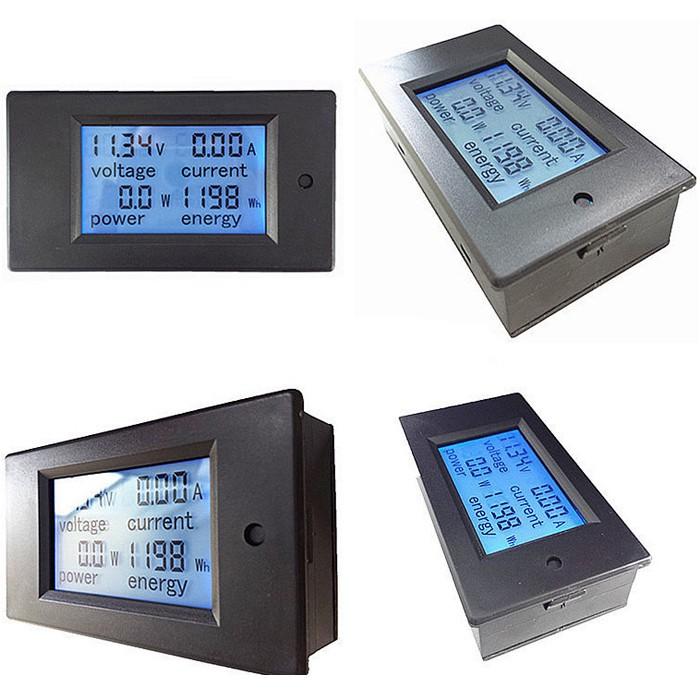

Display format:

1.Power: test range: 0~2kW

Within 1KW, the display format is 0.0~999.9W;

1KW and above, the display format is 1000~2000W.

2.Energy: test range: 0~9999kWh

Within 10KWh, the display format is 0~9999Wh;

10kWh and above, the display format is 10~9999kWh.

3.Voltage: test range: 6.5~100V

Display format: 6.50~99.99V

4.Current: test range: 0~20A

Display format: 0.00~20.00

Specification:

1. Working voltage: 6.5 ~100VDC

2. Test voltage: 6.5 ~100VDC

3. Rated power: 20A/2000W

4. Measurement accuracy: 1.0 grade

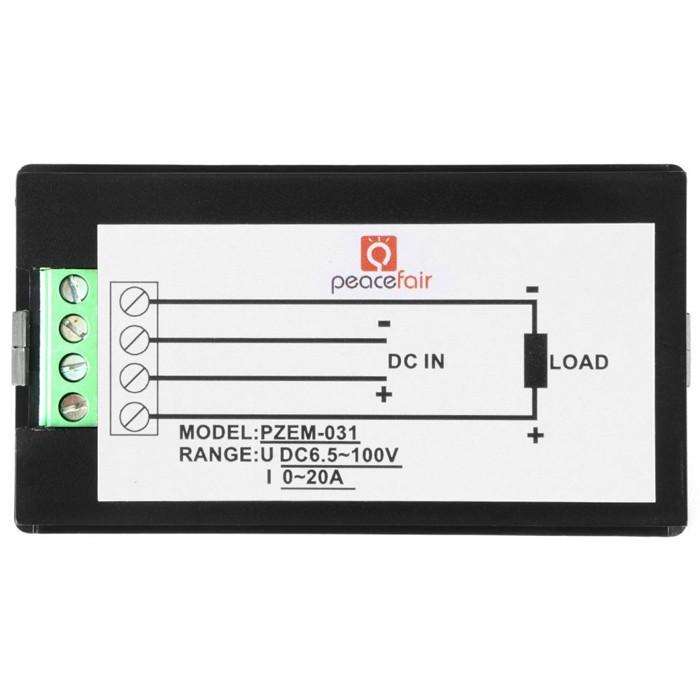

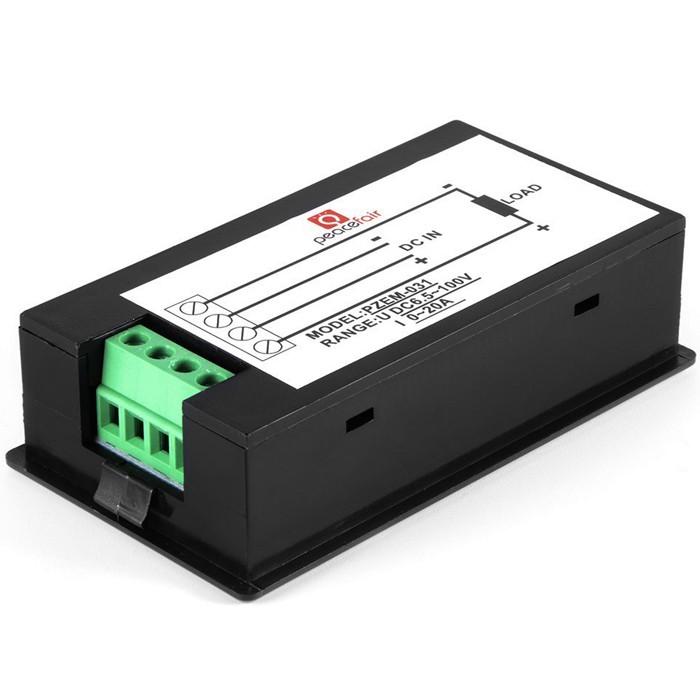

Wiring diagram:
Dimension diagram (mm)
Package included:

1 xPZEM-031 4 in 1 Digital Voltage Current Power Energy Meter
