All-In-One solution, which combines a Pure Sine Wave inverter, MPPT controller, and Wi-Fi Data Logger. This highly efficient inverter controller seamlessly integrates solar energy storage, mains charge storage, and AC sine wave output. It is equipped with DSP control, ensuring a quick response, high reliability, and compliance with high industrial standards.
The MPPT Controller features advanced solar charging technology with MPPT tracking. It efficiently tracks the maximum power point of the photovoltaic array in any environment, enabling real-time optimization and extraction of the maximum energy from the solar panel. With its wide MPPT voltage range, it maximizes the performance of the solar system.
This versatile system offers four charging modes and two output modes, including mains bypass and inverter output, providing uninterrupted power supply. It also facilitates lithium battery activation by PV solar or mains power, allowing the use of both lead-acid and lithium batteries.
Specification:

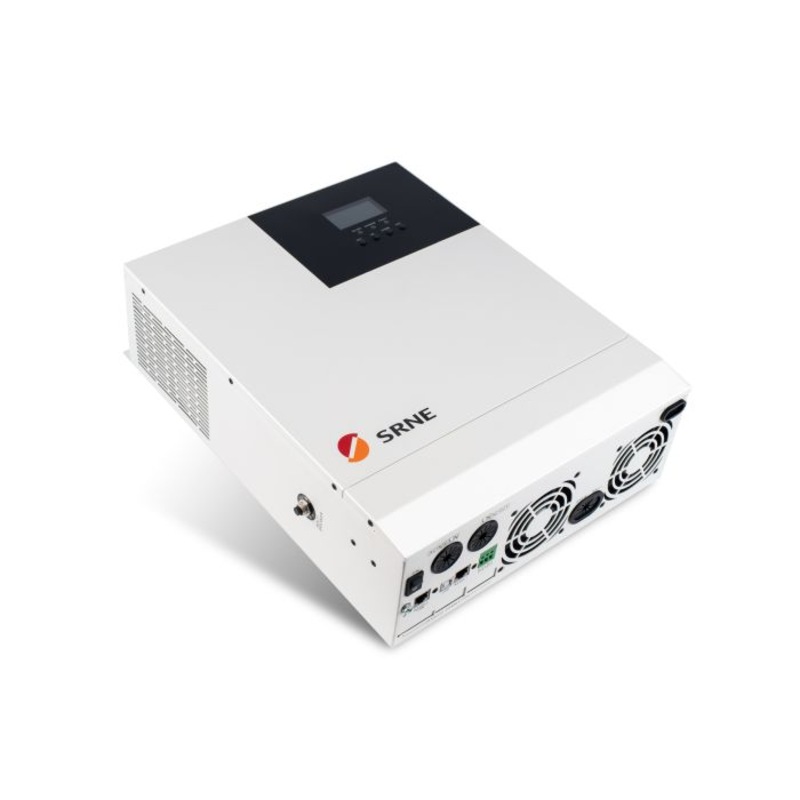

Model Number:HF4850S80-H
Input Voltage:48V
Output Voltage:230v
Output Frequency:50Hz/ 60Hz
Output Type:Single Phase
Size:426mm*322mm*126mm
Inverter Efficiency:>95%
Certificates:CE(IEC/EN62109-1,-2),ROHS2.0
Weight:11kg
Output voltage waveform:Pure sine wave
AC charge current:60A
PV charge current:80A
Wifi function: support
Maximum PV open circuit voltage:500v
Battery type:Lead acid or lithium battery
Protection:Low battery,High battery, Over load, Short circuit
Transfer Time: <4ms
Including:
5KW All-In-One Pure Pure Sine Wave High Efficiency Inverter x1
User Manual x1
Warranty Card x1
Installation Guide x1
2AWG lugs x2
Wifi Data Logger for inverter x1
Warranty:
5 years
Certification:
CE(IEC62109-1) / CETL(UL 1741 C22.2 NO.107.1) /FCC/SAA
