Uni-T Ut682 Rj11 Rj45 Wire Tracker Line Finder Telephone Network Cable Tester

Description:

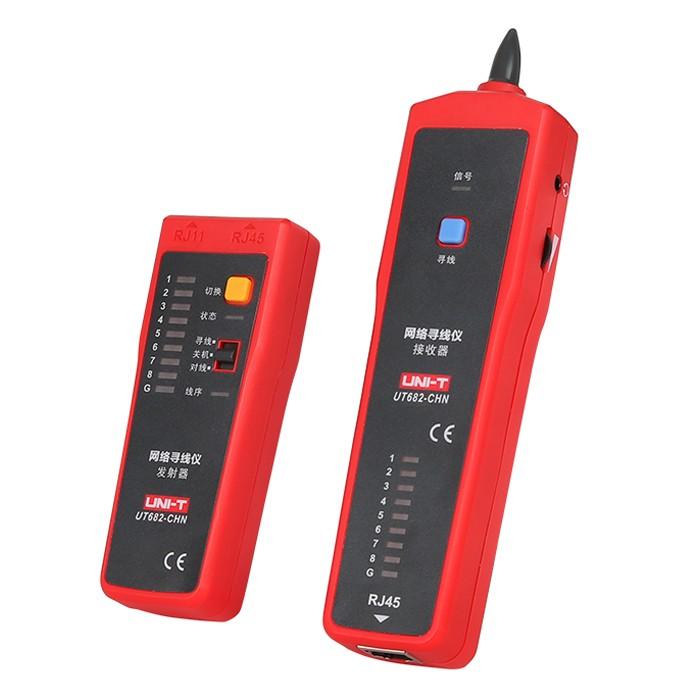

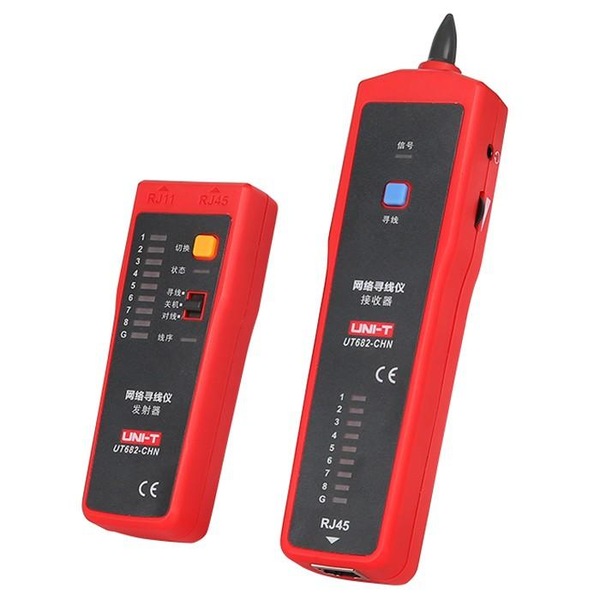

UT682-CHN wire tracker consists oftransmitter and receiver. It has functions like telephone wire tracking, network wire tracking, cable wire tracking, network wire check, etc. and it hasfast and accurate measurement. UT682 is an ideal tool for personnel to installand maintenance weak current system such as communication wires and integratedwiring circuits.

Features:

Product name: Wire Tracker
Power supply: 9V Battery
Signal transmission form: Multi frequency pulse
Short circuit, open circuit test: √
Telephone line polarity instructions: √
Audio signal test range: ≥1000m
Video line distance: ≥100m
Low battery indication(Transmitter):√

Telephone Line Tracking Function
A. Connect the telephone line head into the transmitter’s RJ11 interface;
B. Press the transmitter functional select switch to the “TEST”positin. Line tracking indicator “Status”will flask, which indicates that the transmitter works properly;
C. Hold down the receiver “Press to test”button and look for the target cable with receiver probe.
D. During the testing, light press “Switch”button to switch between single and double audio test pattern.

Network Line Tracking Function
A: The network line with a crystal head into the transmitter RJ45 interface;
B. Press the transmitter functional select switch to the “TEST”position, Line tracking indicator “Status”will flash, which indicates that the transmitter works properly;
C. Hold down the receiver “Press to test”button and look for the target cable with receiver probe.
D. During the testing, light press “Switch”button to switch between single and double audio test pattern.

Power Cable Line Tracking Function (Power cable must not be powered)
A. Connecting the transmitter with metal cable using alligator clip adapter wiring;
B. Adjust the transmitter functional select switch to the “TEST”position, line tracking indicator “Status”will flash, which indicates that the transmitter works properly;
C. Hold down the receiver “Press to test”button and look for the target cable with receiver probe.
D. During the testing, light press “Switch”button to switch between single and double audio test pattern.

Package included:

1 x UNI-T UT682 Transmitter
1 xUNI-T UT682 Receiver
1 x RJ11 Adapter Cable
1 x RJ45 Adapter Cable
1 x Crocodile Clip Adapter Cable
1 x Cloth Bag

2x 9V Battery

1 x English User Manual
