• OEM specs coincidence to ensure the perfect fitment to the related parts
• Material qualification for durable and reliable use
• Multi-Discipline tests, like balance, housing durability, wheel load limits, sealing, etc. are carried to enhance the quality of every unit
• Accuracy producing on all procedures to reduce possible metallic contacts under different condition
• Large range of turbochargers for easily locate the turbo with the target horse power and size you need from us
• Quality fully guaranteed and professional installation highly recommended

Notice: Pick up service is not available.

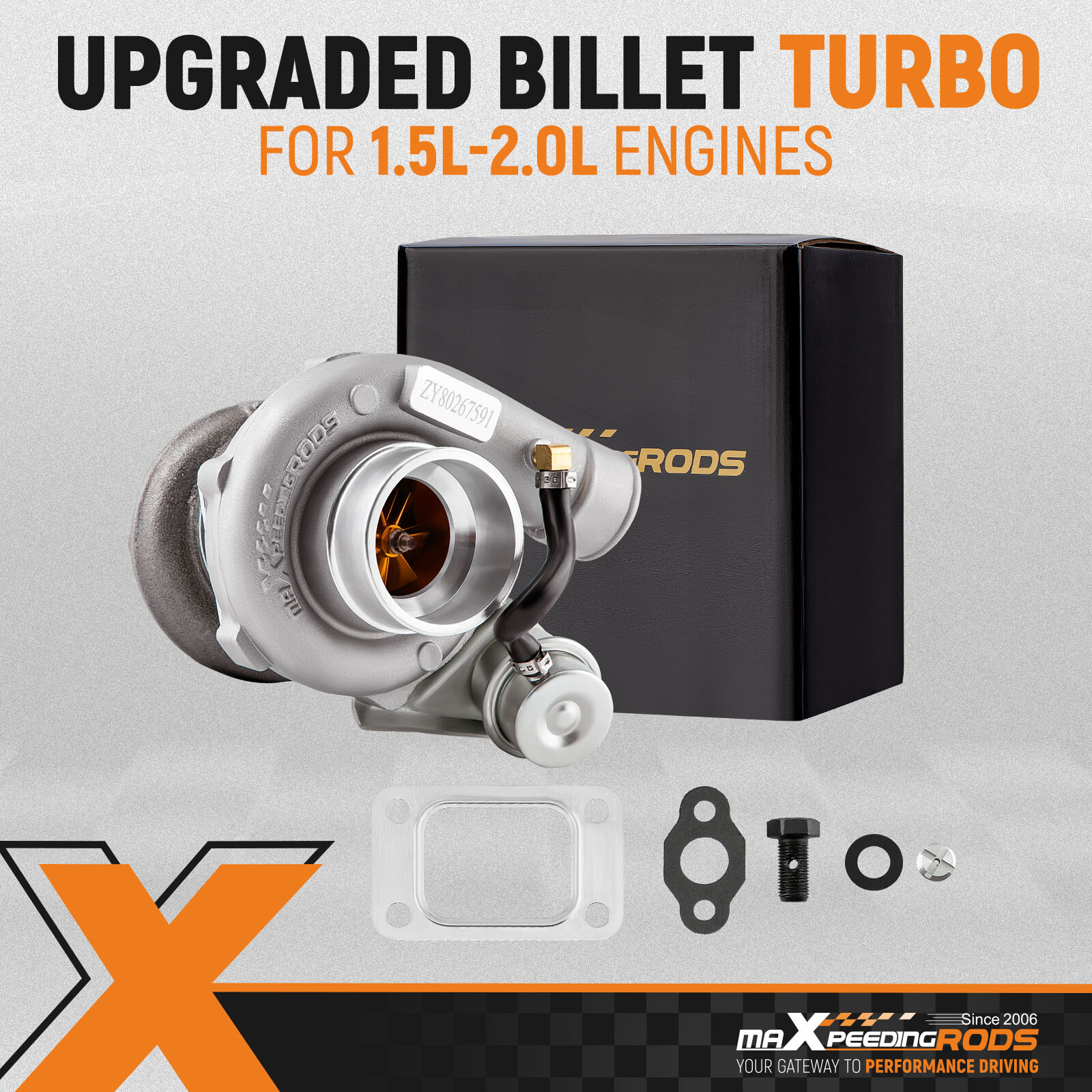

Street T25 T28 GT25 GT28 GT2860 GT2871 Turbocharger Application: Universal for Turbo Manifold with T25 Flange (T28 Flange can be converted to T25 Flange, Adapter is needed). Perfect for all 1.5L-2.0L engine, for all 4 cylinder engine

• Exhaust Inlet Flange: Standard T25 Flange
• Exhaust Outlet  Flange: 5-Bolt
• Turbine Side:
• Turbine Trim: 76.3
• Turbine A/R: 0.64
• Turbine Inducer Diameter: 53.8mm
• Turbine Exducer Diameter: 47mm
• Compressor Side:
• Compressor Trim: 48
• Compressor A/R: 0.60
• Compressor Inducer Diameter: 49.2mm
• Compressor Exducer Diameter: 71 mm
• Bearing Type: Wet Float
• Cooling Type: Water + Oil Cooled
• Thrust Bearing: 270 Degrees
• Wastegate: with Wastegate
• Oil Restrictor: Yes
• Oil Restrictor Size: inside diameter 2mm
• Oil Feed Size: 12mm
• Oil Inlet: M12*1.25
• Oil Drain Size: 14mm
• Oil Outlet: M14 & 2*M8*1.25
• Oil Drain Thread Pitch: 40mm
• Water Thread Size: M14*1.5
• Horse Power: Boost Horse Power up to 350BHP
• Turbo Type: Individual
• Universal Fitment: Yes
• Finish: Matte
• Condition: 100% Brand New

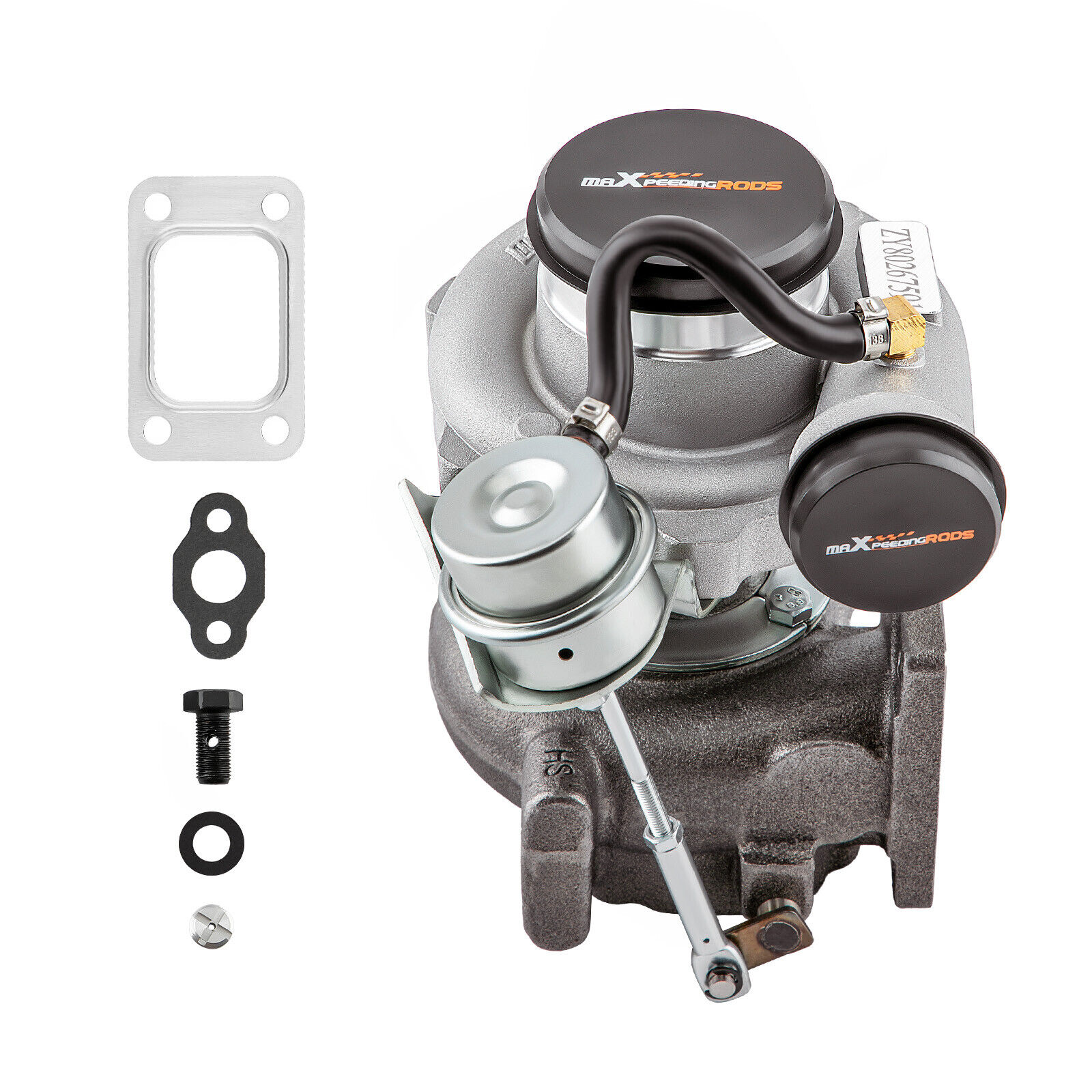

• Accessories: You will get exactly as shown as picture above
• package size: 26x24x22cm
• package weight: 7250g

1. Turbine housing: Silicon-Molybdenum - High temperature resistance, highly stable and ductile, corrosion and crack resistant, increases durability and reliability.
2. Turbine Wheel: K419 alloy - High temperature resistance, efficiently converts engine exhaust gasses into kinetic energy, resists thermal breakdown for smooth reliable operation.

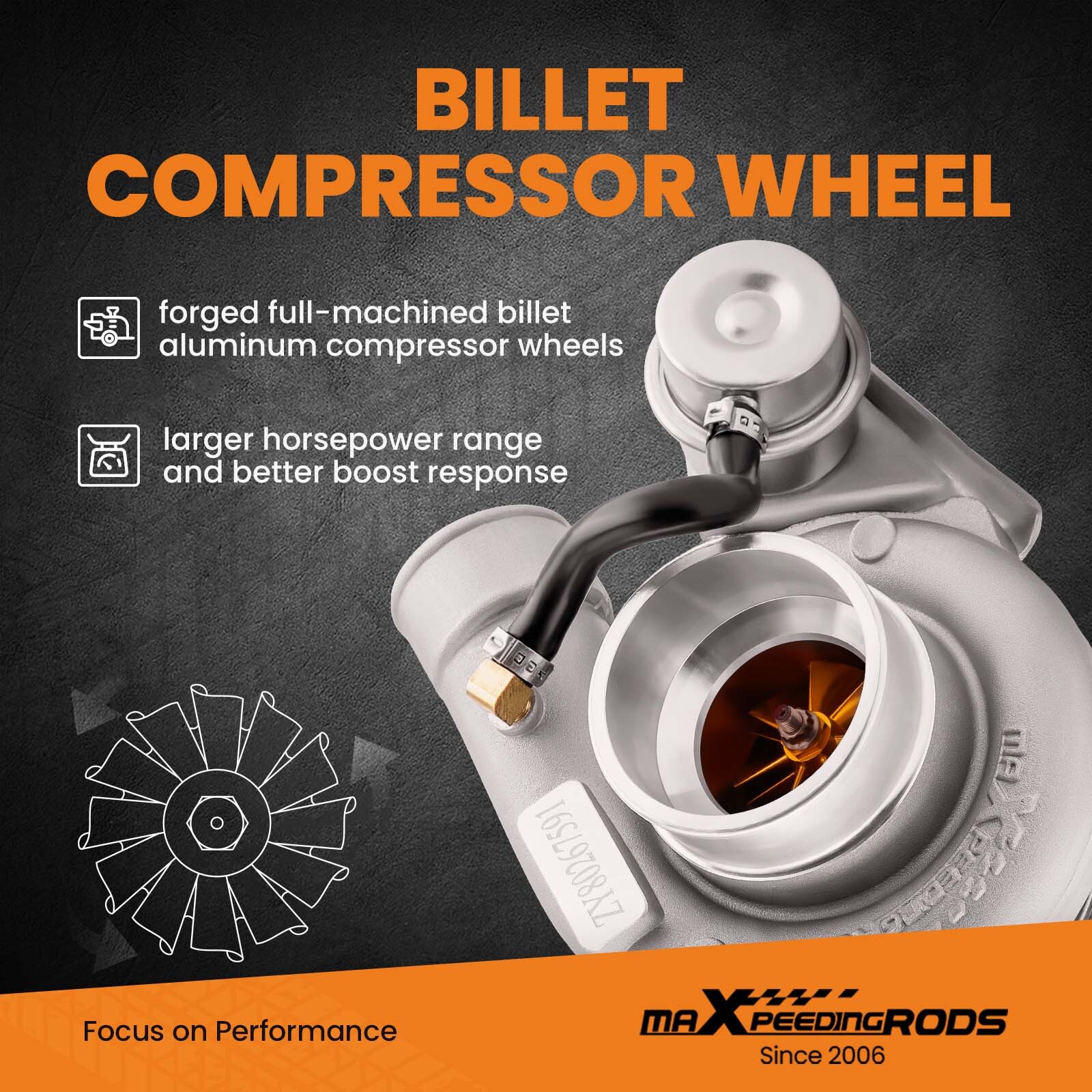

3. Billet Compressor Wheel: Forged billet aluminum CNC machined compressor wheel - High efficiency, fast response, lower fuel consumption, smooth operation.
4. Oil Seal: High-speed steel oil seal ring - Abrasion and heat resistant, protects bearings, prevents oil leakage and smoking.

Notice

• Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
• Make sure the oil drain line is lower than the turbo itself.
• Gasoline car must install a water cooling device to avoid overheating.
• Ensure exhaust outlet are well sealed by welding
• The degree of modification of the universal turbo depends on your individual vehicle. Professional installation is highly recommended.
• This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
• Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
