4 Pin Reverse Camera CCD 12V-24V Bus Truck Trailer IR Night Vision Car Rear View

4 Pin Reverse Camera CCD 12V-24V Bus Truck Trailer IR Night Vision Car Rear View

Be the first to review this product

Hurry! 8 items left!

Price	$43.60
	Earn 3x points and collect 129 Everyday Rewards points. Promotion ends 16/05/2024. Create a MyDeal Account or Login to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $30

Exclusive to HLT products only. Expires 11.59pm 06/05/2024. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code B7ZDC

Quantity

Add to wishlist

Features:
-Professionally designed system with industrial leading components parts.

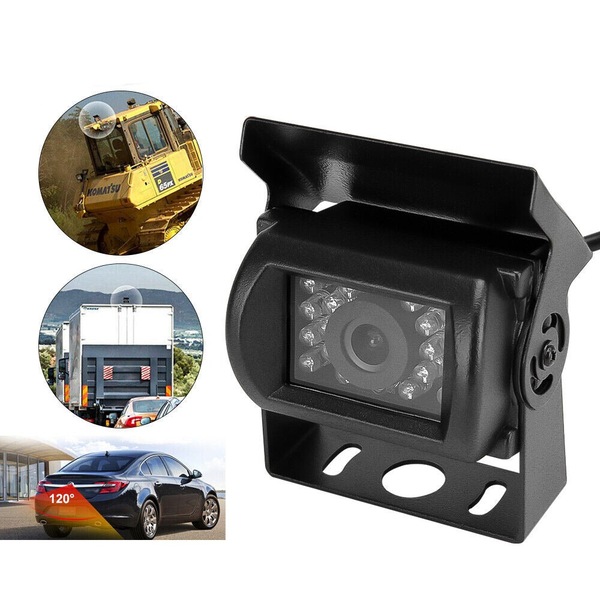

-CCD camera with 2.8mm wide-angle lens. This offers a super wide field of view angle at 120 degree.
Most other manufacturers use 3.6mm or 2.1mm lens, the view angle is much narrower. You can see more areas by using 2.8mm lens.
-Built-in 18 IR LEDs for over 20ft nigh vision view.

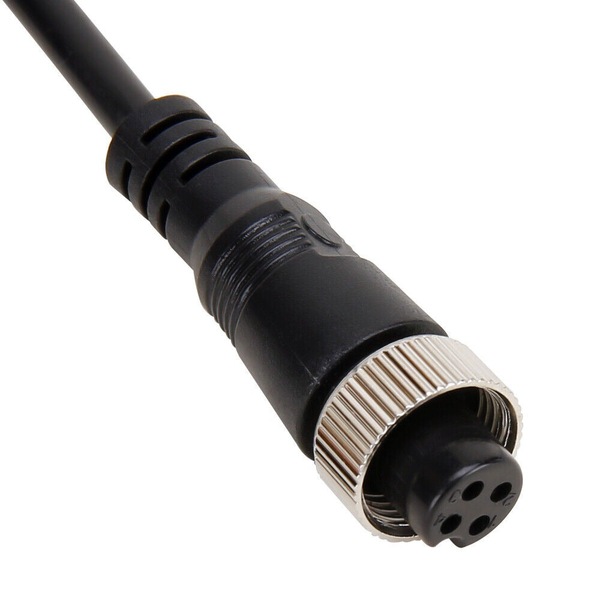

-Power cable with a waterproof aerospace type connector.
-Waterproof camera body with a sun visor and metal bracket. Easy to mount on any flat surface of the vehicle.
-Rubber seat for video cable to go through inside the cabinet without scratching the surface.
-12 to 24V DC power input range to fit most of the medium to large vehicles on the road.
-Aerospace type cinch connectors are used for all connections. This is more reliable and simple to install.

Specifications:
-Number of Pixels: NTSC: 512 H x 492 V, PAL: 512 H x 582 V
-Horizontal Resolution: 420 TV Lines
-Auto Gain Control: Auto
-Usable Illumination: 0 LUX with 18 IR LED
-IR Project Distance: 15m
-Connector: 10mm 4Pin
-Video Output: 1.0Vp-p 75ohm, Negative
-Electronic Shutter Time: Auto: NTSC 1 60-1 100,000Sec, PAL 1 50-1 100,000sec
-Gamma Characteristic: 0.45
-The Lens Focal Length: 2.8mm
-White Balance: Auto
-Scanning System: NTSC 525 Lines, 60Field per Sec, PAL 625 Lines 50Field per Sec
-Sync System: Internal Synchronization
-Power Supply: DC12V -DC24V, 250mA

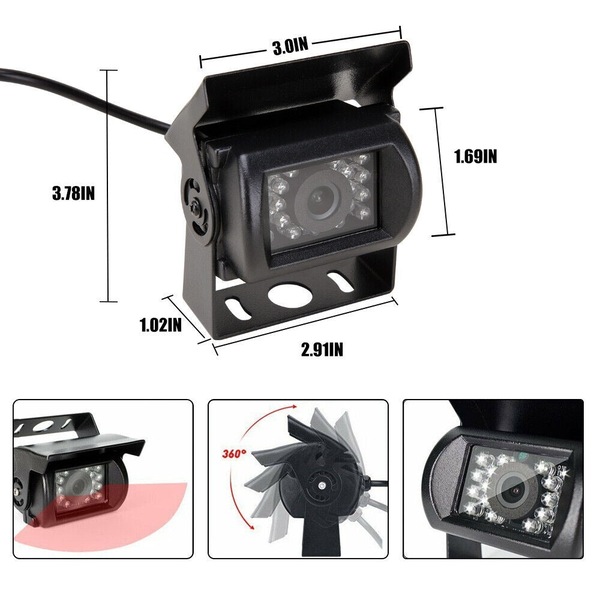

-Size: As Picture Shown
-Operation Temperature: -10 to 50 degrees C RH 95 percent Max
-Storage Temperature: -20 to 60 degrees C RH 95 percent Max

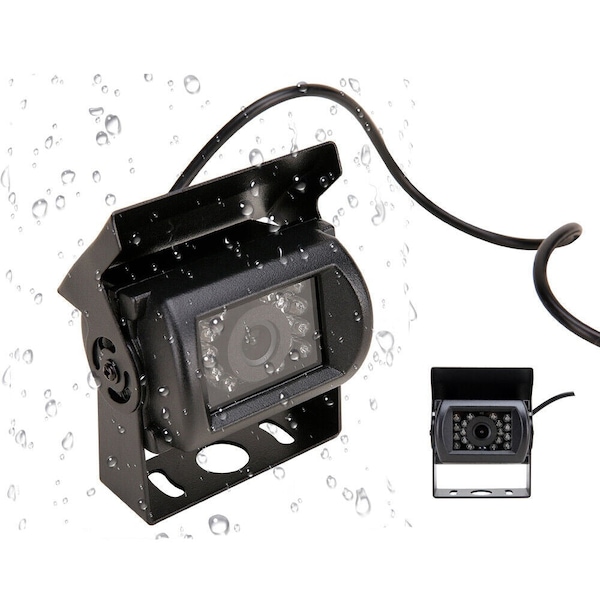

-Waterproof: IP68

Package Inclusions:
-1 x Truck Camera

Notes:
-Actual colors may vary due to computer monitors displaying colors differently.
-Due to the nature of the manufacturing process and manual measurement, product sizing may vary slightly.

GTIN: 738067591581
