Advwin Gasoline Pump Inlet Outlet Pipe High Pressure Cleaning 3/4''NH Garden Hose Axial pump-Horizontal

Descraption:

Are you tired of scrubbing and spend a lot of time cleaning the terrace and sidewalk?

3000 psi high pressure gasoline pump is durable and reliable.

It replaces the original tools and is specially used for car washing, field cleaning, solid moss and other scenes.

Meet your daily cleaning needs, save your time and energy, and make your life easier.

Tips:

Please do not use this product without water!

Please note the following dimensions:

Pump Inlet Size: 3/4''NH Garden Hose

Pump Outlet Size: M22*1.5-14

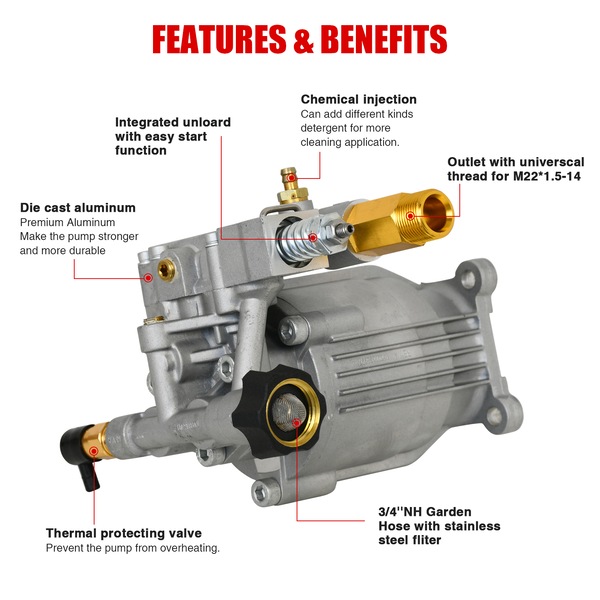

Features:

Fan shaped structure, the pump body is more solid and durable, and the pressure is stronger

3/4 water inlet garden joint with filter screen to extend the service life of the pump

Equipped with thermal protection valve to avoid damage to accessories due to high temperature

Pressure range 150-200bar/2200psi-3000psi

The rated pressure is 200bar/3000psi

Suitable for 5.5hp/6.5hp/7hp most pressure cleaning machines

Equipped with pipette

Very smooth section

Equipped with 6 pump valves

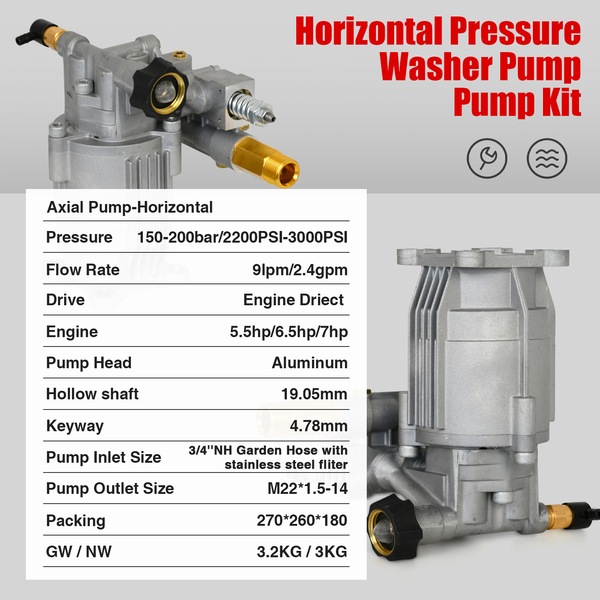

Specification:

Axial pump-  Horizontal

Pressure: 150-200bar/2200PSI-3000PSI

Flow Rate: 9lpm/2.4gpm

Drive: Engine Driect

Engine: 5.5hp/6.5hp/7hp

Pump Head: Aluminum

Hollow shaft: 22.23mm

Keyway: 4.78mm

221400400 Pump Inlet Size:3/4''NH Garden Hose

Pump Outlet Size: M22*1.5-14

Packing : 270*260*180

GW: 3.2KG

NW: 3KG

How to Install and Use Our Horizontal/Vertical Pressure Washer Pump

1.Using the Allen wrench, loosen the bolts on the top of the pump.

2.Lightly rock the head back the forth to pull the pump of the engine shaft.

It maybe seized to the shaft, so if it is try some penetrating oil. After allowing the penetrating oil to do its job gently pry the pump loose or use a bearing puller to pull it off.

3.Watch for the key falling out sine you will need it to install the new pump.

4.Clean the shaft with emery clot then apply a light coating of anti-seize or oil on it.

5.Using a bit of grease, "glue" the key in the engine shaft keyway to help keep it in place.

6.Slide the new pump on the shaft ensuring the key stays in place

7.Turn the pump to match the pump bolt holes to the engine bolt holes. Install and tighten the bolts to secure the pump to the engine.

8.Connect your hose and as usual have a try.

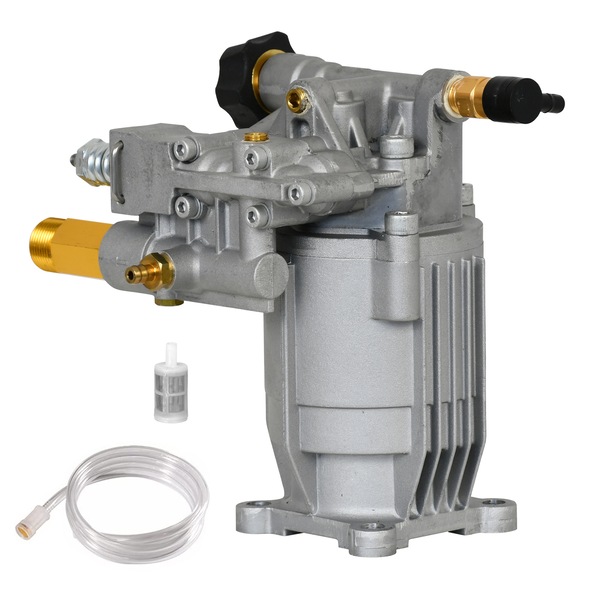

Package Included:

1*Pressure Washer Pump

1*Pipette
