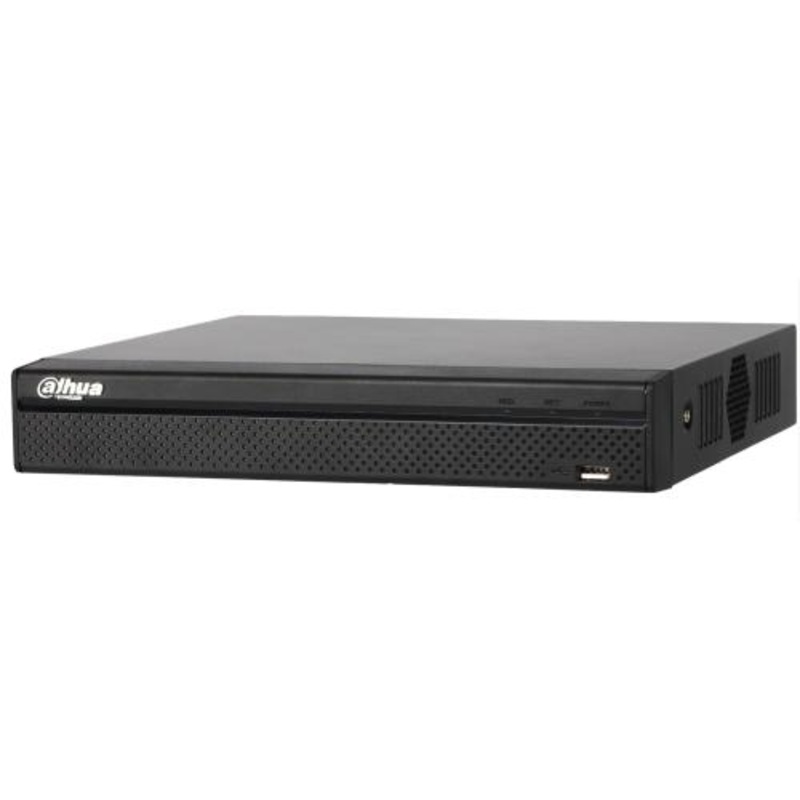

Dahua Lite 4K 8 Channel NVR with 8 x PoE, 1 x HDD Bay (Up to 6TB) - DHI-NVR4108HS-8P-4KS2/L [DHI-NVR4108HS-8P-4KS2/L]

Dahua Lite 4K 8 Channel NVR with 8 x PoE, 1 x HDD Bay (Up to 6TB) - DHI-NVR4108HS-8P-4KS2/L [DHI-NVR4108HS-8P-4KS2/L]


Dahua Lite 4K 8 Channel NVR with 8 x PoE, 1 x HDD Bay (Up to 6TB) - DHI-NVR4108HS-8P-4KS2/L

System Overview
This network video recorder is a highly cost-effective product, providing functions such as local live view, multi-screen display, real-time storage on local HDD, fast operation by mouse, remote management and control.
-New UI interface with more easier operation experience
-Smart H.265+/ Smart H.264+
-P2P remote surveillance, video play on mobile device
-8-ch @1080P(30FPS), self-adaptive decoding capability
-Supports mainstream cameras of ONVIF and RTSP protocol
-VGA/HDMI simultaneous video output, maximum resolution of HDMI is 4K
-Remote configuration and management of IPCs, such as setting parameters, acquiring information and upgrading IPCs of the same model in batches
-DHCP(Dynamic Host Configuration Protocol), HTTP (Hypertext Transfer Protocol), NTP(Network Time Protocol) and DDNS(Dynamic Domain Name System)
Functions
New User Interface
The new web and local GUI interface uses flat design which is more consistent with users' habits. Functional modules are divided clearer and easier to understand.
Decoding (Smart H.265+/Smart H.264+)
Dahua smart encoding (H.265+/ H.264+) is the optimized implementation of (H.265/H.264) codec that uses a scene-adaptive encoding strategy, providing more efficiency in the encoding process and higher video quality, and reducing the cost of storage and transmission significantly.
This NVR supports the corresponding decoding.
SMD by Camera
SMD refers to Smart Motion Detection. With Deep-Learning Algorithm, Dahua SMD Plus filters the motion detection alarm triggered by non-concerned target and recognize human and vehicle effectively, sending alarms when human and vehicle intrudes. Extract and classify human and vehicles from massive video data, easy for end users to trace historical information and analyze. Human & Vehicle optional for playback to achieve quick target search, saving event retrieval time
Security Center
Security Center provides a whole picture of device security and helps protect the NVR with security scan, attack defense, certificate management, audio and video encryption and security settings. Security warnings will be sent trough many ways such as email, message, voice prompts.
4K Resolution
4K resolution is a revolutionary breakthrough in image processing technology. 4K delivers four times the resolution of standard HDTV 1080p cameras and offers superior picture quality and image details. 4K resolution improves the clarity of a magnified scene to view or record crisp forensic video from large areas.
Intelligent Video System
Working with IVS-enabled IP cameras, the NVR recognizes and records video that contains IVS data on all IP channels. The NVR records standard intelligence at-the-edge features, as well as premium IVS features that detect abandoned or missing objects, Tripwire violations, and intrusion violations. The NVR is also capable of recording business analysis data Facial Detection, People Counting, and Heat Map from IP cameras with built-in Intelligent Business Analytics
Application
This NVR is suitable for places such as retail stores, families, courtyards and public areas
Dimensions


Port

System
Main Processor
Industrial-grade embedded processor
OS
Embedded Linux
Operation Interface
Web/operating in local GUI
Video
Access Channel
8 channels
Network Bandwidth
80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding
Resolution
8MP/5MP/4MP/3MP/1080P/720P/D1/CIF
Decoding Capability
8–ch @1080P(30FPS)
Video Output
1 VGA/1 HDMI simultaneous video output, maximum resolution 4K
Multi-screen Display
1/4/8/9
Third Party Camera Access
ONVIF, RTSP
Compression
Video
Smart H.265+/H.265/Smart H.264+/H.264
Audio
G.711A/G.711U/PCM/G726
Network
Network Protocol
HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, P2P
Mobile Phone Access
iDMSS (iOS)/gDMSS (Android)
Access Standard
ONVIF (profile S), CGI, SDK
Browser
Chrome, IE9 or above, Firefox
Record Playback
Multi-channel Playback
Up to 8 channels playback
Record Mode
Priority of record mode: Manual recording > alarm recording > motion detection recording > timed recording
Storage
Local HDD
Backup
USB device
Playback Function
1. Play, pause, stop, fast forward, fast backward, rewind, play by frame
2. Full screen, backup (cut/file), partially enlarge, audio on/off
Alarm
General Alarm
Motion detection, privacy masking, video loss, IPC alarm
Anomaly Alarm
Front-end device going offline, storage error, full storage, IP conflict, MAC conflict, login lock, network security anomaly
Alarm Linkage
Video recording, snapshot, log, preset point, tour
External Port
HDD
1 SATA port, up to 8 TB for a single HDD.
The maximum HDD capacity varies with environment temperature.
USB
1 front USB 2.0 port, 1 rear USB 2.0 port
HDMI
1
VGA
1
RCA Input
1
RCA Output
1
Network
1 RJ–45 port (10/100 Mbps)
8 RJ–45 ports with PoE power supply (10/100 Mbps)
General Parameter
Power Supply
DC48V/53V,2A/1.8A
Power Consumption
Total output of NVR is = 10W (without HDD)
Total output power of PoE is 72W
The maximum output power of a single port is 25.5W
Net Weight
0.92kg (2.03 lb) (without HDD)
Gross weight
2.07kg (4.56 lb) (without HDD)
Dimensions
260mm x 225mm x 47.6mm (W x L x H)
10.24 inch x 8.86 inch x 1.87 inch (W x L x H)
Operating Temperature
-10°C to +55°C (+14°F to +131°F)
Storage Temperature
0°C to +40°C (+32°F to +104°F)
Operating Humidity
10%–90%
Storage Humidity
30%–85%
Operating Altitude
3000 m (9843 ft)
Installation
Desktop mounting
Certification
CE/FCC/UL
- MPN: DHI-NVR4108HS-8P-4KS2/L
GTIN: 6939554981555
