DOSS T540 5.4" 4K HD CCTV Camera Tester Cvi Tvi AHD Analog IP Camera

DOSS T540 5.4" 4K HD CCTV Camera Tester Cvi Tvi AHD Analog IP Camera

Be the first to review this product

Hurry! 13 items left!

Price	$666
	Collect 666 Everyday Rewards points Create a MyDeal Account or Login to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

Overview

The new T540 tester is designed for CCTV system installation and maintenance. The 5.4 inch IPS touch screen is the perfect size to have in your toolbox. It helps to set up the IP and analog coaxial cameras, HD, or Non-HD cameras, as well as other security equipment. With all the tools built-in to the unit, you can troubleshoot the network issues, cabling, and more._

The perfect tool for CCTV system installation and maintenance

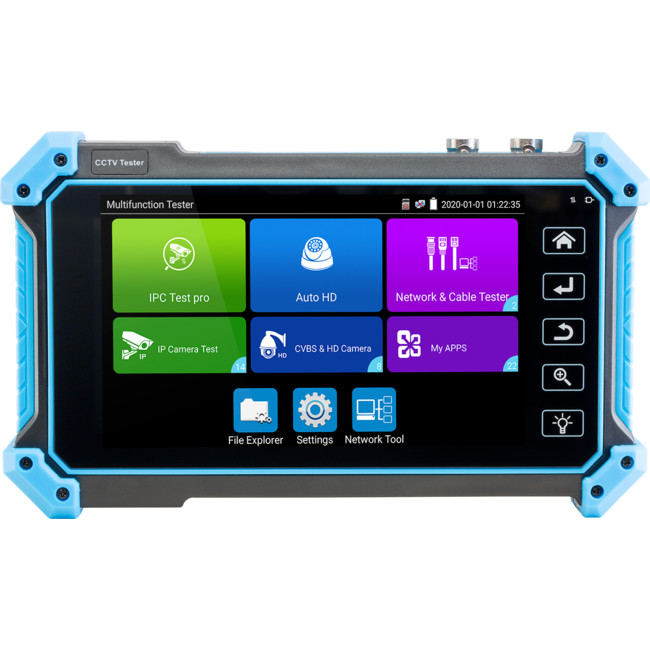

5.4" Full HD (1920x1080) IPS touchscreen interface
Supports more protocols than the majority of testers on the market

IP
TVI
CVI
AHD
SDI
ONVIF version 2.4 Profile S, Q, A, T(only H.265)

Built-in Wi-Fi
Easy to use GUI
Built-in 7.4V 3350mAh Li-ion Polymer battery
Support for the latest CCTV technologies including 4K cameras, H.265 compression, and more
Video transmission channel testing
ONVIF PTZ and analog PTZ control
TDR cable testing
UTP cable test
Cable scan and much more!

Connections and Ports

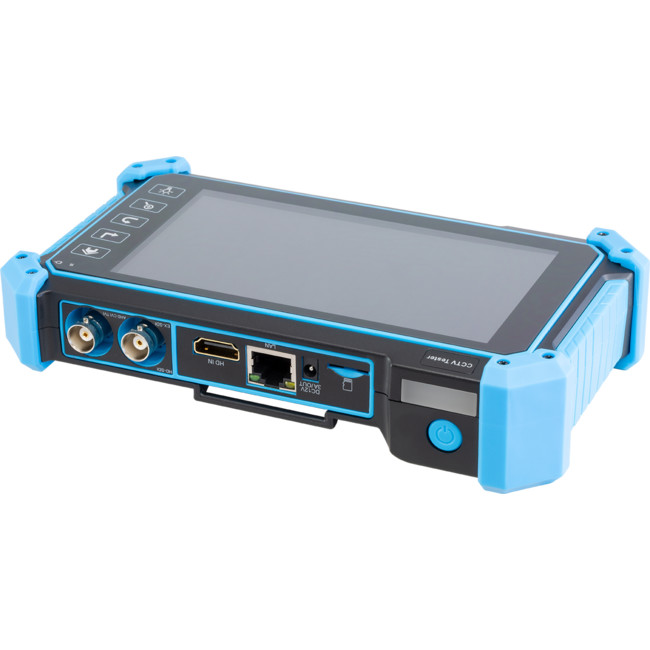

Top

HD-SDI, EX-SDI
LED Flashlight
AHD/CVI/TVI/CVBS in
HDMI in
12V 3A DC output
RJ45 LAN port or POE output
Micro SD card slot (Micro SD card not included)

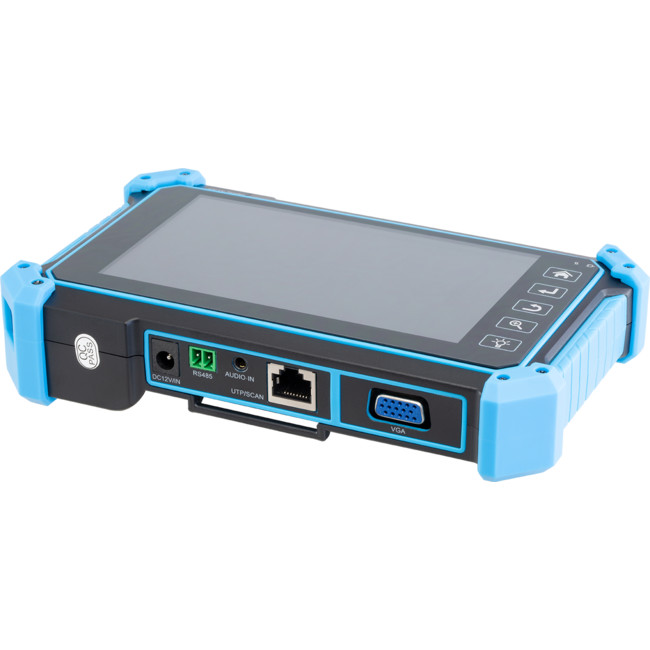

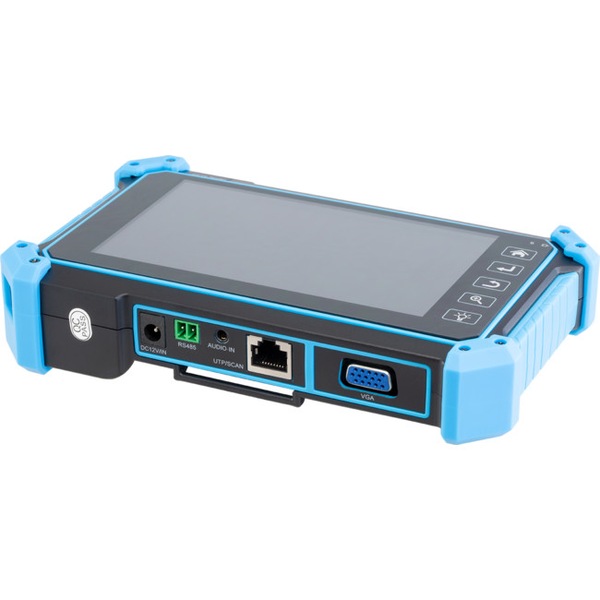

Bottom

12V DC input
RS485_
3.5mm audio input
RJ45 - UTP/SCAN
VGA port

Features

Camera test

5.4 inch IPS touch screen, 1920*1080 resolutions
H.265 & H .264 IP, 4K video display via mainstream_
8MP TVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom, video record & playback, coaxial PTZ control &call OSD menu_
8MP AHD test, 3840x2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu_
8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record& playback, coaxial PTZ & call OSDmenu_
8MP EX-SDI test, 3840 x 2160P 25/30FPS,4xzoom, video record& playback, coaxial PTZ & call OSDmenu
HD-SDI test, 1920 x 1080P 25/30/50/60 FPS, 4xzoom, video record& playback, coaxial PTZ & call OSDmenu
3G-SDI test, 1920 x 1080P 50/60 FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu
Auto HD app, auto recognize HD coax camera type andresolution, support snapshot, video record& playback, coaxial PTZ & call OSD menu.
VGA input, up to 1920 x 1200P 60FPS, support snapshot, video record& playback.
HDMI Input, up to 4K 30FPS, support snapshot, videorecord& playback.
Rapid ONVIF, Auto log in and display image, create testing report
IPC test pro, auto-scan all network segments, auto-detect and display the PoE power. With the input username and password, quickly scan the camera image, batch activate HIKVISION, Dahua, and Uniview cameras. Easy access to ONVIF interface and test tools.
Support the AXIS camera test with AXIS tool APP.
Support Hikvision(HIK), Dahua(DH), Uniview(UNV), Huawei test tool._
Batch activate cameras, modify IP addresses and passwords, self-defined modify channel name._
Quickly change H.264 and H.265 videos.
Display IP and analog camera images at the same time.
CVBS camera test, PTZ controller
DC12V/3A power output, power camera from 12V DC._
Rapid video, quickly detect all network cameras andauto display.
Built-in Wi-Fi, display image from the wireless camera, create WIFI hotspot_

Cable tester

UTP telephone cable tester, save the test results._
Test pair status, length, attenuation, reflectivity, impedance, skew, etc, save the test result._

Other functions

Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route
Tester Play: Tester, android version mobile phone and PC display at the same time_
Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters
Media player, 4K video files, and MKV/MP4 media files play
Display the resolution of the IP camera images
Audio in, support record and save the audio/LED lamp, calculators, music players, and other application tools
Built-in micro SD card slot, support up to 32GB (NOMicro SD card include)
7.4 V 3350mAh Li-ion Battery, lasts up to 6 hours with 4 hours charge time

**Note: TDR cable testing is only the basic feature, it is only for RJ45 cable and it has a higher deviation than others, also no calibration. The TDR test results will be not accurate or mixed when testing the short RJ45 cables. The tester is suggested to test the RJ45 cable over 10m in length.

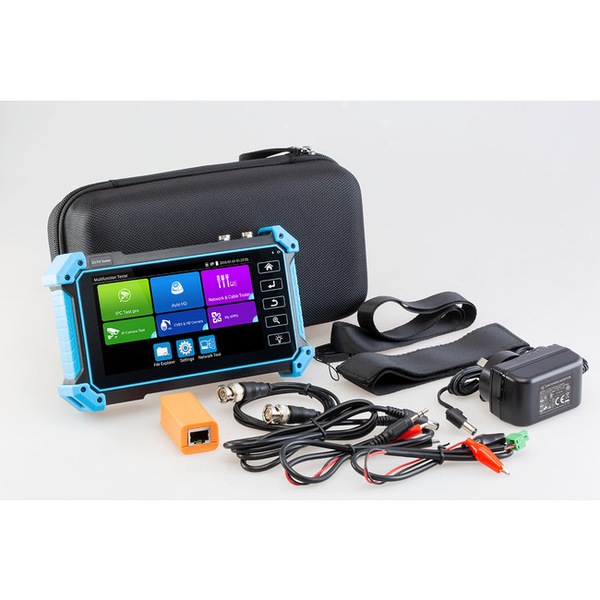

What is in the box?

T540 tester
Power Adaptor DC12V 1A
Network cable tester_
BNC cable
RS485 cable_
DC12V Power cable
Audio cable_
Safety cord
Wrist belt
Carry case

Specifications

LCD	Item series	T540
Display	New 5.4 inch IPS touch screen, 1920x1080 resolution
Video Mode	CVBS	1 channel BNC input, NTSC/PAL (Auto adapt)
PTZ control,RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc
IP camera test 4k/H.265/H.264	IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK
Rapid Video	Auto view the video, create testing report
HIKVISION test tool	support batch activate HIKVISION cameras and modify IP address, modify password etc. Self-defined modify channel name, can quickly changeH.264 and H.265 video, open wide dynamic mode. Factory restore, etc.
DAHUA test tool	support batch activate DAHUA cameras and modify IP address,username and password. Self-defined modify channel name.
HD Coaxial test	8MP TVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control/ call OSD menu
8MP CVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control / callOSD menu
8MP AHD test, 3840 x 2160P 15FPS, UTC control / call OSD menu
8MP EX-SDI, HD-SDI, 3G-SDI, UTC control / call OSD menu
Auto HD app,auto recognize HD coax camera type and resolution, support snapshot, video record& playback, coaxial PTZ& call OSD menu
HDMI input	1 channel HDMI input, support 4K 30FPS. The resolution as follow: 4K_3840 x 2160/2K_2560 x 1440P/ 1920×1080P /1920×1080i /720×480P /720×576P /1280×720P/1024×768P/1280×1024P /1280×900P /1440×900P, etc
VGA input	1 channel VGA input, support 1920 x 1200P 60FPS. The resolution as follow: 1920 x 1200P 60FPS/ 1920×1080P 60FPS /1792×1344P 60FPS /1680x 1050P 60FPS/(1600x1200P/900P 60FPS)/1440x900P 60FPS/1360x768P 60FPS/(1280x1024/960/800/768/720P 60FPS)/1152x870P 60FPS/1024x768P 60FPS/800x600P 60FPS/600x480P 60FPS.
Zoom Image	4x zoom, to enlarge image, Screen snapshot, record, save, view and record and play back
Power output	12V/3A power	Output DC12V/3A power out, supply temporarily power for the camera
PoE power output	48V PoE power output, max power 25.5W
Cable test	_	_
UTP cable test	Test UTP cable connection status and display on the screen. Can detect the near-end, mid-end and far-end fault point of the network cable crystal head.
RJ45 TDR cable test	Test cable pair status, length, attenuation, reflectivity, impedance, skew, can Aussie Stock All our stock is kept in our Melbourne based warehouse. Our stock levels are also updated every 10 minutes! So if it says 10 units in stock, you can trust that it is accurate. No PO Boxes or Parcel Lockers At this stage we only use couriers and can only deliver to a road-side address. This means PO Boxes and Parcel Lockers cannot be accepted as StarTrack do not deliver to these addresses. In instances where a PO Box or Parcel Locker address in entered, we may ask for an alternative road-side address, or cancel and refund your order immediately and urge you to replace your order with an alternative delivery address. Delivery times We typically dispatch our goods same day or next day. From there, you can expect 2 - 8 business days Australia wide. Most capital cities can expect 1-2 day delivery times. Any RTS (Return to Sender) orders due to missing or incorrect address information entered by the buyer may incur an additional charge for redelivery.

GTIN: 9328202034946
