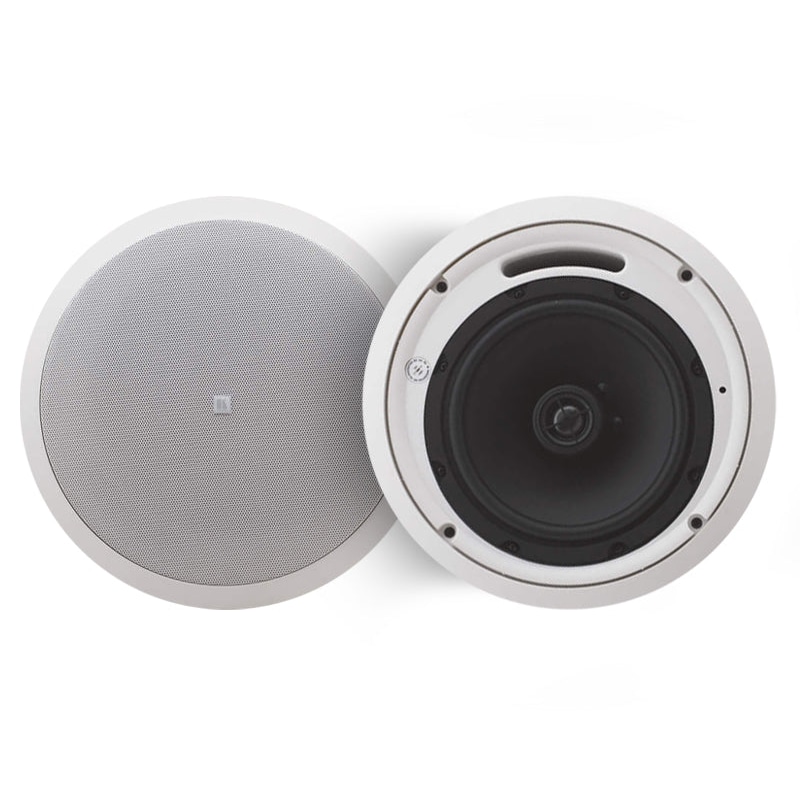

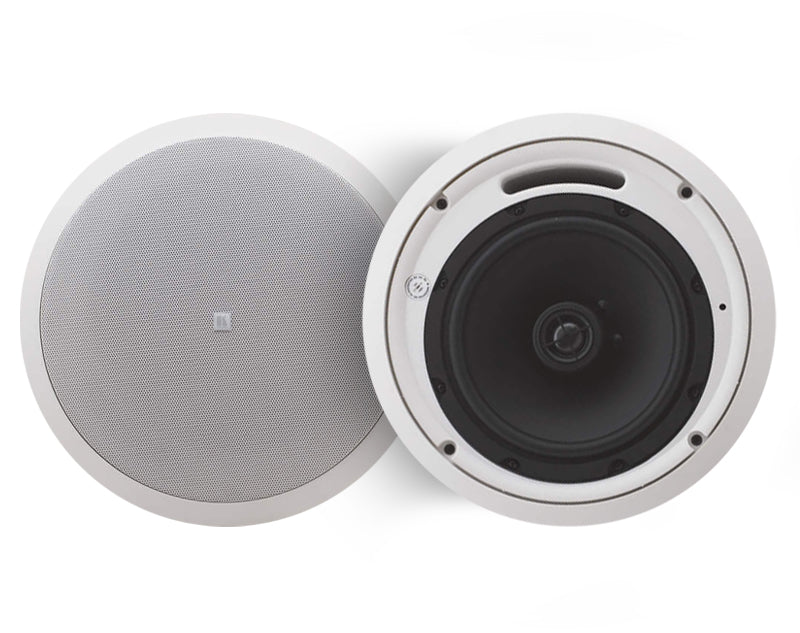

KRAMER GALIL-8C 8" 2–Way Closed–Back Ceiling Mount Speakers Fitout DIY Pair

The Galil 8−C Closed−back Ceiling Speaker features a multi−tap power transformer for selecting 8Ω (bypassing the transformer) or 70V/100V power settings that are suitable for an array installation.

• Type — 2–way coaxial speaker.
• Woofer — 8” polypropylene cone.
• Tweeter — 1” silk dome.
• Impedance — 8Ω.
• Power Handling — 64W RMS, 180W continuous program.
• Transformer Taps — 70V: 64W/32W/16W/8W/4W/Off (Lo–Z); 100V: 64W/32W/16W/8W/Off (Lo–Z).
• UL 1480 & 2043 Listed
• Package Includes — 2 speakers (1 pair), ceiling mounting kit, template and user manual.

  Description: 2-way closed back ceiling speakers (pair)
• Freq. Response: 65Hz to 20KHz @ -10dB, 85Hz to 20KHz @ ±3dB
• Woofer: 8" (200mm) polypropylene with rubber surround
• Tweeter: 1" (25.4mm) silk dome
• Impedance: 8Ω (transformer tap in off position)
• Transformer taps: 89dB SPL, 1W@1m
• Max SPL: Continuos: 104dB, peak: 107dB
• Power handling: 64W RMS, 180W continuos program
• Crossover freq: 6.3kHz
• Coverage angle: 110°
• Directivity factor: 4.6 averaged 1kHz to 10kHz

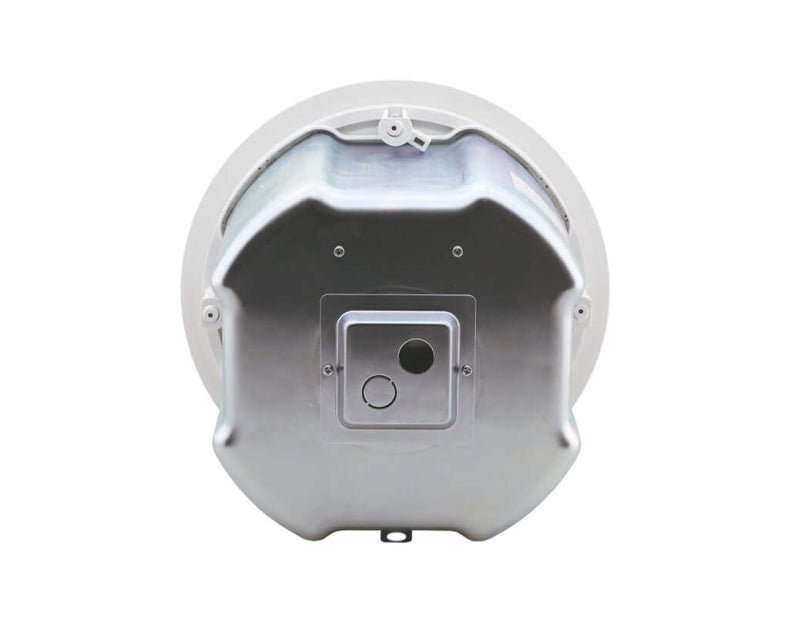

• Input connector: terminal block

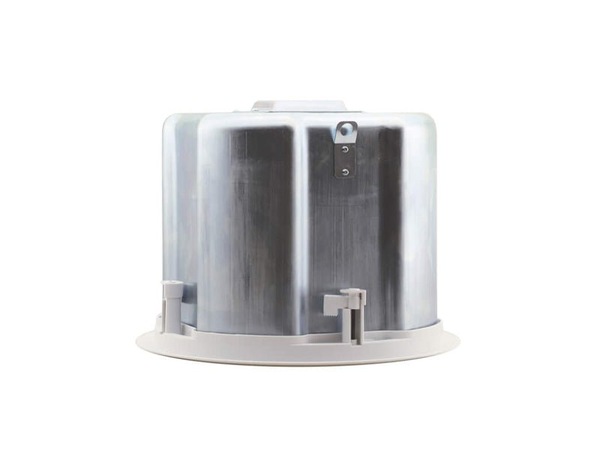

• Materials: ABS bezel, aluminium grille, metal back can
• Operating temp: 0° to +40°C
• Weight per speaker: 4.9kg
• Total weight (pair): 13.6kg
• Installation clearance: Mounting depth: 22.6cm (8.9")
• Cutout dia.: 27.3cm (10.75")
• Colour: white
