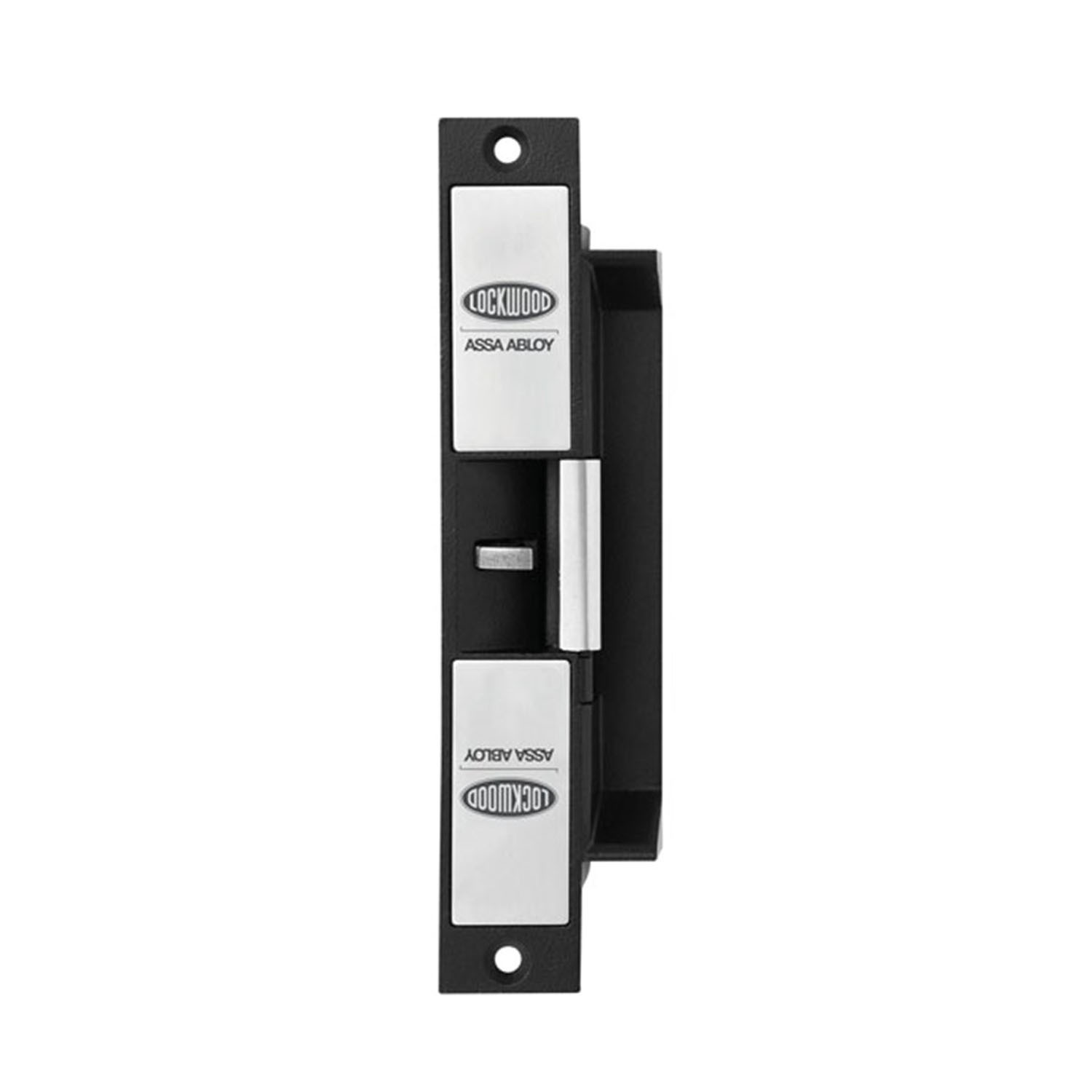

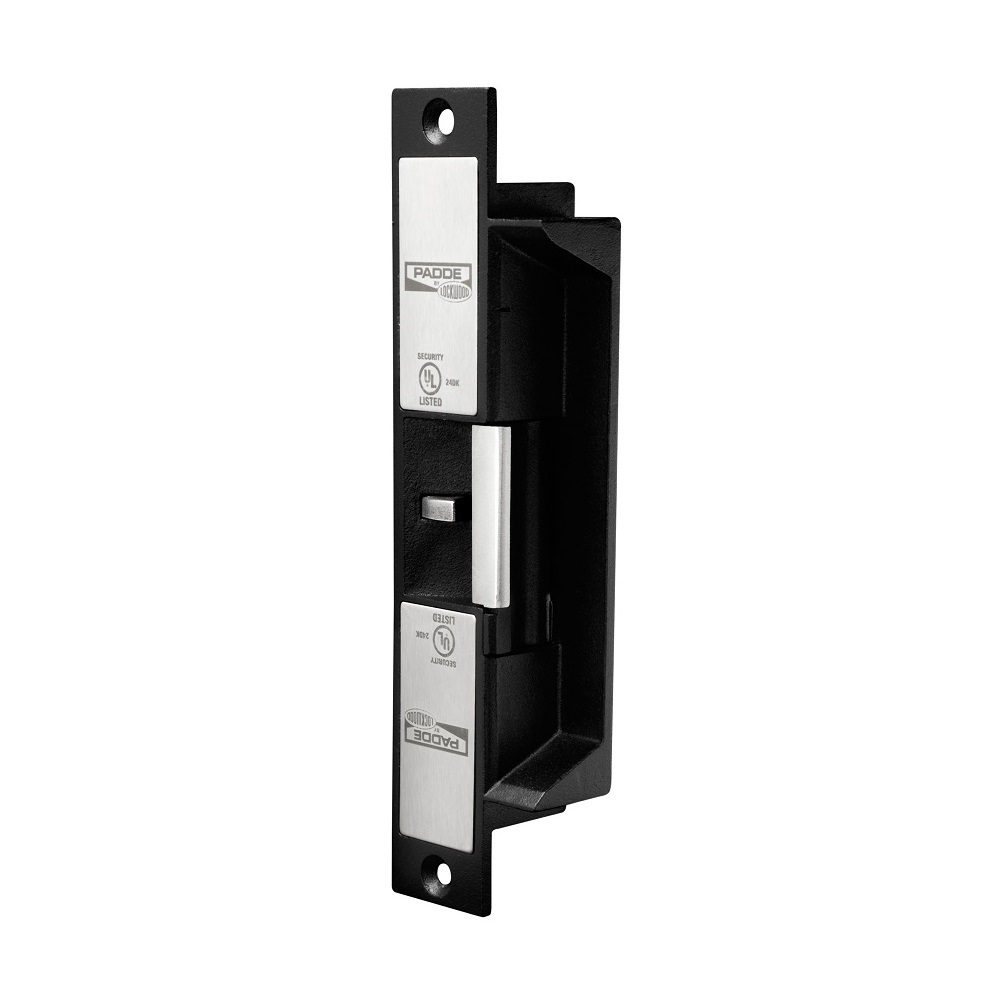

Lockwood Padde Electric Strike 10-30V Fire Rated Multi Function ES2100

Lockwood Padde Electric Strike ES2100
PA102100-00

NOTE: This is a non-stocked item and has a handling time of ten(10) business days after payment has been cleared. Please DO NOT purchase if you require this item urgently.NOTE: This is a non-stocked item and has a handling time of ten(10) business days after payment has been cleared. Please DO NOT purchase if you require this item urgently.

Electric Strike intended for door security in commercial & industrial applications with heavy traffic that require access control systems. Suitable for use on hinged doors to work with an extensive range of locks.

Electric Stike Function - replaces a standard door strike and connected to a power supply. An electric strike's ramped surface can, upon command, pivot out of the way when the lock on the door is in the locked position and the door is opened.

• The ES2100 is the latest product to join the iconic Padde by Lockwood range of electric strikes.

Features:

• Patented field selectable fail safe/fail secure
• Solenoid rated for continuous use
• Monitored solenoid and latch position
• Integrated door position (reed) switch monitoring
• Fire rated to 4 hours.
• Mounting tabs as supplied standard
• Australian designed and made
• Built in protection diode
• 1 x door magnet for cylindrical latches
• Pre drilled with extension lip holes
• Weather Resistant

Specifications:

• Multi Voltage: 10-30V DC.
• Current: 200mA@12V DC - 120mA@24V DC
• Drilled for Lip Extension: Yes
• Field Selectable Fail Safe/Fail Secure: Yes
• Holding Strength: 1000kg
• Integrated Door Position Reed Switch Monitoring:  Yes
• IP Rating: IP54
• Monitored Latch: Yes
• Monitored Solenoid: Yes
• SCEC Endorsed: Yes
• Working Voltage: 10V~30V DC
• Fire Rated: Yes

Standard and Compliance:

• Australian Lock Standard (AS4145.2.2008).
• D8 (Durability) Australian Lock Standard (AS4145.2.2008)
• Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1.2005
• CE Approved
• C-Tick Certified
• SCEC Approved for Security Level 3
