Oppsbuy High Pressure Cleaning Water Pump Extended Inlet Outlet Pipe Gasoline Pump Horizontal

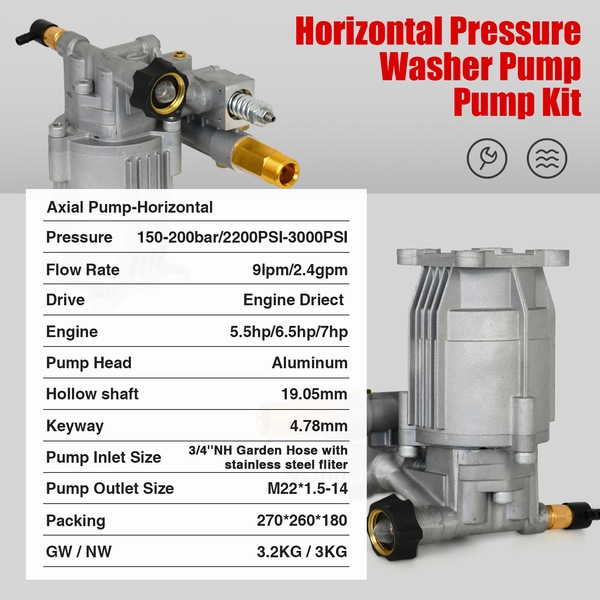

Specifications:

Axial pump- Horizontal

Pressure: 150-200bar/2200PSI-3000PSI

Flow Rate: 9lpm/2.4gpm

Drive: Engine Driect

Engine: 5.5hp/6.5hp/7hp

Pump Head: Aluminum

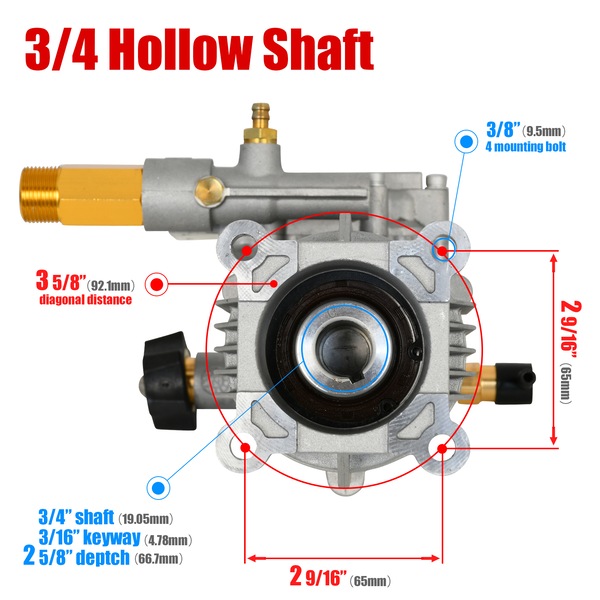

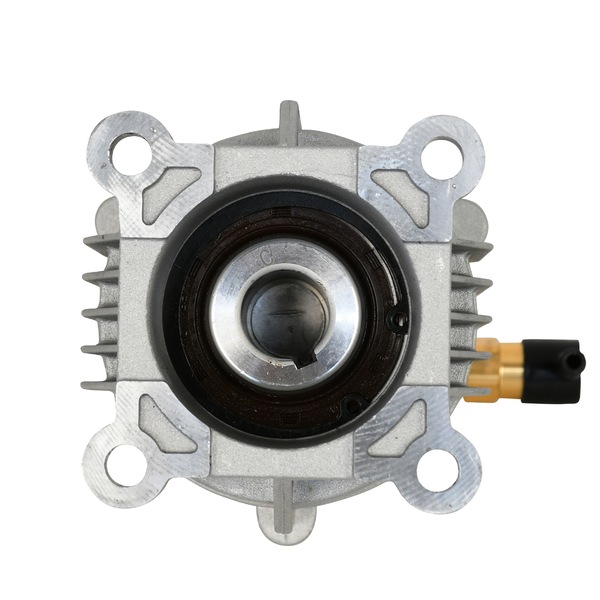

Hollow shaft: 19.05mm

Keyway: 4.78mm

Pump Inlet Size:3/4"NH Garden Hose

Pump Outlet Size: M22*1.5-14

Packing : 270*260*180

GW:3.2KG

NW:3KG

How to Install and Use Our Horizontal Pressure Washer Pump?

1.Using the Allen wrench, loosen the bolts on the top of the pump.

2.Lightly rock the head back the forth to pull the pump of the engine shaft.

It maybe seized to the shaft, so if it is try some penetrating oil. After allowing the penetrating oil to do its job gently pry the pump loose or use a bearing puller to pull it off.

3.Watch for the key falling out sine you will need it to install the new pump.

4.Clean the shaft with emery clot then apply a light coating of anti-seize or oil on it.

5.Using a bit of grease, "glue" the key in the engine shaft keyway to help keep it in place.

6.Slide the new pump on the shaft ensuring the key stays in place

7.Turn the pump to match the pump bolt holes to the engine bolt holes. Install and tighten the bolts to secure the pump to the engine.

8.Connect your hose and as usual have a try.

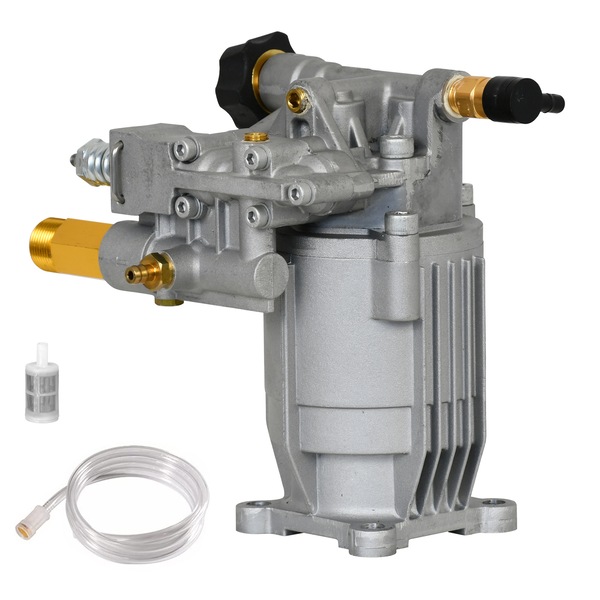

Package Included:

1*Pressure Washer Pump

1*Pipette

Tips:

Please do not use this product without water!

Please note the following dimensions:

Pump Inlet Size: 3/4"NH Garden Hose

Pump Outlet Size: M22*1.5-14
