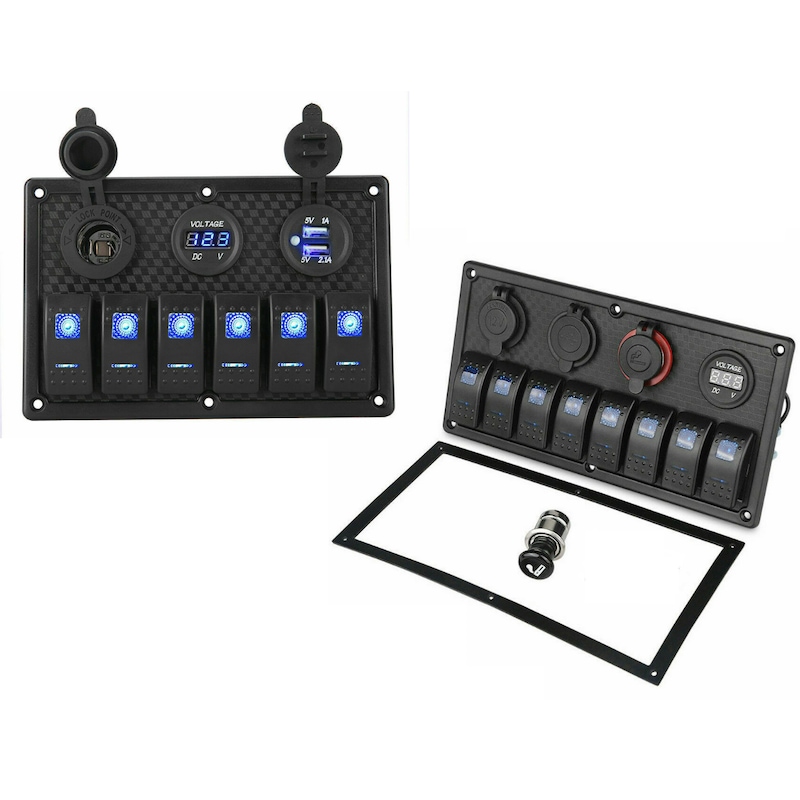

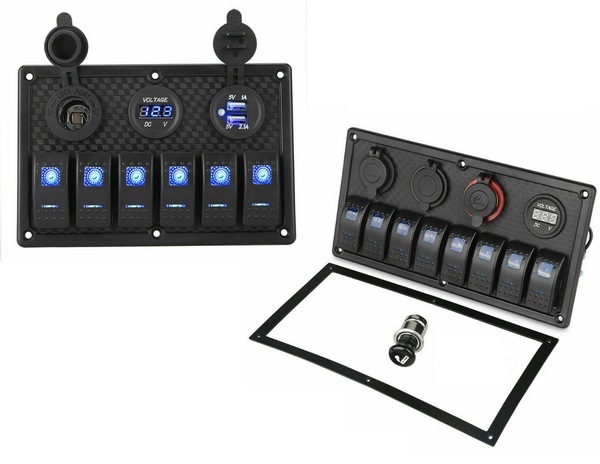

Ozoffer 1x LED Light 6/8 Gang 12V Switch Panel Rocker Circuit Breaker Car RV Boat Marine

Ozoffer 1x LED Light 6/8 Gang 12V Switch Panel Rocker Circuit Breaker Car RV Boat Marine

2 Reviews

Limited Stock!

Price	$52.99
	Earn 3x points and collect 156 Everyday Rewards points. Promotion ends 16/05/2024. Create a MyDeal Account or Login to link your card
Type	Please select an option
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

8 Gang Switch

?/span>

CE/SAA/ADR/E-mark/FSC/COC APPROVED

Features:

? Material: High quality ABS. CE certified quality, environmental anti-retardant materials ,ABS and copper for USB ,power socket and voltmeter,including the switch panel ,wires and Stainless Steel Screw.
? panel size:panel size:230*120*80 mm(9.06"x4.72"x3.15")
? Short circuit / overheat protection for on-off rocker switch ,USB(2.1A x1,1A x1)and DC voltmeter
? With rubber seal-cap to keep it water-tight,best for marine
? Overload protection by Circuit breaker, splashproof,anti-corrosion.
? Easy to install,can be installed horizontally
? Suitable for both 12V and 24V systems Panel is pre-wired, Includes 6x Stainless Steel Screw
? Easy to install and durable.With our strict quality control system, we test each item and 100% ensure in good condition before we ship.

6 Gang Switch

?/span>

Features:
? 6 Blue LED illuminated aluminium On OFF Rockers Switch Seals for outdoor and marine task, Short circuit / Overheat protection.

? Digital Voltmeter+12V Cigarette Socket & 3.1A Dual USB Power Charger fullfill all kinds of charging needs; 6 Gang Rocker Switch : LED LIGHT BAR, SPOT LIGHTS, SIDE LIGHTS, ROOF LIGHTS, ZOMBIE LIGHTS, DRIVING LIGHTS.

? Suitable for 12V/24V Systems, Totally Environment Friendly. Rocker Switches Pillar for jeep marine boat off-road rv utv truck.

? Product Dimensions: 18cm x 11cm x 7.5cm (7.08in x 4.33in x 2.95in), Portiforium Dimension: 15cm x 8.5cm ( 5.9in x 3.35in).

? Panel is pre-wired, Includes 4x Stainless Steel Screw.

? Easy to install and durable.With our strict quality control system, we test each item and 100% ensure in good condition before we ship.

?/span>

Specifications:

8 Gang Switch

Rocker Switch:8(LED LIGHT BAR, SPOT LIGHTS, SIDE LIGHTS, ROOF LIGHTS, ZOMBIE LIGHTS, DRIVING LIGHTS etc)
Loop Circuit: ON-OFF
Switch System: Water-resistant enclosed Rocker switch
Rating: AC 125V 16A,250V 10A;DC 12V 20A,24V 10A
Input voltage: DC12V/24V
Maximum power: 240W
Operating Temperature: -25degree to 80degree
Electrical Life: 10000 make and break cycles at full load
IP Rating: IP67
Dual USB Charger Socket:
Input: DC 12-24V
Output: DC 5V 2.1A, 5V 1A

?/span>

Wiring connection?

Installation:pre-wired
Can be horizontal mounted
The four red wires: connect the cathode of the storage battery.
The black wire: connect the anode of the storage battery.
The blue wire: connect the cathode of the storage battery.
The yellow wire: connect the anode of the storage battery.
Eight sheet coppers: the load generator positive connection.

?/span>

6 Gang Switch

? ABS Aluminium Metal
? Great to customize the control panel for vehicle
?Max Output Power: 240W
?Overload protection: 12V 20A DC; 24V 10A DC
?Operating Temperature: -25 degree to 80 degree
?Electrical Life:10000 make and break cycles at full load

Description on Rocker Switch:
? CE Certified
? Made of environmentally friendly anti-retardant materials
? Unlike some knock off rocker switch which marked 15 Amp but support less than 12Amp, our switches are capable of handling real 20Amp current on 12 Volt
? Output circuit protection, overload protection & reverse polarity protection
? Waterproof casing will protect the switch from rain or coffee spill
? Submerged in water operation is not recommended

?/span>

Package Includes:

?/span>

8 Gang Switch Package:

1x Switch panel
1x Pop out lighter
1x Rubber seal pad
1x User manual
2x Sticker label
6x Stainless Steel Screw

6 Gang Switch Package:

?/span>

1x ROCKER SWITCH PANEL
4x Stainless Steel Screw
