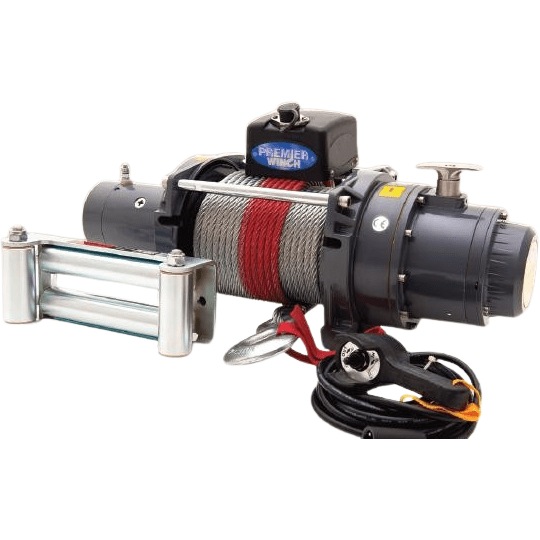

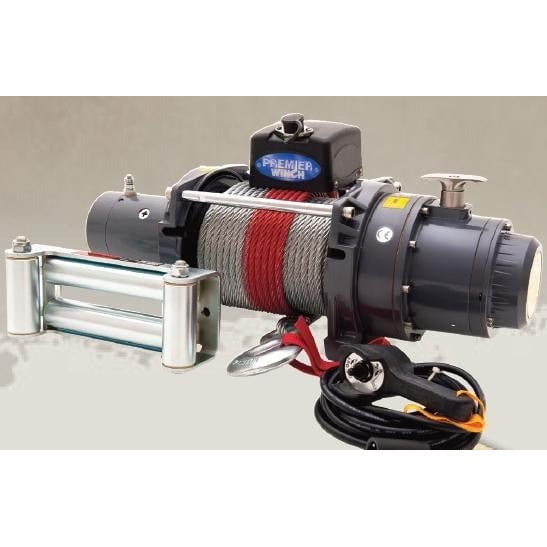

Premier Winch/Hoist 12000lbs

Premier Winch/Hoist 12000lbs

Limited Stock!

Price	$2540
	Earn 3x points and collect 7620 Everyday Rewards points. Promotion ends 16/05/2024. Create a MyDeal Account or Login to link your card
Voltage	Please select an option
Shipping	$39.00 Australia-wide (per item)
	See delivery details

Quantity

Add to wishlist

DV-12000ES

Features

Heavy duty series wound motor gives high torque and fast line speed.
3 stage planetary gearbox delivers the most reliable and durable performance even under worst conditions.
Patented automatic cone brake holds full load easily. The greater the load on the wire rope, the greater amount of brake force is applied by the mechanism.
Rotating ring gear free spool designed to pull and turn for rapid wire rope payout.
Heavy-duty sealed solenoid provides better water resistance and lower amp. draw.
Dv 12000ES

Specifications

Line Pull	5,443 kg
Motor 12V	4,175 w
Motor 24V	2,684 w
Gear Train	3 stage planetary gears
Gear Ratio	216 : 1
Freespool	rotating ring gear
Brake	automatic, full load cone brake
Wire Rope Size	9.5 mm x 38 m
Wire Rope Type	galvanized aircraft A7 x19
Drum Size	89 mm x 206 mm
Mounting Bolt Pattern	254 mm x 114.3 mm x 165.1 mm

Line Pull and Rope Capacity

Layer of wire rope	Line Pull kg / lb	Total Rope on the Drum m/ft
1st Layer	5,443 / 12,000	6.2 / 20.3
2nd Layer	4,561 / 10,056	13.6 / 44.6
3rd Layer	3,926 / 8,657	22.1 / 72.5
4th Layer	3,446 / 7,599	31.9 / 105
5th Layer	3,070 / 6,770	38 / 125

Line Speed and Amp. Draw (1st layer of rope on the drum)

Line Pull kg/lb	Line Speed mpm/fpm	Amp. Draw 12V	Amp. Draw 24V
No Load	8.3 / 27	60	50
1,814 / 4,000	2.6 / 8.6	200	100
3,629 / 8,000	1.7 / 5.8	310	190
4,535 / 10,000	1.4 / 4.4	370	230
5,443 / 12,000	1.2 / 4	440	290

Standard Accessories

Detachable solenoid pack
Remote control
Wire rope with hook
Roller fairlead
1.8m (6') 4 gauge battery lead
Handsaver strap

Optional Accessories

Cable tensioner
Mounting channel
Snatch block
Winch accessory kit

Package

Winch Weight	40 kg
Gross Weight	67 kg
Box Dimension	700 × 250 × 420 mm

Warning

Winches are not to be used for the lifting or moving of persons.

Warranty

Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. Wire ropes are not included under warranty.
