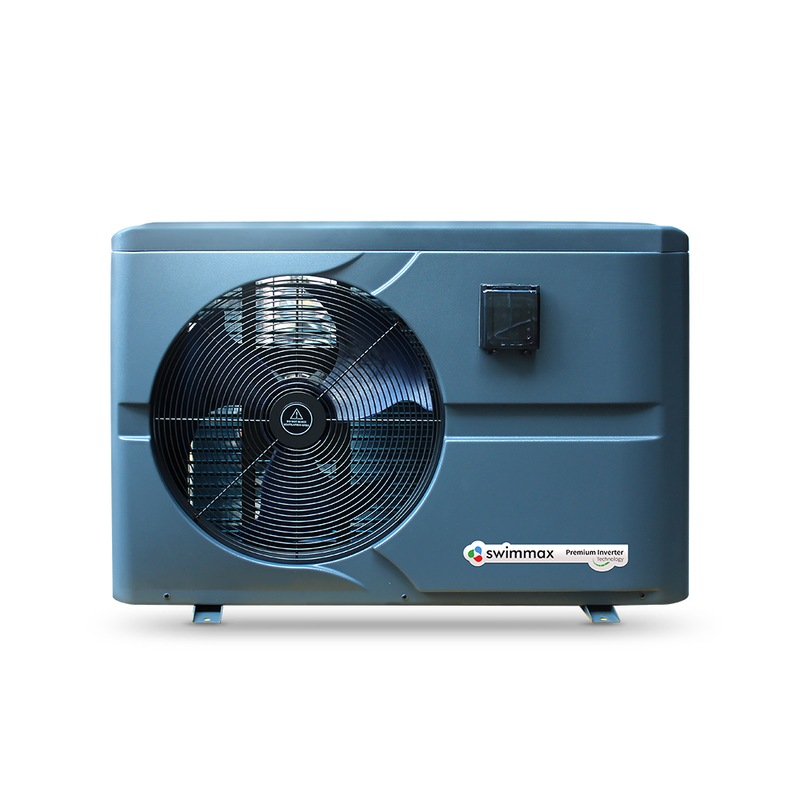

Swimmax Inverter 7kw Swimming Pool Heating Spa Pool Heater Heat Pump

Swimmax Inverter 7kw Swimming Pool Heating Spa Pool Heater Heat Pump

Be the first to review this product

Hurry! 6 items left!

Price	$2599
	Collect 2599 Everyday Rewards points Create a MyDeal Account or Login to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

Swimmax Inverboost Heat Pumps by Premiere House have everything you’re looking for – or should be looking for – in a swimming pool and spa heat pump that pays for itself. Our powerful Inverboost technology gives competitors a run for their money – thanks to its robust, innovative, and reliable functionality.

Ideal for residential and public swimming pools and spas, our heat pumps showcase an ABS No-Rust Exterior Case that is tough and sleek. This premium inverter unit is recommended for pools and spas with up to 20,000 liters capacity. It also returns at least 7 kW in heat output for only 1.25 kW of electricity input. Swimmax Inverboost Heat Pumps can run silently and economically 24/7 in the cold, quietly operating at only 42 decibels.

Key Features

Inverboost Technology
Up to 15-30% less power consumption
ABS No-Rust Exterior Case
DC Full Inverter
Wi-Fi Control
LCD Screen Control
Lower GWP
Titanium Heat Exchanger
Automatic Heating and Cooling
Quiet Operation

Product Inclusions

7iPS Inverboost Heat Pump
(2x) Barrel unions
10m wire cable - controller
(2x) Water drainage pipes
(2x) Draining plugs
(4x) Anti-vibration feet
Winter cover

Heat Pump Installation

For correct installation, Diversion Valves must be fitted for optimal performance. Diversion valves regulate and balance water flow, aiding in the pump's smooth and efficient operation. You can read the complete Heat Pump Installation Guide and buy a set of diversion kits: 40mm or 50mm.

Diversion Setup

Diversion valves are mandatory to balance water flow
Failure to install valves correctly will lead to errors
Your pump will flow up to 20,000 L/HR or 3-4 times the required maximum rate
We are unable to help you troubleshoot error codes without a diversion setup
Set top valve to approximately 50% water flow
Bottom Valve most important. Set bottom valve to approximately 25/30% water flow (depending on the model)
Please refer to min/max flow chart for guidance

Read more about Diversion Installation Setup.

Specifications:

Model	Swimmax 7iPS
Performance at Air 28°C. Water 28°C. Humidity 80%
Input Power/ Heating Capacity	7-2.2 kW
Input Current/ Power consummation	1.25-0.14 kW
COP	16-5.6
Performance at Air 24°C. Water 26°C. Humidity 70%
Input Power/ Heating Capacity	6.9-2.2 kW
Input Current/ Power consummation	1.25-0.14 kW
COP	15.7-5.4
Performance at Air 15°C. Water 26°C. Humidity 70%
Input Power/ Heating Capacity	4.7-2.5 kW
Input Current/ Power consummation	1.02-0.35 kW
COP	7.1-4.6
General Info
Compressor Type	Inverter compressor (GMCC Inverter)
Voltage / Power Supply	220~240V / 50Hz or 60Hz /1PH
Rate Current	5.5A
Minimum Fuse	10AMP - 3 pin plug attached
Max Pool Volume	20,000 L
Water Flow (m3/h)	2.5
Water Pressure	12 Kpa
Heat Exchanger	Twist-titanium tube in PVC
Water Connection	40mm/1.5"HP
Fan Qty	1
Fan Speed	500-850 RPM
Power Input of fan motor	6-35 W
Noise at 10m	≤41 dB(A)
Noise at 1m	40-51 dB(A)
Refrigerant	Eco-friendly R32
Heating mode and Auto mode setting range	6-41℃
Cooling mode ℃ setting range	6-35 ℃
Dimension/Weight
Net weight	56 kg
Gross weight	68 kg
Net dimension (mm)	1010 x 370 x 559
Packing dimension (mm)	1080 x 420 x 732

All Swimmax products are backed by a 1-year onsite and 3-year parts manufacturer warranty. The warranty exceeds the consumer warranties and guarantees under Australian Consumer Law. Warranties are for the original unit owner and authorized resellers in the location where the unit was installed. Premier House warrants all new equipment to be free from defects, including factory-used materials and workmanship, and of acceptable quality and durability in every possible way.

Extended Warranty for $249

2-Year Onsite and 5-Year Parts Manufacturers Warranty Our new extended warranty ONLY applies for items purchased after October 2019 and is specifically noted on your Invoice. It is available up to 90 days after purchase.
The warranty period will commence from the date of purchase from Premier House, and NOT the date of installation or first use.
Whether to repair, replace, or refund a faulty item is at Premier Houses sole discretion.

Return Policy

The item must be returned within 30 days after the buyer receives it.
The buyer is responsible for return postage costs.
You must return items in their original packaging and in the same condition as when you received them. If you don't follow our item condition policy for returns, you may not receive a full refund.
Note: If you are in any way dissatisfied or have any issues with your purchase, please contact us through messages for a resolution before opening a return.

Read the Complete Warranty, Return and Repair Policy
