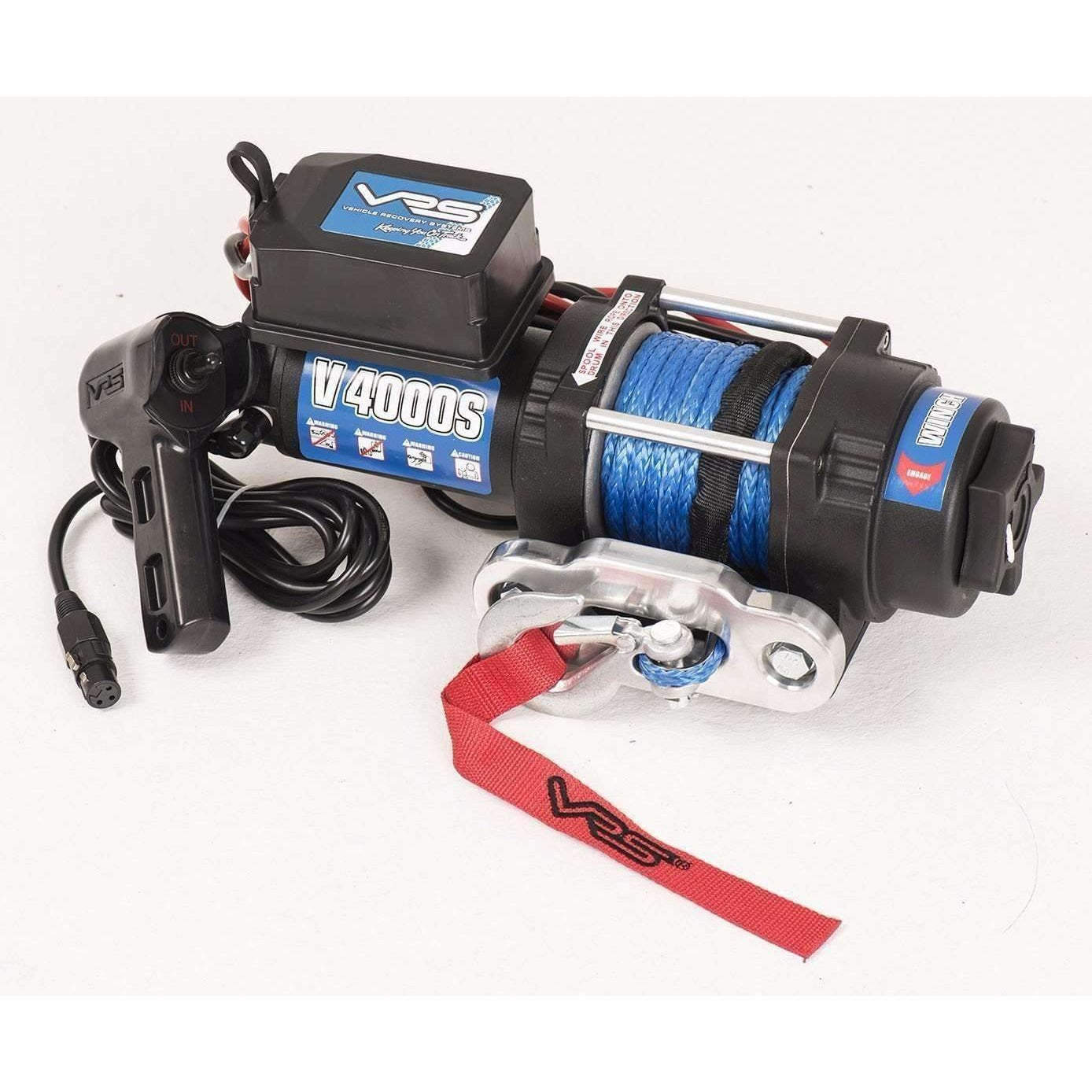

VRS V4000S Winch w/ Synthetic Rope V4000S

VRS V4000S Winch w/ Synthetic Rope V4000S

Hurry! 9 items left!

Price	$494
	Earn 3x points and collect 1482 Everyday Rewards points. Promotion ends 16/05/2024. Create a MyDeal Account or Login to link your card
Shipping	$39.00 Australia-wide (per item)
	See delivery details

Quantity

Add to wishlist

VRS V4000S Winch with Synthetic Rope V4000S

FEATURES

Heavy duty sealed high amperage contactor
Pendant control
Textured UV and corrosion-resistant finish
Sealed to resist water penetration
Mechanical braking system
2 year mechanical and electrical components warranty
Designed in Australia for the World

The VRS Utility Winch is a compact-sized winch to help you with those heavy jobs around the home or on the work site. Easily install on your trailer, ute, workshop, or more for a hassle-free winching solution.

SPECIFICATIONS

Line Pull	4,000lb/ 1,818kgs
Motor 12V	Permanent magnet 1.6hp/1.2kw DC12V
Gear Train	3 stage planetary gears
Gear Ratio	198: 1
Freespool	Sliding ring gear
Brake	Automatic, in the drum
Battery	Recommended 650 CCA minimum for winching
Synthetic Rope Size	6mm x 10m
Drum Size	50mm x 76.5mm
Mounting Bolt Pattern	124mm x 76mm
Dimensions	334mm x 114mm x 120mm
Net Weight	8.6kgs (19lbs)

LINE PULL AND ROPE CAPACITY

Layer of wire rope	Line Pull kg / lb	Total Rope on the Drum m/ft
1st Layer	1,818 / 4,000	2 / 6.6
2nd Layer	1,460 / 3,225	4.3 / 14.1
3rd Layer	1,225 / 2,700	7.2 / 23.6
4th Layer	1,055 / 2,325	10 / 39

LINE SPEED AND AMP. DRAW (1ST LAYER OF ROPE ON THE DRUM)

Line Pull kg/lb	Line Speed mpm/fpm	Amp. Draw 12V
No Load	4.9 / 16.0	17
454 / 1,000	3.2 / 10.5	70
907 / 2,000	2.8 / 9.2	105
1,360 / 3,000	2.2 / 7.2	135
1,818 / 4,000	1.5 / 4.9	180

PACKAGE

Winch Weight	8.6 kg
Box Dimension	480 x 250 x 220 mm

STANDARD ACCESSORIES

Detachable Contactor Pack

Remote pendant control

Synthetic Rope with Hook

Hawse fairlead

Handsaver strap

ITEM NUMBER

V4000S

WARNING

Winches are not to be used for the lifting or moving of persons.

1 YEAR WARRANTY

Warrants the original purchaser that the mechanical and electrical components will be free of defects in material and workmanship for a period of 1 year from the original date of purchase.

VRS LImited Lifetime Warranty

SKU: V4000S
