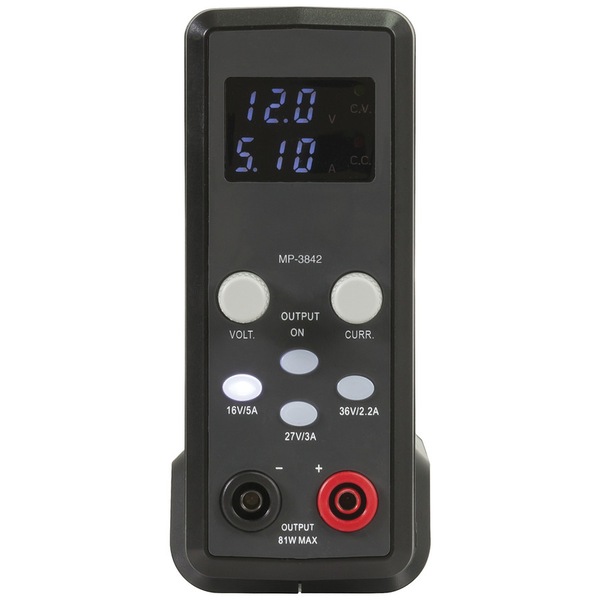

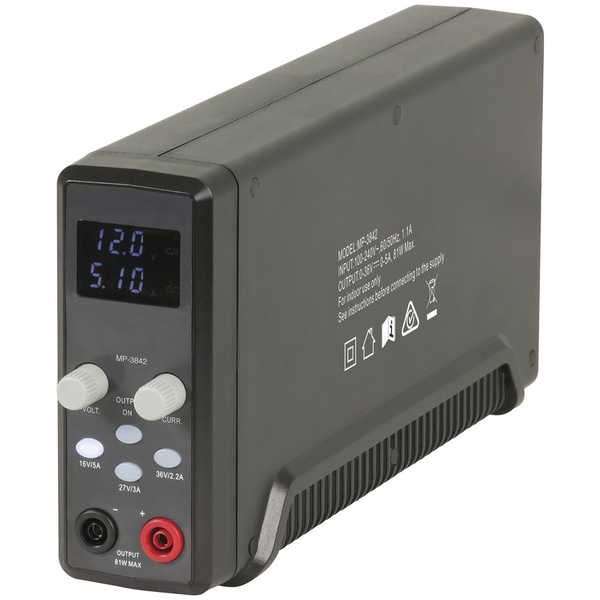

POWERTECH 0-36VDC 0-5A Slimline 80W Lab Power Supply

Image 1
Image 2
Image 3
Best Price in the Last 14 Days
Hurry! 9 items left!
$179
You save $40Was $219

Collect 179 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by MAD Electronics Australia
Secure ways to pay at checkout
Often in a workbench environment you don't need massive amounts of power, and your huge unit is under-utilised. This slimline power supply provides up to 80W of power, still plenty of grunt for many tasks. It provides constant current and constant voltage options. Simply select your power range, then adjust the controls to obtain your desired outputs. Ranges available are 0-16V @ 0-5A, 0-27VDC @ 0-3A, and 0-36V @ 0-2.2A. Output is provided via banana sockets which will accept insulated banana plugs. A powerful, compact unit for your workbench or mobile toolkit. Includes banana to alligator clamp leads.



Features: * Constant current / constant voltage options * Up to 5A current * Compact design * Input Voltage: 100-240VAC @ 50/60Hz * Output Voltage: 0-16VDC 0-5A (Max), 0-27VDC @ 0-3A (Max), 0-36VDC @ 0-2.2A (Max * Output Power: 80W Max. Product Dimensions

















Width 53mm
Height 138mm
Weight 886g
Depth 300mm

DC Current Rating





DC current rating 5A
DC Voltage Rating





DC Voltage 36V
Power Supply Units





























Type of Power Supply laboratory
Regulation Type SMPS
Current Display
Ripple Voltage 30mV
Output Connection Banana 4mm (standard)
Voltage Display
Number of Outputs 1pc
Mains powered

























Mains Max Current 1.1A
Auto-select mains voltage
Frequency 50Hz-60Hz
Mains Voltage Range 100V-240V
Rated for US Mains
Rated for AU Mains
AC Voltage Rating









AC Frequency 50Hz
AC Voltage rating 240V
AC Current Rating





AC current rating 1.1A
Product Dimensions

















Height 138mm
Width 53mm
Depth 300mm
Weight 886g

GTIN: 9319236715529
