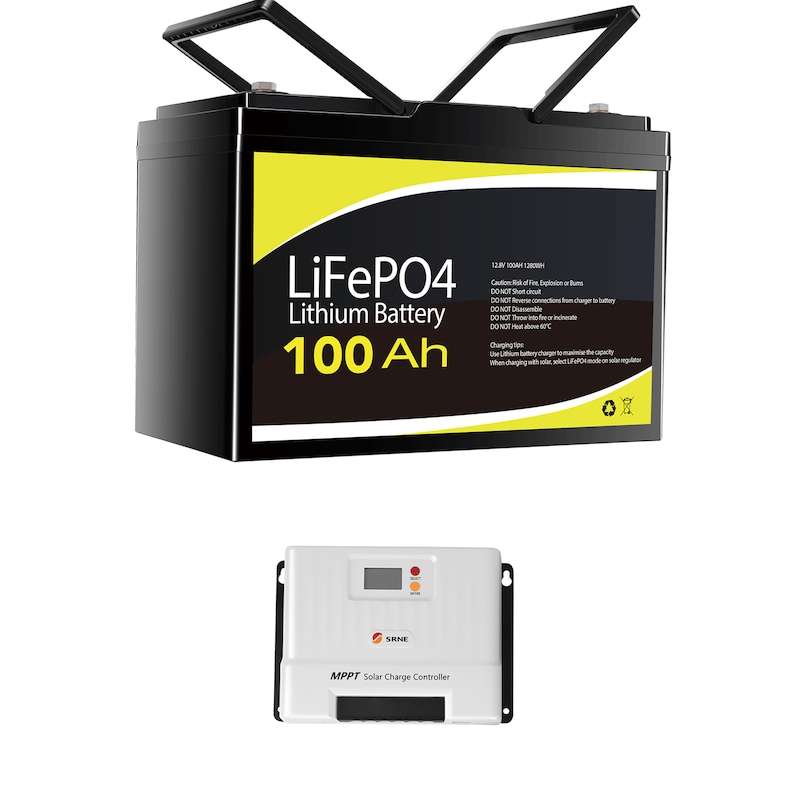

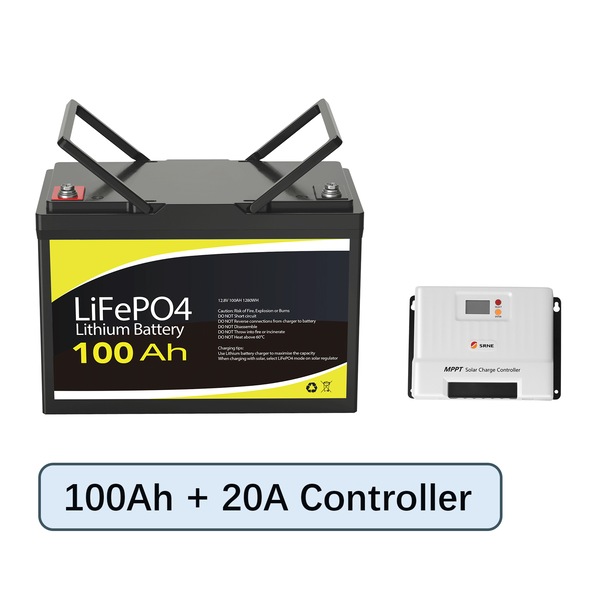

12V 100Ah LiFePO4 Battery + 20A Solar Charge Controller MPPT Battery Charger

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$399.95

Collect 399 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Ozzie Energy
Secure ways to pay at checkout

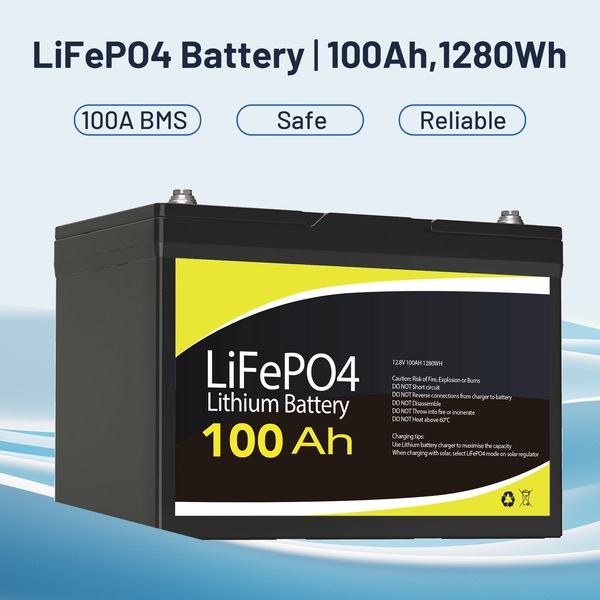

Product 1: 12V 100Ah Lithium Battery

  • Specifications

    • Brand: Power Bolt
    • Nominal Voltage: 12.8V

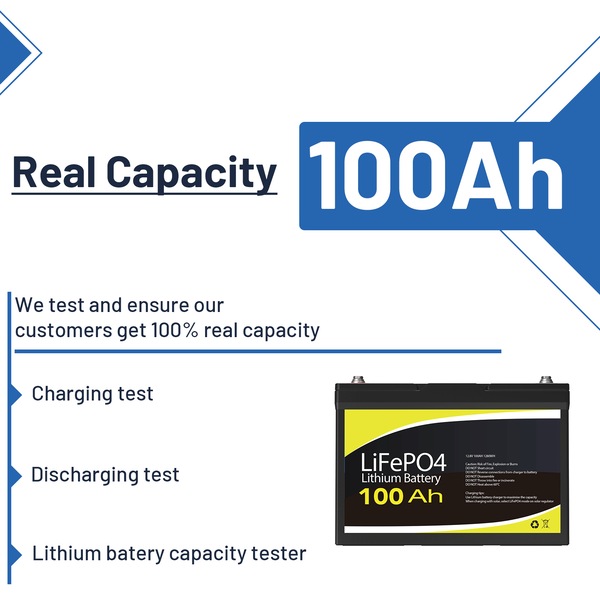

    • Nominal Capacity: 100Ah
    • Rated Energy: 1280Wh

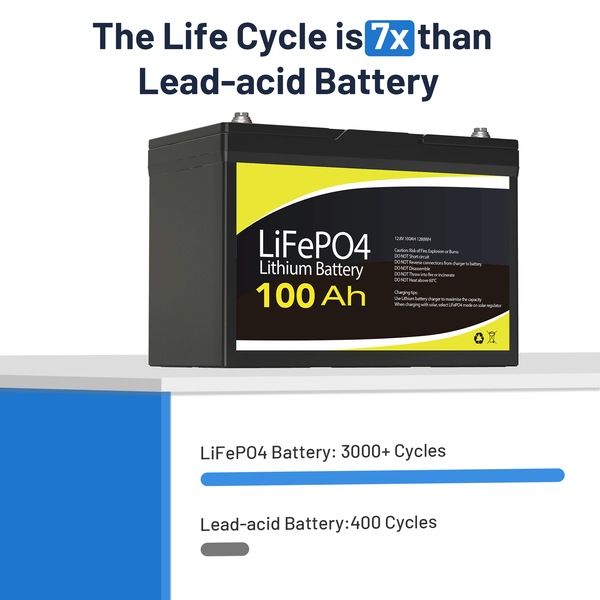

    • Approx Life Cycles: 3000
    • Battery Manage System: 100A
    • Standard Charging Current: 50A
    • Max. Charging Current: 100A
    • Standard Discharge Current: 100A
    • Max. Continuous Discharge Current: 100A
    • Max. Discharge Current 5 sec: 200A

    • Charger: 14.4V 50A
    • Charging Voltage: 14.2-14.6V
    • Overcharge Protection: 14.6V
    • Overcharge Recovery: 14.2V
    • Overdischarge Protection: 10V
    • Overdischarge Recovery: 10.6V

    • Charge Temperature : 0°C to 45°C
    • Discharge Temperature : -20°C to 60°C
    • Storage Temperature: -10°C to 50°C
    • Charge Method: CC/CV
    • Charging Way: LiFePO4 Charger, Solar Panel
    • Case Material: ABS Plastic
    • Battery Type: LiFePO4 Lithium Battery
    • Battery Model: Standard
    • Battery Cells: Prismatic
    • Certifications: IEC, UN38.3
    • Protection Class: IP65
    • Warranty in Years: 3
    • Bolt Type: M8
    • Bolt Material: Iron nickel-plated
    • Cell Grouping: 4S1P
    • Parallel Connection: Max 6
    • Series Connection: Max 6

  • Dimensions & Weight

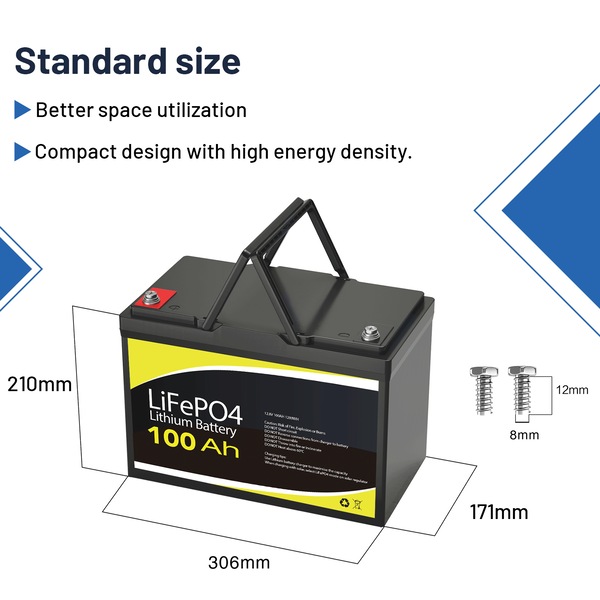

    • Product Size: L306 x W171 x H210mm
    • Package Size: L360 x W220 x H250mm
    • Bolt Terminal Size: Hexagon x 12mm
    • Bolt Terminal Perimeter: 25.12mm

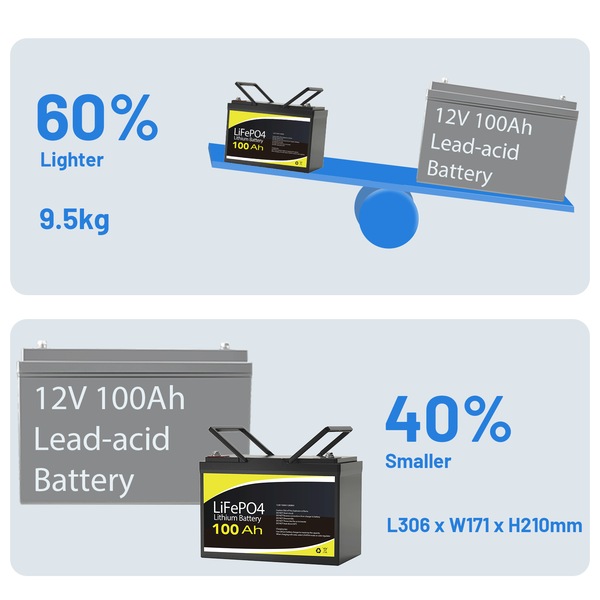

    • Net Weight: 9.5kg
    • Gross Weight: 10.5kg

  • Package List

    • 1x 100Ah Lithium Battery
    • 2x Terminal Bolts M8*12
    • 2x Insulating Covers
    • 2x Screw Spring Washer
    • 4x Screw Washers
    • 1x User Manual

    Product 2: 20A Solar Charge Controller MPPT Battery Charger

  • Electrical Parameters


    • System voltage: 12V/24V
    • Rated charging current: 20A
    • Static power consumption: ≤10mA
    • Maximum solar panel power: 260W/12V; 520W/24V
    • Maximum PV open-circuit voltage: 60V (55V protection, 50V recovery)
    • MPPT operating voltage range: (Battery voltage +2V)~45V
    • Battery operating voltage range: 8V-32V
    • MPPT tracking efficiency: >99%
    • Charging conversion efficiency: 85%-98% (10%-100% of rated power)
    • Rated load current: 20A
    • Load operating mode: Light control, light control + time control, manual mode (default), debugging mode, normally open
    • TTL communication: Baud rate: 9,600 bps
    • RS485 communication: RJ45 interface, with power output 5V/200 mA,The baud rate is 9,600 bps by default, adjustable.
    • Bluetooth communication: Optional
    • CAN communication: RJ45 interface, optional (RV-C protocol)
    • Historical data: Save the last 200 days of historical data
    • Protection function: PV overvoltage protection, PV reverse connection protection, PV shortcircuit protection, night reverse charging protection, input power limit protection, over-temperature protection, load short-circuit protection, overload protection, battery over-voltage/over-discharge protection,battery reverse connection protection, battery end short circuit protection.
    • Grounding type: Grounding of common negative electrode
    • Cooling mode: Natural heat dissipation
    • Charging current setting: Yes
    • Full-charging setting: Yes
    • Constant voltage output setting: Yes
    • Charging temperature compensation of lead-acid battery: Yes
    • Temperature unit setting: Yes
    • Overload/Short-circuit protection: Yes

  • Environmental Data


    • Protection grade: IP32
    • Operating ambient temperature range: -35°C~65°C

  • Mechanical Specifications


    • Dimension: 181*118*61.7mm
    • Mounting hole spacing: 161*96mm
    • Weight: 650g
    • Fixed hole position: Φ4.5mm

    Tips: The items in this bundle will be shipped separately, the packages may arrive at different times, please be patient and wait.

    GTIN: 9355348068108

    Estimated Delivery Time Frame:3-8 business days
