The ultrasonic cleaner is RCM compliant as per Level 1 electrical equipment that is classified as low risk or unknown risk and is any in-scope electrical equipment.

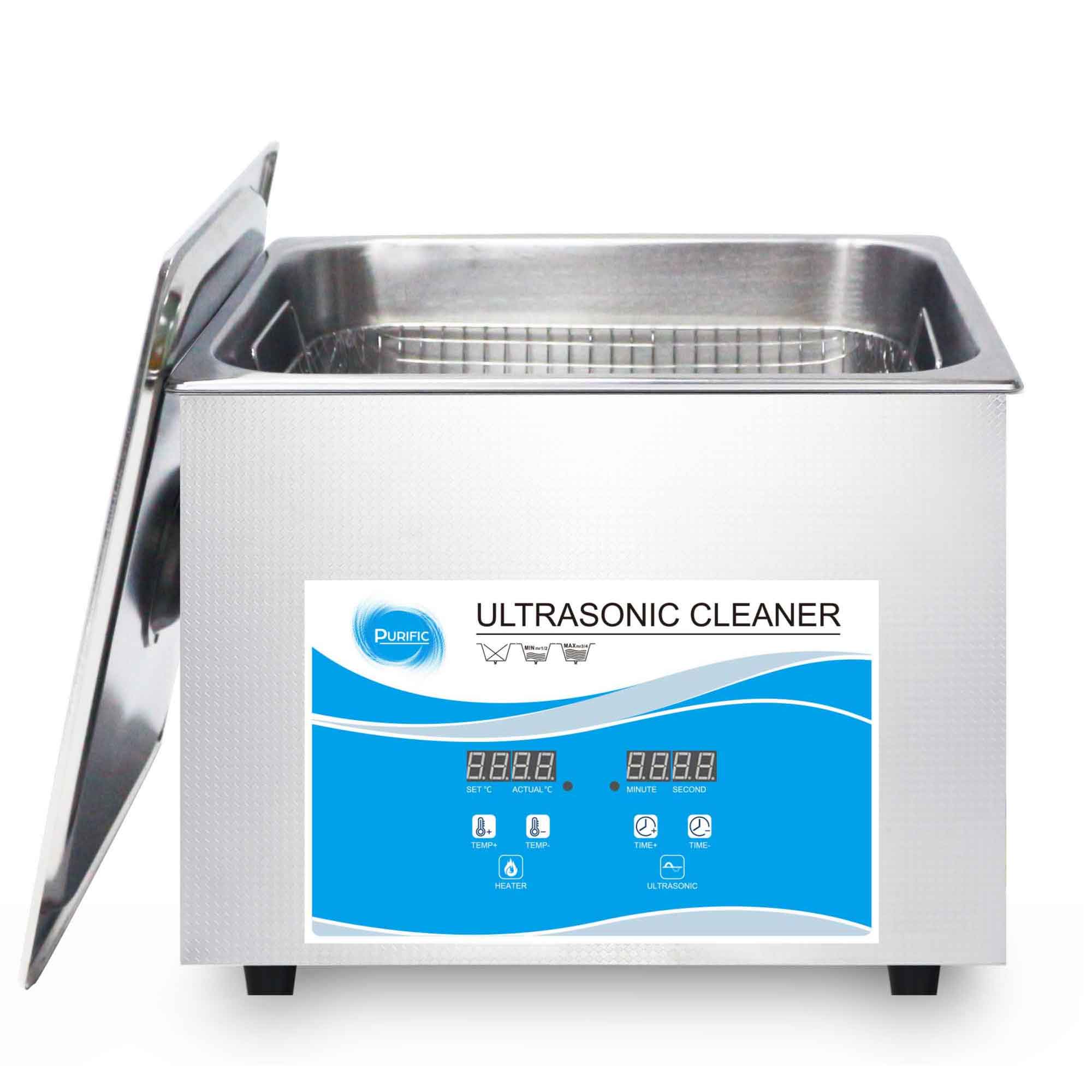

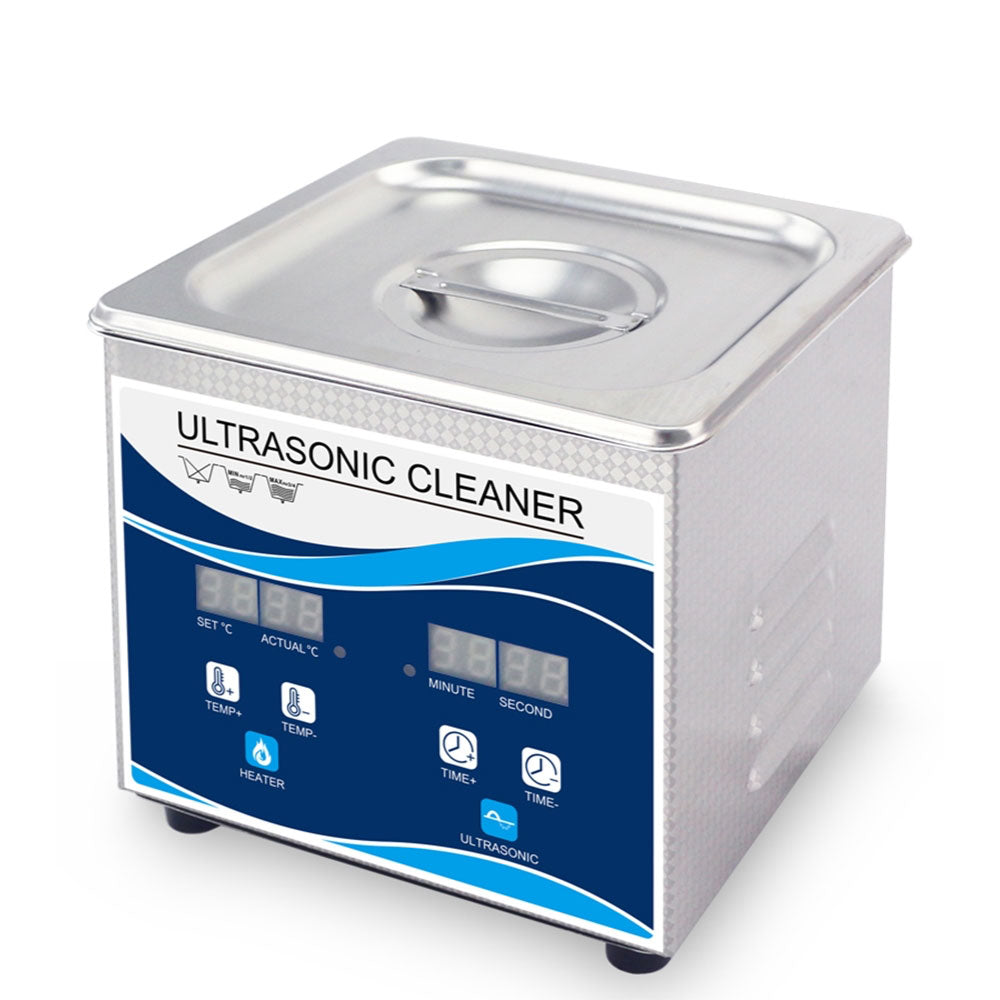

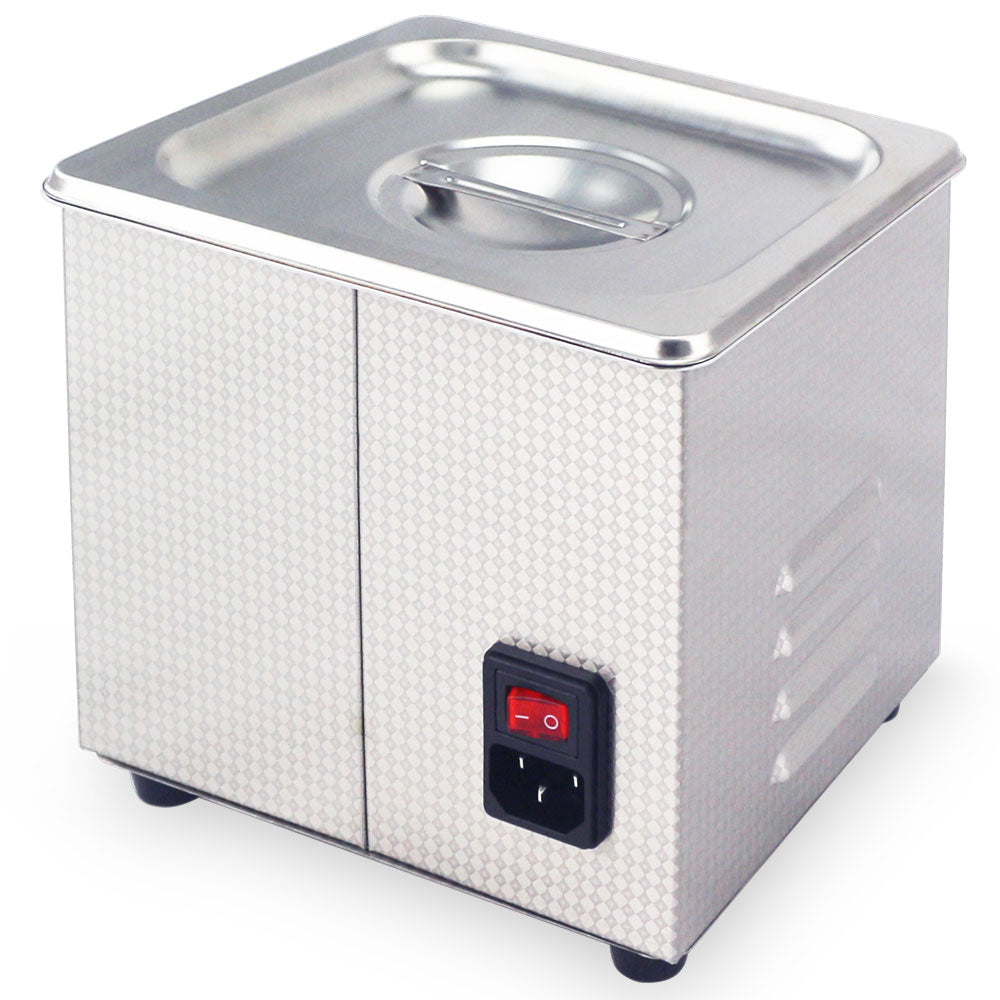

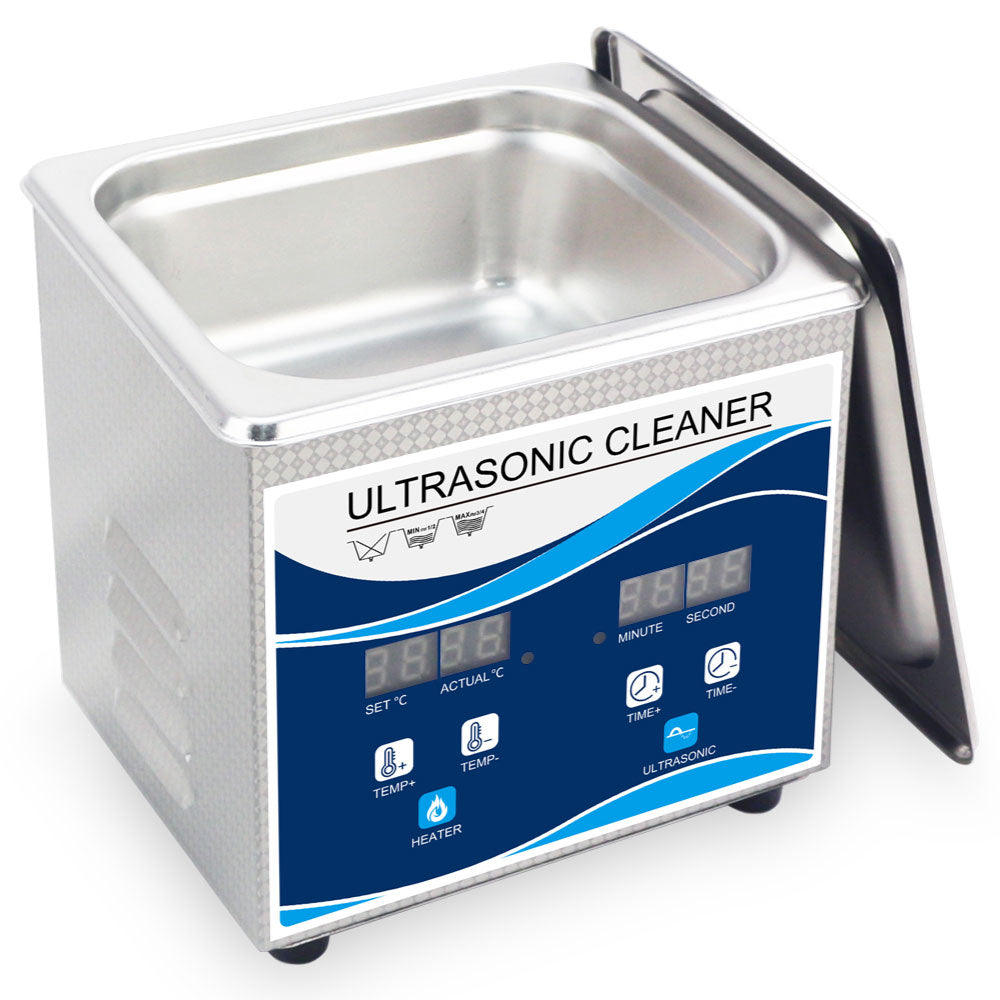

It is a microprocessor-controlled device that uses ultrasonic or high-frequency sound waves to clean jewellery and other delicate items. The vibration of ultrasonic waves in the liquid will cause strong cavitation and emulsification. Millions of cavitation bubbles can be generated per second.

Under the action of sound pressure, these bubbles are rapidly produced and continuously violently blasting, producing a strong impact and suction force to remove stubborn dirt and kill bacteria and viruses.

Built-in powerful transducers strengthen the ultrasonic power and produce a superior cleaning outcome. Utilise the digital programme to control the unit according to the quantity and condition of the items to be cleaned and to choose a working cycle time.

As a result, it is more convenient and efficient than hand washing, steam cleaners, high-pressure water jet cleaning, or other machines.

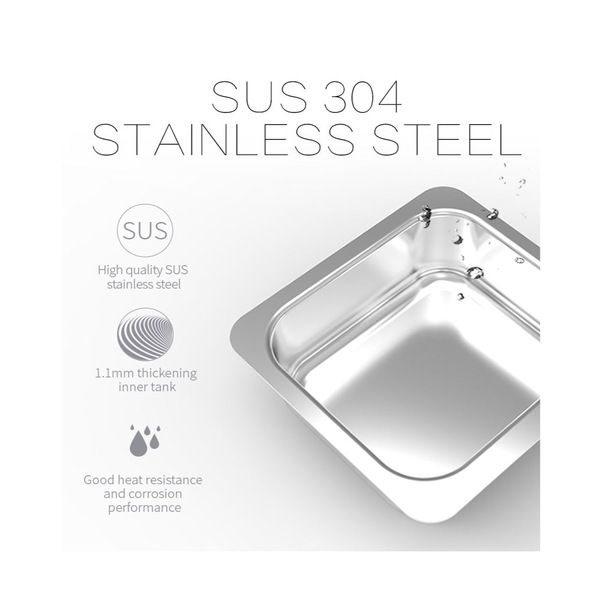

Constructed from advanced brushed stainless steel 304 cleaning tank to avoid corrosion and water stains and to keep the tank looking always new.

Please note: The water level in the tank needs to be at least halfway filled, with the object to be cleaned fully immersed in the water; however, do not fill over the MAX line. Neglecting to fill the water level correctly will damage the transducers, and the machine will ultimately stop working.

Specifications:

• Capacity: L



• Material: SUS 304 Grade Stainless Steel



• Transducers: 1 piece



• Power: 60W



• Voltage: 220V - 240V



• Heating Power: 150W



• Heater: 20-80oC



• Frequency: 40 kHz



• Tank Size (mm): 150 (L) x 135 (W) x 65 (H)



• Unit Size (mm): 175 (L) x 165 (W) x 160 (H)



• Time: 0-30 minutes



• Weight: 2.5 kg



• AU Plug



• Warning







• Never turn on the machine while it is empty.



• Always make sure that you fill the container to more than 1/2 capacity and less than 2/3 capacity.



• Failure to follow these warnings might damage the machine and void the warranty.

Features:

• Durable stainless steel construction

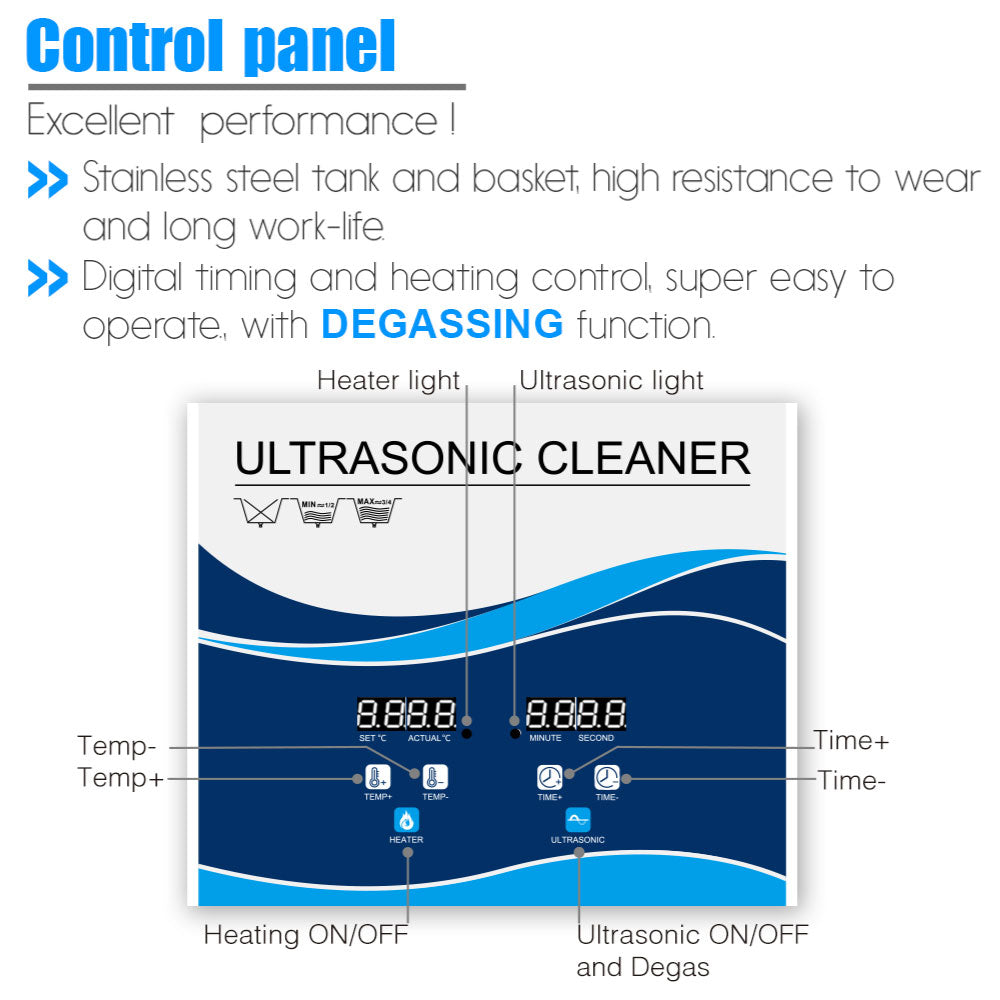

• Degas function

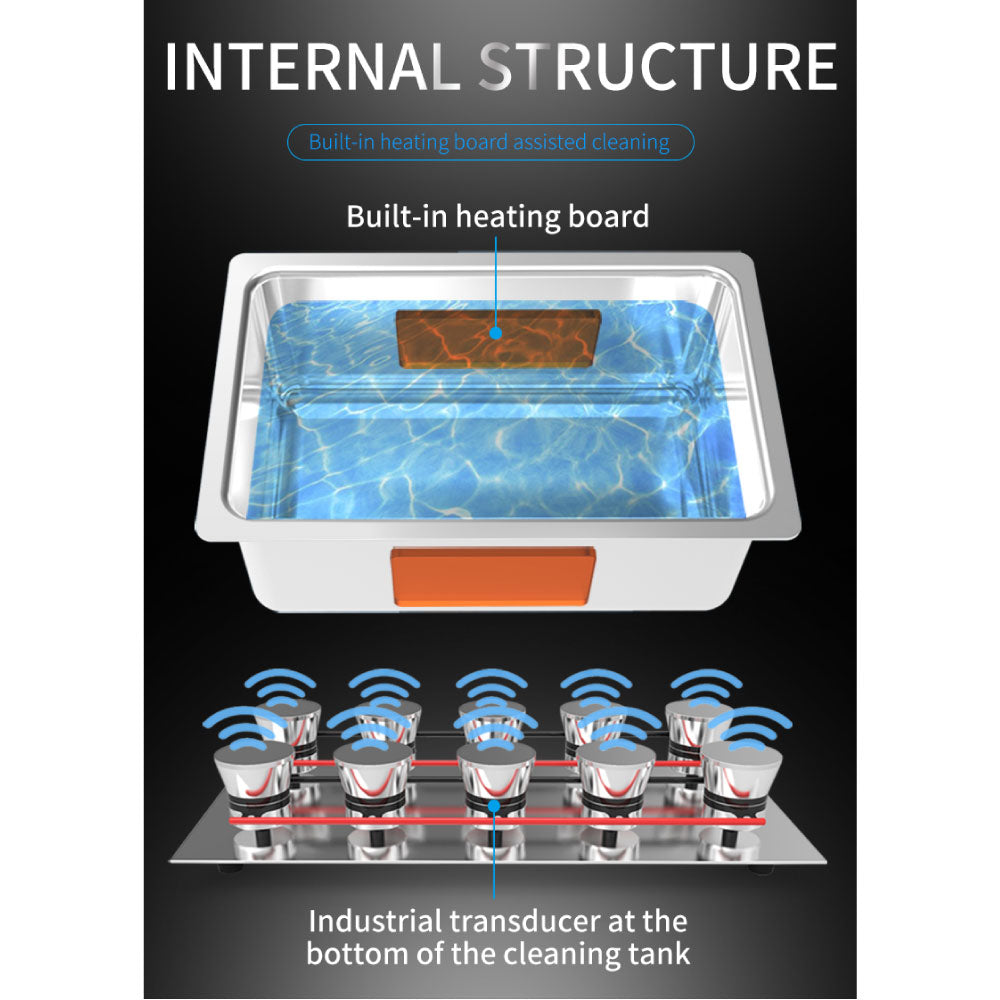

• Heating and ultrasonic functions



• Ultrasonic cleaning and heating can be used at the same time.



• High-efficacy cleaning for small blot particles

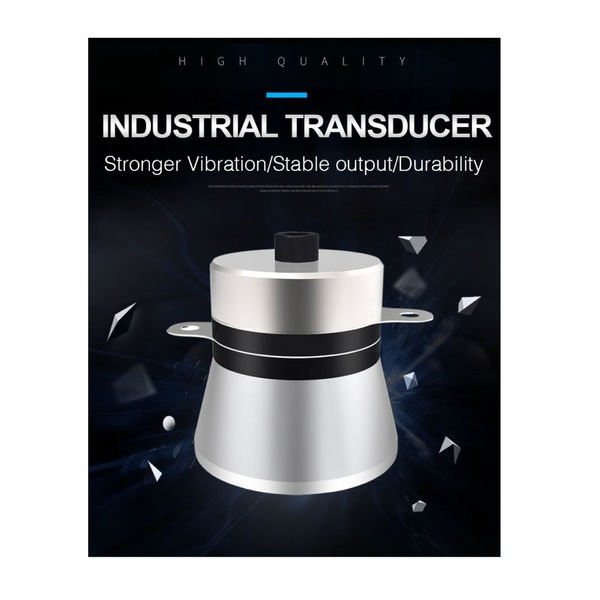

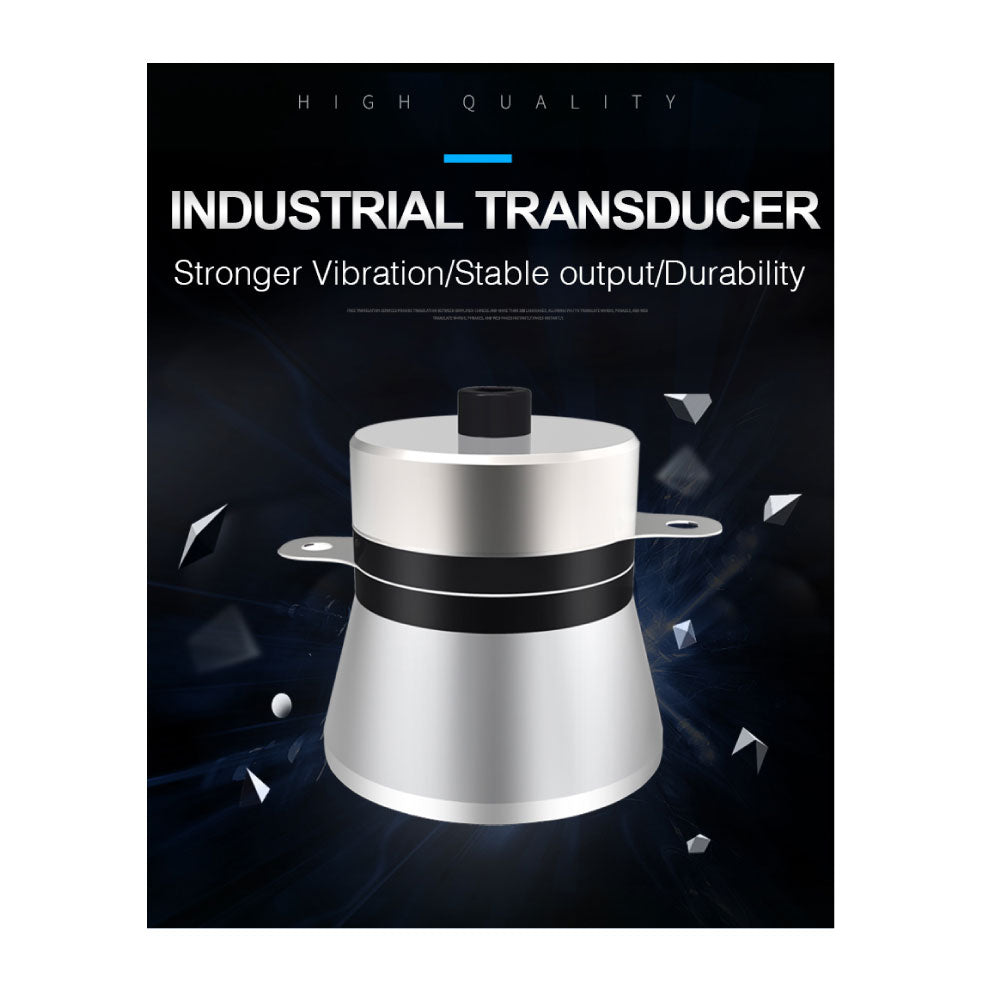

• The built-in powerful transducer can strengthen the ultrasonic power to produce a superior cleaning outcome.

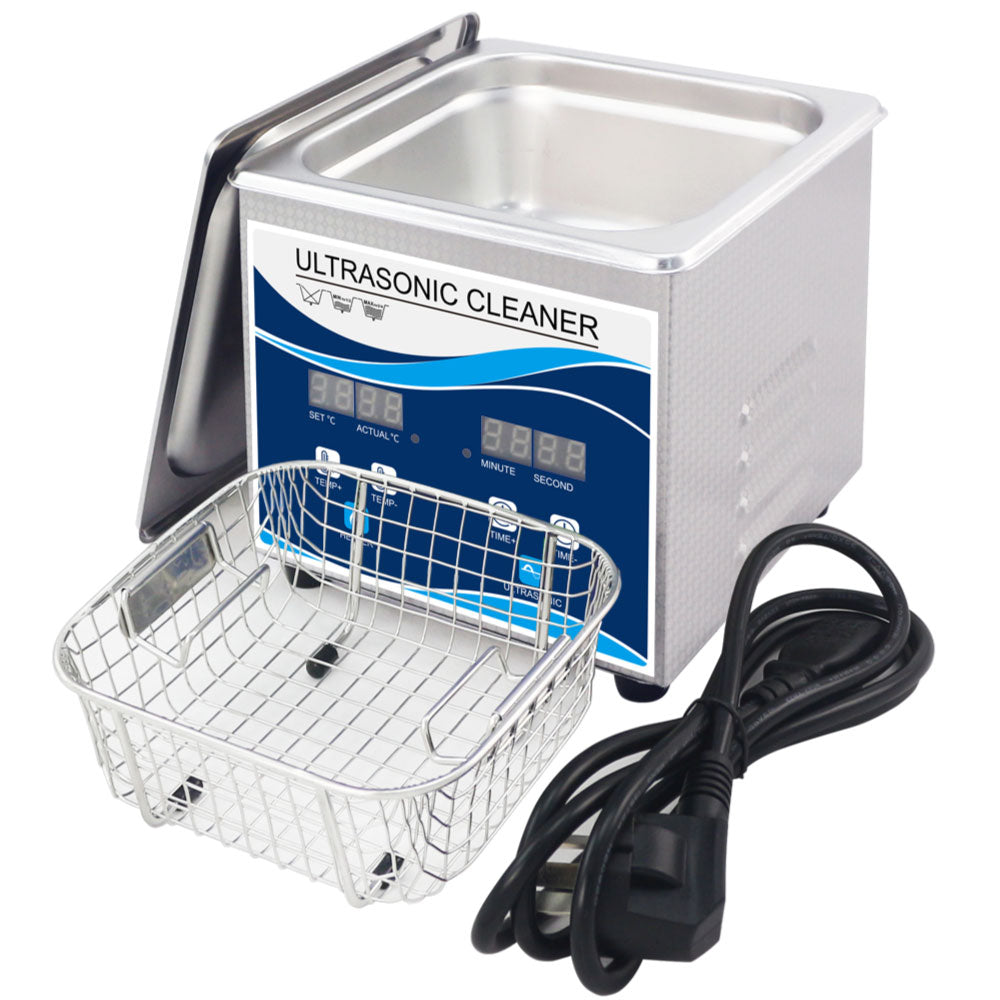

• Stainless steel cleaning basket for cleaning some small objects that need less friction. It can reduce the friction between the small objects and the tank.



• Stainless steel, tight-fitting lid with handle to prevent water heat from diffusing.



• Drains with tray

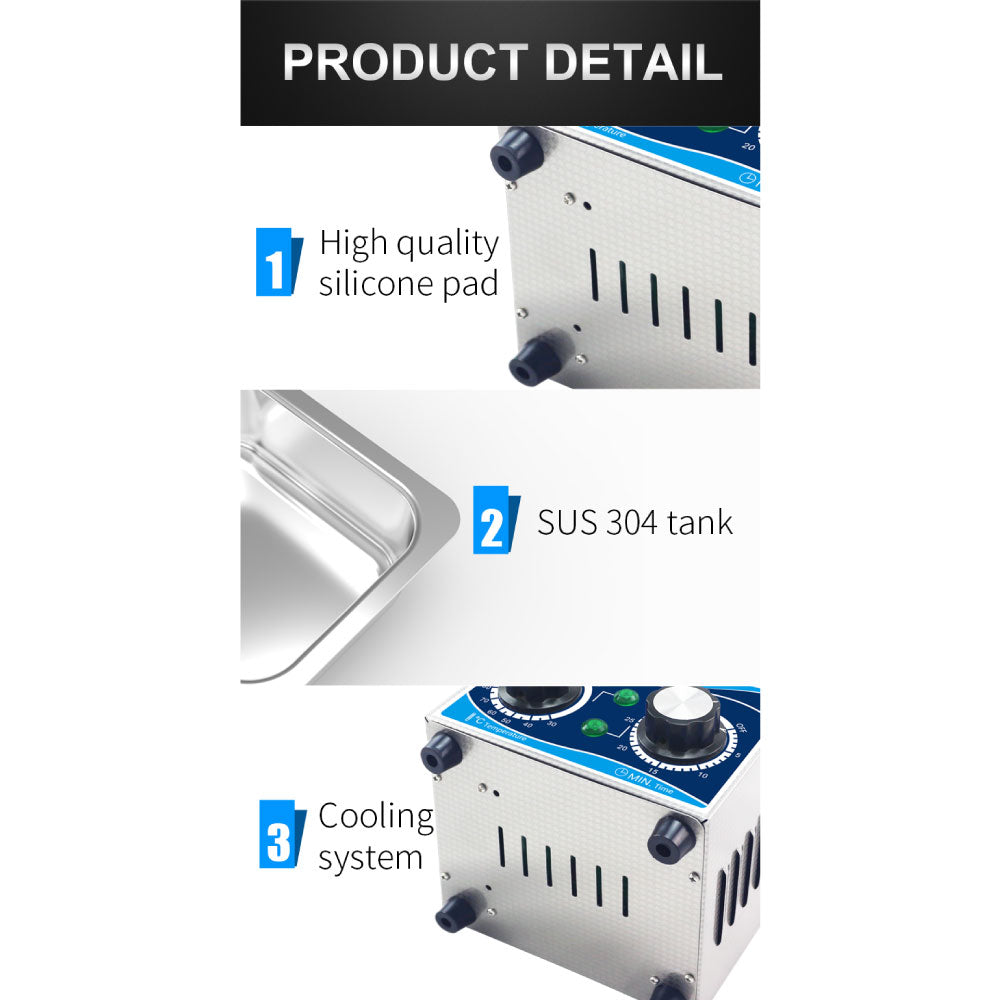

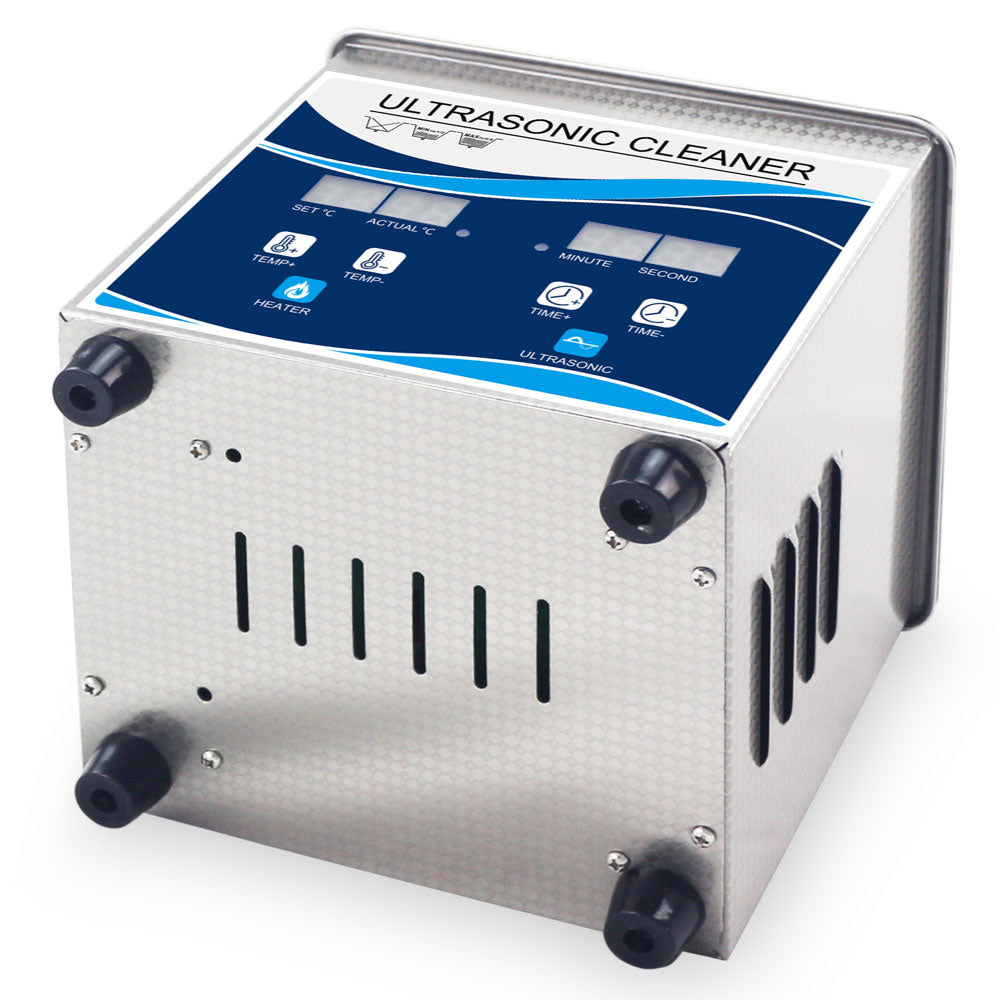

• Skid-proof rubber feet



•
  Use tap water only for general cleaning; you can also add about 5-10 ml of detergent into the water to enhance the wash result when needed.

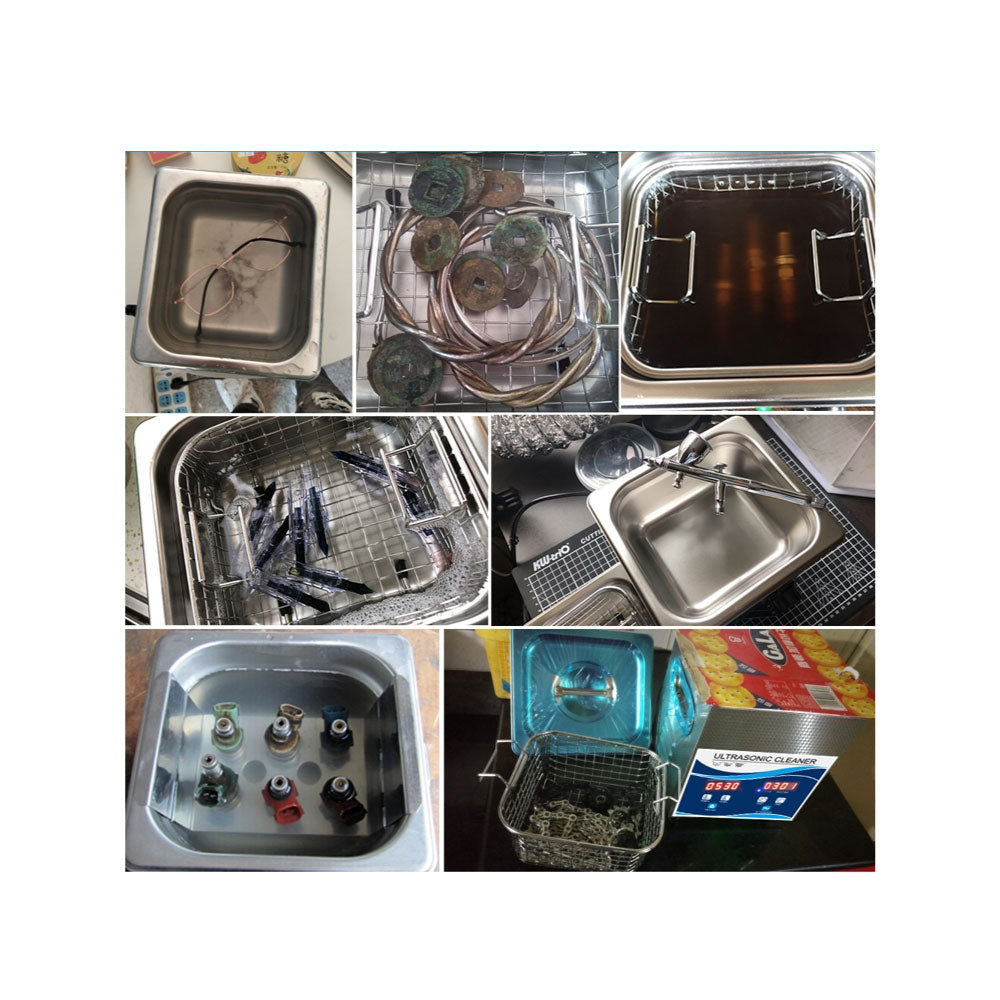

Applications:

•
  Household supplies: daily use of items such as gold and silver jewellery, jewellery, head ornaments, brooches, glasses, chains, pens, CDs, shaving knives, combs, dentures, tea tools, milk bottles, nipples, and fruits like grapes, cherries, and strawberries. While cleaning the object, it can also be sterilised.





•
  Electronic appliances: switch, integrated circuit, electronic circuit board, semiconductor element, silicon chip, quartz crystal, magnetic head, magnetic tape, optical fibre relay, capacitor, alarm, memory, LCD, solder, oil stains, turpentine, preservatives, paraffin, oxide, rust on the hard disc components.



•
  Watches and jewelry industry: Remove paint, spray paint, compound, oil sludge, dust, oxide layer, polishing paste on jewelry necklaces, jade articles, watches, glasses, etc.



•
  Chemical and biological industry: cleaning, disinfection, and sterilisation of chemical instruments and laboratory vessels. Assists in accelerating the emulsification, decomposition, and extraction.



•
  Automobile industry: Mainly remove oil, antiseptic, plastic residue, abrasives, and graphite on valves, ignition plugs, fuel pumps, oil tanks, battery electrodes, piston rings, and machine control disc parts.



•
  Optical Industry: Remove oil, sweat, and ash from the optical instruments and all kinds of lenses.



•
  Aviation industry: Remove oxide, dust, rust, carbon, and scale on fuel filters, flow control equipment, gyroscopes, satellites, and the aviation hydraulic system.



•
  Electroplating industry: Remove grease, rust, and phosphide on the Vernier calliper, fixture, spectacle frame, surgical instruments, dental tools, hardware, watch parts, and metal structural parts such as fishing gear accessories.



•
  Printing and textile industry: Remove stains, ink marks, fingerprints, oil, and dyestuffs on the rotary machine, spinneret, polyester filter core, and textile spindle.
