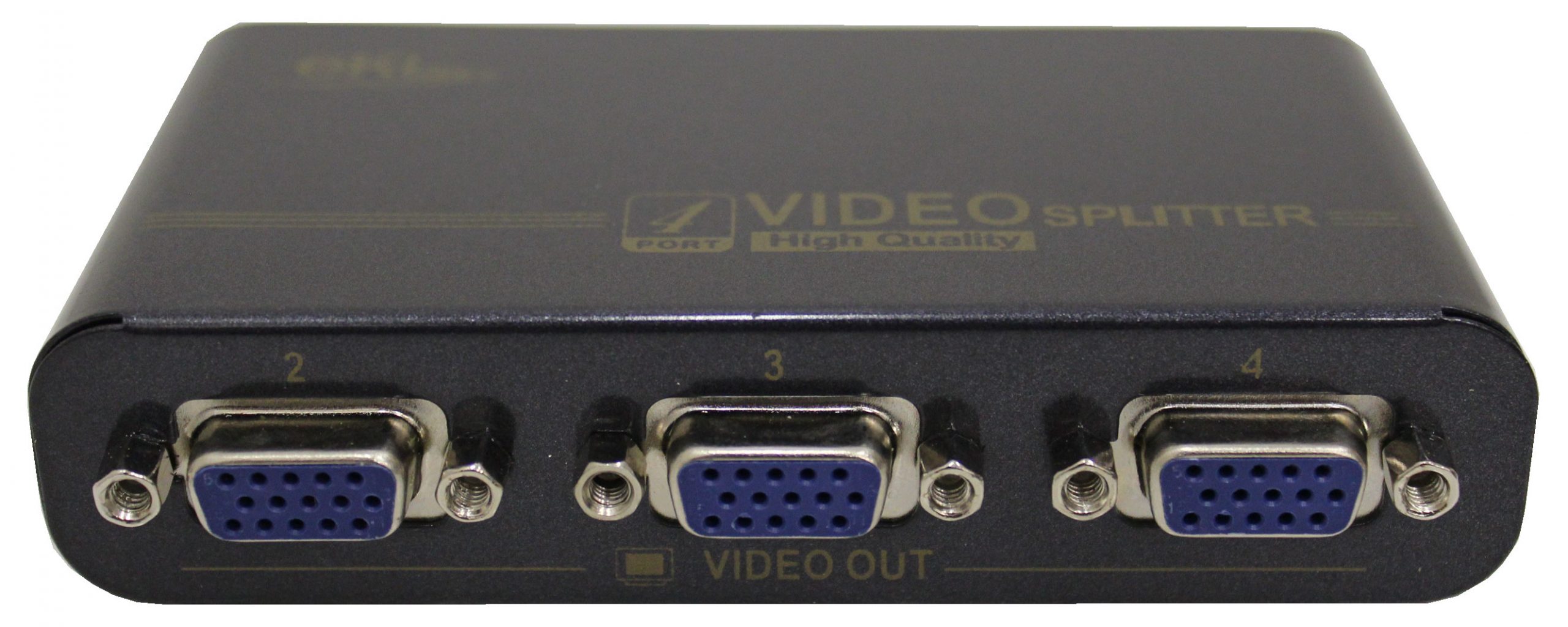

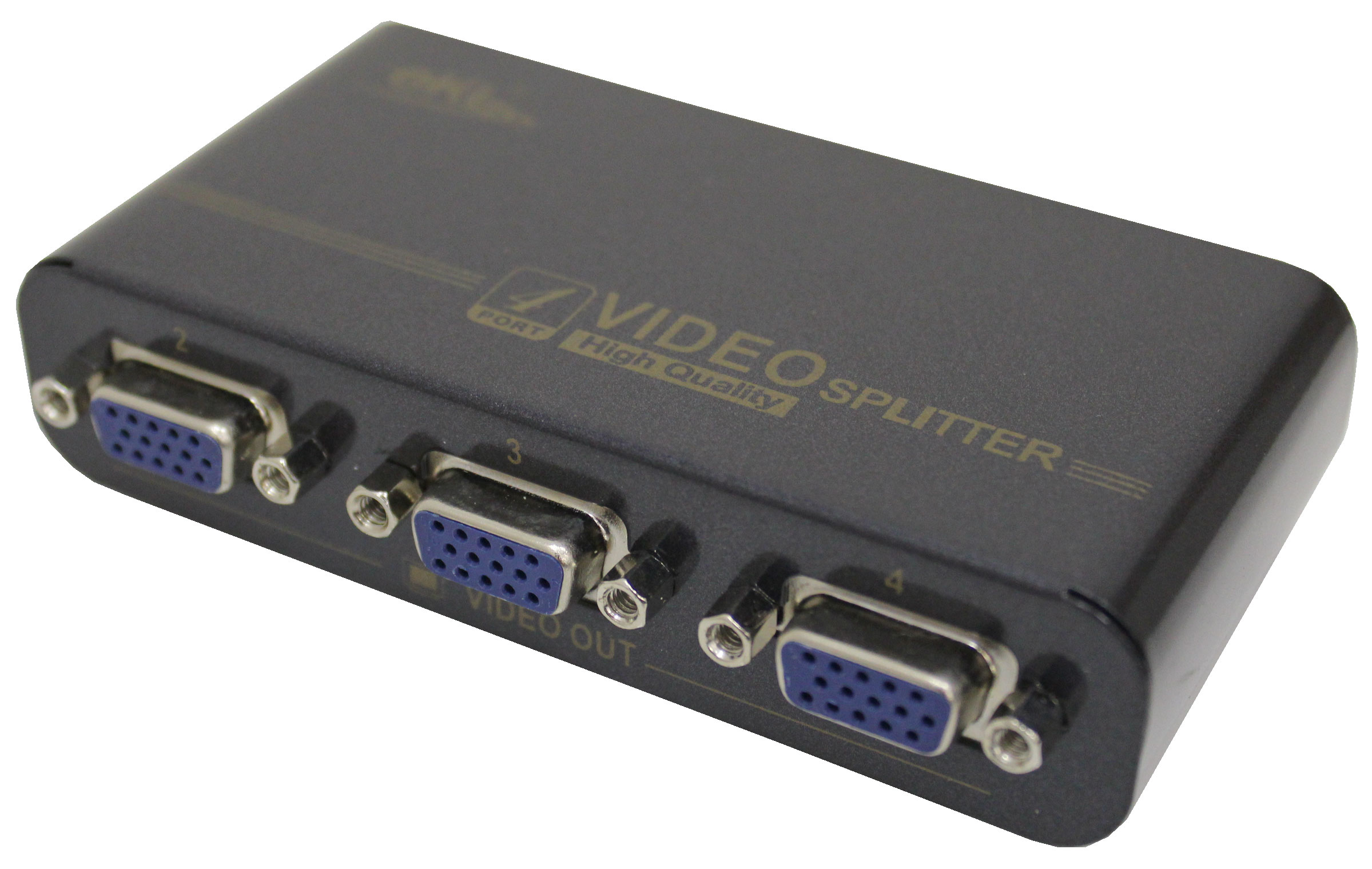

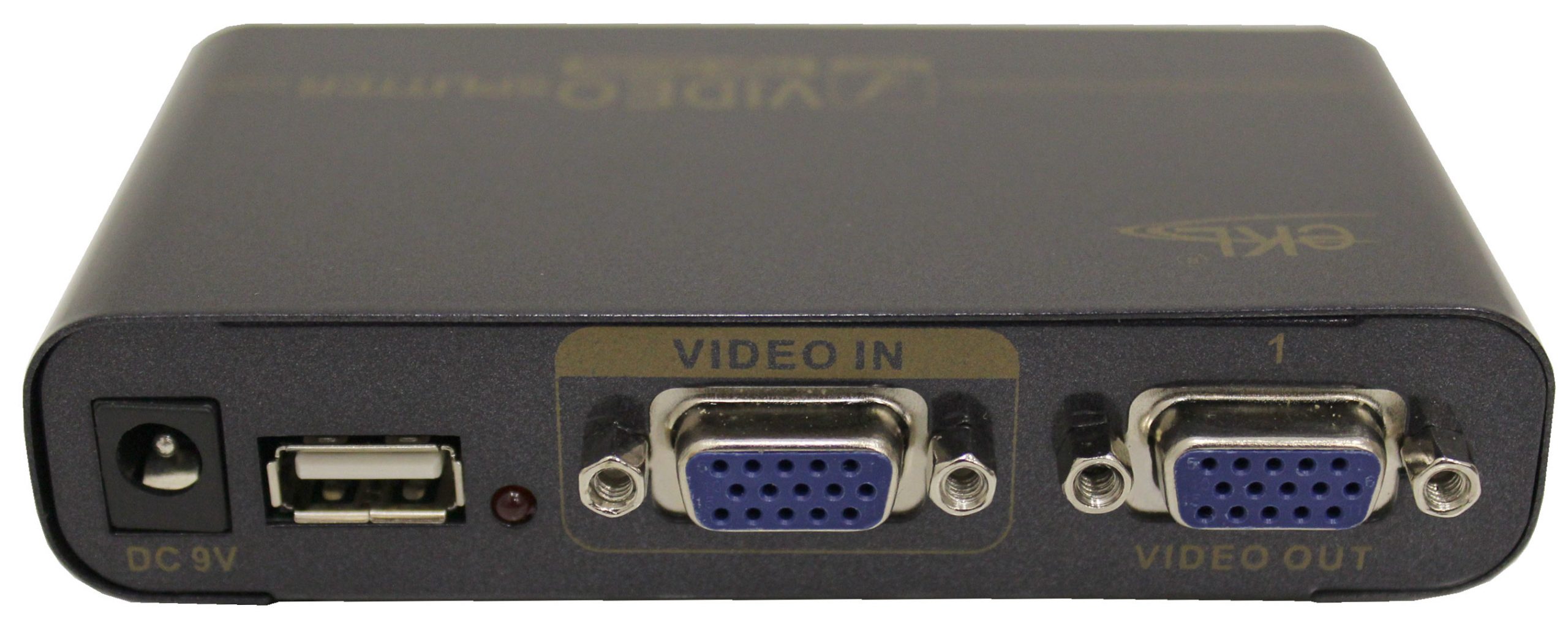

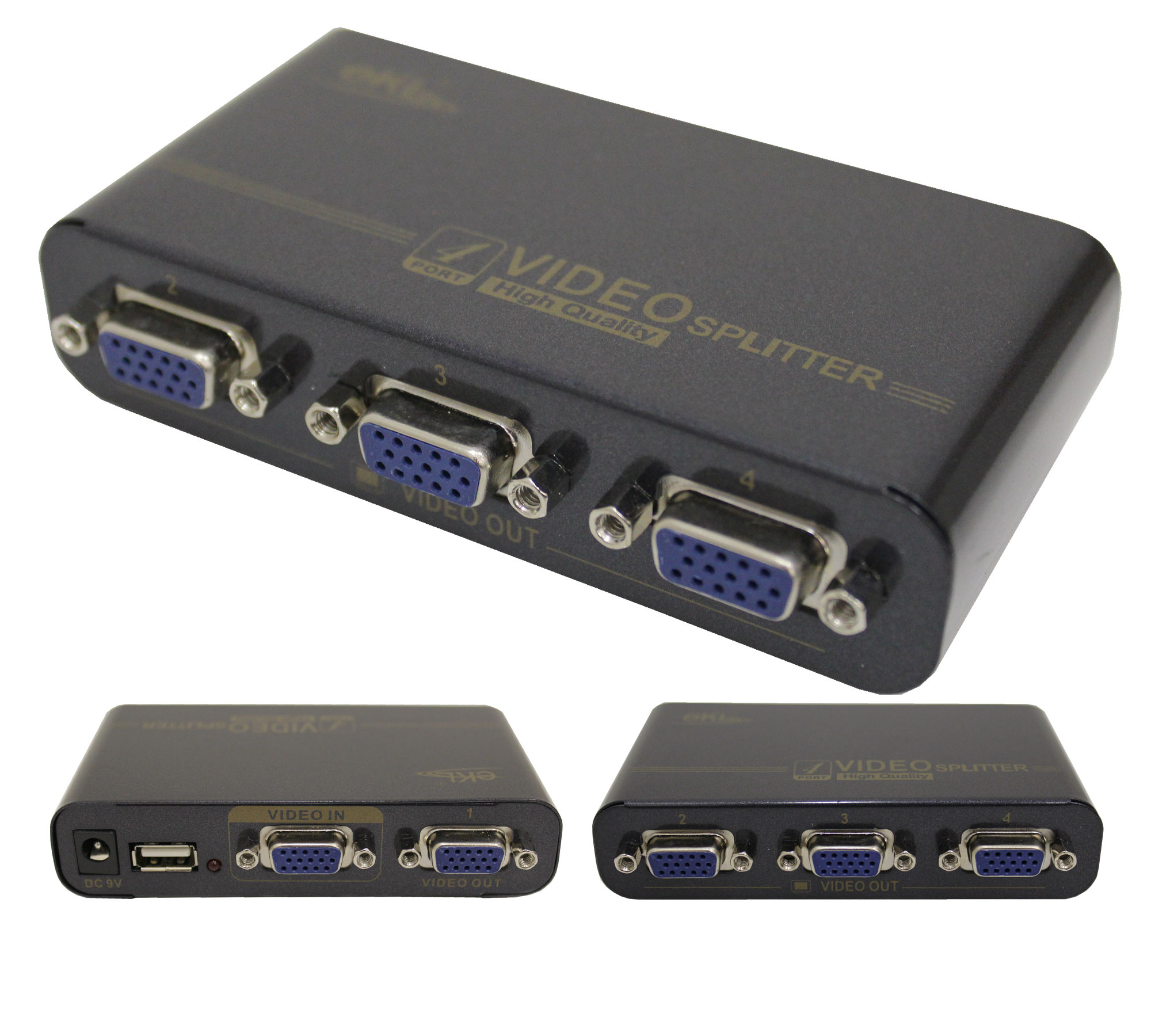

1 To 4 Port VGA Splitter High Res Support 1920 x 1440 60Hz 50M 2/4 Port

Image 1
Image 2
Image 3
Image 4
Shop More Products





General
Input Conenctor 1x VGA (HDB – 15 Female)
Output Connectors 4x VGA (HDB – 15 Female)
Bandwidth (-3db) 350MHz
Output Impedance / Level RGB: 75Ω, 0.7V p-p; HV SYNC: TTL Level
Resolution 1920 x 1440 DDC, DDC2, DDC2B (at PNP Port)
Horizontal 30 ~ 180 KHz
Vertical 43 ~ 250 Hz
Transfer Distance 50m (max.)
Power Consumption AC Adaptor: DC 5-12V, <1.7W
Operating Temperature 5 ~ 40°C
Operating Humidity 0 ~ 80% RH
LED Indicator Yes
Housing Metal
Dimensions (W x H x D) 110mm x 56mm x 25mm
Weight 170g
Package Contents
Contents VGA Splitter, AC Adaptor, Manual

SKU: EKL-94

Reference ID: 2071384
