4 Stroke Engine

12 Month Warranty

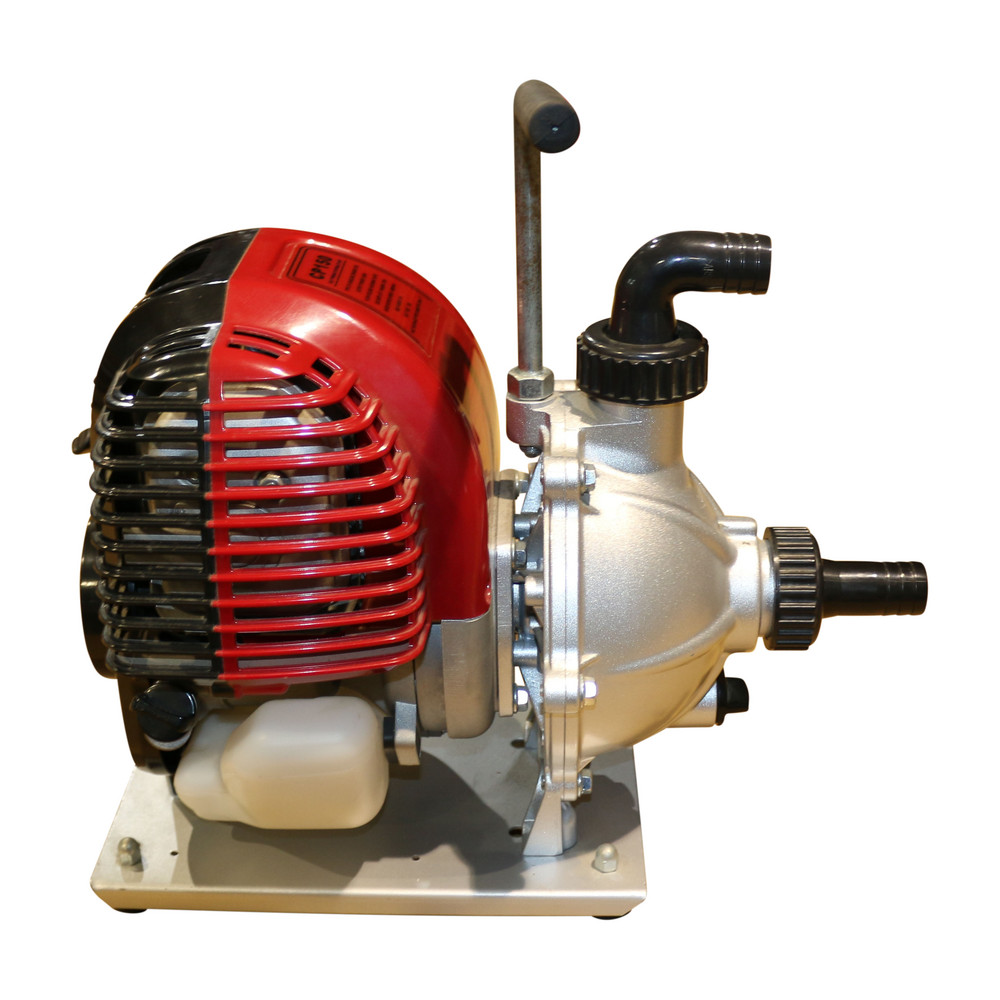

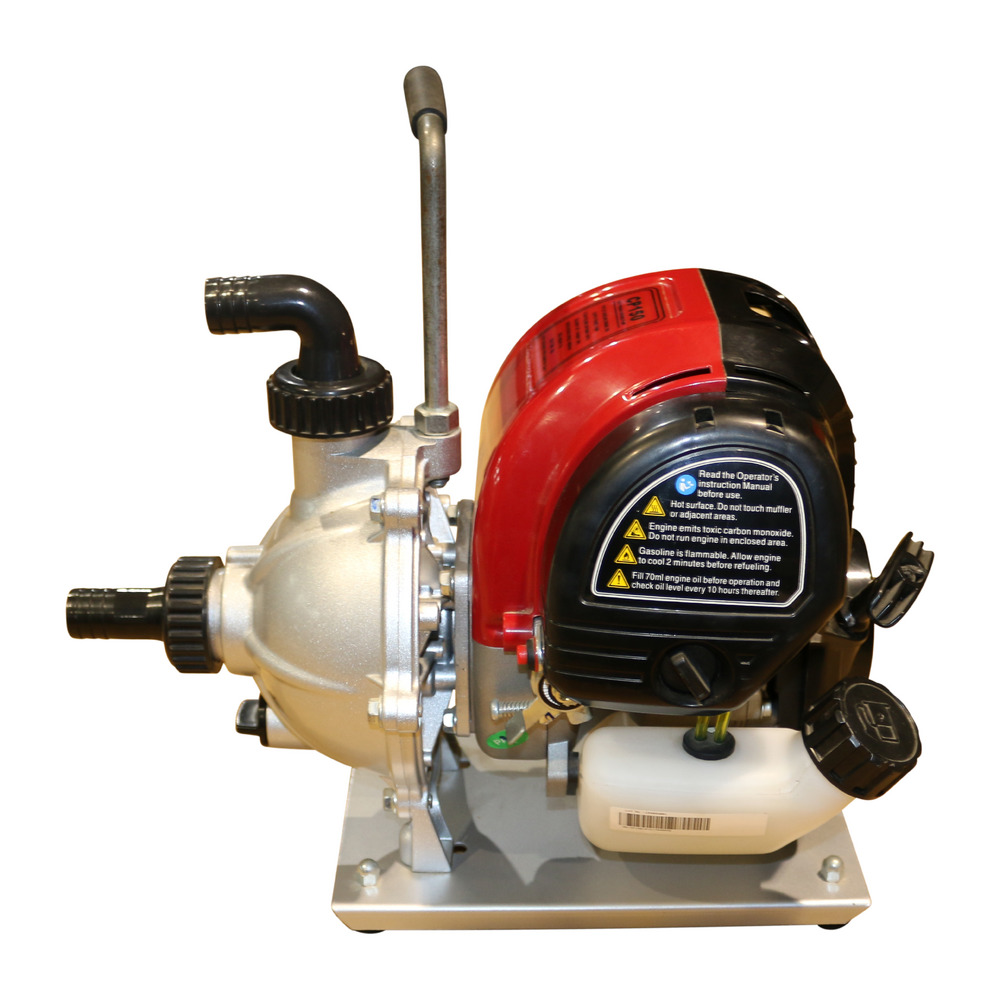

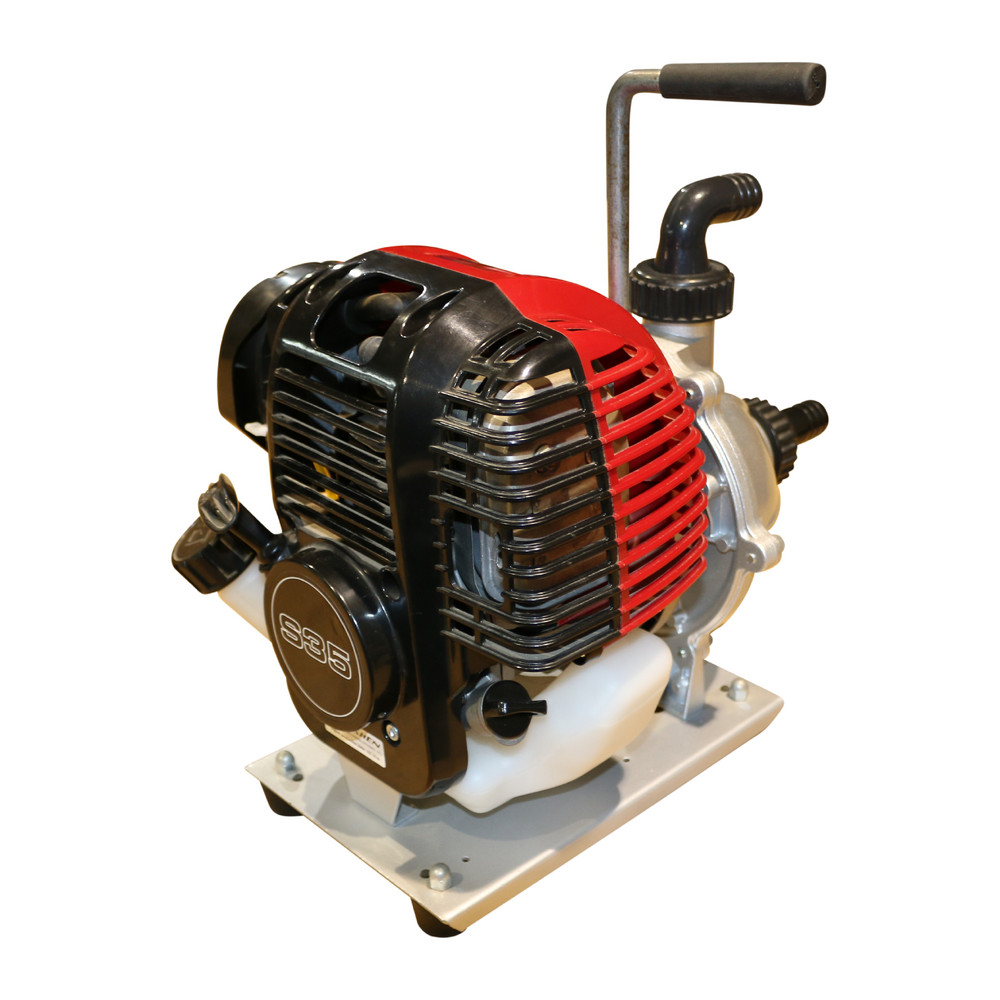

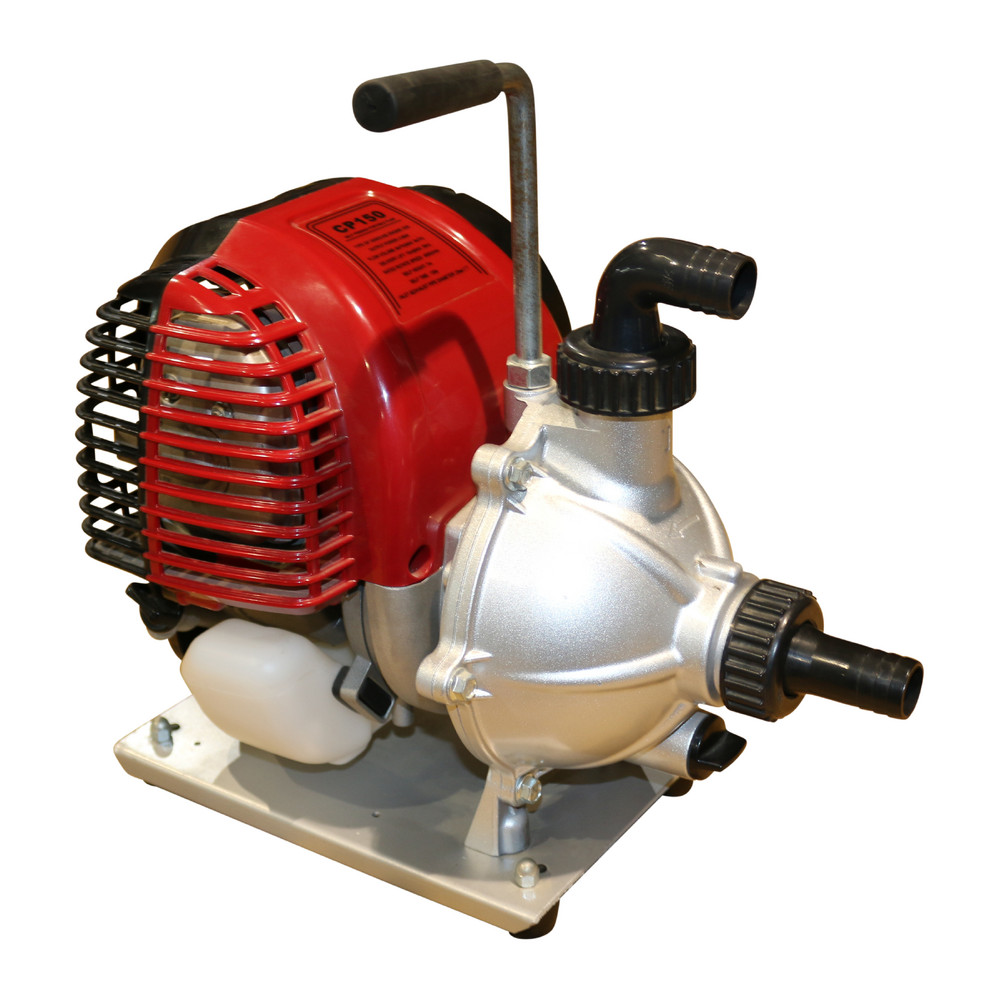

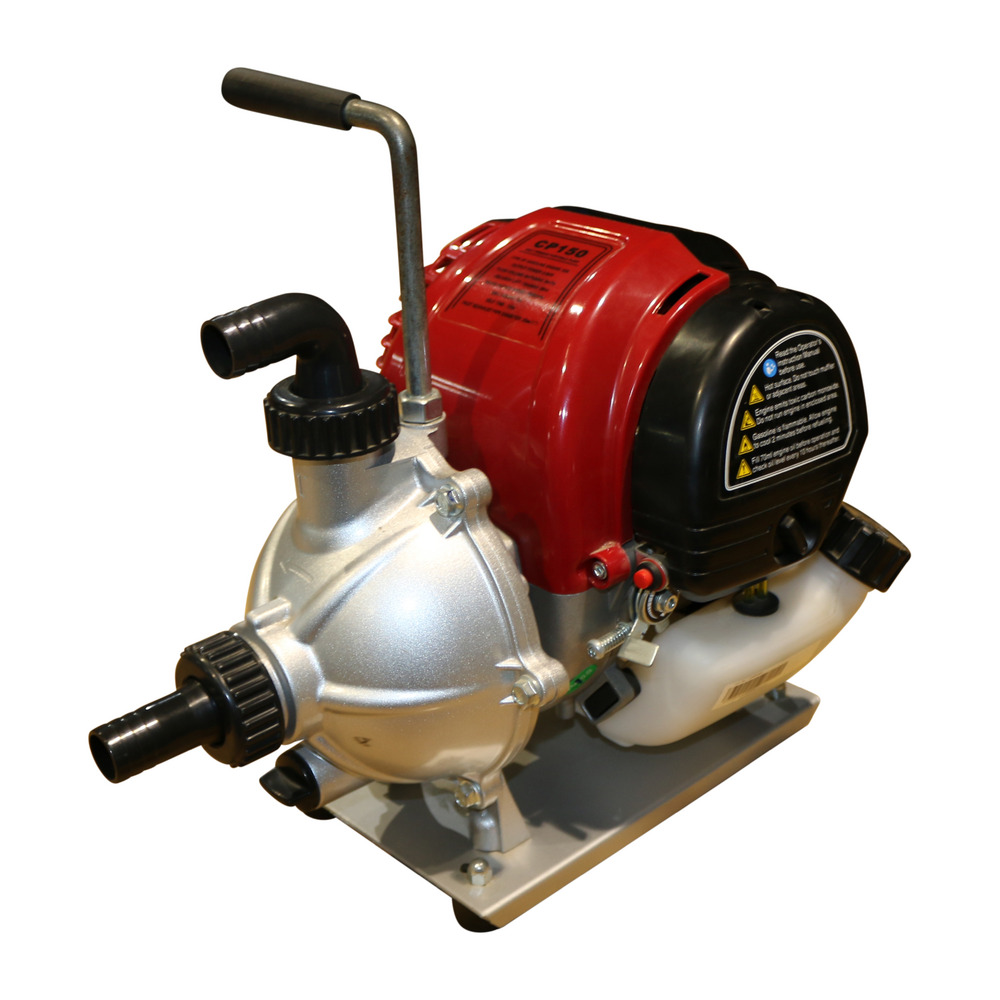

12 Month WarratnyThis Jono & Johno transfer pump is designed for easy transportation. It weighs only 7kg making it an ideal pump for gold sluicing, camping, water tank transfers, gardening or any other application that requires regular movement of the pump.

We guarantee that this pump will stand the test of time. It comes with a 12-month warranty and we keep all spare parts in stock.

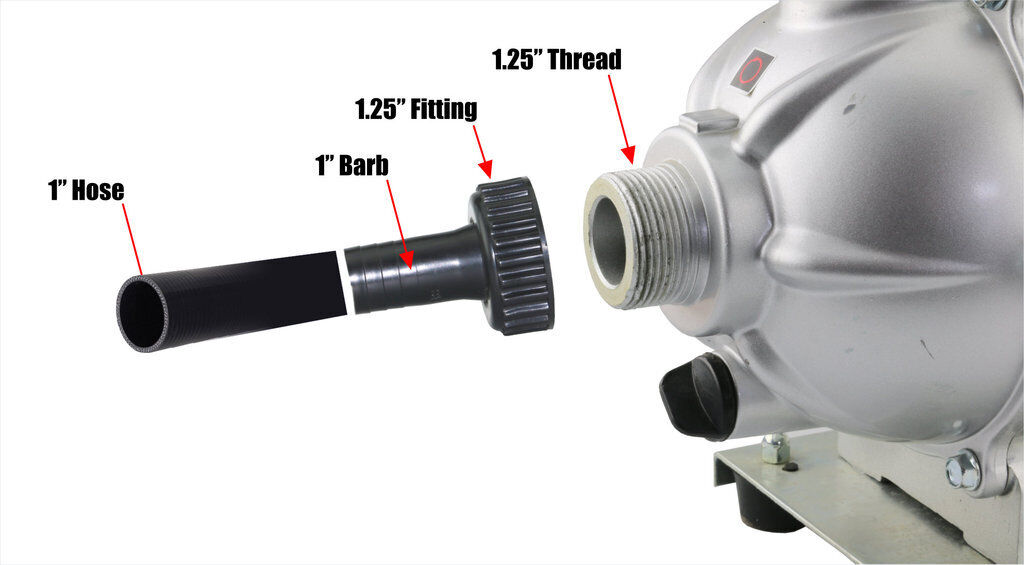

PLEASE NOTE: THIS PUMP IS NOT COMPATIBLE WITH CAMLOCK FITTINGS! IT HAS A FITTING THREAD OF 1.25".

• Max Power Output: 1hp @ 6000rpm
• Displacement: 31cc
• Bore x Stroke (mm): 92 x 26mm
• Compression: 8:1
• Max Torque (nm)/rpm : 1.1nm @ 4500
• Ignition system: Transistorized magneto ignition
• Spark Plug Type: NGK: CMR5H Champion: RZ7C Bosch: USR7AC
• Starting system: Recoil
• Fuel Tank Capacity: 0.6 Ltr
• Oil capacity: 0.05 Ltr
• Fuel consumption (g/kw.h) : ≤ 480
• Air cleaner: Semi-dry, oil bath, foam filter
• Shaft Diameter: 12mm
• Shaft Length: 33.5mm from the mounting surface to the end of shaft
• Keyway length: threaded shaft, no keyway
• Keyway width: threaded shaft, no keyway
• Shaft rotation: Anti-clockwise (from output)
• Weight: 7kg without packaging
• Package dimensions (cm): 34 x 27 x 30

• Suction / discharge port diameter: 1" / 1"
• Lift: 15m
• Maximum Suction: 5 Mtrs
• Max Flow Rate: 80 Litres per minute
• Output Pressure: 42psi
