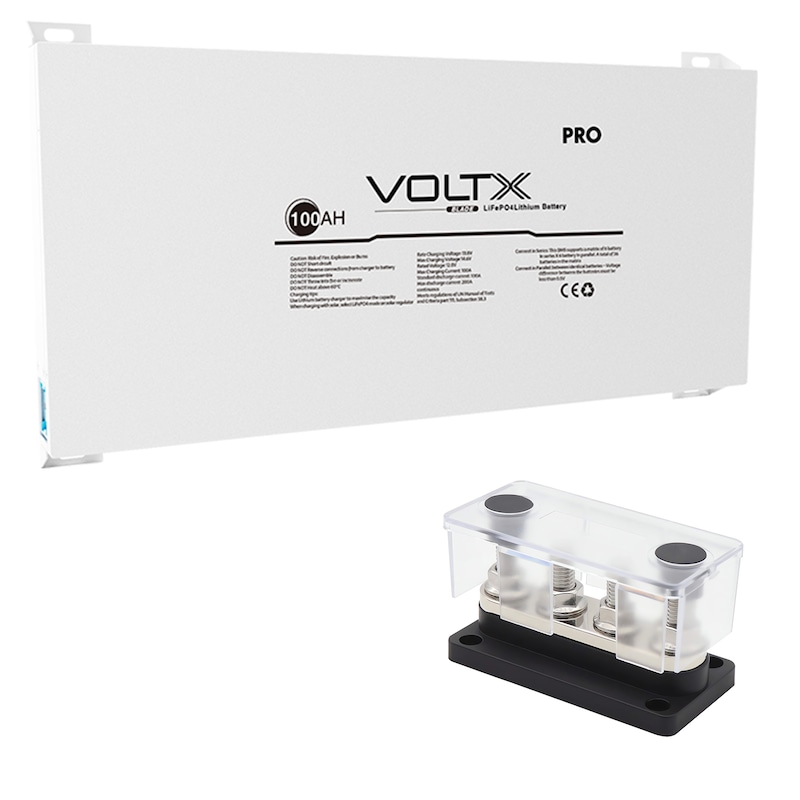

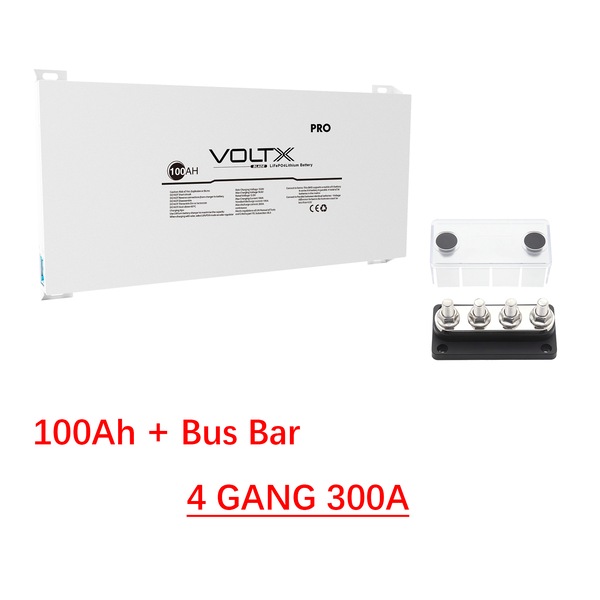

VoltX 12V 100Ah Blade Lithium Battery + Bus Bar M8 Power Distribution Terminal Block (4 GANG 300A Black)

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$1179

Collect 1179 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Ozzie Energy
Secure ways to pay at checkout

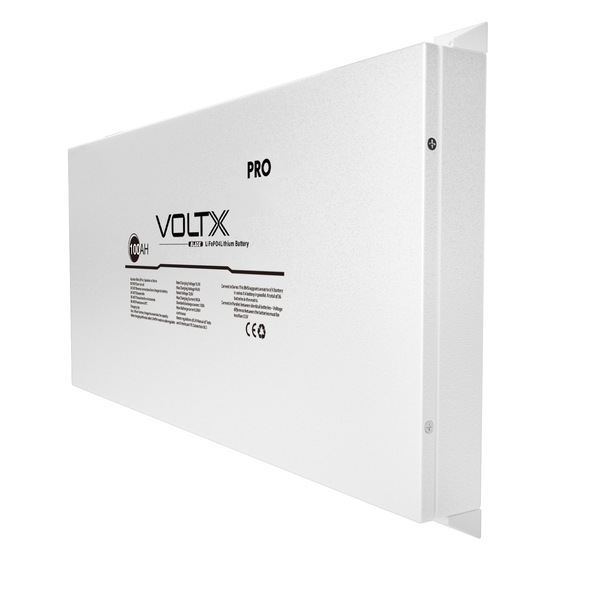

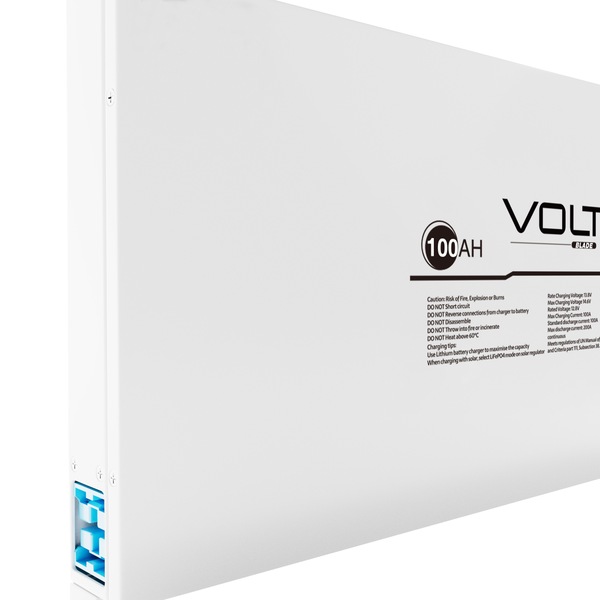

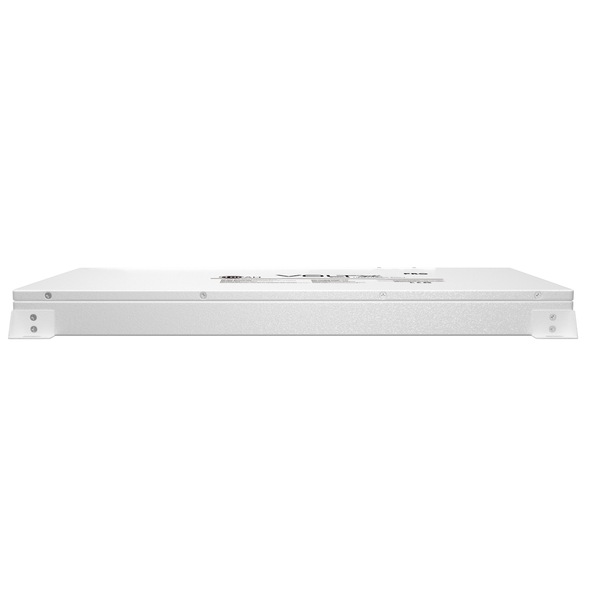

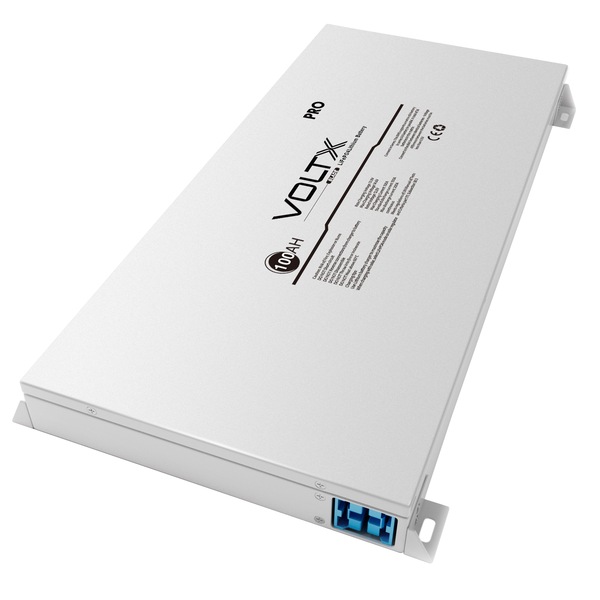

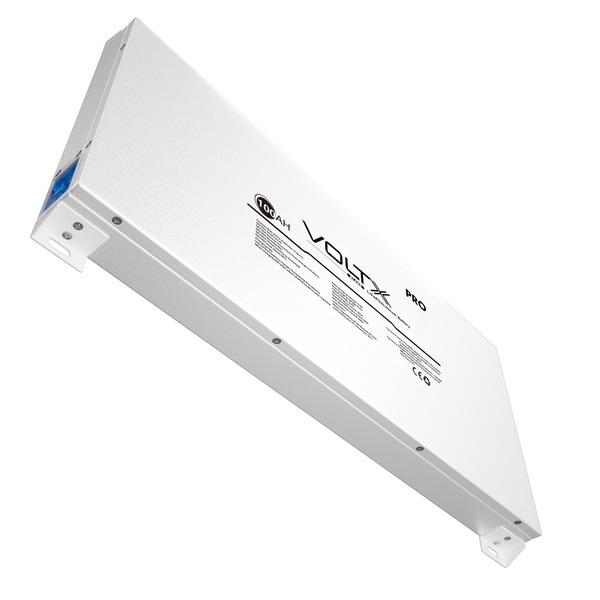

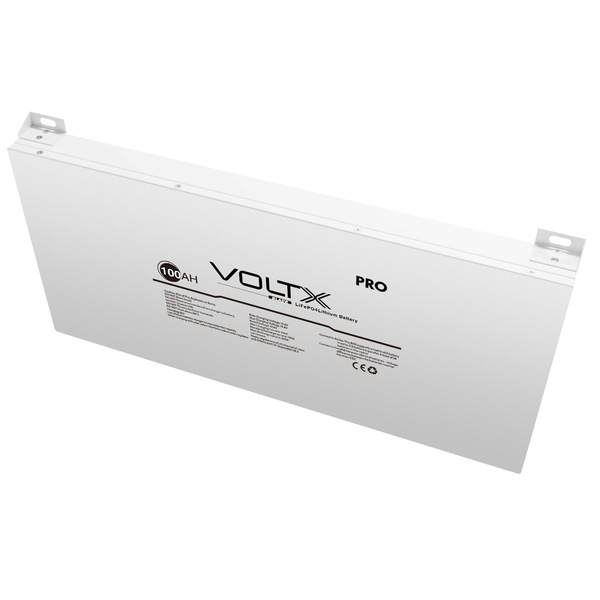

Product 1: VoltX 12V 100Ah Blade Lithium Battery

  • Specifications

    • Brand: VoltX
    • Nominal Voltage: 12.8V
    • Nominal Capacity: 100Ah
    • Rated Energy: 1280Wh
    • Approx Life Cycles: 4000
    • Battery Manage System: 200A
    • Standard Charging Current: 50A
    • Max. Charging Current: 100A
    • Standard Discharge Current: 100A
    • Max. Continuous Discharge Current: 200A
    • Max. Discharge Current 5 sec: 600A

    • Charger: 14.6V 50A
    • Charging Voltage: 14.6V
    • Absorption Voltage: 14.4V
    • Float Voltage: 13.6V
    • Overcharge Protection: 14.4V
    • Overcharge Recovery: 14V
    • Overdischarge Protection: 10.8V
    • Overdischarge Recovery: 11.2V

    • Charge Temperature : 0°C to 45°C
    • Discharge Temperature : -20°C to 60°C
    • Storage Temperature: -10°C to 50°C
    • Charge Method: CC/CV
    • Battery Cells: Prismatic
    • Cell Grouping: 4S1P
    • Parallel Connection: Max 6
    • Series Connection: Max 6

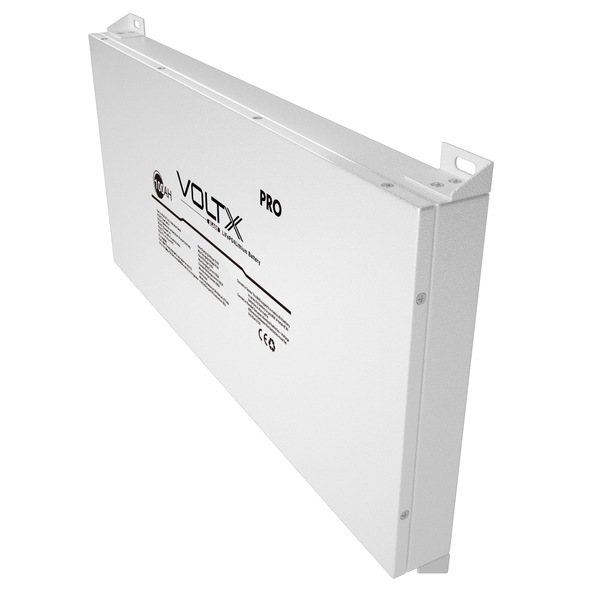

    • Mounting Hole: 4

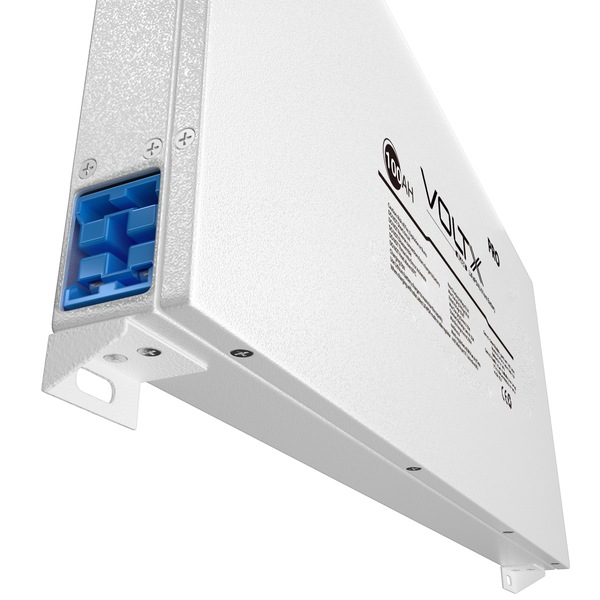

    • Anderson Plug: 175A
    • Case Material: SPCC
    • Battery Type: LiFePO4 Lithium Battery
    • Battery Model: Pro 100Ah
    • Certifications: IEC 62619
    • Warranty in Years: 5

  • Dimensions & Weight

    • Product Size: L600 x W270 x H65mm
    • Package Size: L680 x W355 x H135mm
    • Net Weight: 15.3kg
    • Gross Weight: 16.6kg

  • Package List

    • 1x VoltX Pro 100Ah Lithium Battery
    • 1x User Manual

    Product 2: Bus Bar M8 Power Distribution Terminal Block (4 GANG 300A Black)

  • Specifications

    • Base& Cover Material:Nylon, Glass Fiber reinforc
    • Bus Material:Tin-Plated Copper
    • Max Operating Voltage:DC48V
    • Max Continuous Amp:300A
    • Terminal Stud Size:4*M10(3/8")

    Tips: The items in this bundle will be shipped separately, the packages may arrive at different times, please be patient and wait.

    GTIN: 9355348070361

    Estimated Delivery Time Frame:3-8 business days
