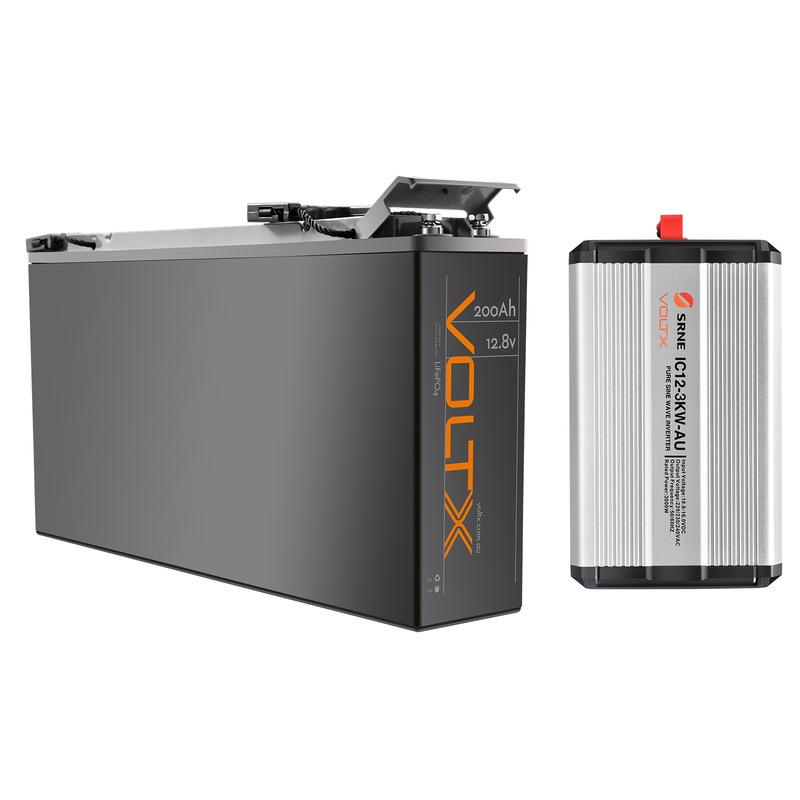

VoltX 200Ah Slim 12V Lithium Battey + 3KW Inverter

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$2159

Collect 2159 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Ozzie Energy
Secure ways to pay at checkout

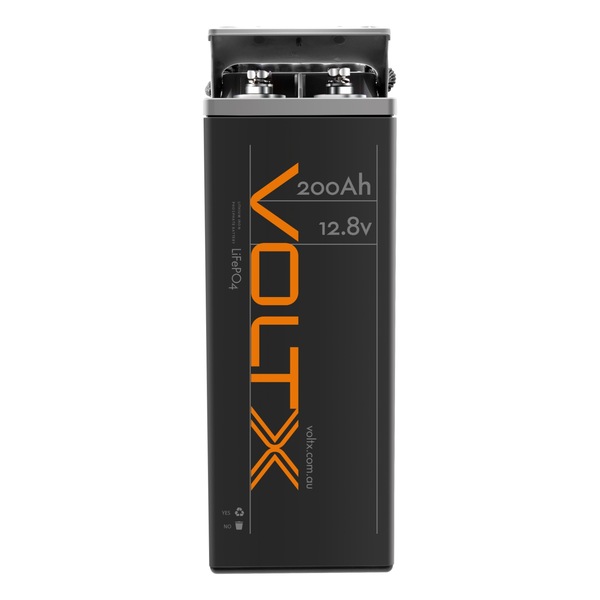

Product 1: VoltX 12V 200Ah Slim Lithium Battery

Specifications
  • Quick Look

    • Capacity: 12.8V 200Ah
    • Rated Energy: 2560Wh
    • Approx Life Cycles: 4000
    • Battery Manage System: 150A
    • Product Size: L552 x W110 x H290mm

  • Tech Specs

    • Brand: VoltX
    • Nominal Voltage: 12.8V
    • Nominal Capacity: 200Ah
    • Rated Energy: 2560Wh
    • Approx Life Cycles: 4000
    • Battery Manage System: 150A
    • Standard Charging Current: 75A
    • Max. Charging Current: 150A
    • Standard Discharge Current: 150A
    • Max. Continuous Discharge Current: 150A
    • Max. Discharge Current 5 sec: 300A

    • Charger: 14.4V 75A
    • Charging Voltage: 14.2-14.6V
    • Absorption Voltage: 14.4V
    • Float Voltage: 13.8V
    • Overcharge Protection: 14.6V
    • Overcharge Recovery: 14.2V
    • Overdischarge Protection: 10V
    • Overdischarge Recovery: 10.6V

    • Charge Temperature : 0°C to 45°C
    • Discharge Temperature : -20°C to 60°C
    • Storage Temperature: -10°C to 50°C
    • Charge Method: CC/CV
    • Battery Cells: Prismatic
    • Cell Grouping: 4S2P
    • Parallel Connection: Max 6
    • Series Connection: Max 6
    • Case Material: ABS Plastic
    • Battery Type: LiFePO4 Lithium Battery
    • Battery Model: Slim 200Ah
    • Certifications: IEC,FCC,UN38.3,CE
    • Protection Class: IP65
    • Warranty in Years: 5

  • Dimensions & Weight

    • Product Size: L552 x W110 x H290mm
    • Package Size: L615 x W175x H333mm
    • Net Weight: 20.5kg
    • Gross Weight: 22kg

  • Package List

    • 1x VoltX Slim 200Ah Lithium Battery
    • 2x Terminal Bolts M8*16
    • 2x Insulating Covers
    • 2x Screw Spring Washer
    • 4x Screw Washers
    • 1x User Manual

    Product 2: VoltX 12V 3KW Pure Sine Wave Inverter

  • Specifications

    • Rated output power:3000W
    • Rated output power VA:3000VA
    • Withstand instantaneous impact power:6000W
    • Rated output voltage:220VAC/230VAC/240VAC(±3%)
    • Output frequency:50/60HZ(±0.2%)
    • Output wave:Pure sine wave
    • Output harmonic component: THDV < 3% (pure resistance load)
    • Load power factor:0.2-1 (load power ≤ output continuous power)
    • Rated input voltage: 12VDC
    • Input voltage range:10.8~16.0VDC
    • Rated output efficiency: >87.0%
    • Maximum output efficiency:> 91.5% (30% overload)
    • Standby current:<0.24A
    • No-load current:<1.45A
    • USB interface:Dual USB output, 5VDC/2A
    • ON/OFF/ECO mode:ON - AC normal output OFF - no AC output, standby ECO - energy-saving mode, auto switch
    • ECO starting power:<30W
    • ECO interval time:1min
    • TTL interface:Non-isolated TTL communication, power supply 12.5V/200mA
    • Indicator:Green - normal operation; Red - fault
    • External switch contact interface:Switch on or off by control equipment such as external relay and mechanical switch
    • Protection function:Input over-voltage/over-discharge protection, output overload/short-circuit protection, and device over-temperature protection
    • Operating ambient temperature:-20°C~60°C
    • Storage ambient temperature:-35°C~80°C
    • Relative humidity:≤95%
    • Protection grade:IP20
    • Heat-dissipating method:Natural heat dissipation + intelligent air cooling
    • Noise:≤60dB
    • Net weight:8.0kg
    • Warranty : 3 Years

    Tips: The items in this bundle will be shipped separately, the packages may arrive at different times, please be patient and wait.

GTIN: 9355348071382

Estimated Delivery Time Frame:3-8 business days
