VoltX 12V Lithium Battery 200Ah Slim + Control Box (Connect 12 Devices)

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Hurry! 9 items left!
$1539

Collect 1539 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Ozzie Energy
Secure ways to pay at checkout

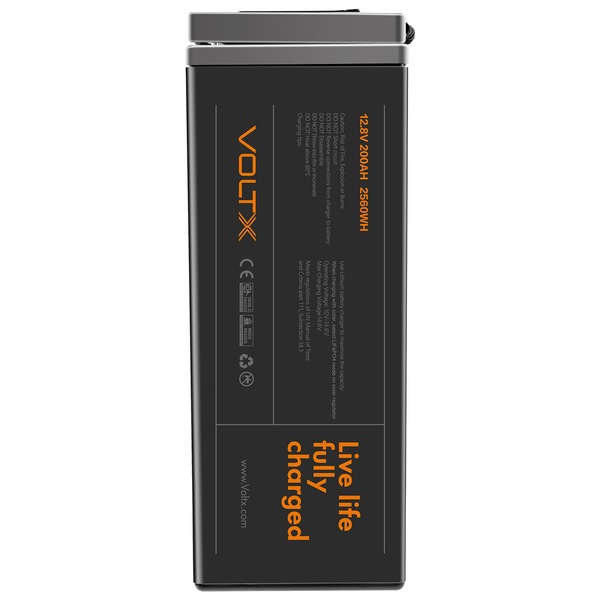

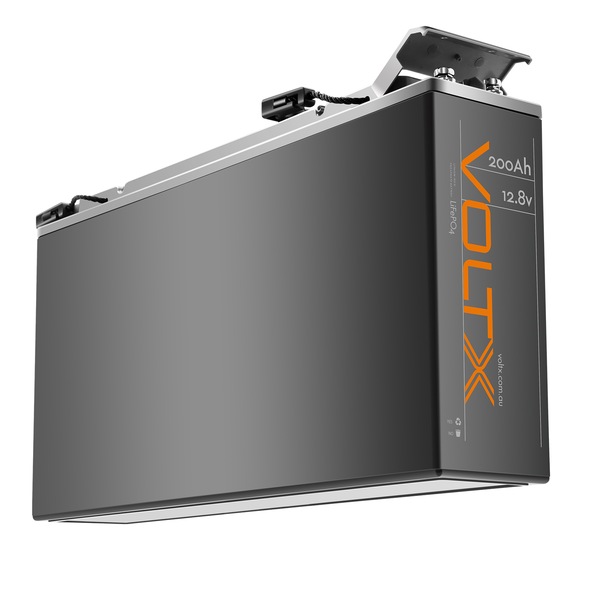

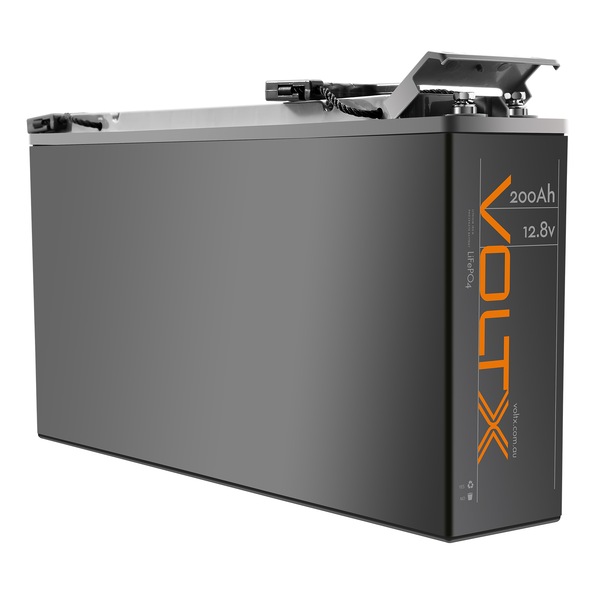

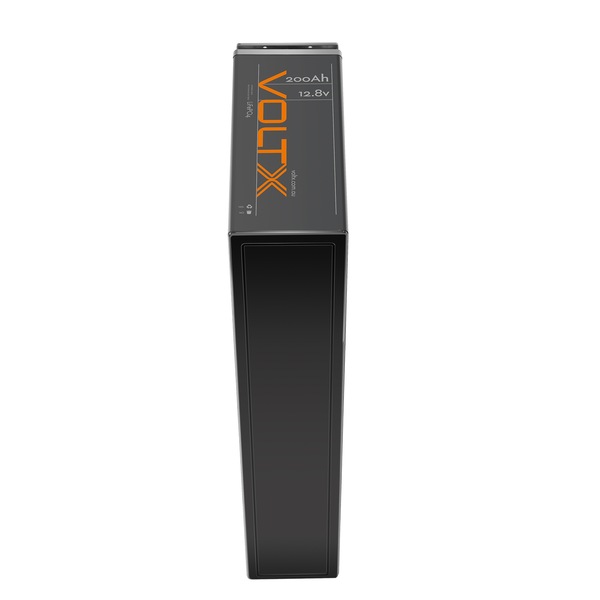

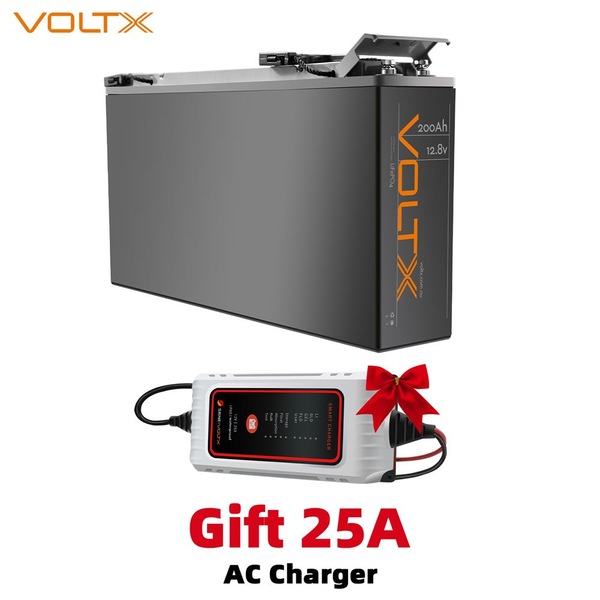

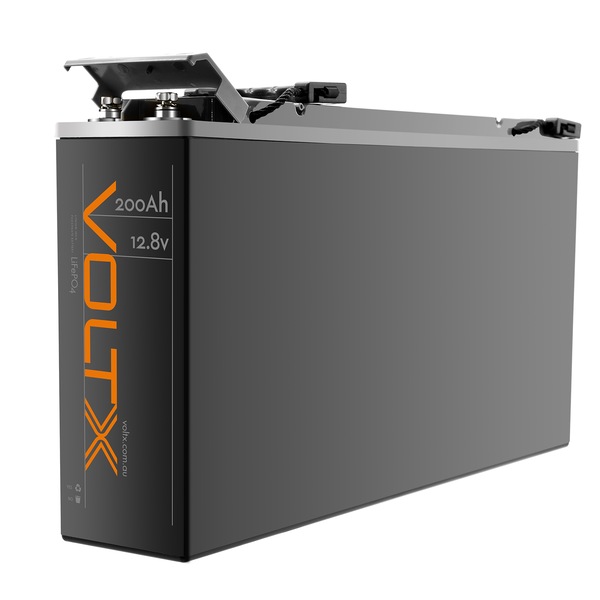

Product 1: VoltX 12V 200Ah Slim Lithium Battery

Specifications
  • Quick Look

    • Capacity: 12.8V 200Ah
    • Rated Energy: 2560Wh
    • Approx Life Cycles: 4000
    • Battery Manage System: 150A
    • Product Size: L552 x W110 x H290mm

  • Tech Specs

    • Brand: VoltX
    • Nominal Voltage: 12.8V
    • Nominal Capacity: 200Ah
    • Rated Energy: 2560Wh
    • Approx Life Cycles: 4000
    • Battery Manage System: 150A
    • Standard Charging Current: 75A
    • Max. Charging Current: 150A
    • Standard Discharge Current: 150A
    • Max. Continuous Discharge Current: 150A
    • Max. Discharge Current 5 sec: 300A

    • Charger: 14.4V 75A
    • Charging Voltage: 14.2-14.6V
    • Absorption Voltage: 14.4V
    • Float Voltage: 13.8V
    • Overcharge Protection: 14.6V
    • Overcharge Recovery: 14.2V
    • Overdischarge Protection: 10V
    • Overdischarge Recovery: 10.6V

    • Charge Temperature : 0°C to 45°C
    • Discharge Temperature : -20°C to 60°C
    • Storage Temperature: -10°C to 50°C
    • Charge Method: CC/CV
    • Battery Cells: Prismatic
    • Cell Grouping: 4S2P
    • Parallel Connection: Max 6
    • Series Connection: Max 6
    • Case Material: ABS Plastic
    • Battery Type: LiFePO4 Lithium Battery
    • Battery Model: Slim 200Ah
    • Certifications: IEC,FCC,UN38.3,CE
    • Protection Class: IP65
    • Warranty in Years: 5

  • Dimensions & Weight

    • Product Size: L552 x W110 x H290mm
    • Package Size: L615 x W175x H333mm
    • Net Weight: 20.5kg
    • Gross Weight: 22kg

  • Package List

    • 1x VoltX Slim 200Ah Lithium Battery

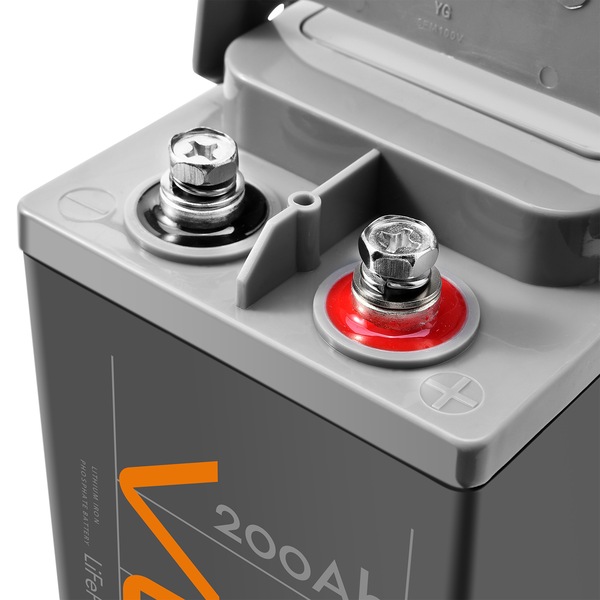

    • 2x Terminal Bolts M8*16
    • 2x Insulating Covers
    • 2x Screw Spring Washer
    • 4x Screw Washers
    • 1x User Manual

    Product 2: Switch Panel ON-OFF Control Box (Connect 12 Devices)

  • Specifications

    • USB: 2*USB with led lights (2.1A&1A)
    • Cigarette socket: 3*maximum 10A per socket
    • Switch: 5*15A circuit breaker
    • Anderson plug: 2*50A
    • Fuse box: 3*15A+3*20A
    • NW(kg): 1.9
    • GW(kg): 2.2
    • Dimension (product)cm: 27.5*23.5*8.5
    • Dimension (box)cm: 29.5*24.5*12.5
    • Warranty: 1 year

    Tips: The items in this bundle will be shipped separately, the packages may arrive at different times, please be patient and wait.

GTIN: 9355348071320

Estimated Delivery Time Frame:3-8 business days
