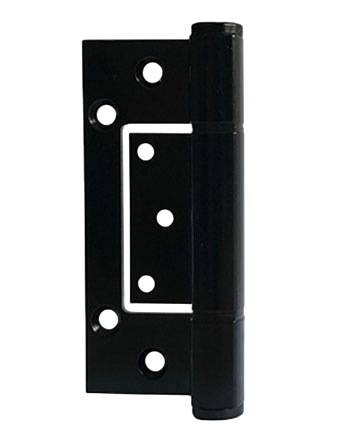

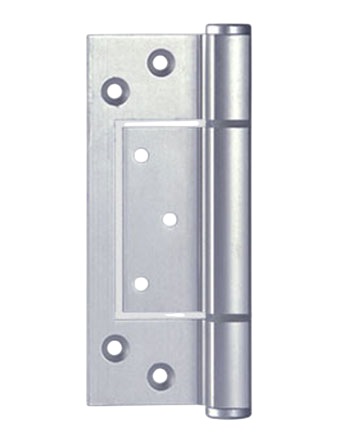

**10 Pack** McCallum Aluminium Offset Interfold Hinge A107 A107RLF

Image 1
Image 2
Image 3
Image 4
From$173.34

Collect 173 Everyday Rewards points

Log in to MyDeal to link your card

Is this location right? Update for more accurate shipping cost.

Please select an option below to calculate shipping to SYDNEY 2000
Sold & shipped by Keeler Hardware
Secure ways to pay at checkout

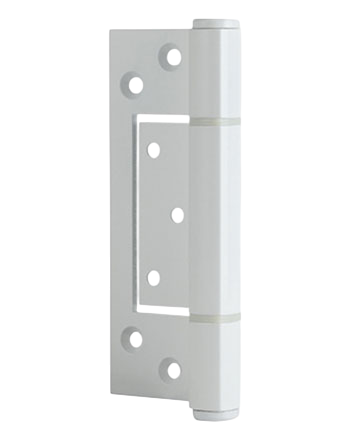

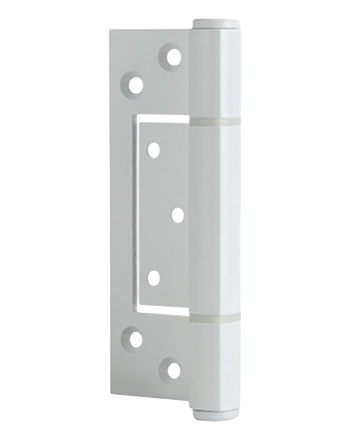

10 Pack McCallum Aluminium Offset Interfold Hinge White A107RLF
A107WHT

Application:

  • Aluminium doors in high usage situations
  • Suitable for some timber door applications
  • Offset knuckle

Specification:

  • Alloy: High strength T.6 minimum tensile 254 mpa.
  • Pin Dia: 6mm 304 Stainless Steel with machined chamfer both ends
  • Bushes: Squareline - Heavy Duty
  • Knuckle: Round
  • Aluminum Endcaps: Pressed-in interference fit
  • Maximum Weight Capacity: 80kg

Installation Guide Only:

  • Door Thickness: Minimum 40mm
  • When using a door closer, we recommend a minimum of 3 hinges be used, with the top hinge located as high as possible. For excessive usage, a fourth hinge may be required.
  • Standard Door: 2040 (Height) x 820 (Width)
  • Locator allows for fast fixing

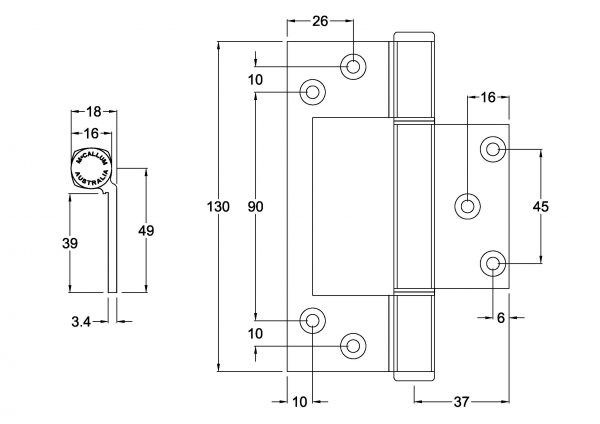

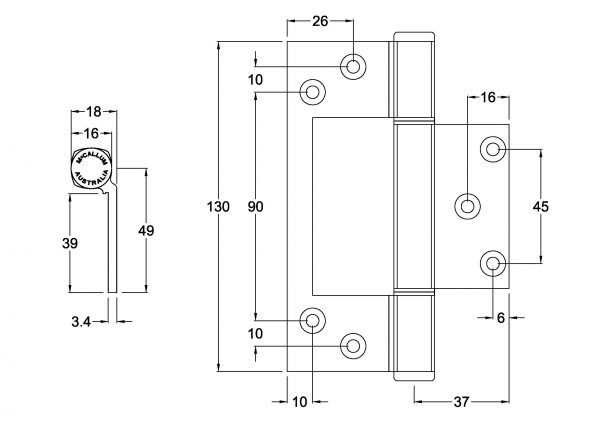

  • Dimensions: 130mm x 39mm

Fixing:

  • Fastening Screws supplied
  • Pop rivets are not recommended.

Finish:

  • White Powder Coat

Estimated Delivery Time Frame:5 Business Days

Ask a Question About This Product

Reference ID: 4171908
