NESS 100-205 Digital Dual Microwave PIR Qdt200h-a 15Mx15m @ 100&Deg; DIGITAL DUAL MICROWAVE PIR

Image 1
Image 2
Hurry! 5 items left!
$112

Collect 112 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Radio Parts
Secure ways to pay at checkout

Overview

100-205 DIGITAL DUAL MICROWAVE PIR

RELIABLE HARSH ENVIRONMENT MOTION PROTECTION

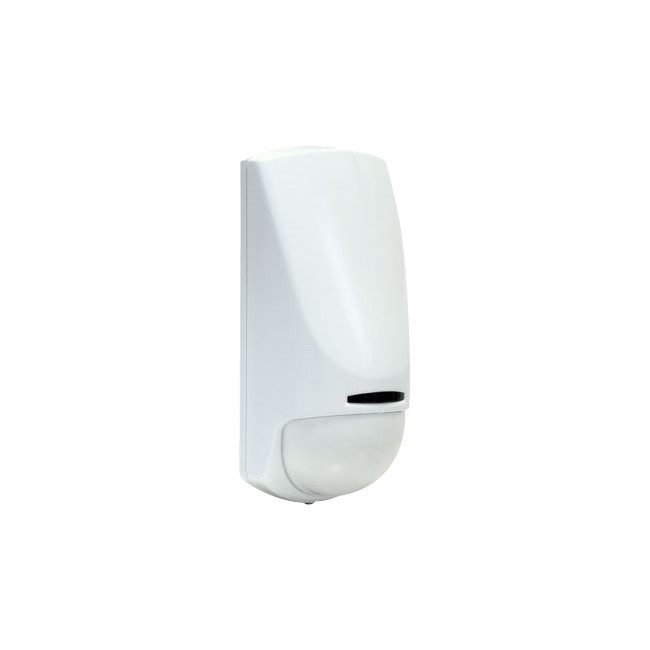

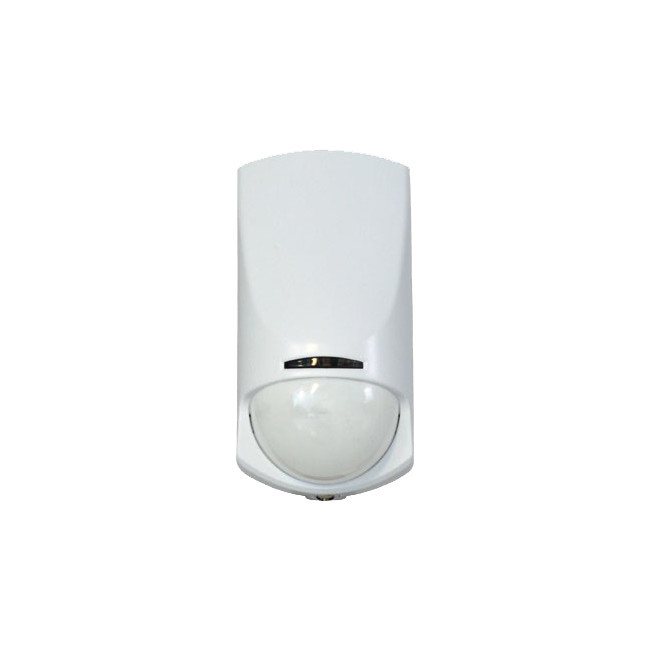

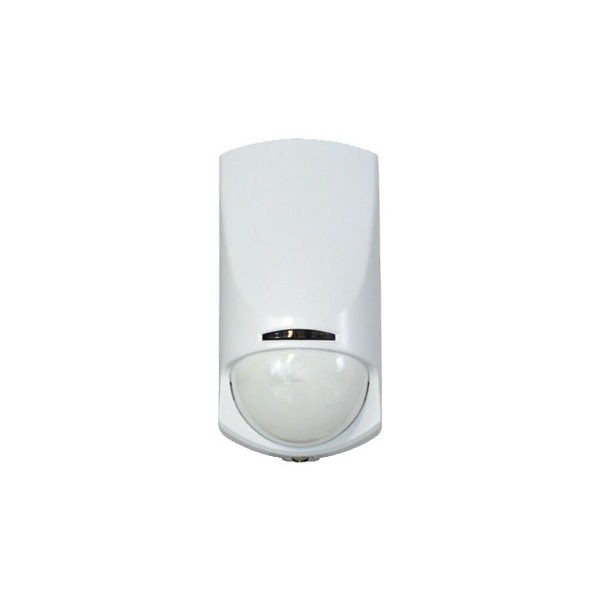

The Ness QDT200H-A (or XDT200H) Dual Technology PIR / Microwave is a motion detector specially designed for the protection of areas of harsh environment or where added protection against false alarms is required.

Installed in rooms or in hallways, the dual detection technology detector protects you by detecting intruders body temperature using infra-red technology and motion with its Microwave technology.

Dual technology 15-metre detector using both microwave and passive infrared (PIR) detection. This combination of technologies virtually eliminates false alarms but faithfully detects intruders.

Features:

  • Digital signal analysis
  • Range 15m
  • Detection angle of 100°
  • Pulse counter
  • Temperature compensation
  • White light protection
  • Bypassable LED
  • 3 signalling LEDs
  • Anti-opening and anti-dislodgement protection
  • Predisposed for EOL resistor
  • AND/OR function alarm trigger
  • Smart function
  • X Band microwave detection
  • Operating temperature: 0°C ÷ +50°C
  • Power supply voltage: 9V ÷ 16V dc
  • Current absorbed: 20mA @ 12V dc
  • Installation height: 2.2m
  • Dimensions: 120x60x44 mm

Specs

MOUNTING HEIGHT 2 .2 m wall or corner
COVERAGE 15m x 15m @ 100°
PIR SENSOR dual element pyroelectric
MICROWAVE SOURCE Solid state 10.525 GHz
MICROWAVE RANGE SELECT Adjustable
PULSE COUNT Adjustable
VISUAL DISPLAY 3 Signalling LED's
OPERATING VOLTAGE 9 - 16 VDC
DIMENSIONS (H-W-D) 120x60x44 mm
TEMPERATURECOMPENSATION Yes
CURRENT DRAW 20mA @ 12VDC
ALARM OUTPUT Normally closed relay, dry contacts. Max. 0.5A@24V


Weight: 0.135
