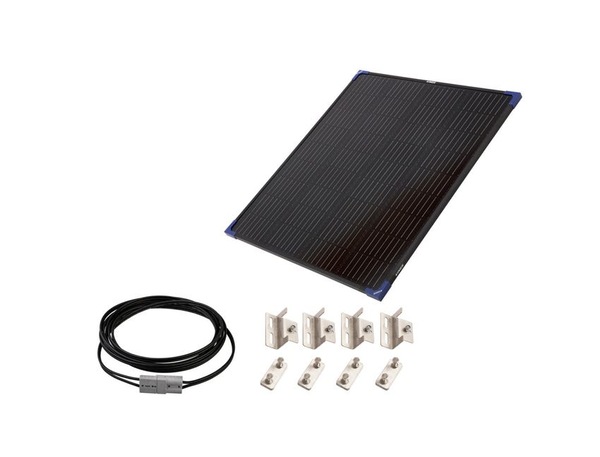

100W Fixed Glass Solar Panel + 6m Extension Lead + Solar Panel Mounting Brackets

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$103.90

Collect 103 Everyday Rewards points

Log in to MyDeal to link your card
$25.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout

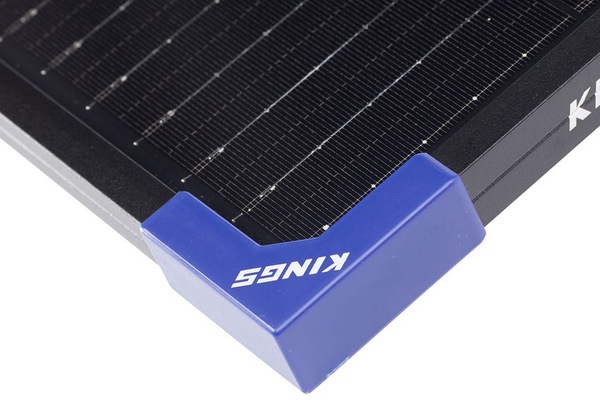

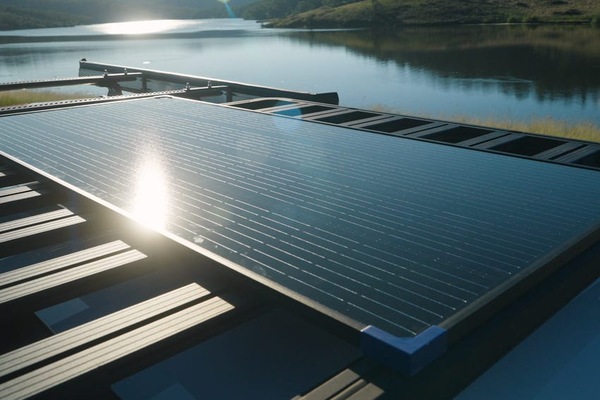

The Adventure Kings 100W fixed solar panel is great for permanent roof mounting. 3.2mm thickened tempered glass with a reinforced custom aluminum frame. The slimline custom extruded frame not only reduces wind resistance to boost fuel efficiency but also lowers the overall height of your vehicle so you can fit into those tight spaces.

• The perfect partner for your portable solar blankets or panels, the 6 metre cable length allowing you to camp in the cool shade and still set up your solar in full sun. Specifically designed for portable solar the 2.5mm2 copper cables minimise voltage drop. The Anderson-compatible quick connect plugs are rated for up to 50A of current and make setting up camp quick and easy.

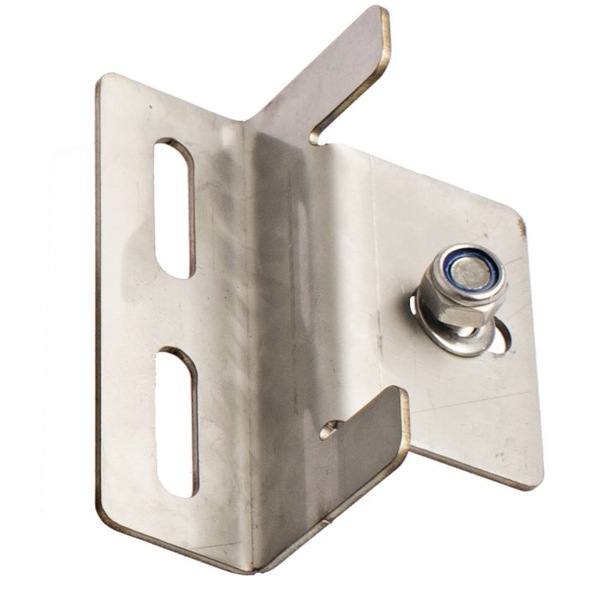

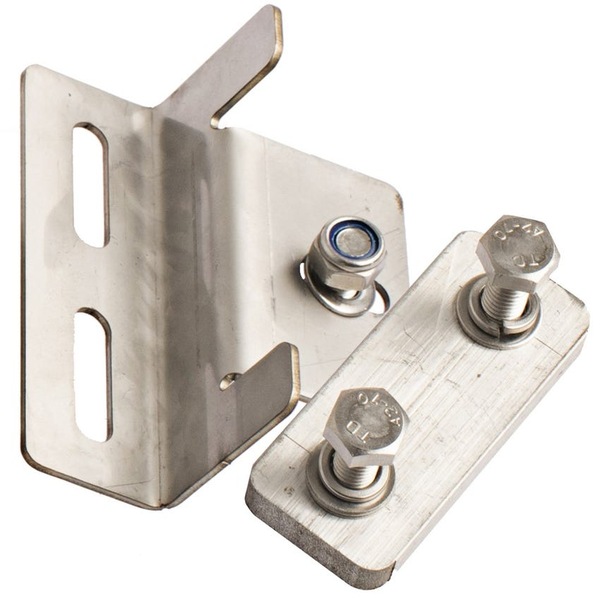

• STAINLESS STEEL BRACKETS - Easily and securely mount your Adventure Kings Fixed Solar Panel to your roof rack or other flat surface with the Adventure Kings Solar Panel Mounting Brackets Kit! Made with tough stainless steel and using threaded alloy blocks they're strong and neat. Raises the solar panel approx. 20mm off the top of the surface to allow airflow underneath to keep your panel cool on hot days.

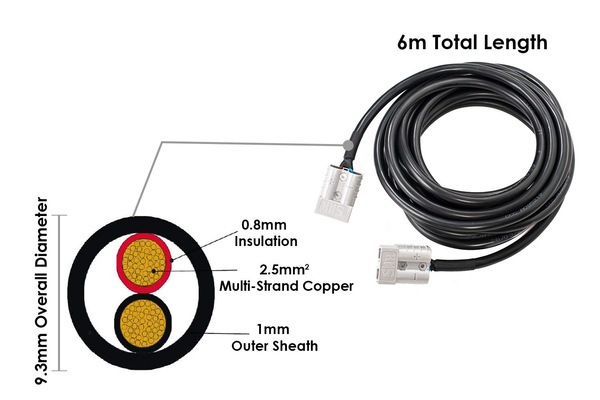

ADVENTURE KINGS 6M SOLAR EXTENSION LEAD
2.5MM2 COPPER

Specifically designed for portable solar the 2.5mm2 copper cables minimise voltage drop. Of course each wire is individually insulated, plus there’s an extra 1mm thick PVC protective sheath that covers both cables. The sheath is heat and water resistant and offers extra abrasion resistance too


Length 6m
Conductor Material Multi-Strand Copper 51x0.25
Conductor Cross Sectional Area (each wire) 2.5mm2
Insulation Material 0.8mm PVC
Outer Sheath material 1mm PVC
Outer Diameter 9.3mm
Recommended Maximum Current 20A
Operating Temperature Range -5°C~+70°
Plug Type Anderson-style Quick Connect
Plug Rating 50A
Plug Material UL94-V0 Flame Resistant Thermoplastic
Connector Material Copper
Maximum Rated Voltage 300V

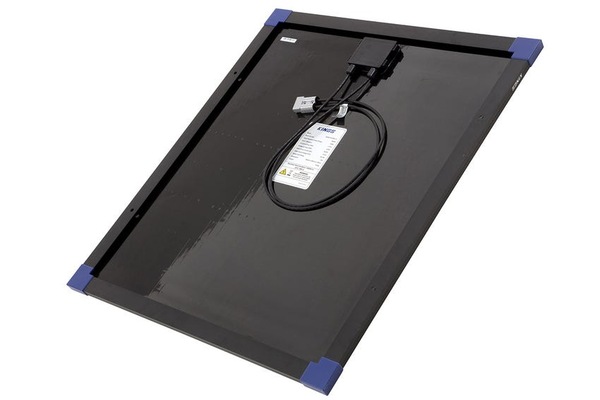

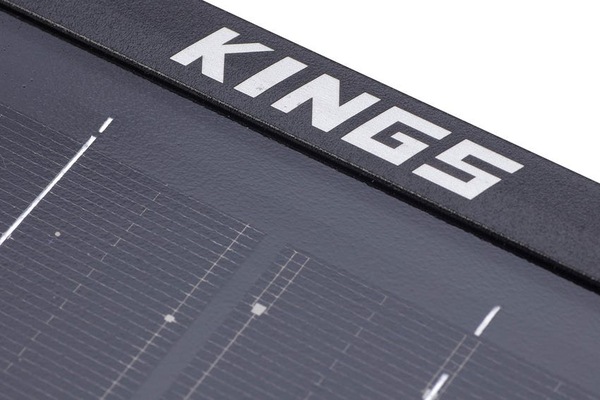

KINGS 100W FIXED SOLAR PANEL
 Up to 8.33A of charge at 12V | Grade A cells | 1.8cm Slimline Frame


The 100W panel is the perfect cost-effective choice for the roof of your 4WDs, utes, vans, camper trailers, caravans and even boats!


The have  a 3.2mm thickened tempered glass with a reinforced custom aluminum frame.


Output 100W
Power Tolerance +/- 5%
VOC (Open Circuit Voltage) 24.18V
ISC (Short Circuit Current) 5.51A
VMP (Maximum Power Voltage) 20.35V
IMP (Maximum Power Current) 4.95A
ISC Temperature Coefficient 0.05%/°C
VOC Temperature Coefficient -0.39%/°C
Pmax Temperature Coefficient -0.44%/°C
Standard Test Condition 1000W/m2, 25ºC, AM1.5
Connection Kings Quick Connect (Anderson Style) Plug

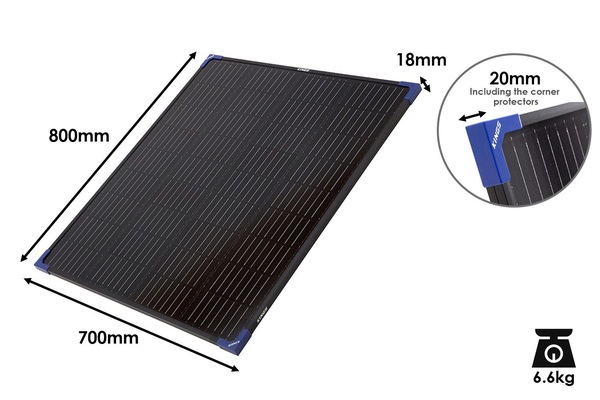

Dimensions 70 x 80 x 1.8 cm
Weight 6.6kg

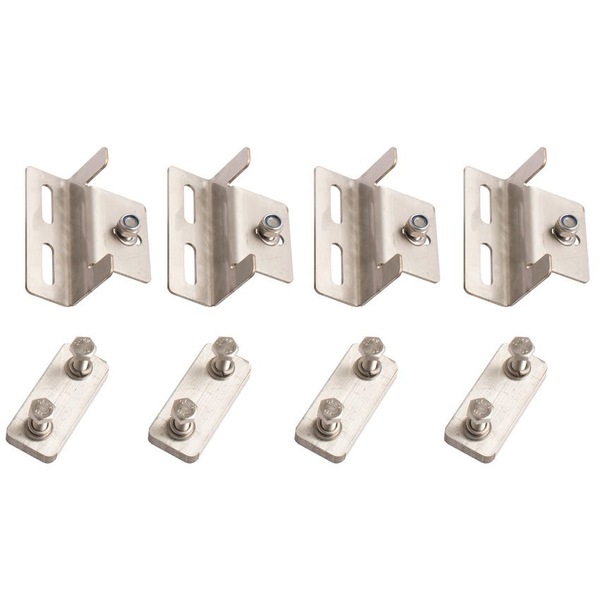

Solar Panel Mounting Brackets | Stainless Steel


Bracket Material Folded Stainless Steel
Mounting Hardware Stainless Steel
Weight (four brackets combined) 800gm

MPN: SC-CO-100WFX-6MLEAD-110WBRACKET
