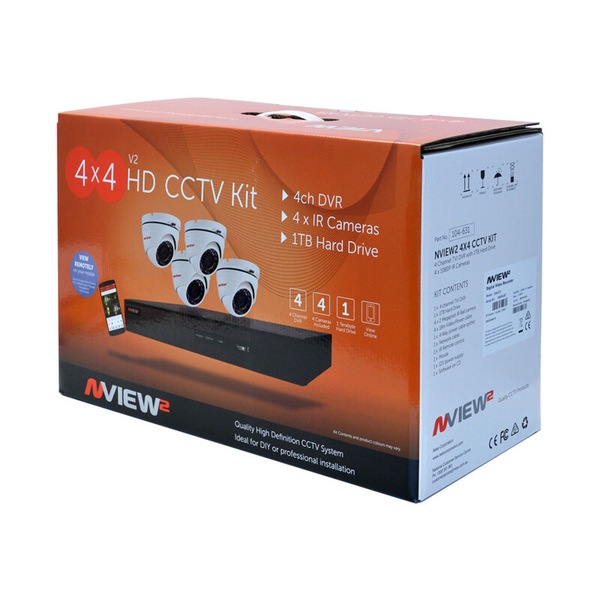

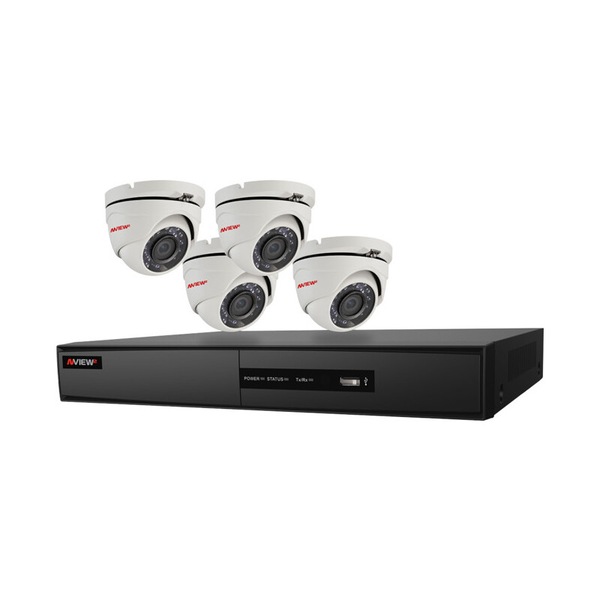

104-631 NESS 4Ch Tvi DVR & 4X Camera Kit 1080P Full HD-Tvi - Ness Supports Up To 4X HD Tvi Cameras
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
1080P HD Networkable DVR KIT. Simple to use, simple to set-up, High Definition 1080P complete CCTV Kit.
With a H.264 4 Channel TVI DVR for HD High Quality Video Compression with support up to 1 x 6TB HDD (supplied with 1 x 1TB HDD) support for weeks of recorded video surveillance,USB ports for easy Video Back-Up and Dual Video Outputs - HDMI & VGA, Motion Detection / Continuous / Schedule Record Time/Date/Event Quick Search for Fast Searching with Mouse control, it makes the system a true professional inclsion for many application.
1080P HD Networkable DVR for Remote Access via Web Surveillance via Web Browser and Mobile Phone Plug & Play with no port forwarding required on the router using the 2P2 function.
Smart Device Apps
NView2 TVI DVR Features Include:
NVIEW2 HD TVI Camera Features
DVR Specifications | ||
---|---|---|
Video Inputs | _ | 4 x BNC |
Video Outputs: | _ | 1 x VGA and 1 x HDMI |
Recording/Playback RESOLUTION: | _ | 1920x1080, 1280x1024, 1024x768 |
Encoding Resolution: | _ | Main stream: 1080P / 720P / VGA / WD1/ 4CIF / CIF Sub-stream: WD1(non-real-time) / 4CIF(non-real-time)/ CIF / QCIF / QVGA |
Video Compression: | _ | H.264 / H.264+ |
Storage: | _ | Max. 1 x SATA HDD up to 6TB (1 x 1TBsupplied) |
USB Ports | _ | 2 x USB2.0 |
Audio / Audio Compression: | _ | 1 inputs / 1 output (RCA) /G.711u, G.726, G.711a, G.722 |
Network Protocols: | _ | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ON VIF |
Mobile Viewer: | _ | iOS / Android Guarding Vision Free app. |
Dimensions (WxHxD): | _ | 260 x 222 x 45mm |
Weight: | _ | 1kg without HDD |
Operating Temp: | _ | -10C~55C / 10% ~ 90% |
Power Supply / Consumption: | _ | 12VDC / <30W |
IR Camera Specifications
Imager: | CMOS |
Resolution: | 2 Meg Pixel (1080P) |
Output: | BNC TVI analogue HD output |
Lens: | 2.8mm |
Minimun Illumination: | 0.1 Lux, 0 Lux with IR On |
IR Range: | Up to 20 M |
Weather Rating: | IP66 |
Dimensions: | 90mm dia x 71mm |
Power Requirement: | 12VDC |
_
_
MPN: 104-631
Reference ID: 694553
