Features :
AHD (Analog High Definition), a new video format for enhanced CVBS (COMET*) & HD video transmission.
HD AHD camera is an over-coaxial-cable analog HD video transmission standard, allowing long-distance HD transmission at a lower cost to meet the requirements for a complex and large installation.
- Infrared distance is about 15M, waterproof.
- The lens is 3.6 mm.

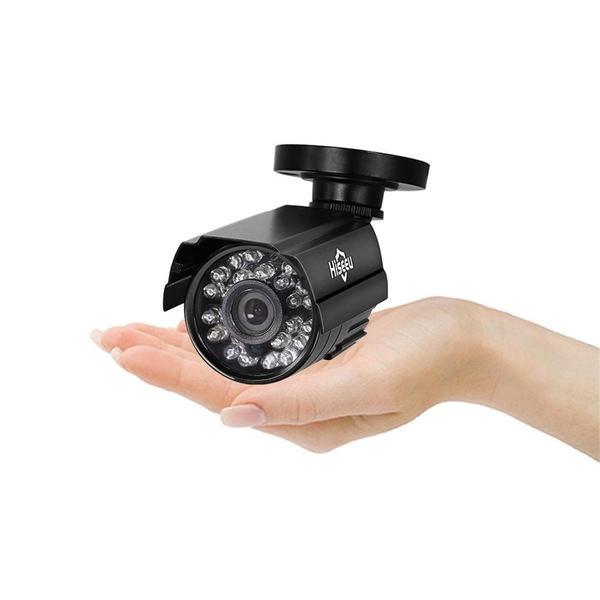

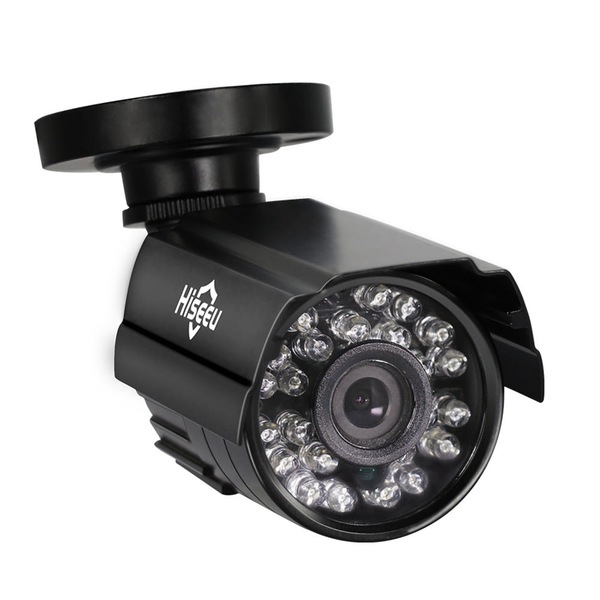

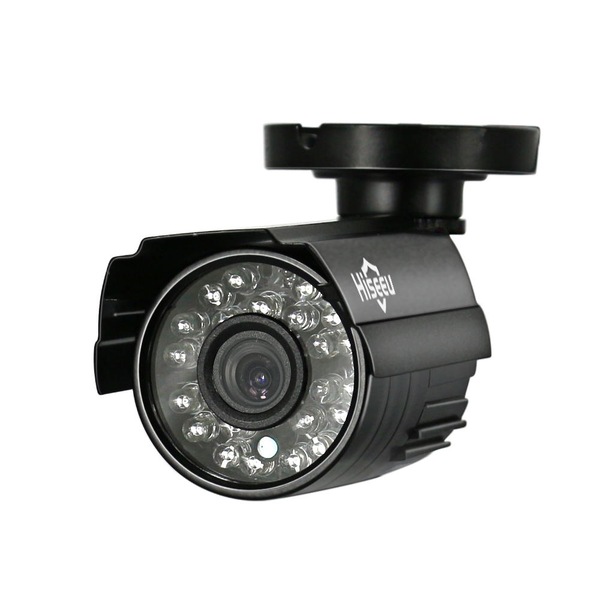

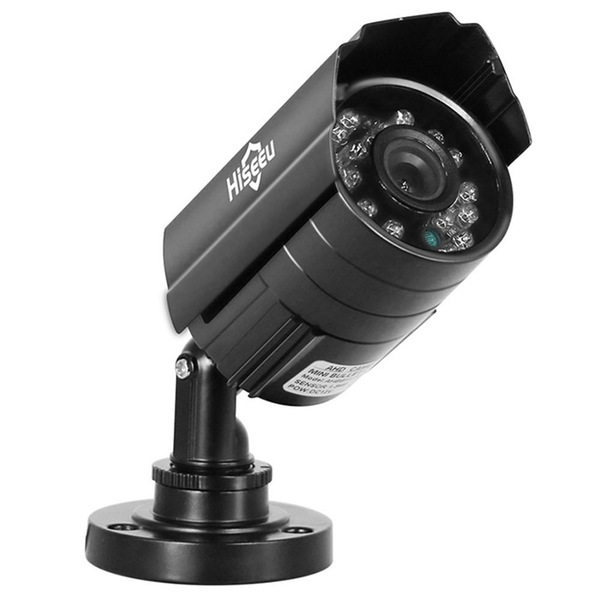

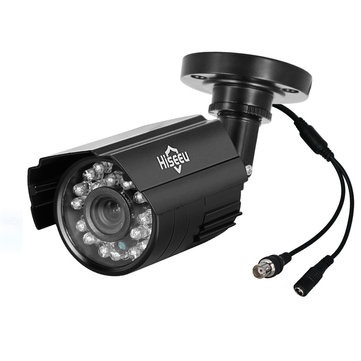

- Camera AHD style: bullet-type camera high definition
- Bullet camera high definition: 2 million pixel capacitance
- Closed system / CCTV cable: 3.6mm
- Sensor: CMOS technology infrared properties
Specification :
Specifications | |
Image Sensor | AHBB12 |
1/3" 2.0MP CMOS Sensor | |
TV System | PAL/NTSC |
IR CUT | Yes |
Active Pixel | 1920*1080 |
SYNC. | Internal |
Resolution | 1080P |
VIDEO OUT | 1Vp-p,75ohm, BNC |
Minimum Illumination | 0 Lux ( When IR is on) |
Auto compensation | Auto |
IR LEDs | 24 PCS IR LEDs |
IR Distance | about 15M |
Lens | 3.6 mm default |
Electric Shutter | 1/50s-1/50000s |
S/N Ratio | >50dB |
Day/Night | Auto(ICR) / Color / B/W |
Power Supply | DC12V±10% |
Waterproof | Indoor |
Working temperature | -15°~50° |
Transmission distance | Over 500m via 75-3 coaxial cable |

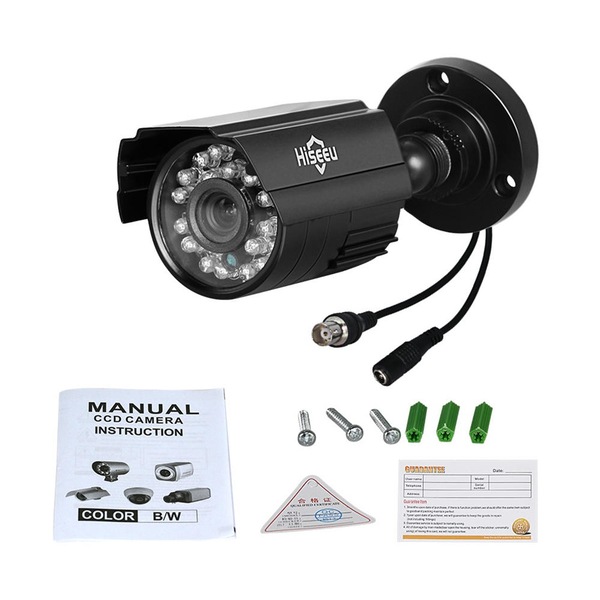

Package includeds :
1 x AHBB12 AHD 1080P Camera
1 x Set of Screws
1 x User Manual
Return policies :We 100% support our customers, If you are not satisfied or you have any problem with our products, please CONTACT US at once. We will help you free return the goods.
Warranty policies: Our products have 180 days warranty.
