1080p HDMI Extender Over Coaxial Cable

Image 1
Image 2
Image 3
Image 4
Image 5
Hurry! 19 items left!
$199

Collect 199 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Oz Direct
Secure ways to pay at checkout
1080p HDMI Extender Over Coaxial Cable
Extend 1080p HDMI Signal Over Coax Cable

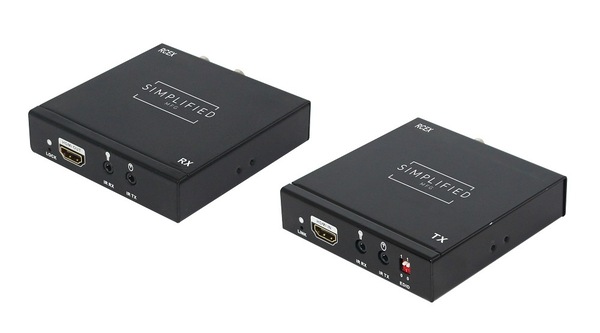

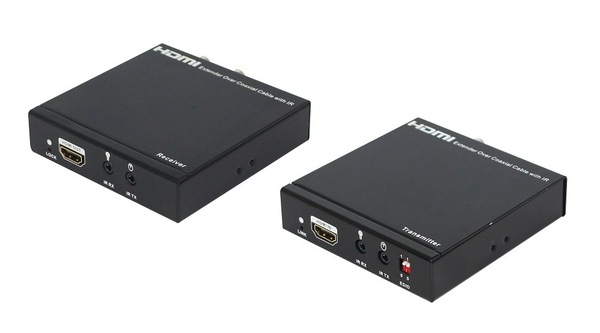

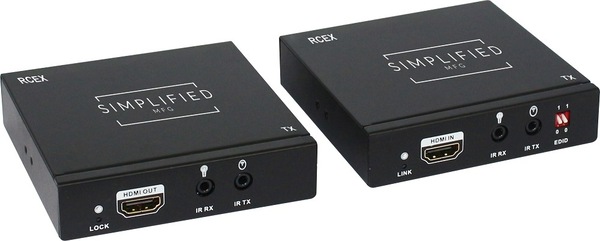

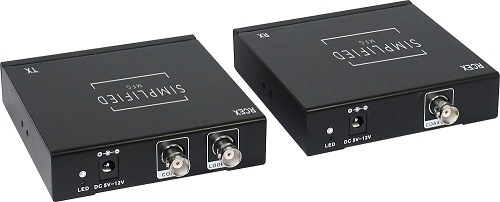

This HDMI Over Single Coax Extender sends HDMI signals Over just one 75Ohm Coaxial cable -- up to100m away. The HDMI Over Single Coax Extender supports features such as Deep Color and 1080p. By using standard and widely available 75Ohm RG-6U cables, the HDMI Over Single Coax Extender makes HDMI signal extensions easier than heavy and expensive copper cable and more robust than optical fiber. The Extender includes two units: transmitter and receiver.  The transmitting unit is used to capture the HDMI input with IR signals and carries the signals via one coaxial cable.  The receiving unit is responsible for equalizing the transmitted HDMI signal and reconstructing IR and serial control signals.  The Extender offers the most convenient solution for HDMI extension over a single coaxial cable with long distance capability, and is the perfect solution for any application.
⦁    Features
1.    Flexible extension of high-bandwidth HDMI 1.3 thanks to the performance and reliability of 75Ohm RG-6U Coax cable.
2.    Audio and video are transmitted digitally over the 75Ohm RG-6U Coax cable with zero signal loss.
3.    Single Link Range: 1080p/60, 12 bit color depth.
4.    Compliant with HDMI 1.3, HDCP 1.1 standards.
5.    Supports digital video formats in Deep Color Mode at up to 12bits/color.
6.    Supports PCM 48KHz audio.
7.    Supports Cascade function in Transmitter and Receiver and it is easy to build a network system by installer.
8.    Lip-Sync Pass Through.
9.    Bi-directional IR system allowing for control of source or display (IR accessories included)
⦁    Package Contents:
 (1) [TX & RX]
(2) IR Blaster (TX)
(2) IR Receiver (RX)
(2) DC 5V in line power supply
(1)User Manual
⦁    Specification
Frequency Bandwidth    225MHz/link (HDMI 1.3)
In/Output Support Resolution
    480i, 576i, 720p@50/59.94,60
1080i@50/59.94/60
1080p@23.98/24/25/29.97/30/50/59.94/60
Input TMDS Signal:    3.3 volts
Input DDC Signal:    5.0 volts/P-P
ESD Protection Human body model    ±8kV (air-gap discharge)
±4kV (contact discharge)
Coaxial Cable Distance    Full HD up to 100M (RG-6U cables)
HD up to 200M (RG-6U cables)
SD up to 300M (RG-6U cables )
Dimension (mm)    100(D)x105(W)x25(H)
Weight (g)    280
Power Supply:    (2) 5V1A DC
Power consumption:    2.3 watts (TX); 2.2 watts (RX)
Operation temperature:    32~104 °F
Storage temperature:    -4 ~140 °F
Relative humidity:    20~90 % RH (no condensation)

GTIN: 9351634026678
