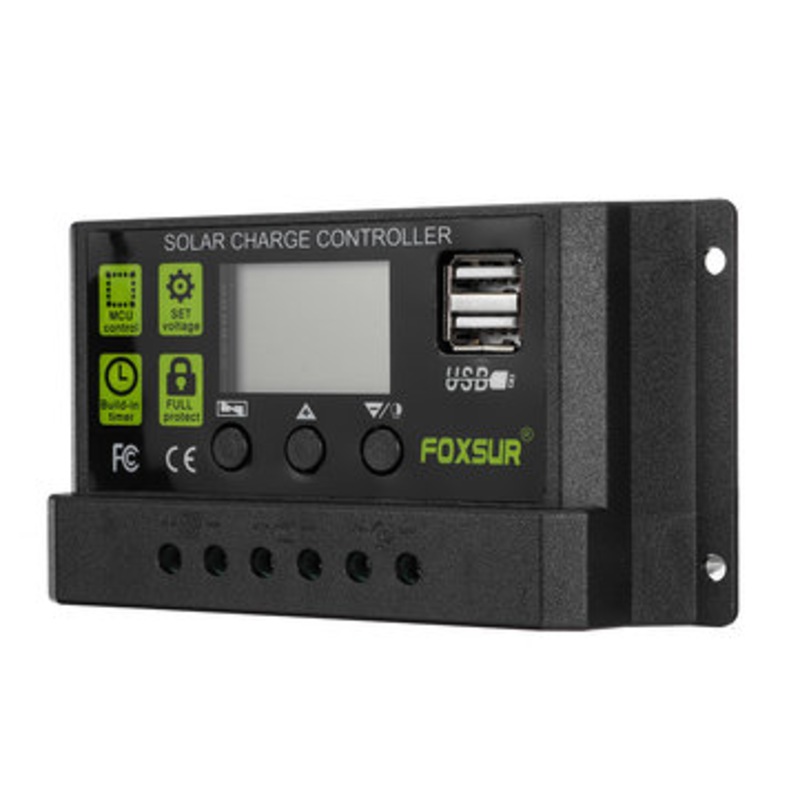

10A 12V/24V Auto-Adaptive LCD Display PWM Solar Panel Charge Controller

Feature:

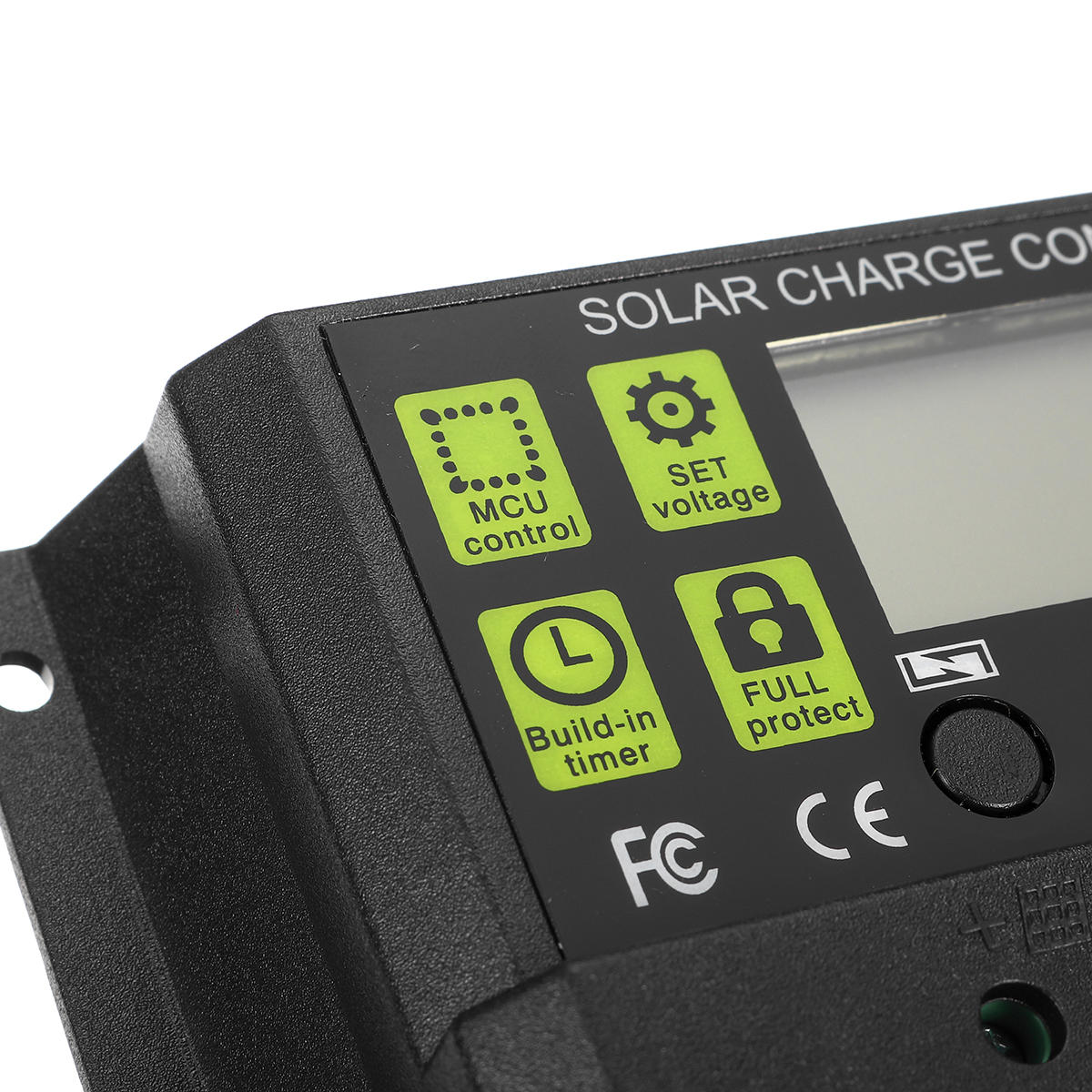

Build-in industrial micro controller.

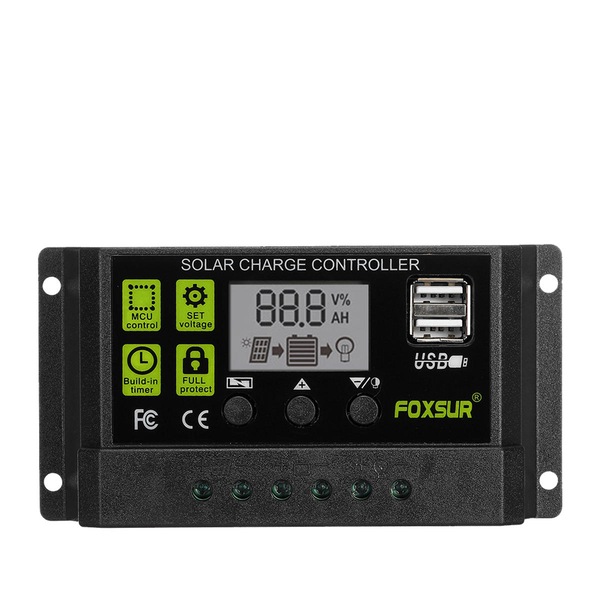

Big LCD display,all adjustable parameter.

Fully 3-stage PWM charge management.

Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.

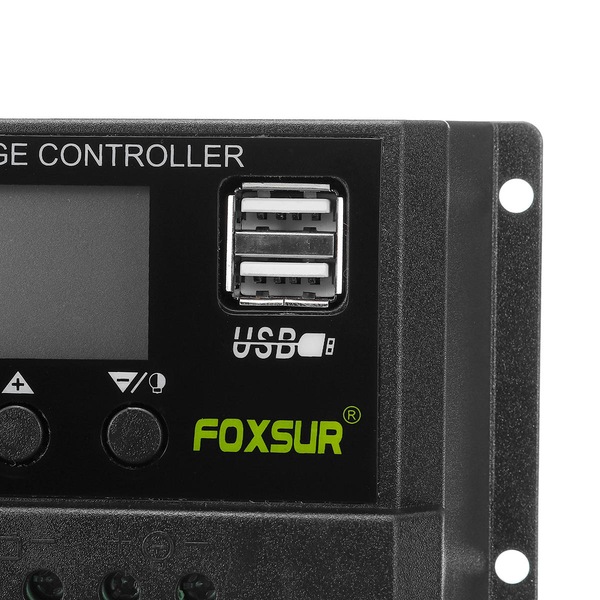

Dual USB output,the maximum current of 2.5A,to support mobile phone charging.

Dual mosfet reverse current protection,low heat production.

Specification of 10A Controller:

Rated Voltage:12/24V Auto-Adaptive

Rated Current:10A

Applicable Pmax & Voc in 12V Solar System: 130W, 15-25V

Applicable Pmax & Voc in 24V Solar System: 260W, 30-50V

Max.PV Voltage: 50V

Max.PV input power: 120W(12V), 240W(24V)

Equalization:14.4V

Float charge:13.7V (defaul,adjustable)

Discharge stop:10.7V(defaul,adjustable)

Discharge reconnect:12.6V(defaul,adjustable)

Charge reconnect:13V

Voltage of open light:Solar panel 8V(Light lights delay)

Voltage of close light:Solar panel 8V(Light off delay)

USB output:2 way USB output,5V/2A(Max.)

Self-consume:<10mA

Operationg temperature:-35-60�b?/span>

Size:133.5mmx70mmx35mm

Package included:

1x PWM Solar Charge Controller (10/20/30A Optional)

1x Manual In English & Chinese
