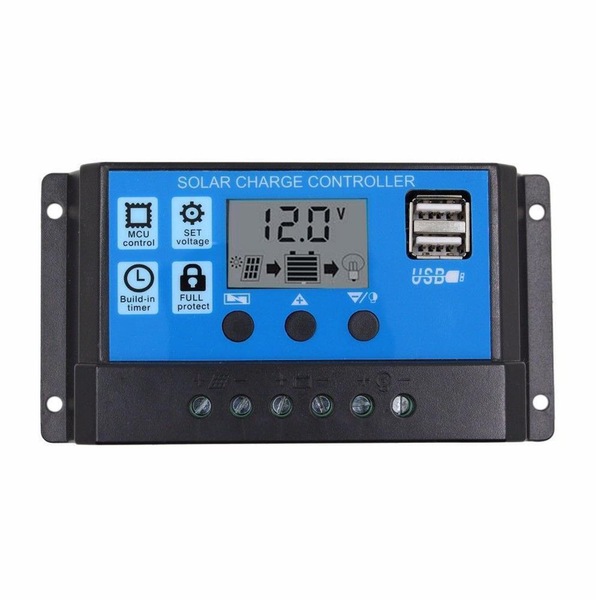

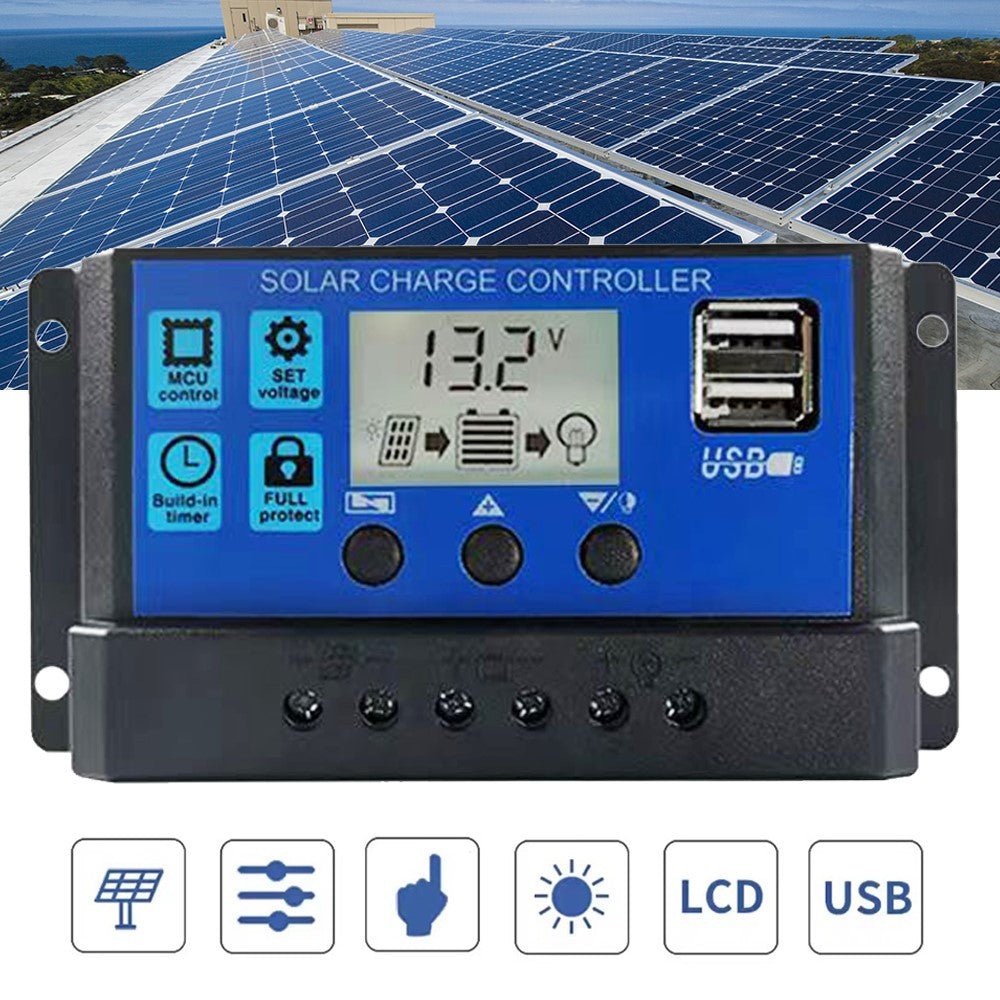

Features:

• Solar Panel 12V/24V 10A/20A/30A
• Build-in industrial micro controller.
• One-key setting, auto memory function. digital display,
• 4-stage PWM charge management.
• There are Build-in short-circuit protections, open-circuit protections, reverse protections, over-load protections
• reverse current protections, low heat productions.
• With double USB ports charge
• The Regulator is only suitable for lead acid batteries:OPEN, AGM, GEL
• Max. PV Input Power:
• 10A: 130W (12V) 260W (24V)

Safety Instructions:

• Make sure your battery has enough voltage for the controller to recognize the battery type before first installation.
• The battery cable should be as short as possible to minimize loss.
• The regulator is only suitable for lead acid batteries: OPEN,AGM, GEL
• make Sure it is not suited for nickel metal hydride, lithium ions or other batteries.
• The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.

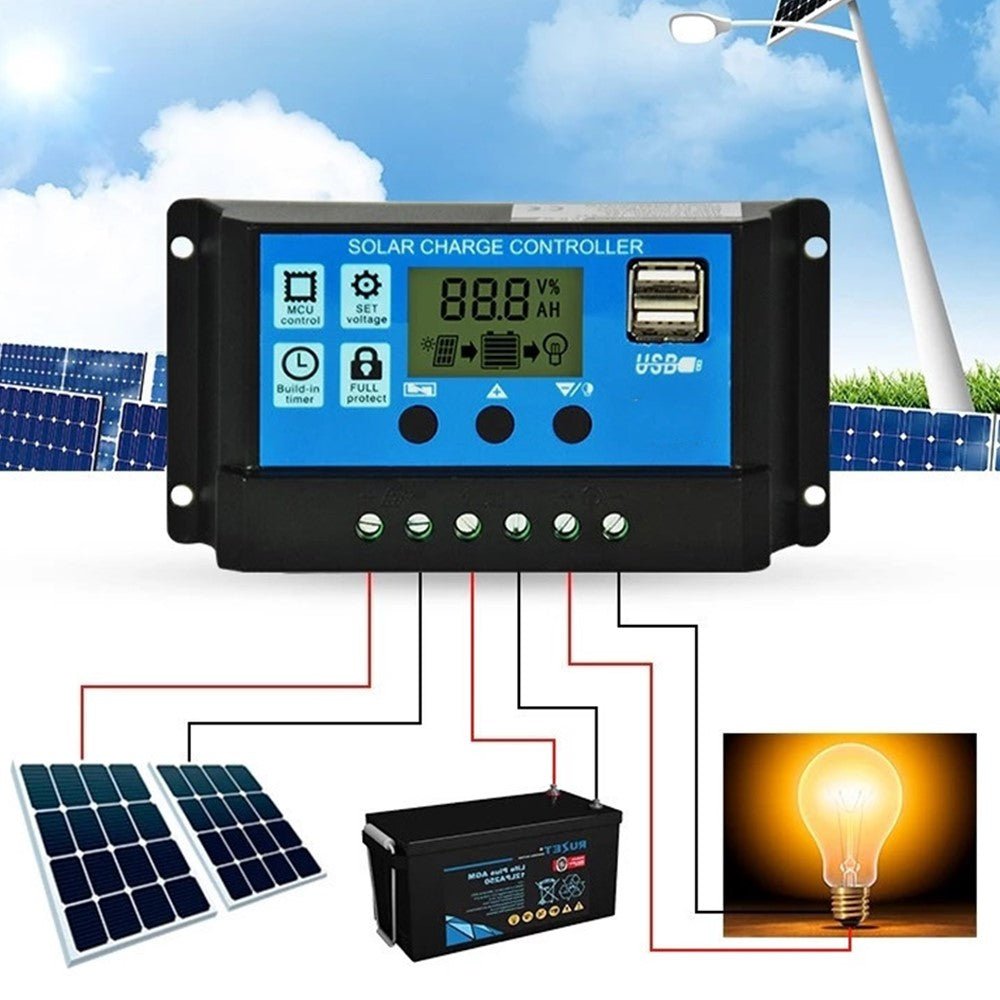

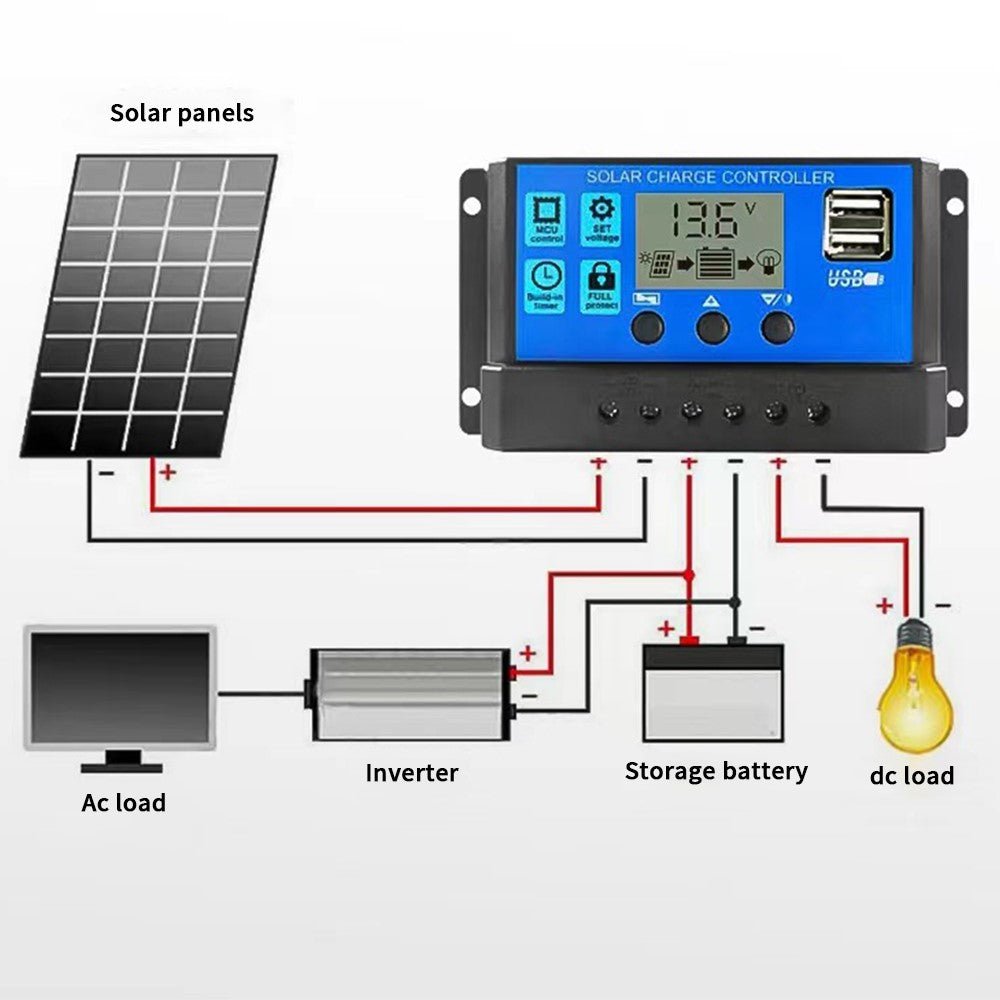

System Connection:
Connect the battery to the charge regulator - plus and minus. it will show 1, if it detects 12V battery, 2 if it detects 24V battery.
Connect the photovoltaic module to the regulator - plus and minus.
Connect the consumer to the charge regulator - plus and minus.

Specification:

• Rated Voltage: 12V 24V Auto
• Application: Solar System Controller
• Current: 10A

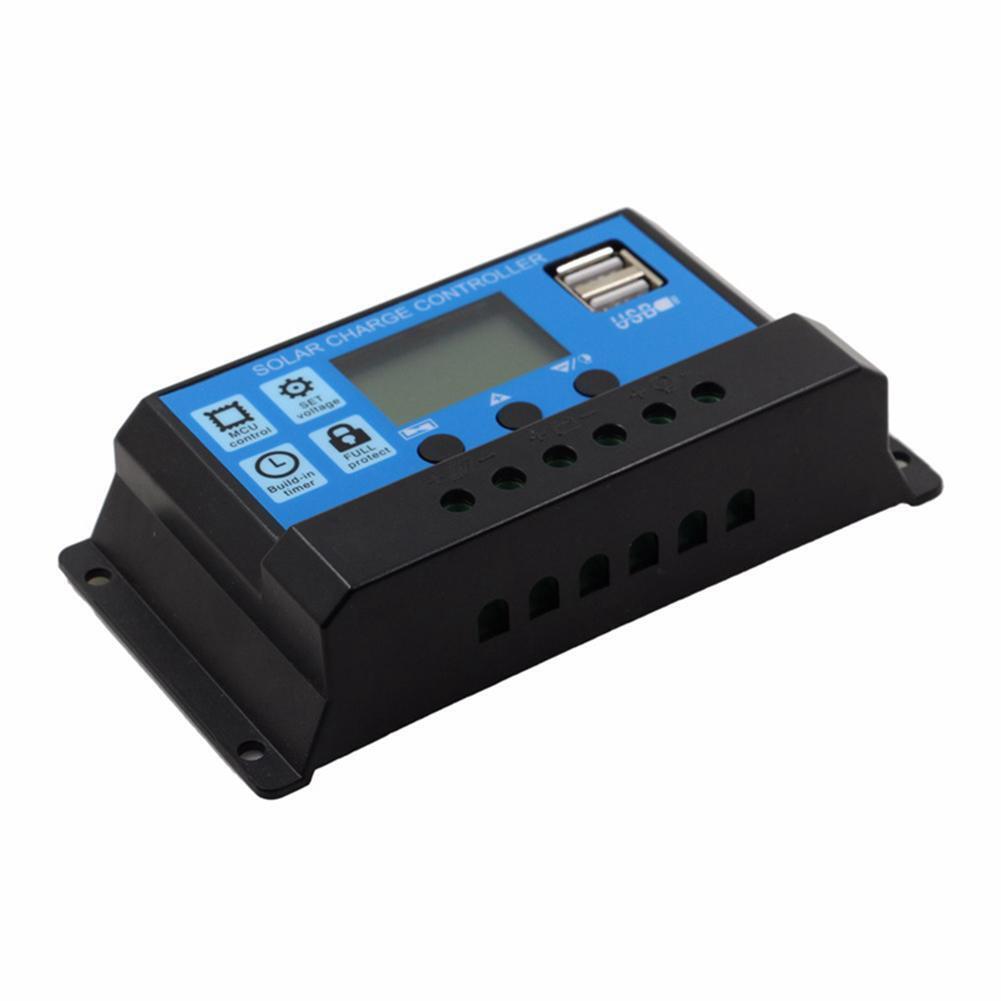

• Size: 148*78*35mm

Package:

• 1x Solar Panels Battery Charge Controller
• 1x User Manual
