• Material: Nylon, HDPE Plastic, Carbon Steel
• Color: White, Black, Blue

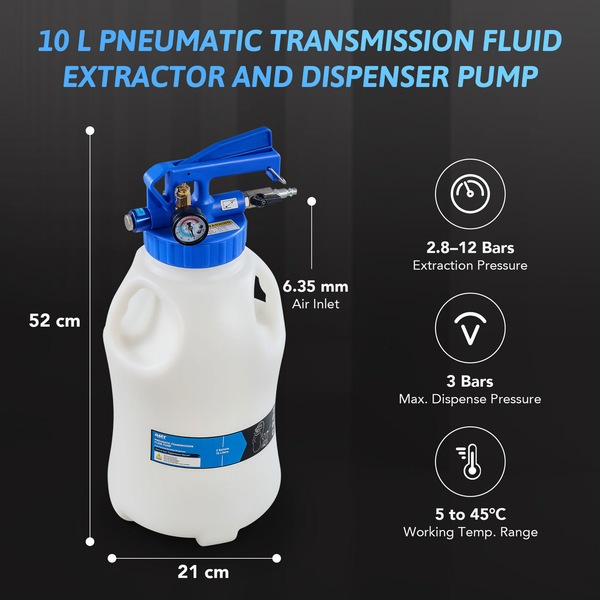

• Bleeder Dimensions: 8.3 x 7.9 x 20.5 in. (21 x 20 x 52 cm)
• Tank Capacity: 2.6 gal. (10.6 qt. or 10 L)
• Air Port Diameter: 1/4 in. (6.35 mm)
• Extraction Pressure: 40-170 psi (2.8-12 Bars)
• Max. Dispense Pressure: 43 psi (3 Bars)
• Hose Lengths: 28.7, 39.4, & 59 in. (73, 100, & 150 cm)
• Case Dimensions: 10.8 x 8.5 x 2.4 in. (27.5x21.5x6 cm)
• Net Weight: 8.8 lb. (4 kg)

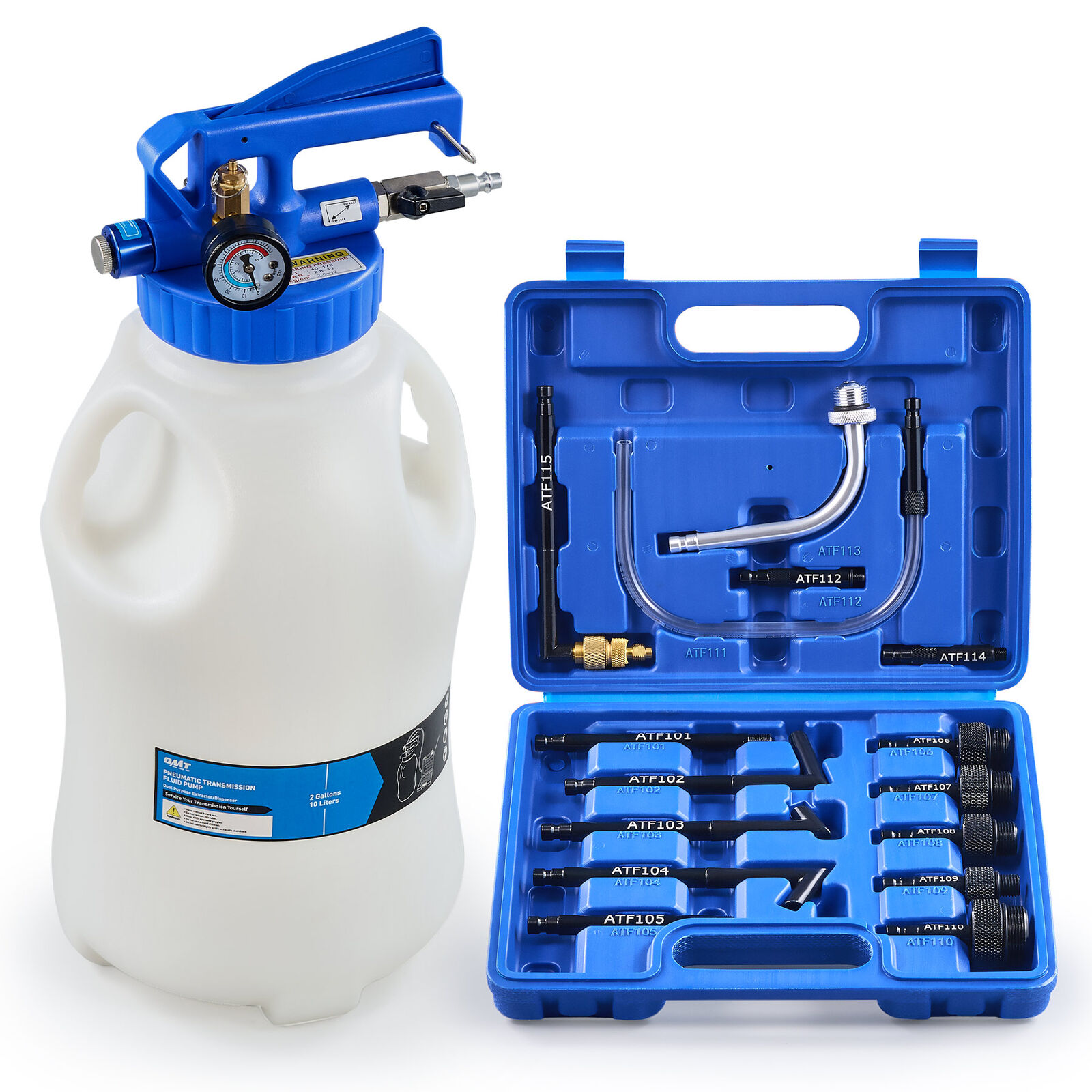

• 1 x Brake Fluid Bleeder
• 3 x Tubes
• 15 x Adapters
• 1 x Pair of Protective Gloves
• 2 x Hooks
• 1 x Blow-Molded Case
• 1 x Instruction Manual

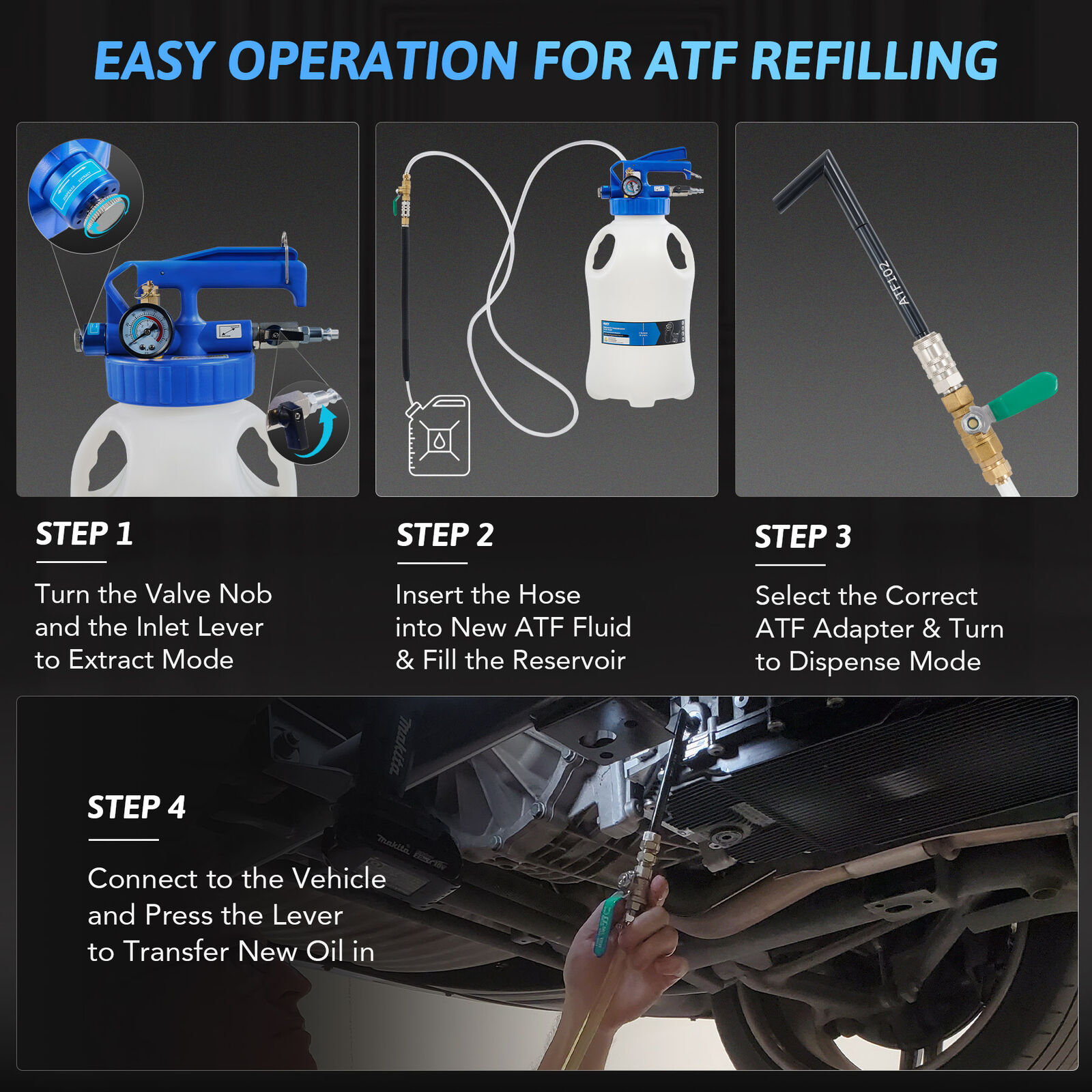

1. Begin by turning both valve knob on the reservoir lid and air inlet lever to Extract and by confirming that the trigger is off.
2. Connect the pump to an air compressor, lock the trigger, insert the hose into new ATF fluid, then press the trigger to fill the tank.
3. Select the ATF adapter compatible with your vehicle, connect it to the hose, and switch the valves to Dispense.

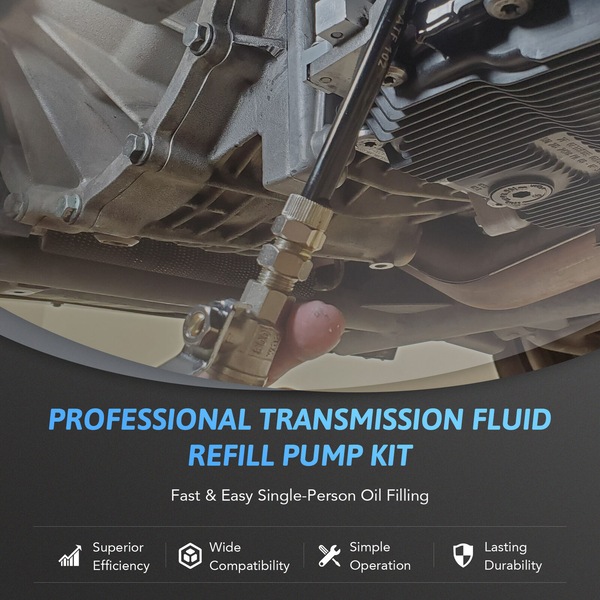

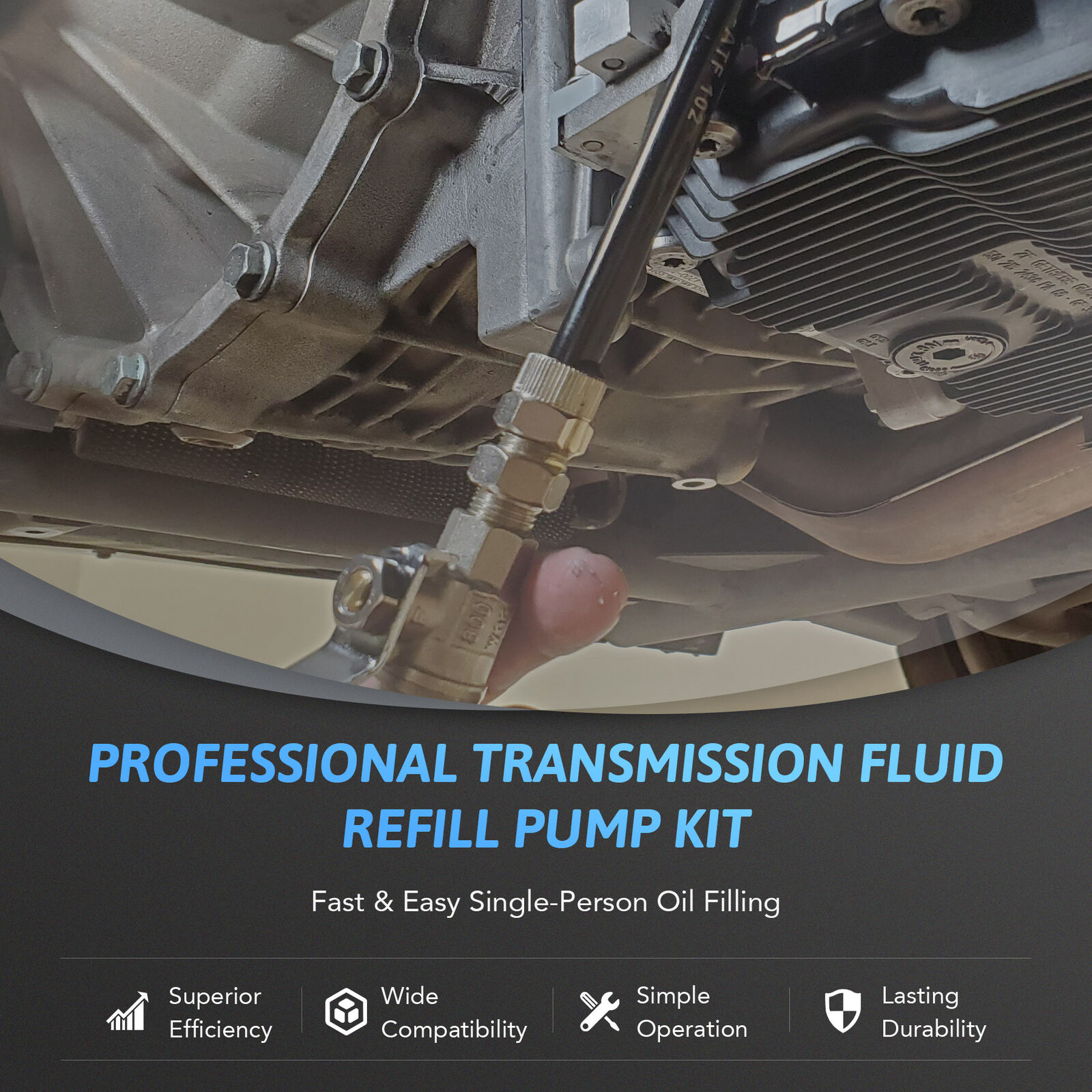

4. Connect the adapter to the inlet, lock the trigger, and open the hose valve to add fresh fluid to your transmission.

This 2.6 gallon vacuum fluid bleeder set by Orion Motor Tech uses compressed air up to 170 psi to extract and 43 psi to dispense, producing strong suction with tight seals to let you handle flushes and changes quickly and easily.

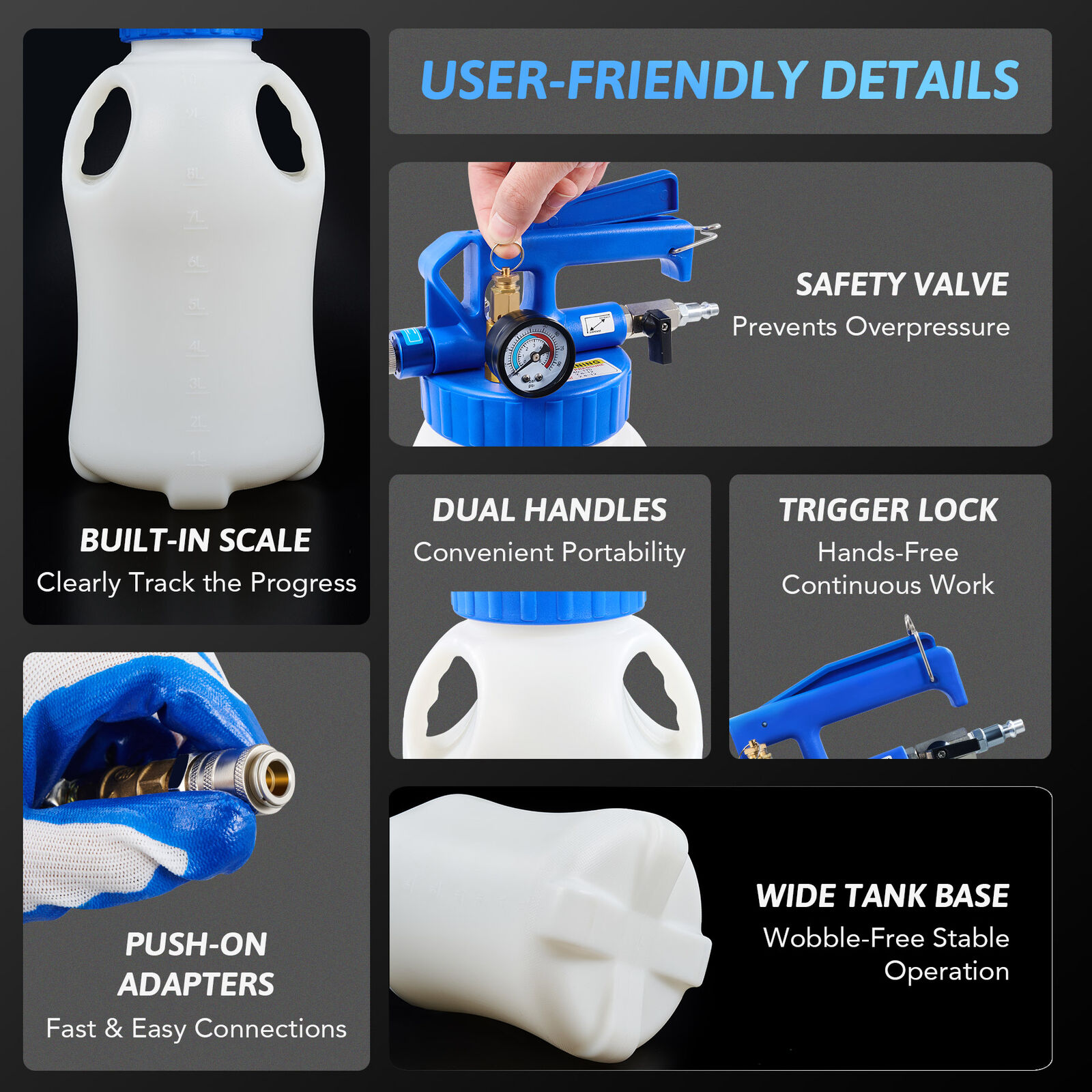

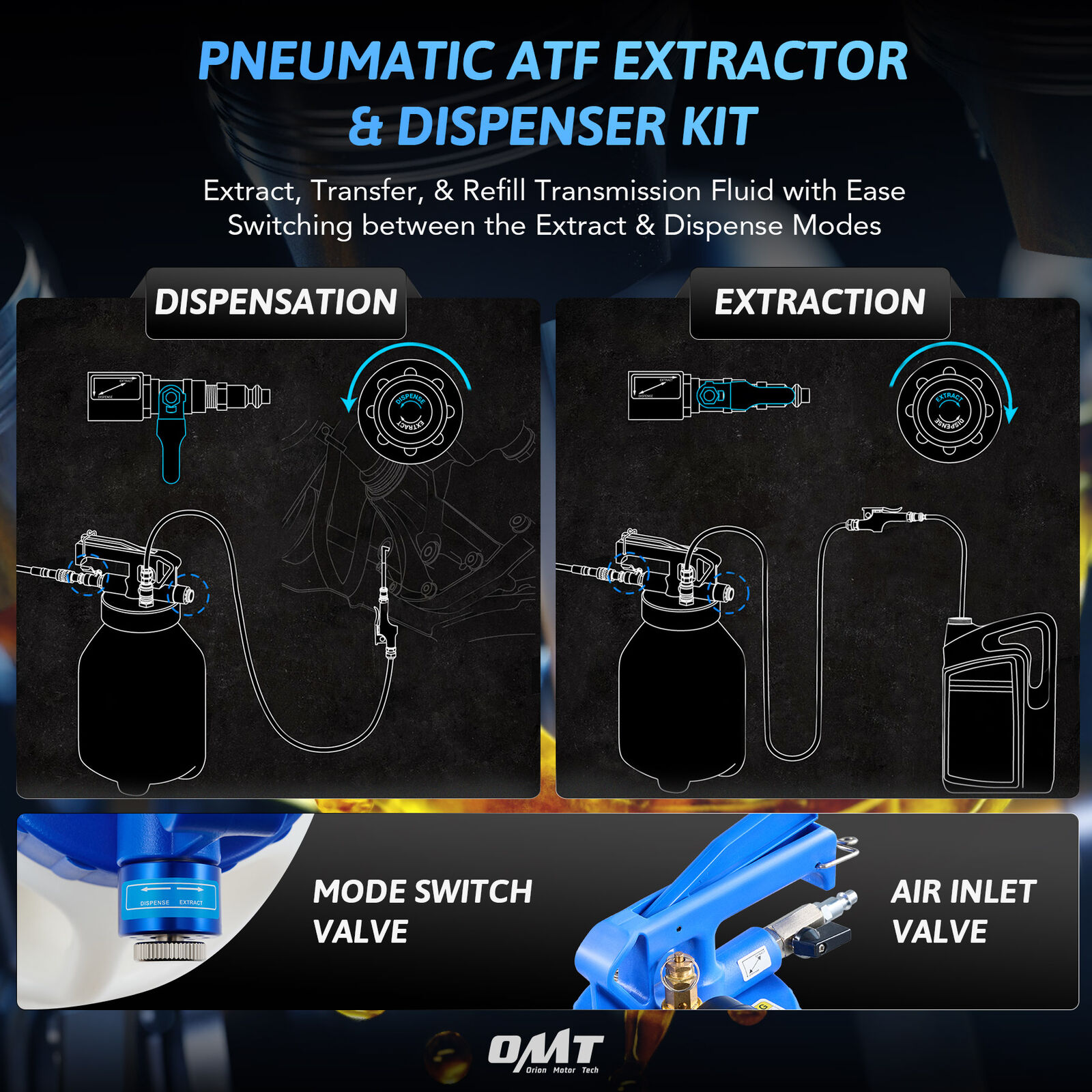

The 2 way rotary valve offers immediate changes between extraction and dispensing modes; the trigger lock enables hands-free continuous operation; and the safety valve will pop up automatically in case of overpressure.

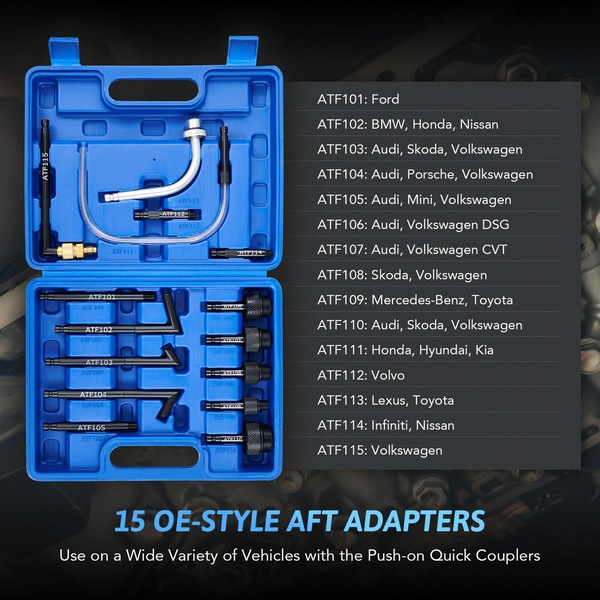

Our pneumatic transmission fluid extractor and dispenser comes with 15 ATF refill adapters to perfectly fit master cylinders on most cars, with a tool case providing convenient storage and transport; the 1/4 NPT air control inlet connects to any standard air compressors in a flash.

The transparent hoses allow you to clearly track your progress and inspect oil and fluid quality as you go; the built-in pressure gauge offers clear real-time observation; the hangers keep things out of the way; and the durable gloves with nitrile coating protect your hands from corrosive oils.

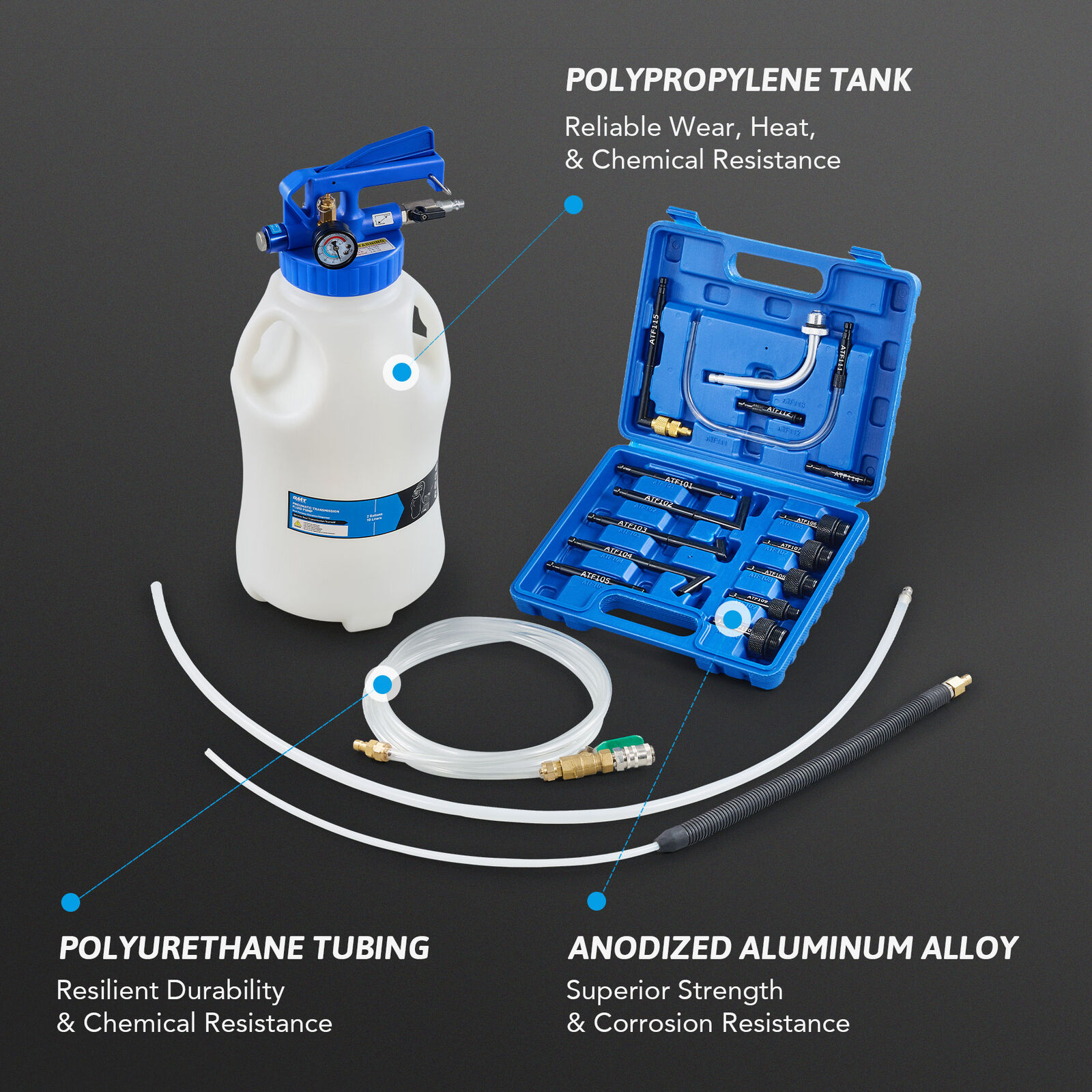

Three rigid polyurethane and nylon hoses, polyethylene reservoir, and 6061 aluminum alloy adapters are all highly resistant to heat and chemical corrosion to easily handle even the grimiest old fluids year after year.
