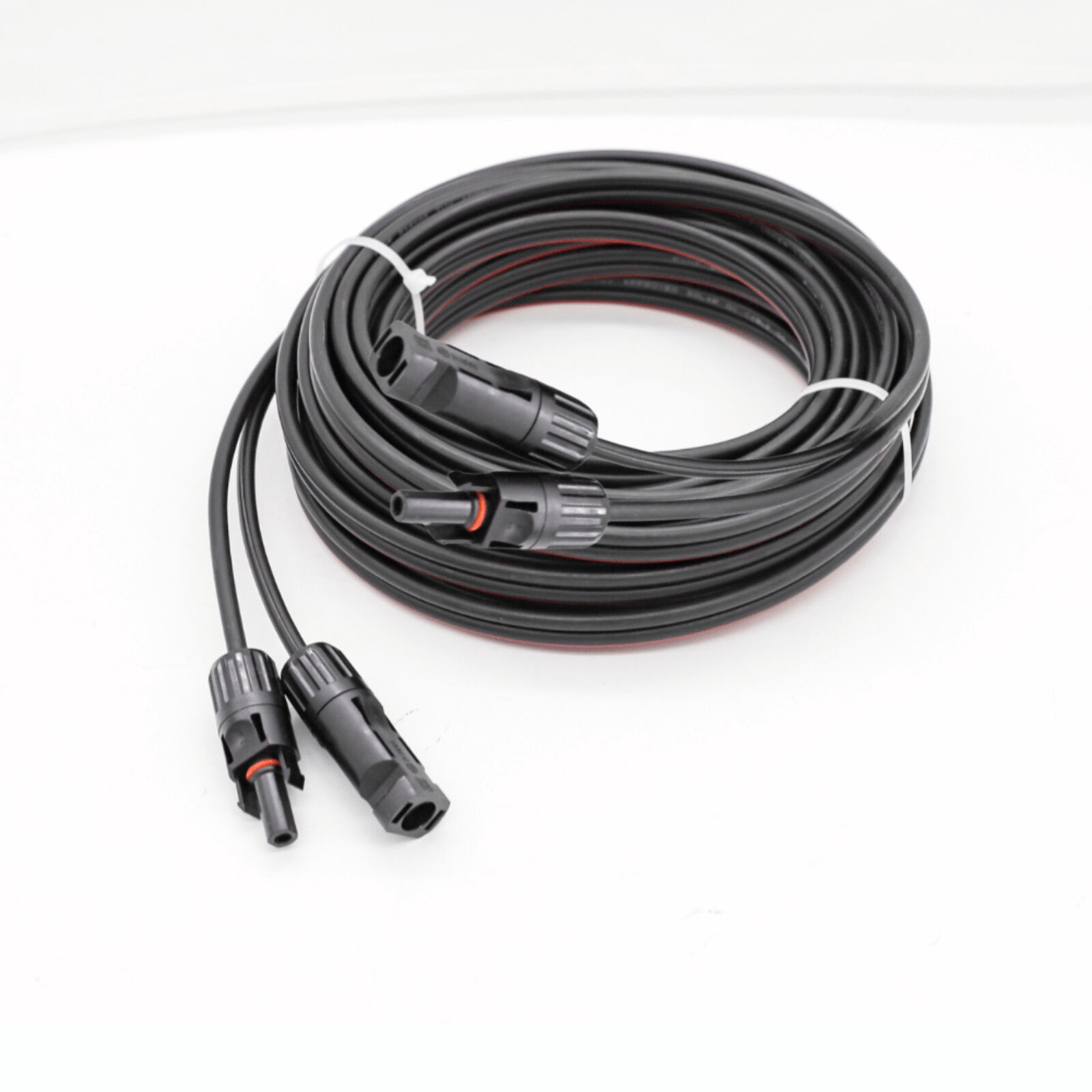

10m Exotronic 6mm² Twin Solar Extension Cable
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
Collect 79 Everyday Rewards points
Dispatch in 2 business days
Collect 79 Everyday Rewards points
Dispatch in 2 business days
Elevate your solar energy system with the Exotronic 6mm² Twin MC4 Compatible Extension Cable. Designed for a seamless connection, this 10-metre extension cable is the ultimate solution for expanding your solar setup with ease and flexibility. With its robust design and MC4 compatibility, it's tailored to extend the reach of your solar panel connections effectively.
This Exotronic extension cable is crafted to accommodate a diverse array of solar energy applications:
Additionally, the cable's adaptable design allows for it to be conveniently split down the middle, offering greater installation flexibility to meet your specific solar energy needs. Whether it's for industrial,marine or mobile installations, the Exotronic 6mm² Twin MC4 Compatible Extension Cable is versatile enough to tackle a wide range of application requirements, making it an essential component of any solar power system.
Specification | Details |
---|---|
Waterproof and Dustproof (Mated) | IP67 |
Waterproof and Dustproof (Unmated) | IP2X |
Rated Voltage | 1000V DC (IEC) |
Contact Material | Tinned Copper |
Insulation Material | PC/PPO |
Contact Material | Copper Alloy, Tin Plated |
Temperature Range | –40°C to +90°C (IEC) |
Upper Temperature Limit | +105°C (IEC) |
Degree of Protection (Mated) | IP67 |
Degree of Protection (Unmated) | IP2X |
Flame Class | UL94-V0 |
Locking System | Snap-in |
Contact Resistance of Plug Connectors | 0.5mΩ |
Safety Class | II |
Test Voltage | 6kV (50Hz, 1min) |
Salt Mist Spray Test, Severity Degree | 5 (according to IEC 60068-2-52) |
Rated Current | 30A |
Connector System | Ø 4 mm |
GTIN: 9361784001586
Estimated Delivery Time Frame:1-10 business days
Ask a Question About This Product
Reference ID: 14879595
