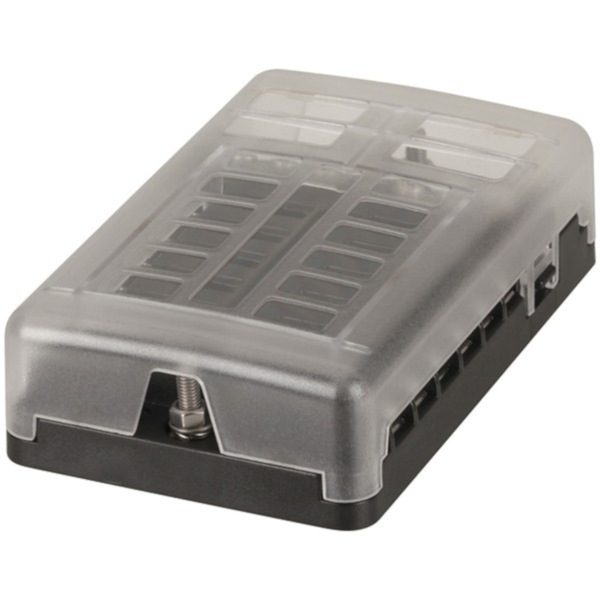

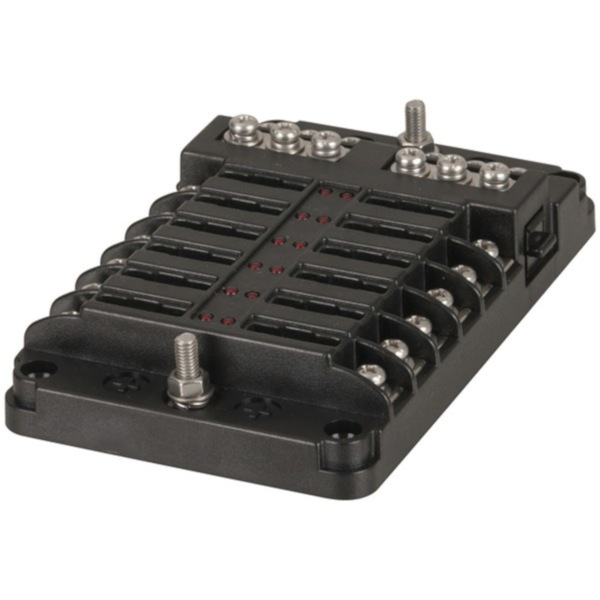

12 Way Fuse Block with Bus Bar Red LED blown fuse indication

Image 1
Image 2
Shop More Products
This versatile fuse block provides fused distribution of your positive terminals, as well as distribution for the negative wires. This is especially handy in a boat or caravan which may not have a chassis-ground type system. Each fuse output accepts up to a 30A, up to 100A combined, with handy fuse-blown indication. Fuses not included, uses standard automotive fuses.

Features:
- Up to 30A per output
- Red LED blown fuse indication
- Negative bus bar

Specifications:
Main Line:
Terminal Rating: M5 Threaded Studs (32VDC, 100A Max.)
Wire Size: #4-6 AWG
Single Line:
Terminal Rating: M4 Threaded Studs (32VDC, 30A Max.)
Wire Size: #12-16 AWG
Terminals: Nickel Plated Copper
Screws: Stainless Steel

Width : 85.0mm

Height : 138.0mm

Depth : 37.0mm

Weight : 250.0g


Specifications:

12 months

GTIN: 9319236747759

Reference ID: 1442526
