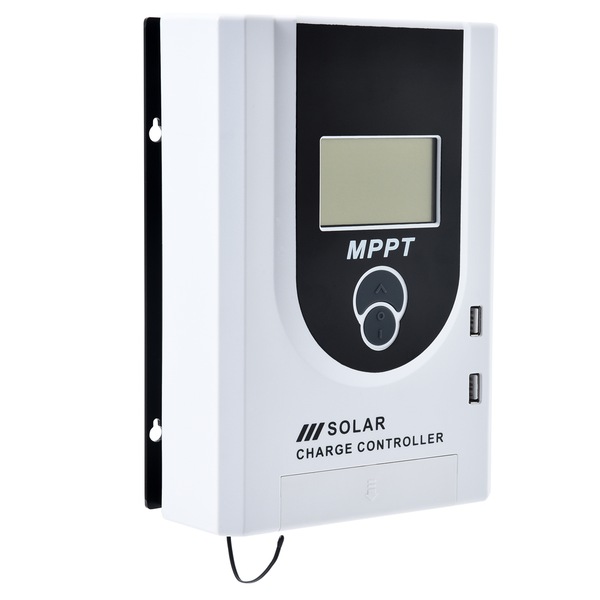

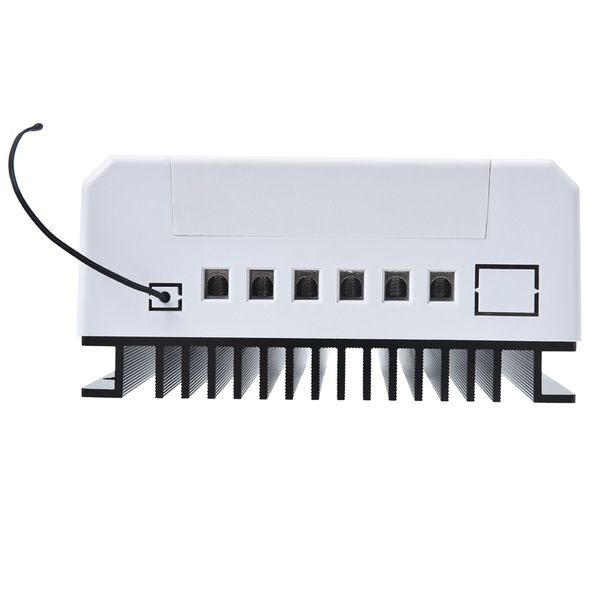

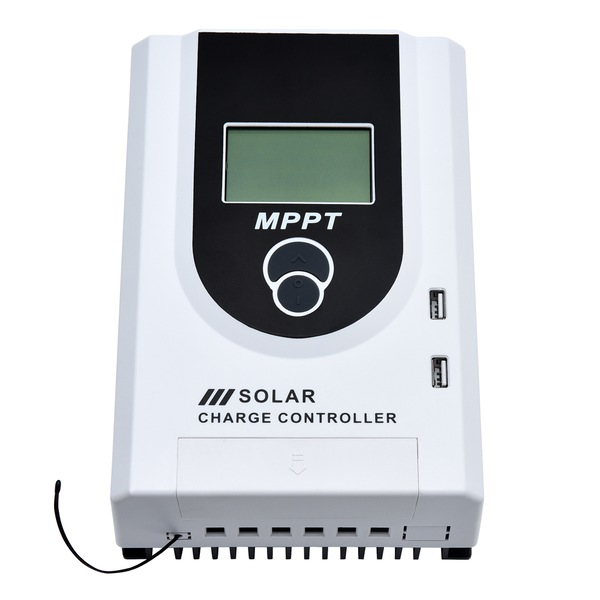

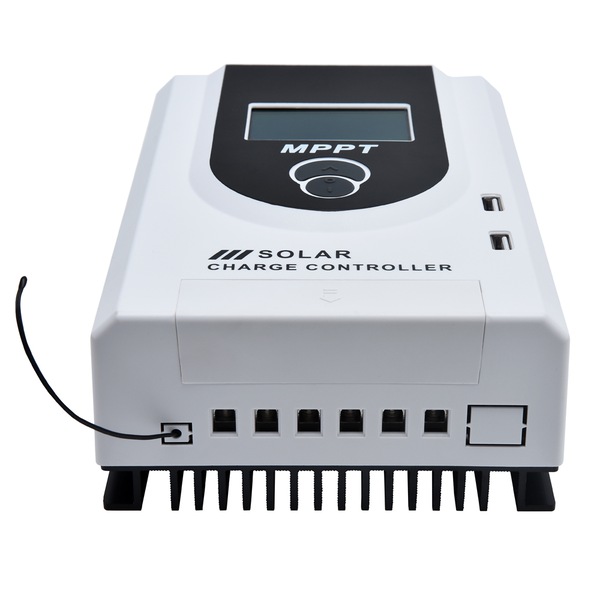

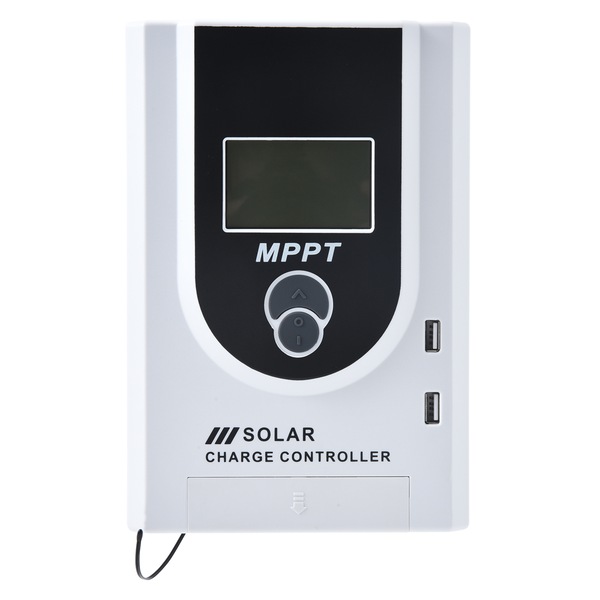

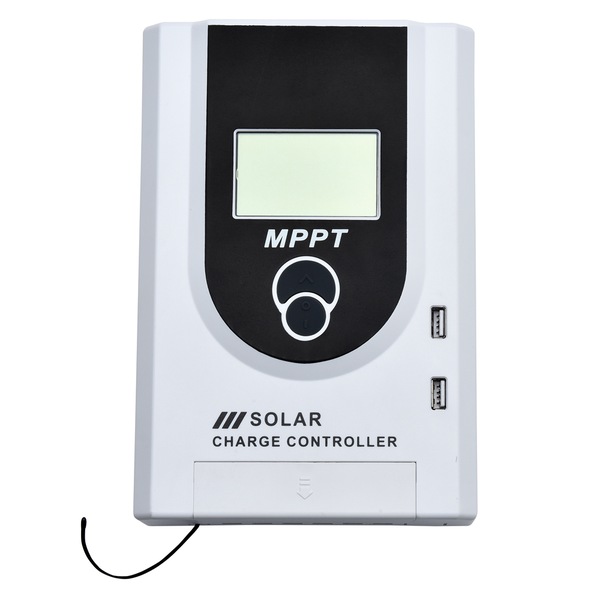

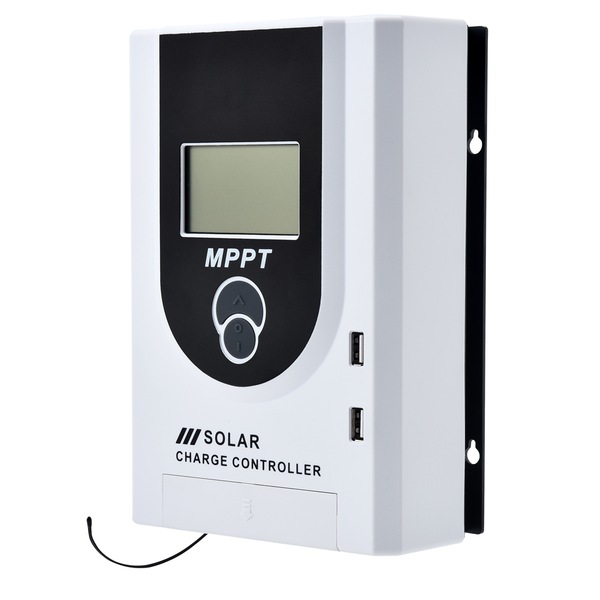

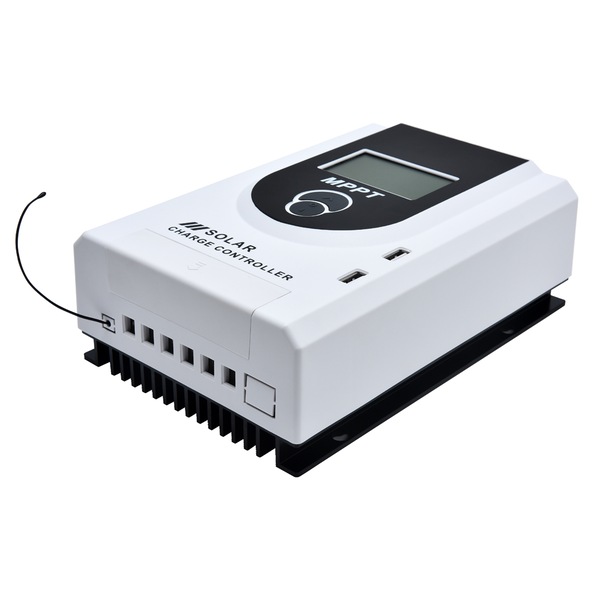

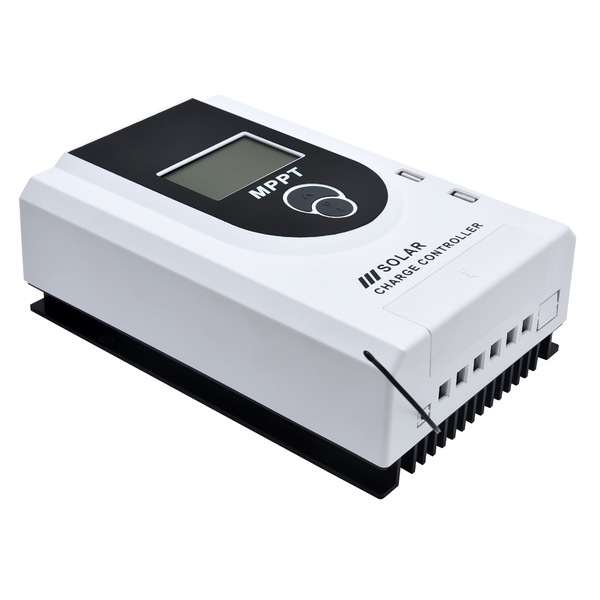

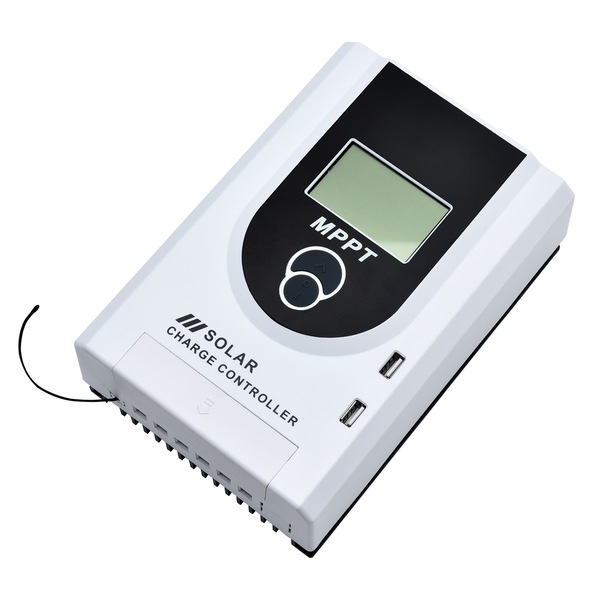

Acemor 12V/24V Solar Panel Battery Regulator Charge Controller 20A MPPT LCD Bluetooth

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10

Witness the power of our MPPT Charge Controller With Bluetooth! See it in action and experience up to 99% tracking efficiency for unparalleled performance. The most efficient charge controller on the market. Upgrade your solar system today and optimize your energy generation. Order now and take your solar charging to the next level!

Hurry! 1 items left!
$119

Collect 119 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Ozzie Energy
Secure ways to pay at checkout
Our 20A MPPT Charge Controller is the most efficient type of charge controller.

Features:
  • With up to 99% tracking efficiency, it ensures maximum power point solar charging that gets more energy to your battery bank.
  • Capable of automatically detecting 12V/24V lead acid battery systems, this crucial component is preset to also work With Gel, Flooded (wet cell), Sealed, and even Lithium batteries.

  • Specifications:
    Input :
  • Rated charge current:20A
  • Max open voltage of solar panel: 100V (at the lowest temperature) 92V (at a standard temperature of 25°C)
  • Minimum PV input open circuilt voltage(Voc): 20V/40V
  • System rated voltage:12/24V Auto recognized
  • Maximum battery voltage: 8V-32V
  • Maximum input power: 260W(12V) 520W(24V)
  • Output:
  • Battery type: User default, Sealed, Flooded, GEL, LiFePO4, Li(NiCoMn)O2.
  • LVR *: Maintenance-free lead-acid battery, GEL. lead-acid Flooded battery: 12.6V
  • LVD *: Maintenance-free lead-acid battery, GEL, lead-acid Flooded battery: 10.8V
  • Static loss: <50mA
  • HVD: Lead acid battery 16V
  • Light control voltage: 5V/10V/15V/20V
  • Temperature compensation coefficient: '-4mV/°C/2V(25°C)
  • Discharge loop voltage drop: ≤2 V
  • LCD temperature: -20°C ~ +70 °C
  • Operating temperature: -20°C ~ +55 °C
  • Storage temperature: -30~ +80 °C
  • Working humidity: ≤90%. No condensation
  • Protection class: IP30
  • Grounded type: Positive grounded
  • Terminal wiring: 10mm² /7AWG
  • Optional function: RS485/RJ45 port

  • Dimension & Weight:
  • Dimension: 175mmx120mmx47mm
  • Hole size for installation: 120mmx108mm
  • Aperture for installation: Φ5mm
  • Weight: 660g

  • Package:
  • 1x solar controller

  • GTIN: 9355348034400
