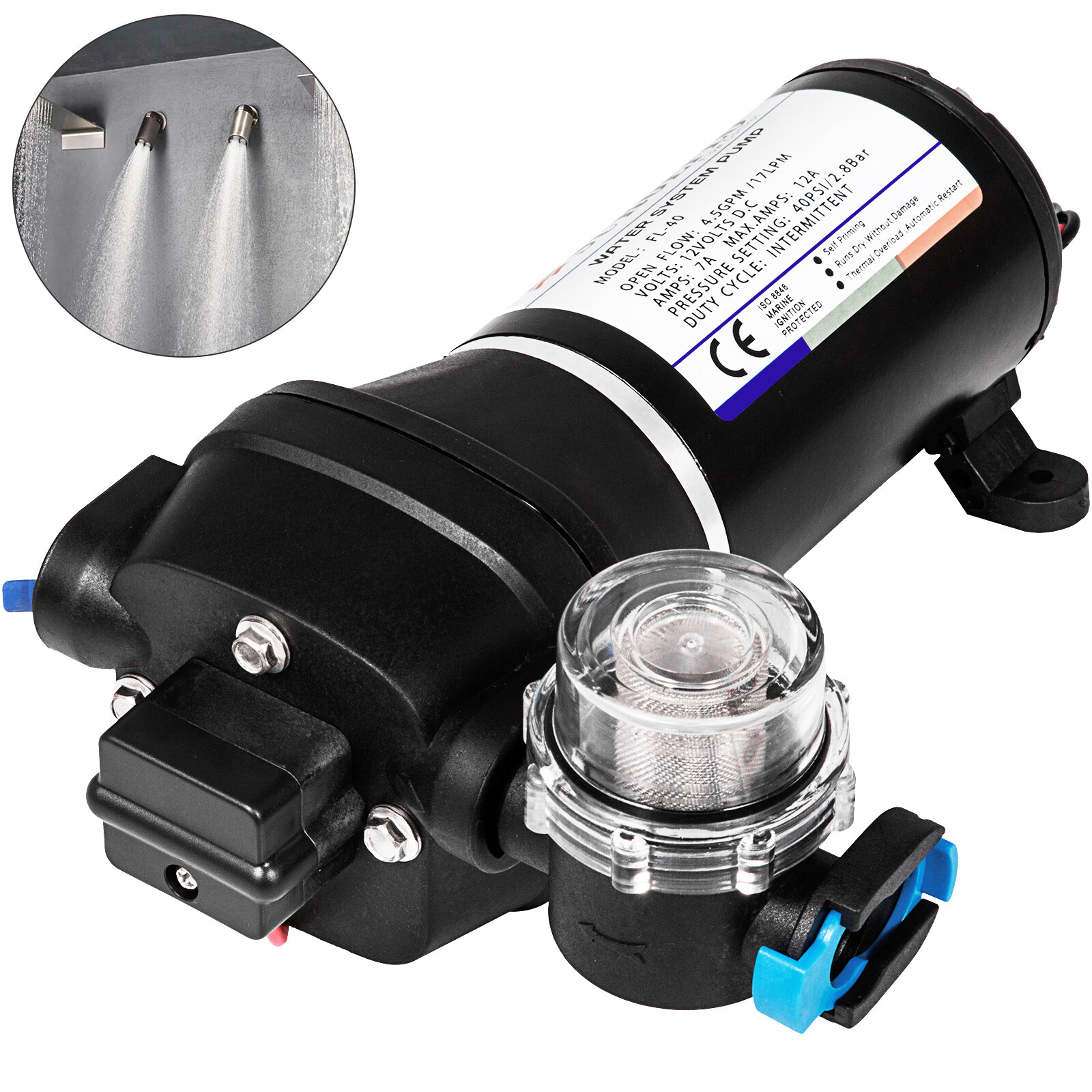

The diaphragm water pump is composed of high-strength cast iron with powder-coated that is waterproof and rust-proof for long-lasting uses. This pump is a fully automatic self-priming pump, the max flow of 17 L/min, inlet PSI set at Max 40PSI (2.76Bar), power for the Pump: DC 12V. The self-priming automatic pump has a built-in thermal protector and provides automatic pressure protection. Long-life pump with quiet operation and no leak. The diaphragm water pump features small size, lightweight and stable performance for instant assembly. The misting booster pump can be applied in food, beverage filling, and liquid transfer. The kind of pump is known as a clean machine, road-works requirements, cooler system.

• Durable Material: The Sprayer Diaphragm Pump is made of high-strength cast iron with powder-coated that is resistant to chemical corrosion.

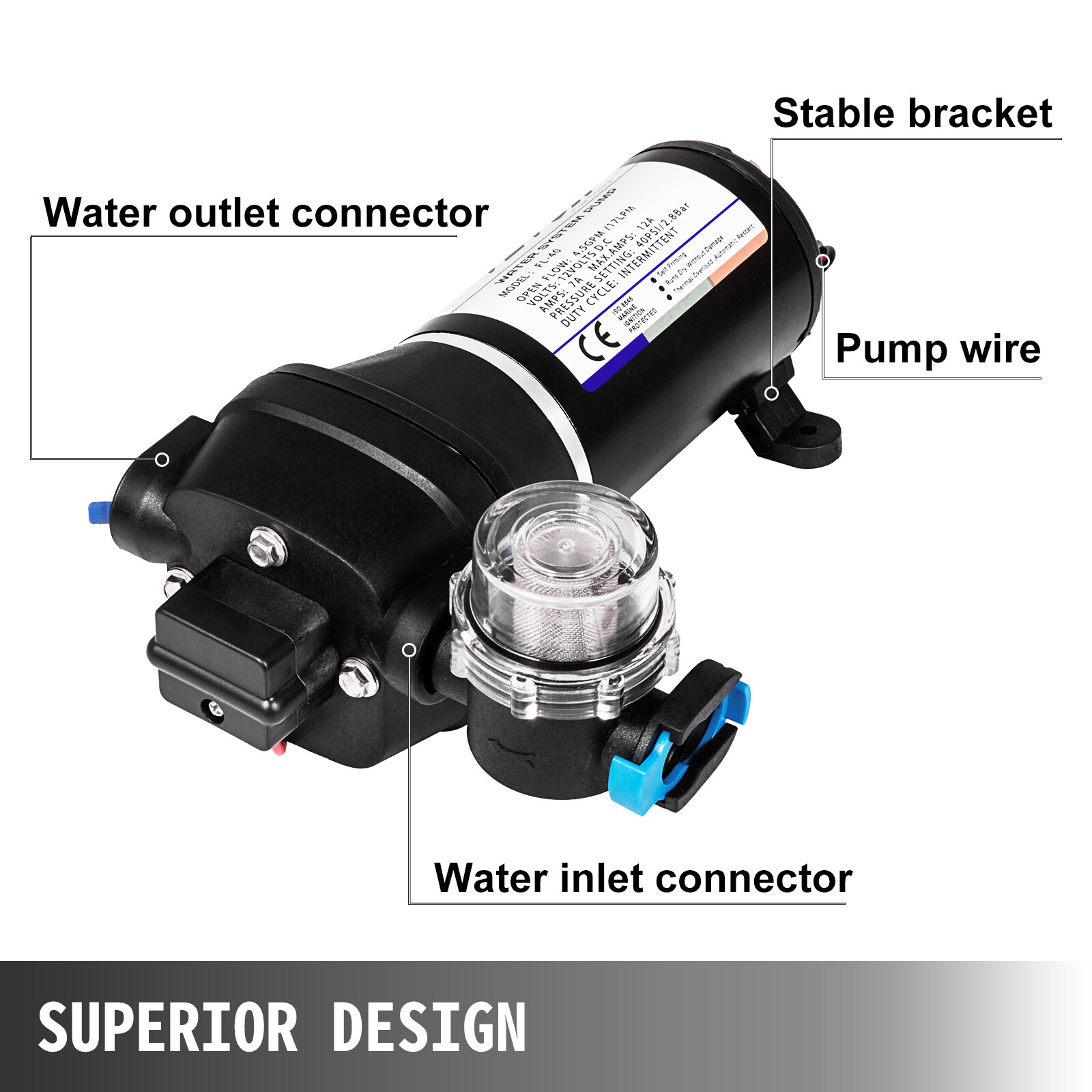

• Superior Design: The diaphragm pump is specially made for the pressurization system, permanent DC magnetic drive. Automatic self-priming pump with the max flow of 17 L/min, inlet PSI set at Max 40PSI (2.76Bar). Fully sealed, high stable pressure. Handles liquids up to 60°C. Runs dry without damage. Out-off when pressure reached or on close of tap.
• Thermal Protection: The self-priming automatic pump has a built-in thermal protector and provides automatic Pressure Protection.

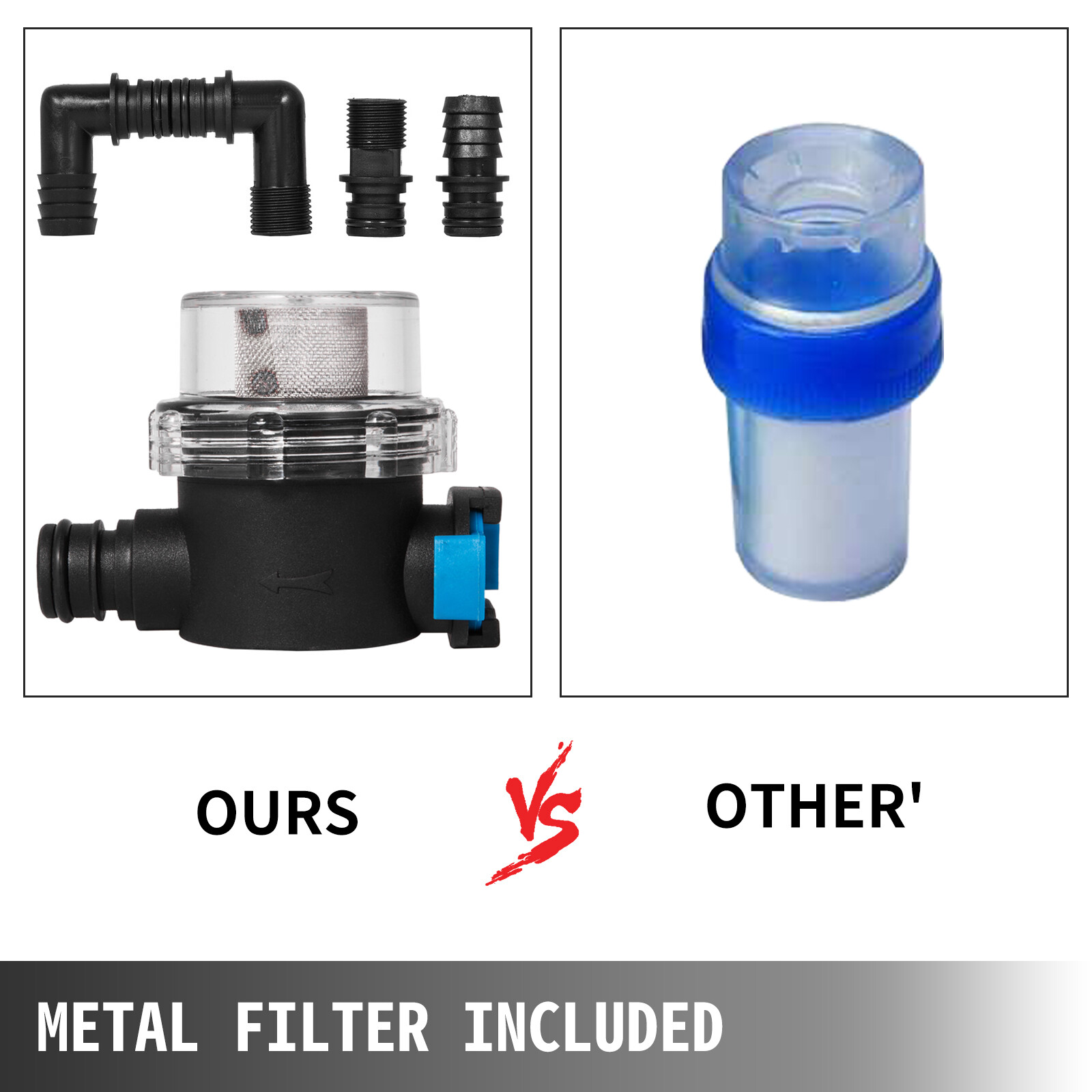

• Metal Filter Included: Metal filters can be connected to the diaphragm water pump for stable performance.
• Fast Assembly: The diaphragm water pump features small size, lightweight and stable performance for instant assembly.
• Wide Application: Ideal for automotive marine/RV/caravans, agricultural spraying, general industrial, sprayer fixtures. The diaphragm pump is specially made for RV/MARINE Yachts and any other pressurization system.

• Model: FL-40
• Voltage: 12V, 9.2A
• Flow: 17 L/min
• Insert size: 1/2” hose barb, thread
• Outlet size: 1/2” hose barb, thread
• Type: 3 Chamber Diaphragm
• Self-priming: 6 feet [within 2M]
• Inlet PSI: 40PSI [2.76Bar]
• Max Run Dry: Yes
• Net weight: 2.4kg

• 1 X Diaphragm Water Pump
• 1 x Filter
• 3 x Fitting
