150mm Rotary Table HV-6 Horizontal/Vertical with 4 T-Slots

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Hurry! 3 items left!
$659.99

Collect 659 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Potiva Deals
Secure ways to pay at checkout

INDUSTRIAL Rotary Table HV-6ø150mm table, high-density cast iron rotary table

Features
  • High-density cast iron body
  • Vertical and horizontal position table

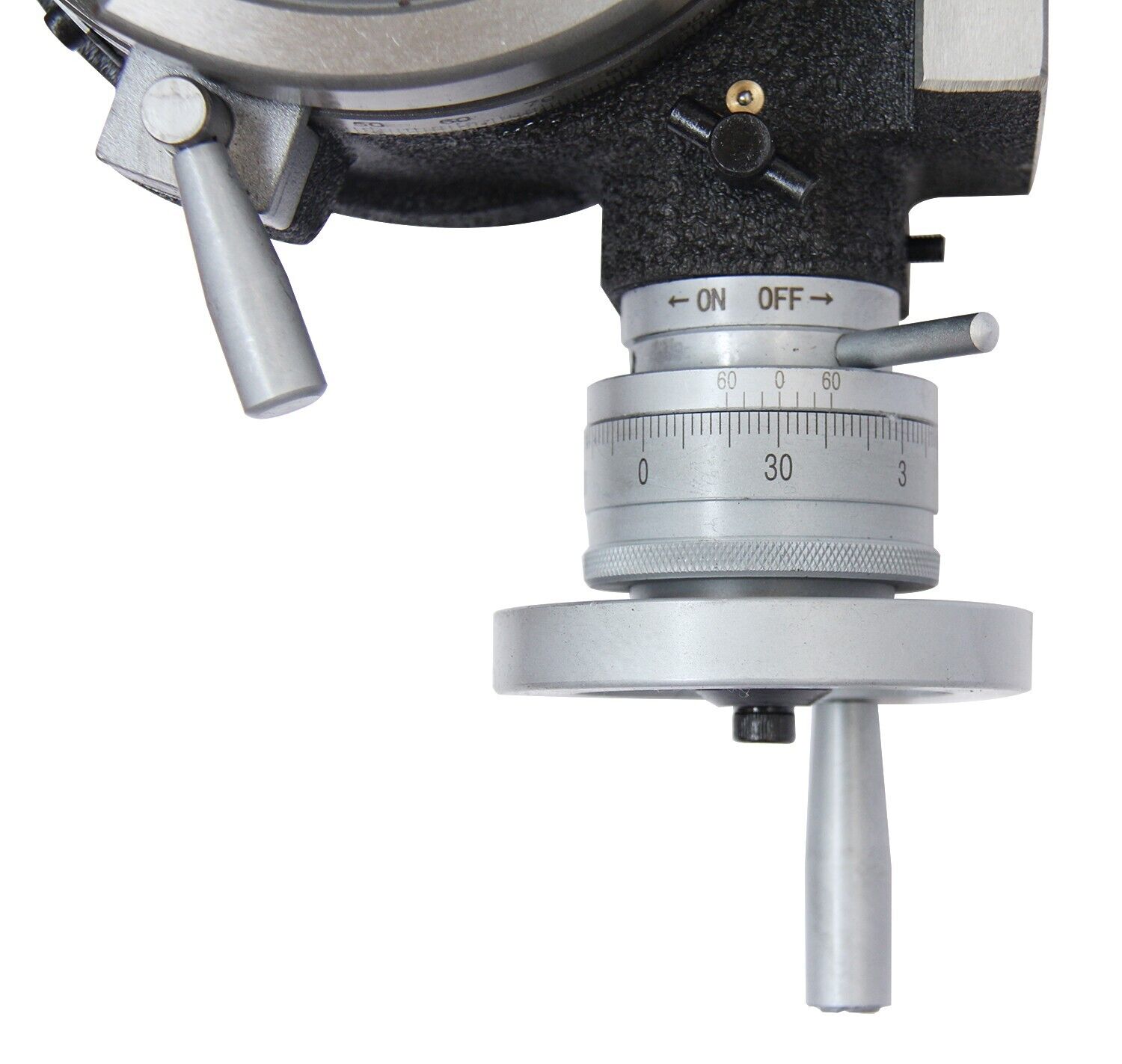

  • One rotation of the handle equals 4° on the collar
  • Gear ratio: HV-4, 1:72, HV-6, HV-8 1:90
  • Ground surface areas on the table
Specifications
ModelHV-4HV-6HV-8
Item No.161104161106161108
Dia. of table110 mm150 mm200 mm
Morse taperMT2MT2MT3
Width of T-slot12 mm12 mm14 mm
Adjacent angle of T slot120°90°90°
Transmission ratio of the worm gear1:721:901:90
Minimum value of vernier10"10"10"
Max. loading with table horizontal110kg110kg150 kg
Max. loading with table Vertical110kg110kg75 kg
Packing size19x10x12 cm26x24x13 cm38x31x18 cm
N.W./G.W.7/9 kg13/15 kg3/31 kg

SKU: 166240587628
