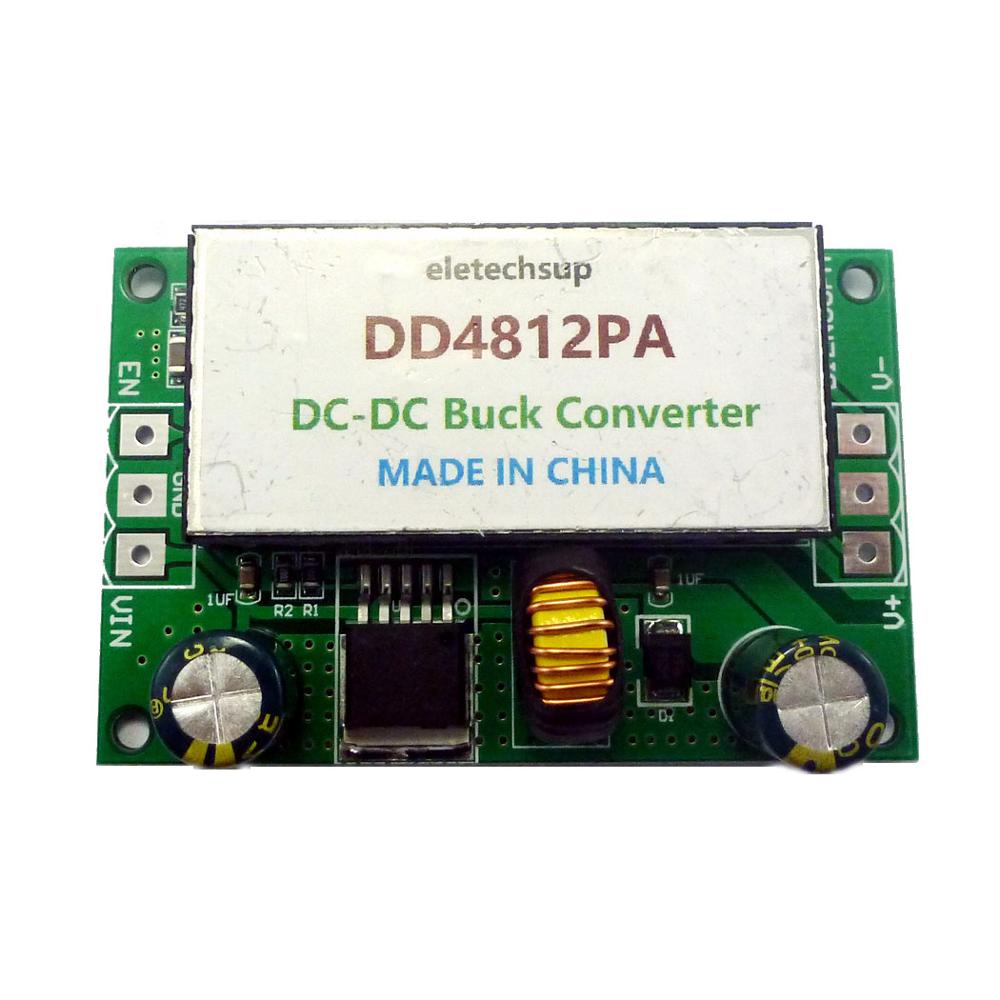

15W Isolated Dual Power Supply 5-32 to 12V 24V DC Boost-Buck Converter Board-2#

Image 1
Image 2
Image 3
Image 4
Image 5
$33.65

Collect 33 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Take 10% Off Purchases Over $29
Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 29/06/2025. Excludes Shipping.
Sold & shipped by Zhongshan Junchang Mould Co Ltd (Direct Import)
Secure ways to pay at checkout
Description:
?

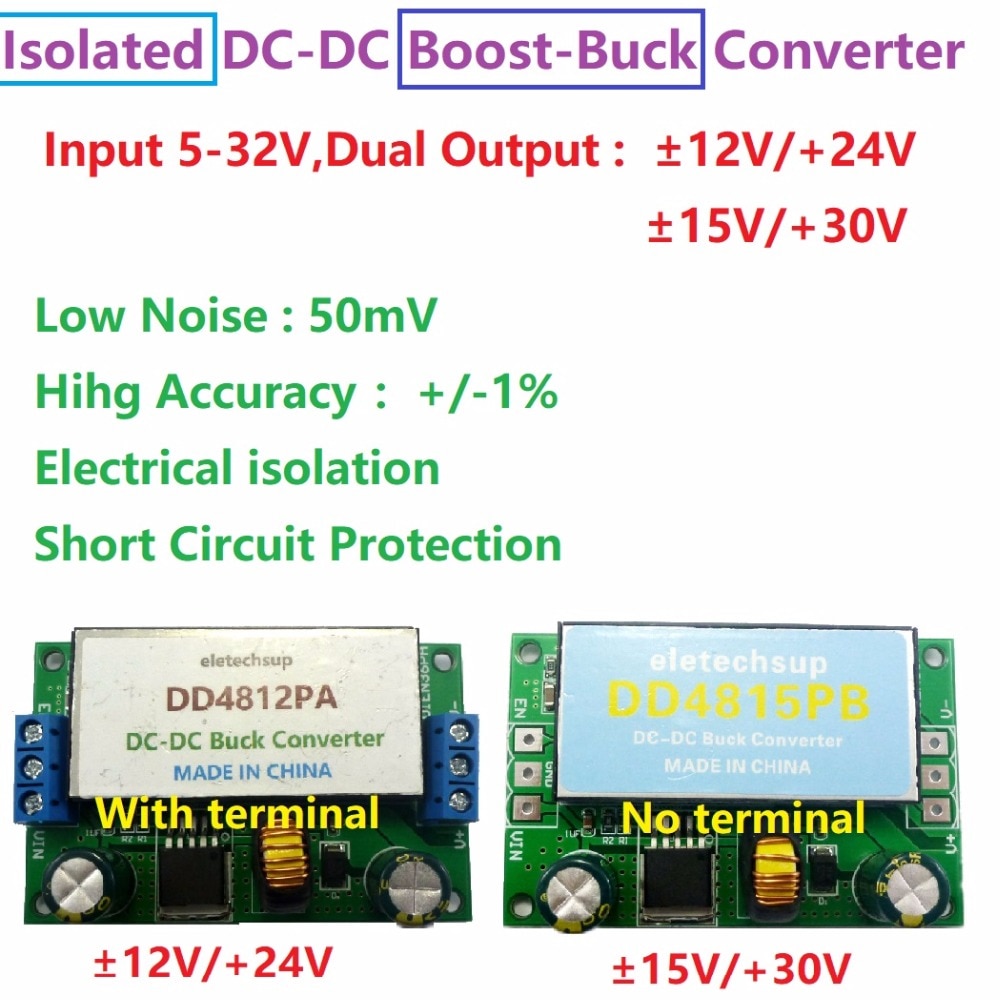

2 in 1 Isolated DC-DC Boost-Buck Converter
Input Voltage Range: 5-32 VDC
Output Voltage :? ��12V/+24V(MAX 700MA); ��15V/+30V(MAX 550MA)
Minimum Load Requirements: 0% (as+24V/+30V Output), 10% (as +-12/+-15 Output)
Efficiency : 70%-88%
Quiescent current : 68mA(Input 12V)
Low Noise : 50mV
Hihg Accuracy ??+/-1%
Working frequency 400KHz
Isolation (Input to Output): 1500VDC minimum (1 minute)
Isolation Capacitance: 1200pF
Short Circuit Protection
Operating ambient temperature : -40~+85 Degrees Celsius
Storage Temperature Range: -55 to +125? Degrees Celsius
Size : 68 x 44 x 16mm
Weight :? 39g(With terminal), 34g(no terminal)
?

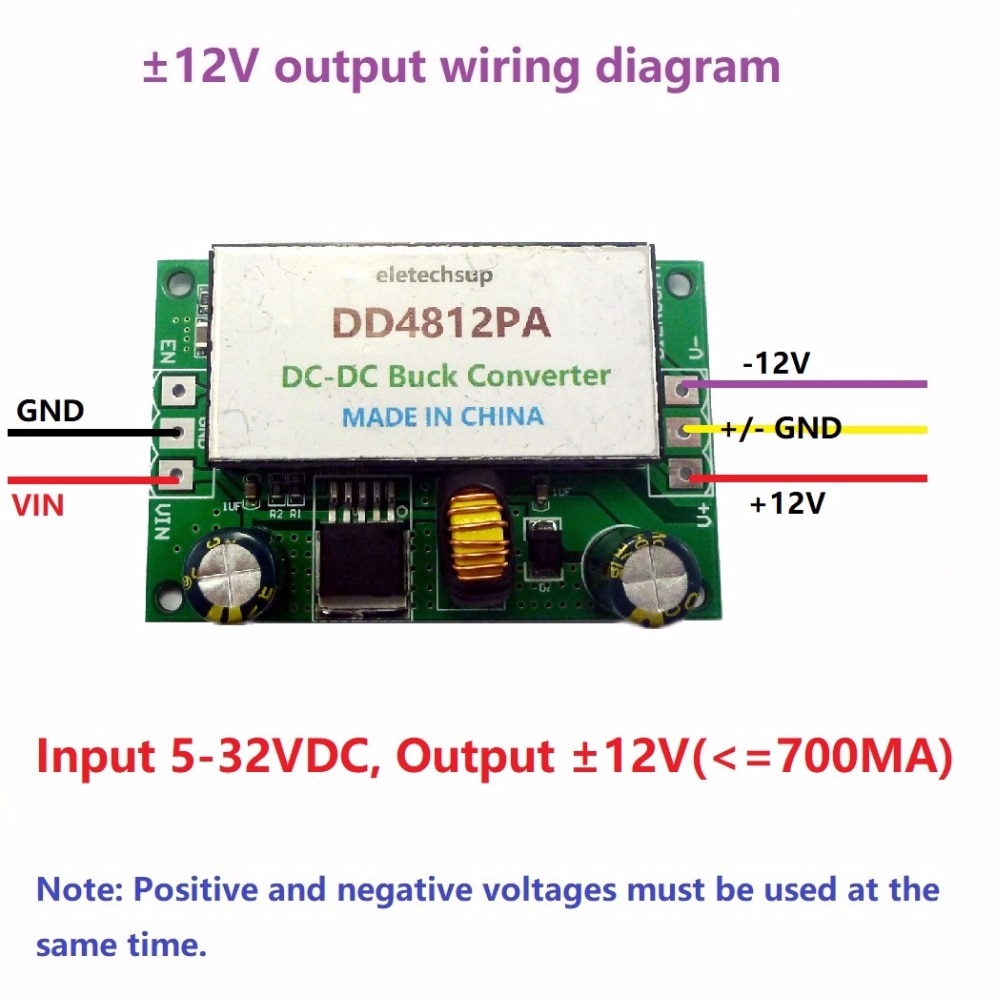

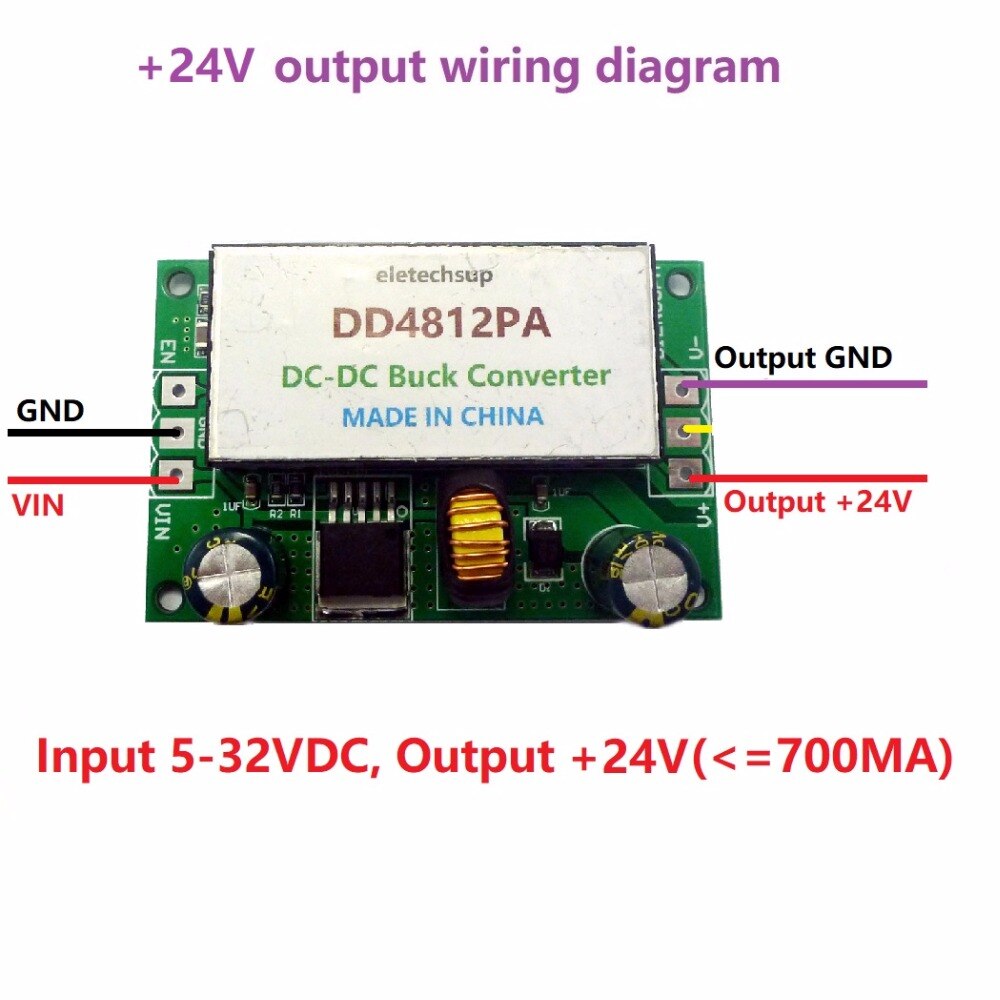

Pin description:

VIN??? :? Input positive
GND? :? Input negative
EN???? :? Input enable (NC or VIN enable, GND disabled)
V+???? :? Isolated output positive voltage
COM? :? Isolated output common
V-????? :? Isolated output negative voltage
?
Applications??

ADC/DAC/Operational Amplifier
RS232 RS485 RS422 Bus
Audio equipment
Low power audio power supply
Car audio amplifier dual power board
LCD power supply
Instrumentation equipment
Instrumentation multimeter
?
Attention :
?
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself

Packing list:1 PCS 5-32 VDC to ��12V/��15V Isolated DC-DC Buck Converter

Estimated Delivery Time Frame:12-20 business days
