Collect 24 Everyday Rewards points
Dispatch in 2 business days

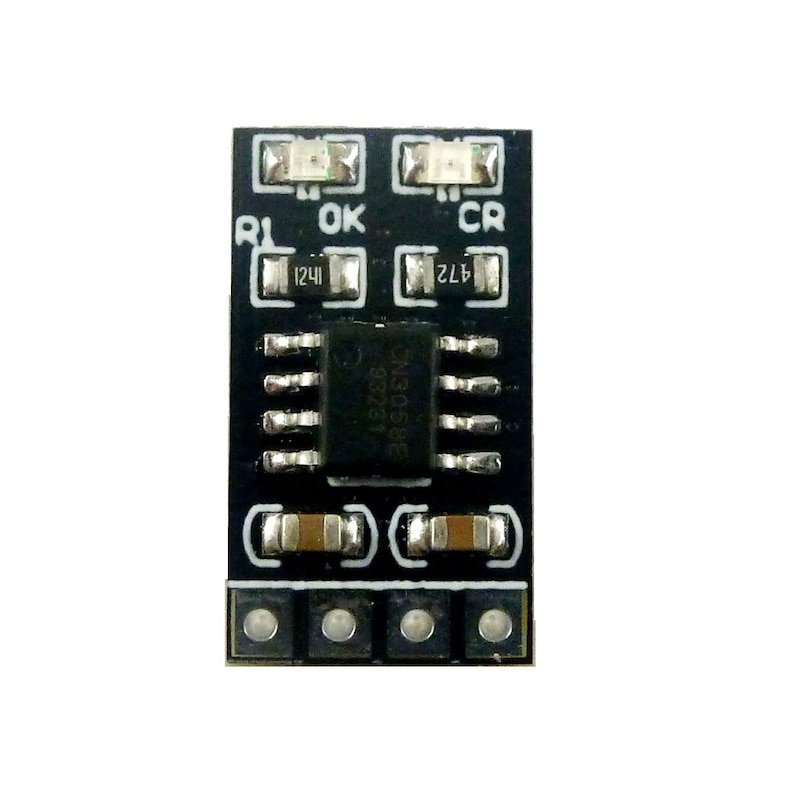

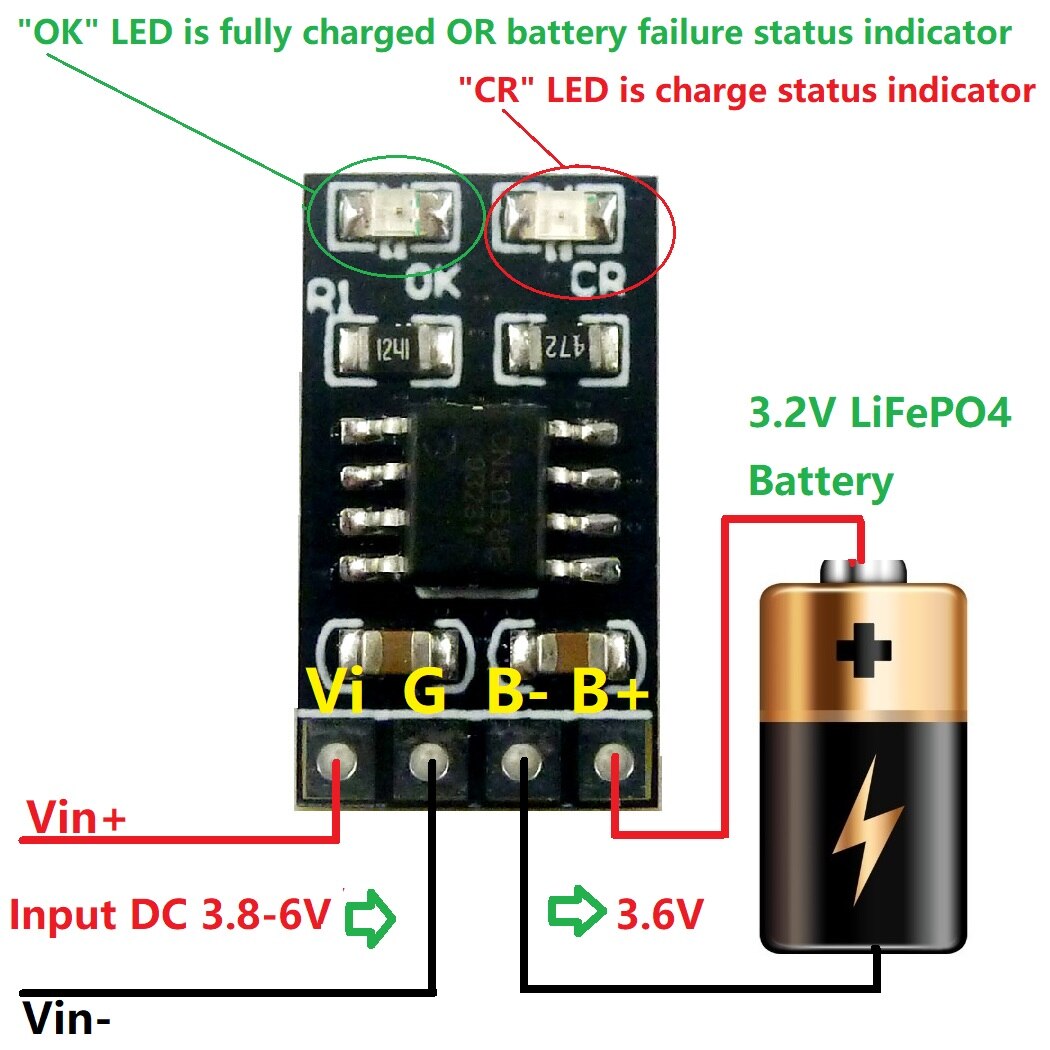

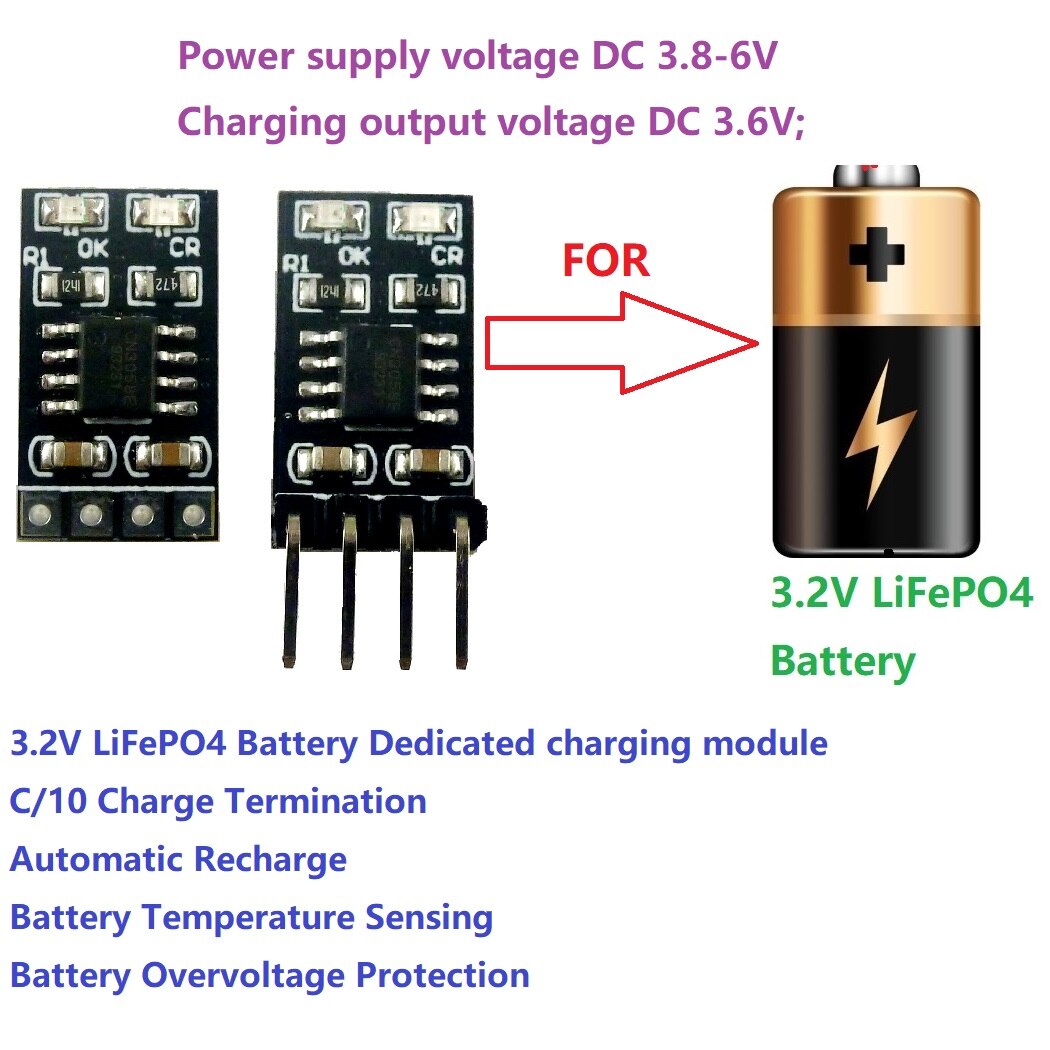

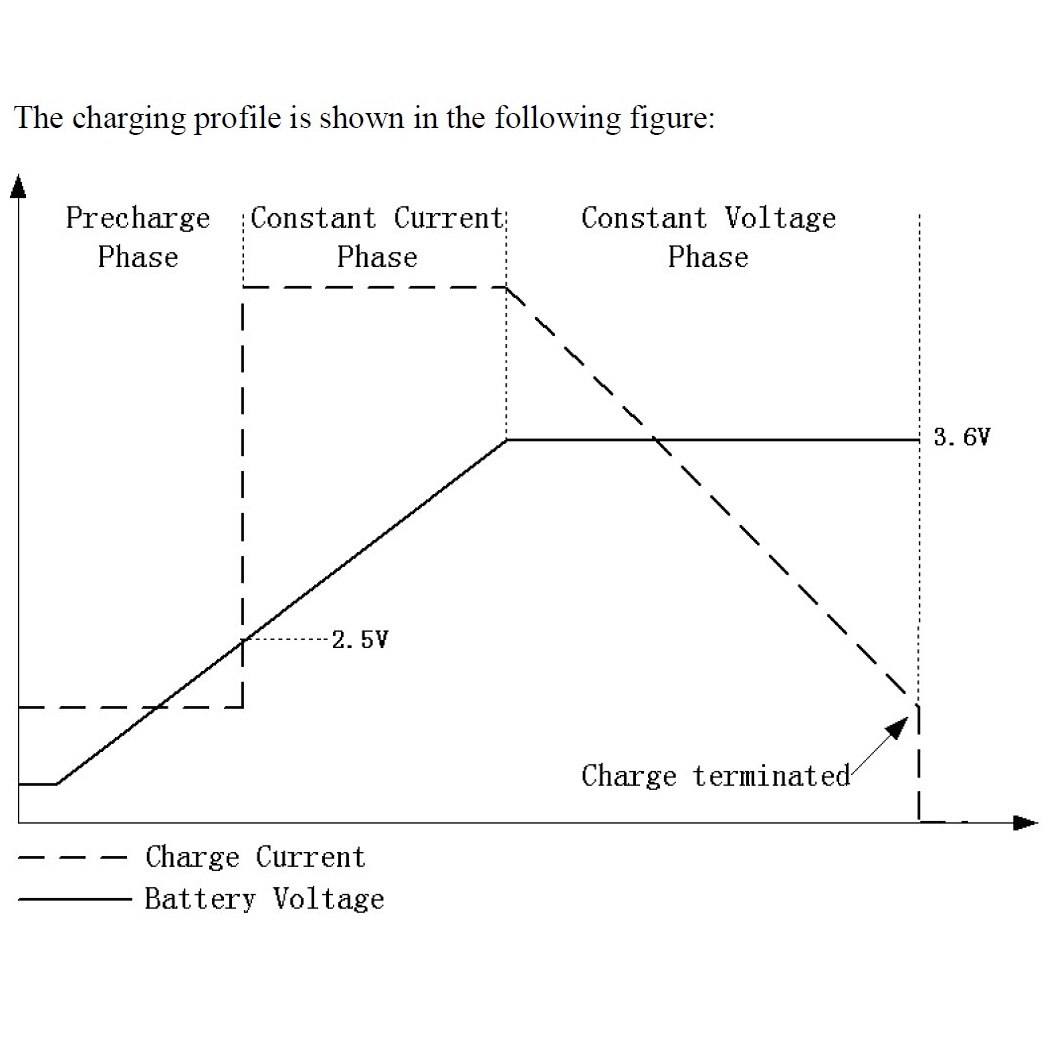

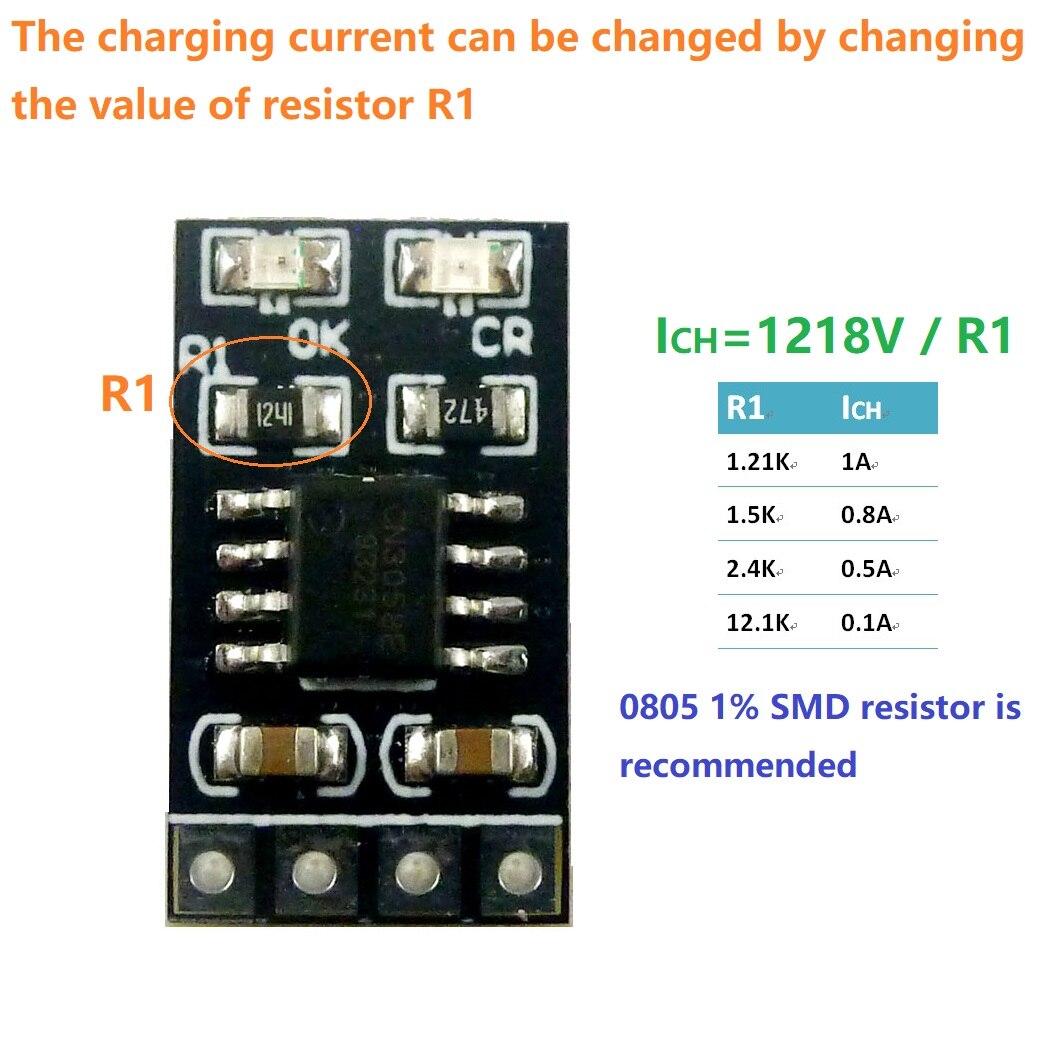

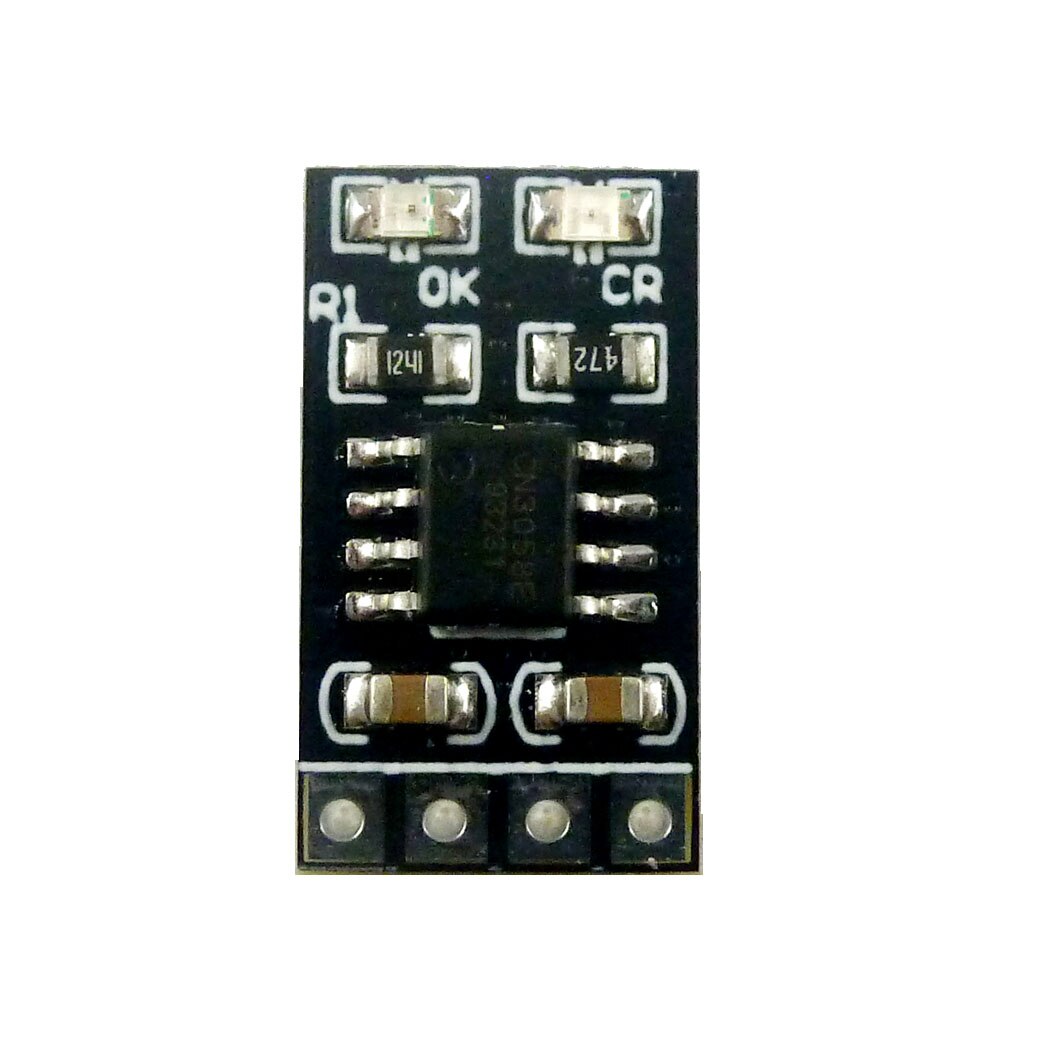

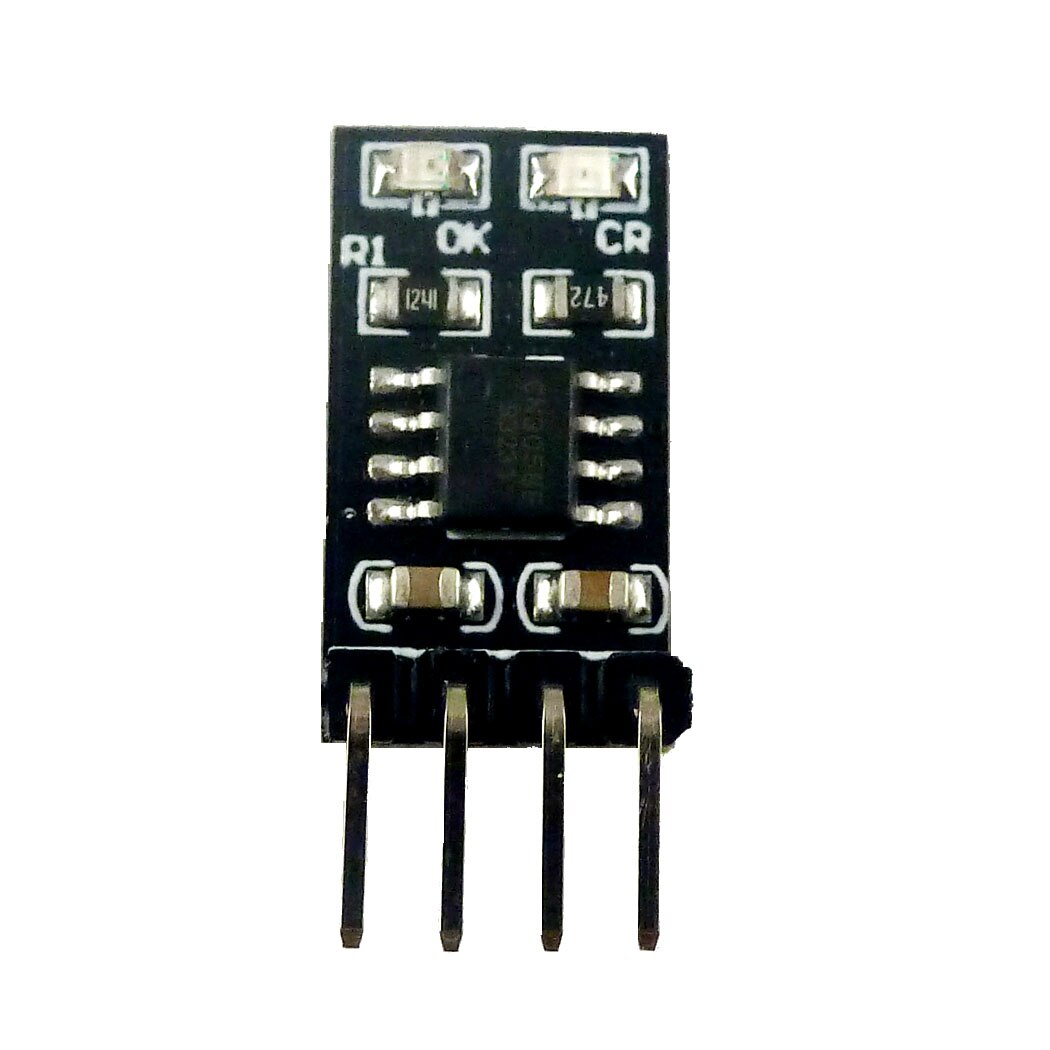

| Description: Complete Charge Management for Single Cell LiFePO4 Battery Power supply voltage DC 3.8-6V,Charging output voltage DC 3.6V; The maximum charge current / output current is 1A, but you can change the current by changing the value of the R1 resistor. Precharge Conditioning for Reviving Deeply Discharged Cells and Minimizing Heat Dissipation During Initial Stage of Charge Constant-Current/Constant-Voltage/Constant-Temperature Operation with Thermal Regulation to Maximize Charge Rate Without Risk of Overheating Automatic Low-Power Sleep Mode When Input Supply Voltage is Removed C/10 Charge Termination Automatic Recharge Battery Temperature Sensing Battery Overvoltage Protection Led indicator :? ''CR'' LED is charge status indicator ''OK'' LED is fully charged OR Constant voltage mode; Operating Ambient Temperature??40?? to ??85?? Size 18mm x 10.16mm x 2.7mm Weight :0.6g(No Pin) Applications: Car battery charging Children's toy car, toy airplane Solar battery charging Mobile Loadspeaker Electric Bicycle Charger UPS? Uninterruptible power supply Portable Industrial and Medical Equipment Standalone Battery Chargers Hand-held Equipment Battery-Backup Systems Portable Industrial and Medical Equipment Miner's lamp LiFePO4 battery applications Packing list:1 PCS1A 3.2V Single Cell LiFePO4 Battery Dedicated charging module Estimated delivery time??About 10 business days.We will use standard shipment for the orders. Normally it may need about 10 days, but sometimes please note: Delivery times are as provided by our carriers and are estimates only. Delays may occur during peak. |
Estimated Delivery Time Frame:12-20 business days
Ask a Question About This Product
Reference ID: 7039959
