Collect 24 Everyday Rewards points
Dispatch in 2 business days

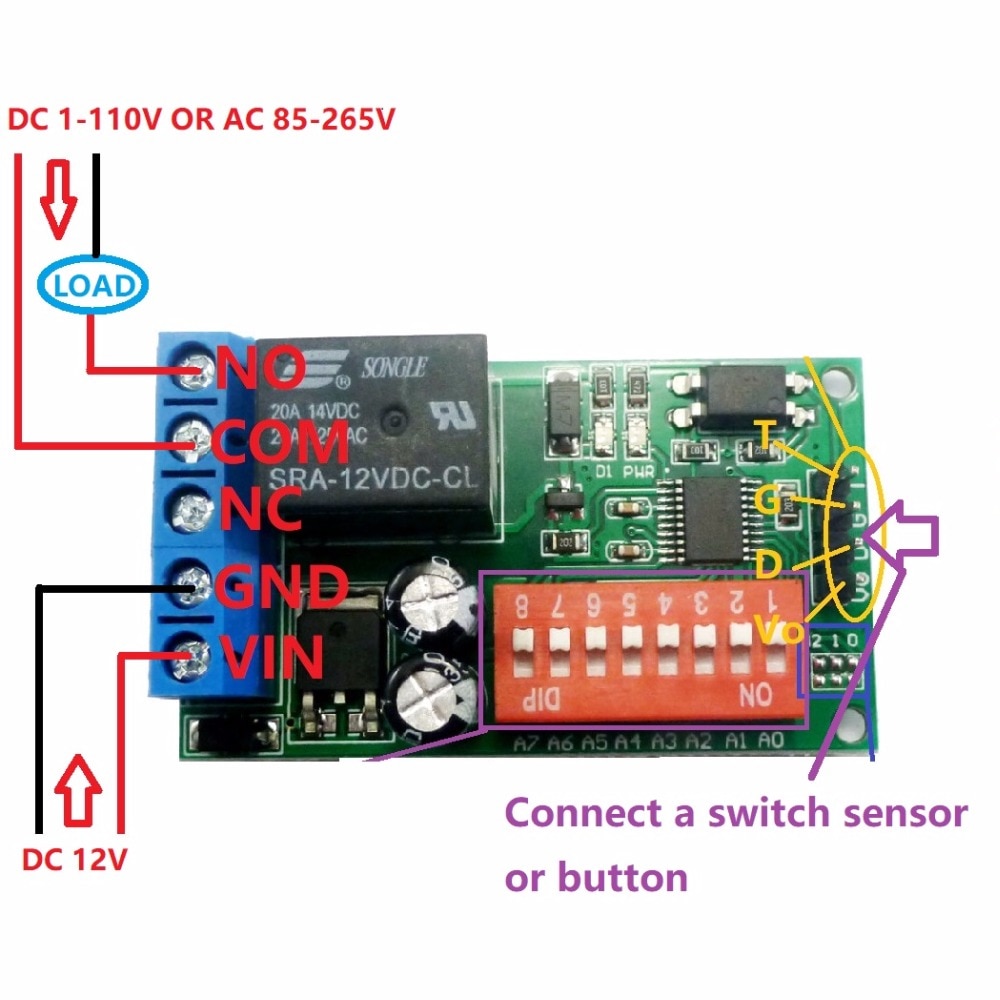

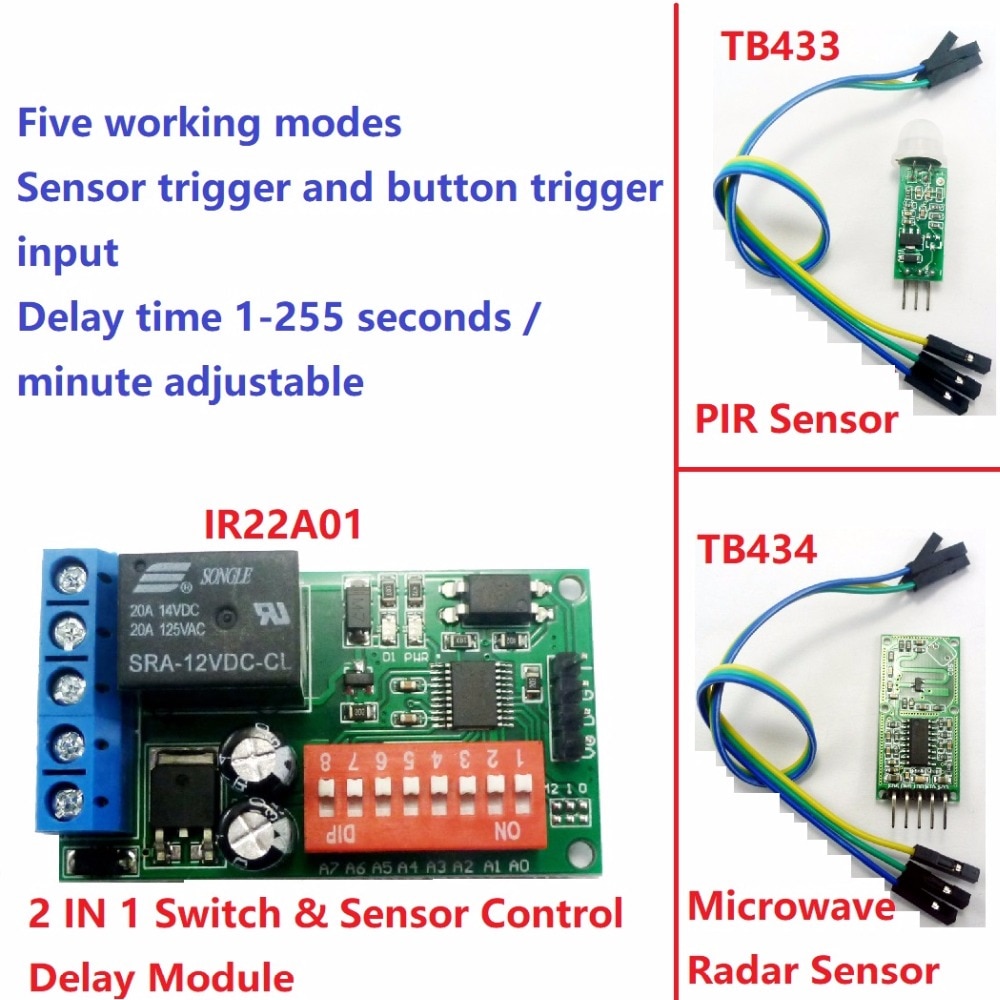

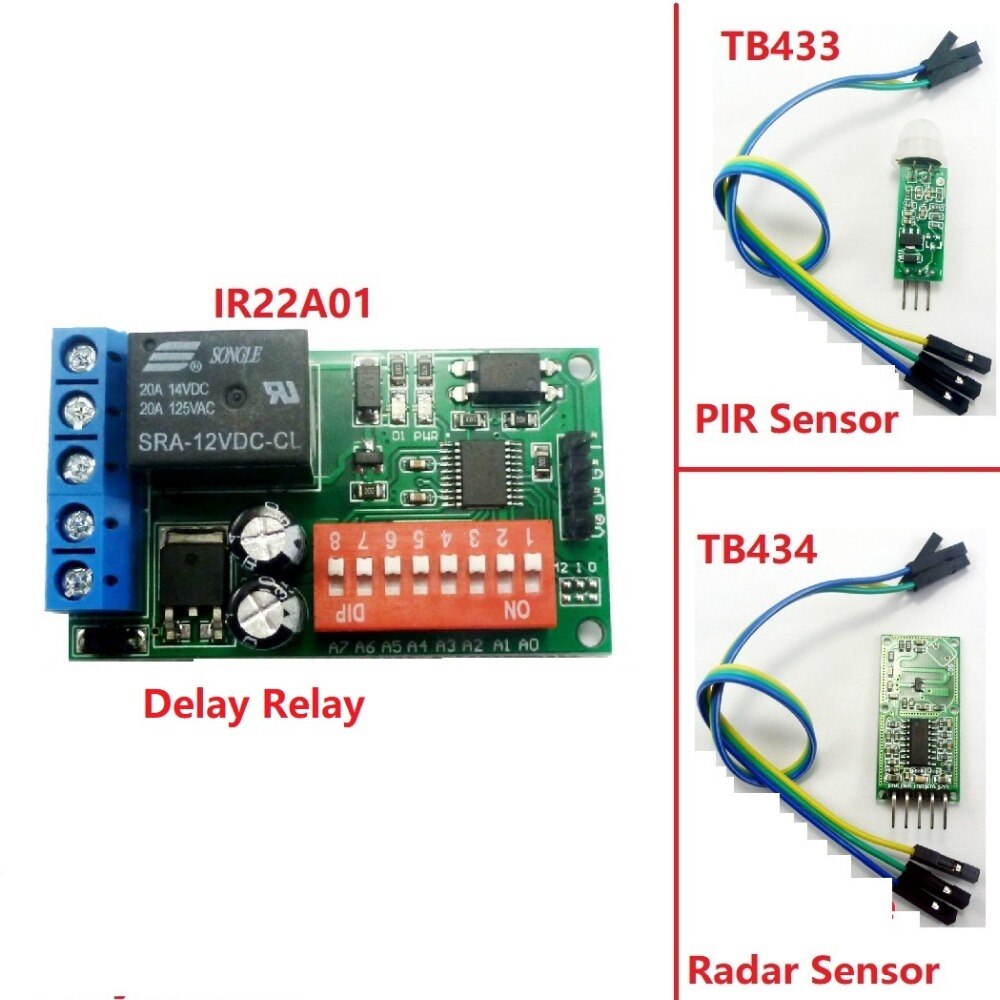

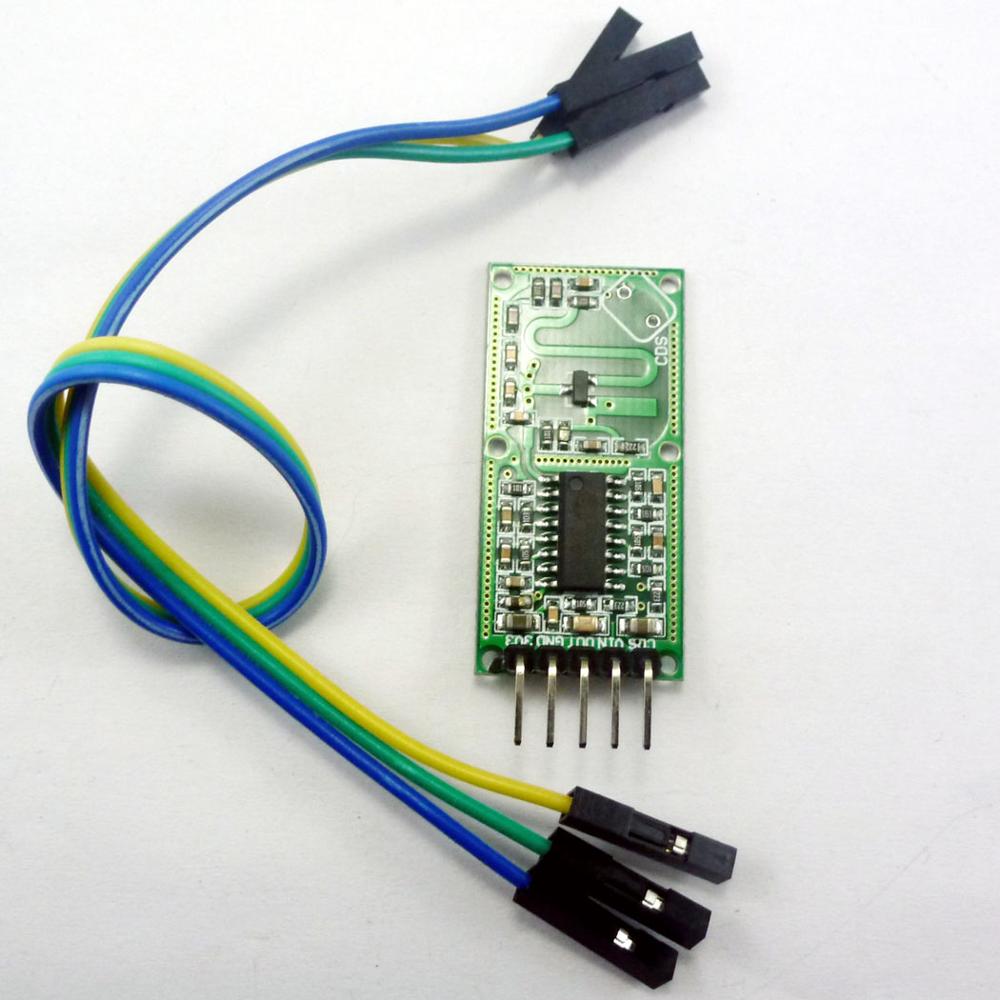

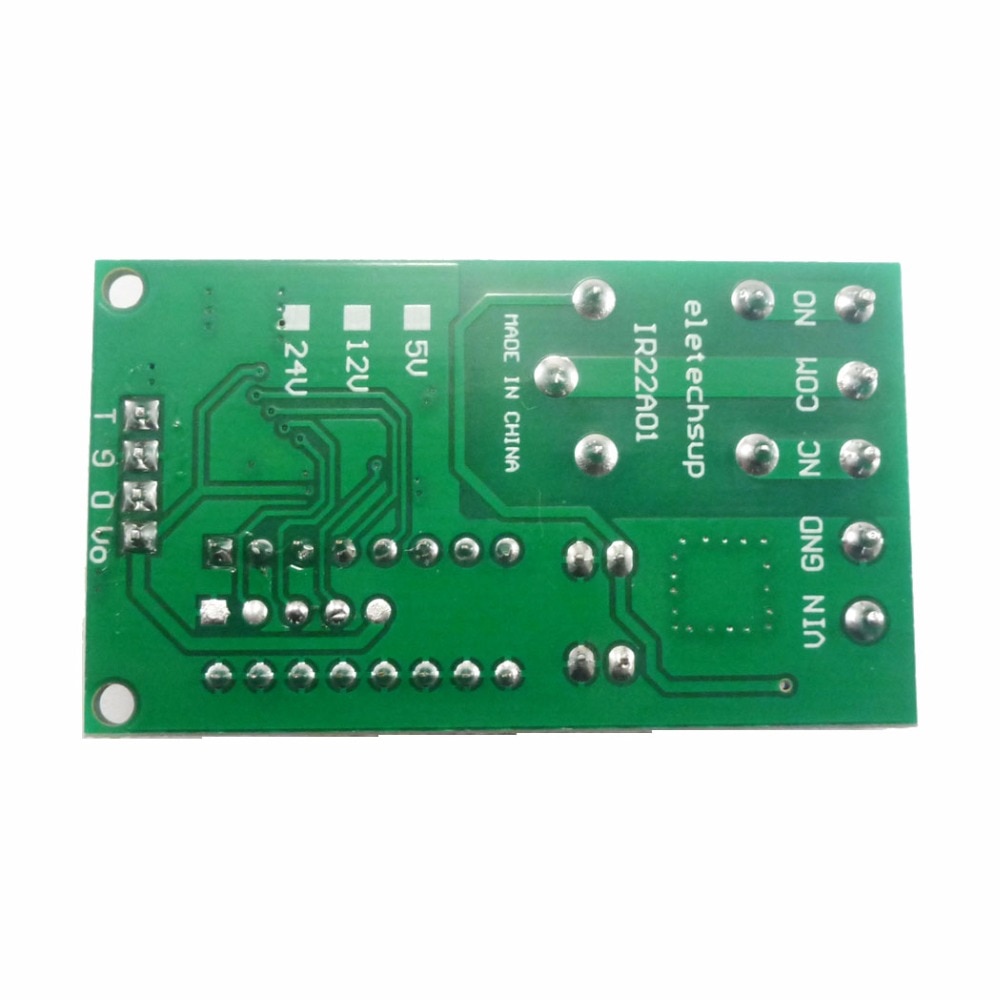

| Description: 1 Working voltage: DC 12V 2 Working current: standby 7-8MA, Relay Open 64MA 3 Working modes : Delay_1 (seconds), Non-locking (Momentary),Synchronization, Self-locking (Toggle),Delay_2 (minutes) 4 5V/50MA power output interface, Sensor Control interface (High level trigger), Switch control interface (Low level trigger) 5 Size: 52*30*18 mm 6 Weight: 18 grams 7 Maximum load: 20A/14VDC, 20A/125VAC Function Description: 1 Pin Description VIN : Power input positive GND : Power input negative NC : Relay normally closed COM : Relay Common NO : Relay normally open Vo : 5V/50MA power output positive, power the sensor D : Sensor Control Interface (high level trigger) G : 5V/50MA power output negative T : Switching control interface (low level trigger) 2 Mode selection Relay open: COM connected NO but disconnected NC Relay close: COM disconnected NO but NC connected COM. IR22A01_13 3 Input control 1 Switch control (low level trigger) wiring diagram IR22A01_10 2 Switching Sensor control (high level trigger) wiring diagram IR22A01_9 Supports the following (but not limited to) switching sensors : RCWL-0516 Microwave radar sensor HC-SR505 Infrared sensor SW-420 Vibration sensor Photosensitive sensor Flame sensor MQ-2 Smoke sensor Microphone sensor Touch sensor Reed switch sensor Packing list(Please choose the module you need when purchasing) 1 PCS Delay Relay OR 1 PCS PIR Sensor OR 1 PCS Radar Sensor |
