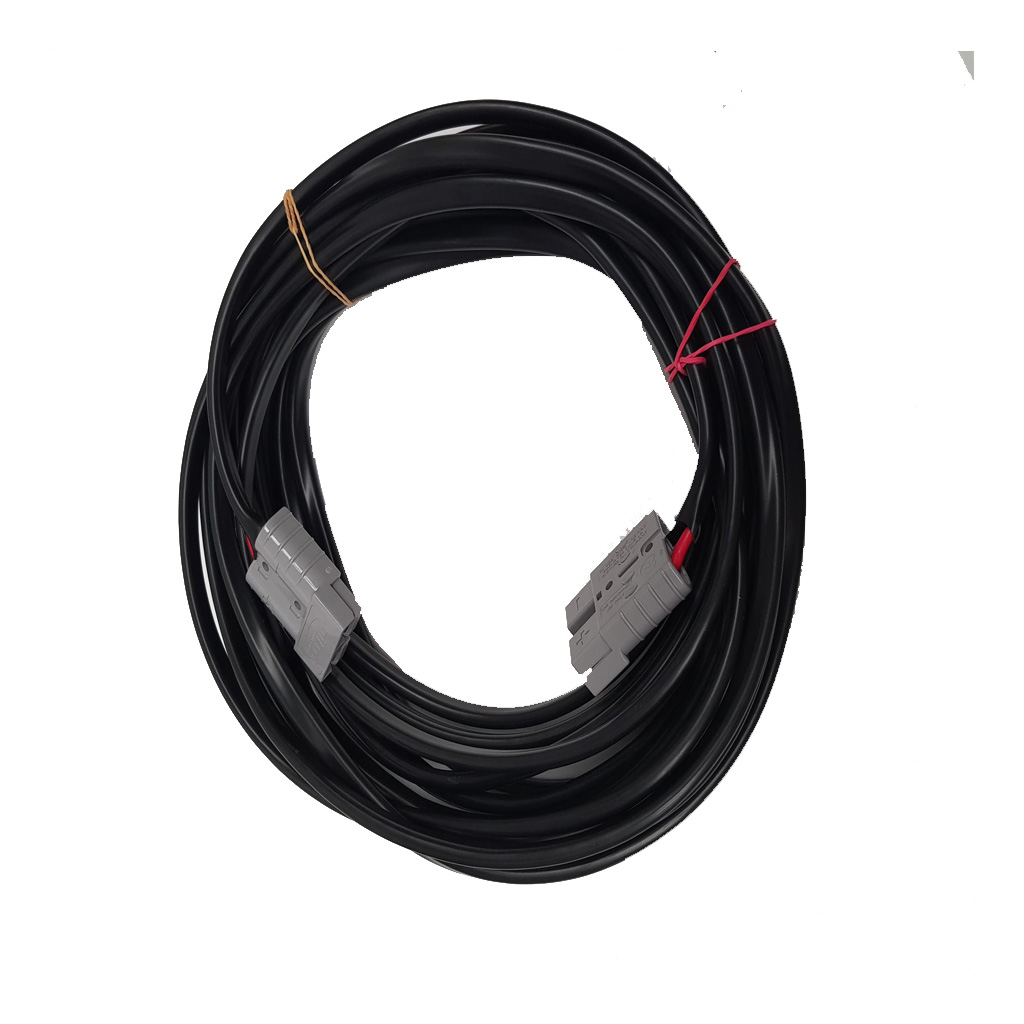

Solar Lead 6mm x 1m Dual Core 50amp Anderson Style Plugs
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
Collect 32 Everyday Rewards points
Dispatch in 2 business days
Collect 32 Everyday Rewards points
Dispatch in 2 business days
1m x 6mm Twin Core TYCAB wire with Fitted Anderson Plugs Extension Lead
Great for Caravan, Dual Battery System, 4wd, Trailers etc.

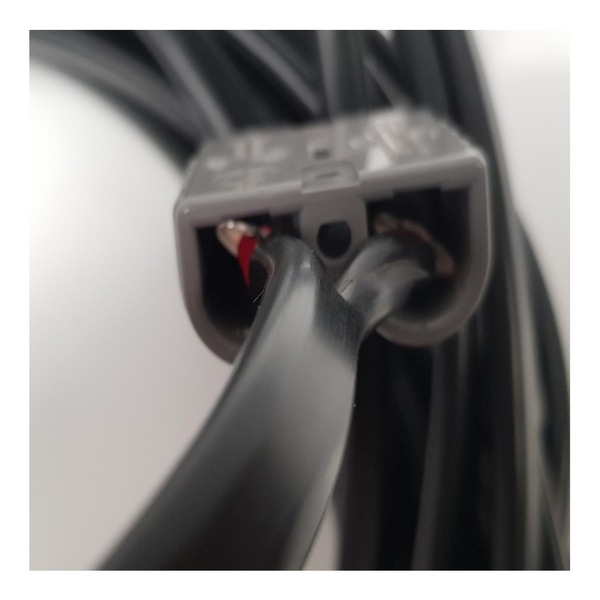

Anderson Plug terminals are crimped to the 6mm cable using hydraulic crimps for greater strength and a better finish
This extension lead is assembled by Blue Bar Industries technicians in our warehouse in Caboolture QLD
Cable Specifications
Core Colours = 1. Black 2. Red
Sheath colour = Black
Nominal Area Square = 4.59mm2
Nominal O.D = 5.7mm x 9.6mm
Industry equivalent in MM Thickness = 6mm
Number of cores = 2
Amp Rating = 50amps & 38amps at 30 degrees
Insulation thickness = .6
Sheath thickness = .8
Electrical resistance at 20c (ohm/km) = 4.1
Strand Number & Size = 57/.32
1m x 6mm Twin Core TYCAB wire with Fitted Anderson Plugs Extension Lead
Great for Caravan, Dual Battery System, 4wd, Trailers etc.
Anderson Plug terminals are crimped to the 6mm cable using hydraulic crimps for greater strength and a better finish
This extension lead is assembled by Blue Bar Industries technicians in our warehouse in Caboolture QLD
Cable Specifications
Core Colours = 1. Black 2. Red
Sheath colour = Black
Nominal Area Square = 4.59mm2
Nominal O.D = 5.7mm x 9.6mm
Industry equivalent in MM Thickness = 6mm
Number of cores = 2
Amp Rating = 50amps & 38amps at 30 degrees
Insulation thickness = .6
Sheath thickness = .8
Electrical resistance at 20c (ohm/km) = 4.1
Strand Number & Size = 57/.32
Blue Bar Industries now has Australia Made accreditation for our 12 / 24v premade leads and Adaptors..
Purchase with confidence knowing that not only are you getting a quality product but also you are supporting Australia Made from a local Australian small business..
Products that Blue Bar Industries manufacture are made with a majority of Australian Made components and assembled in our Queensland workshop
1019181
1019181
MPN: 10101
