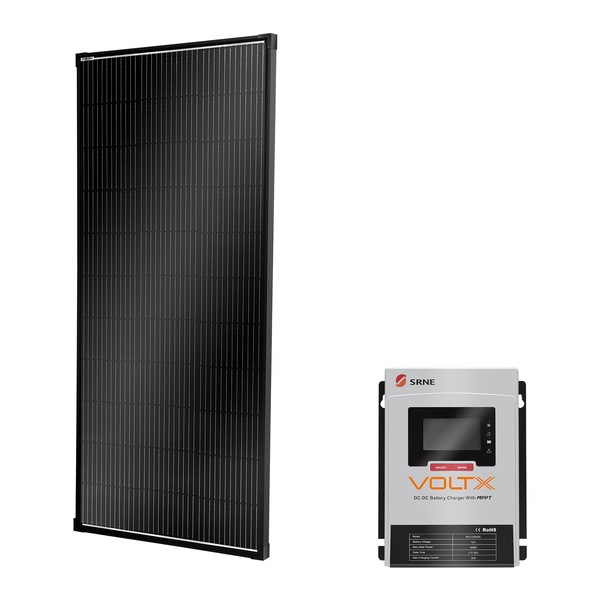

200W Solar Panel Fixed Black Frame + 30A DC to DC LiFePO4 Battery Charger Bluetooth

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$699

Collect 699 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 24-48 hours

Sold & shipped by Ozzie Energy
Secure ways to pay at checkout
Pay in 4 interest-free payments of $174.75 with PayPal

Popular Products

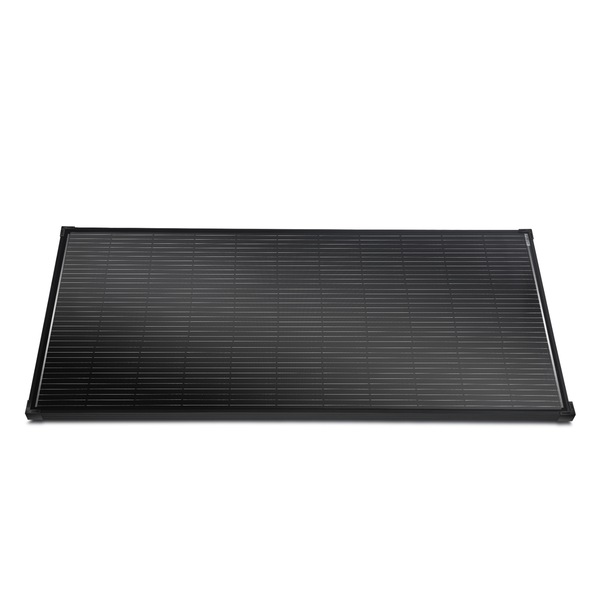

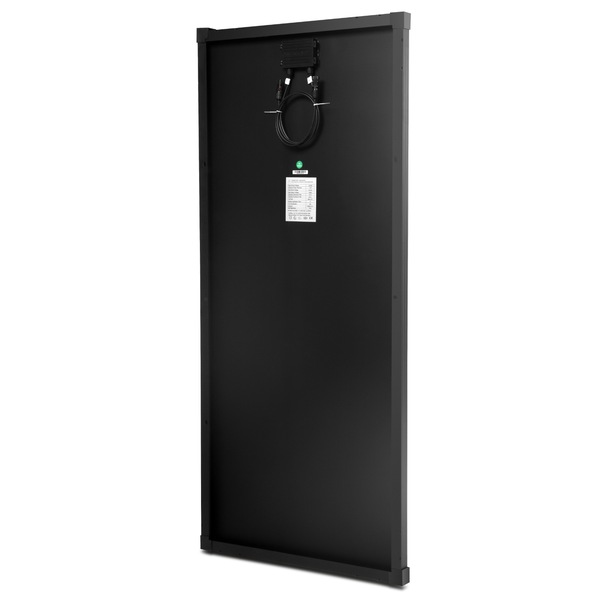

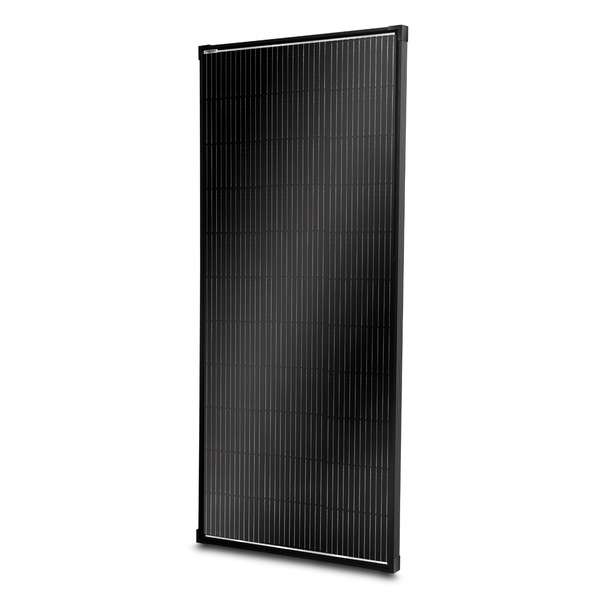

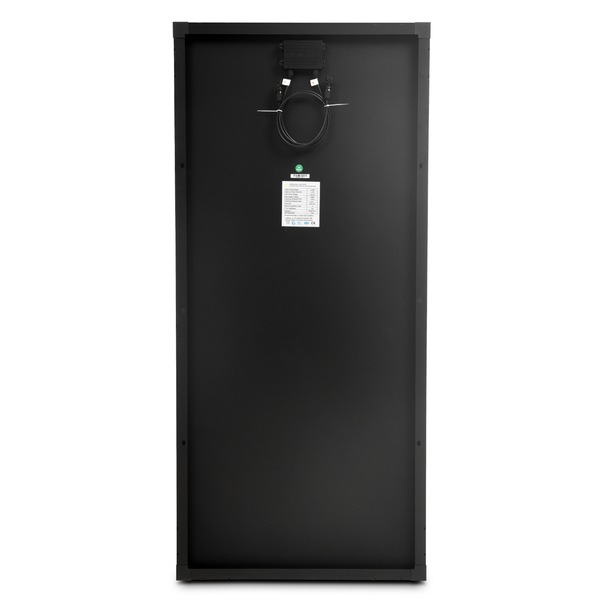

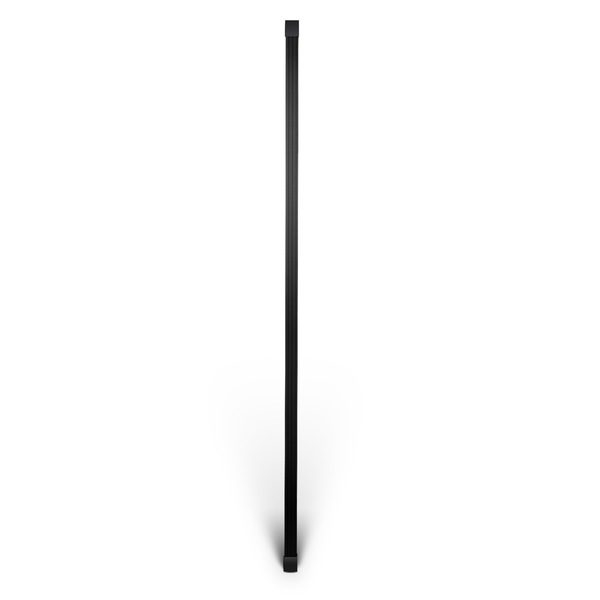

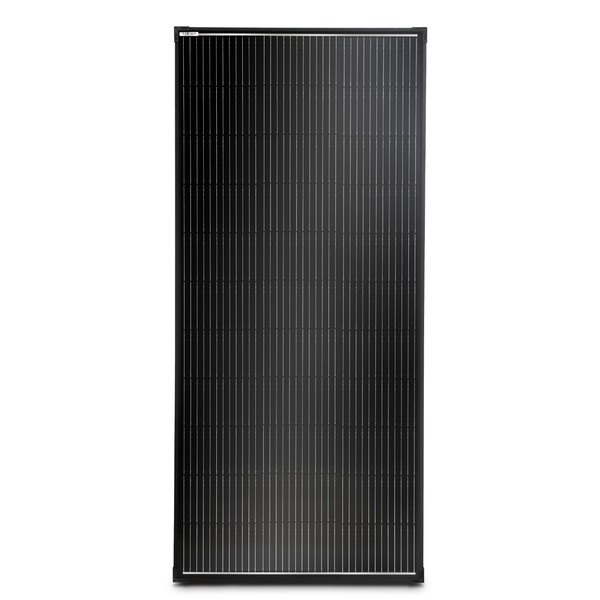

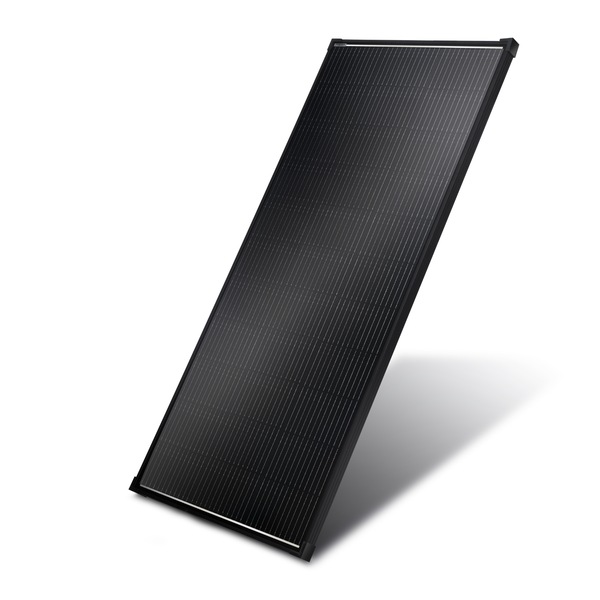

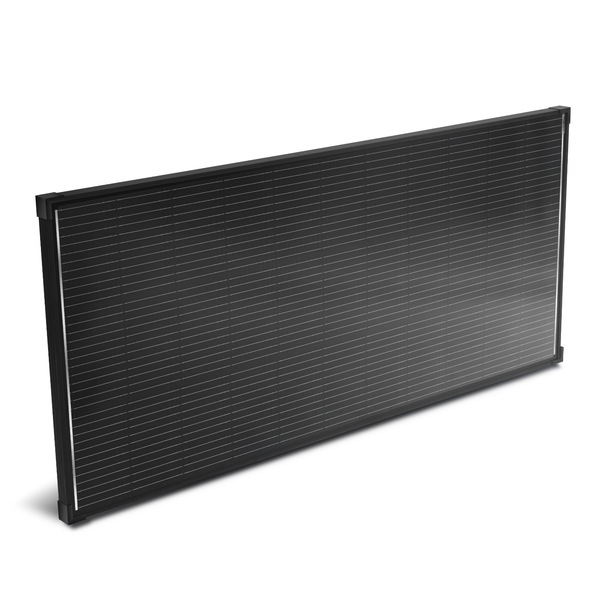

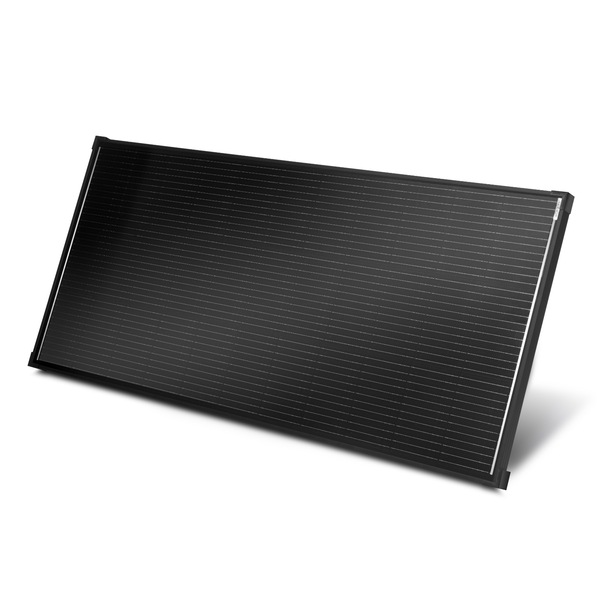

Product 1: 200W Solar Panel Fixed Black Frame

  • Specifications

    • Max Power: 200W
    • Max Power Voltage (Vmp): 18.74V
    • Max Power Current (lmp): 10.41A
    • Open-Circuit Voltage (Voc): 22.86V
    • Short-Circuit Current (Isc): 10.93A
    • Max System Voltage: 1000V
    • Max Series Fuse Rating: 15A
    • Module Efficiency STC (%): 19.66%
    • Cell Efficiency: 23%
    • Power Tolerance: 0-5W
    • Standard Test Conditions: E=1000W/m² AM=1.5, TC=25℃
    • Working Temperature: -40°C-85°C
    • Temperature Coefficients of Pmax: -0.34%℃
    • Temperature Coefficients of Voc: -0.28%℃
    • Temperature Coefficients of lsc: +0.05%℃
    • Nominal Operating Cell Temperature (NOCT): 45±2°C
    • Type: Fixed
    • Solar Cell: Monocrystalline Grade A
    • Cell Tech: PERC
    • Panel Leads (Pair-AWG): 2.5mm²
    • Solar Connectors: Junction Box + 0.9m Cable With MC4 Connector
    • Tie Down Points: Yes, 4 Points
    • Frame: Anodized Aluminium Alloy
    • IP Rating: IP65
    • Certifications: CE, ISO
    • Warranty: 5 Years

  • Dimensions & Weight

    • Product Dimensions: L1480xW670xH35mm
    • Package Dimensions: L1500xW690xH50mm
    • Net Weight: 11kg
    • Gross Weight: 11.9kg

  • Package List

    • 1x 200W Fixed Solar Panel Black Frame

    Product 2: 30A DC to DC LiFePO4 Battery Charger Bluetooth

  • Specifications

    • Model: MD1230N05
    • Backup Battery System Voltage: 12V
    • Backup Battery Voltage Range: 9~16V DC
    • Backup Battery Type: Sealed Battery, Gel Battery, Vented Battery, Lithium Iron Phosphate Battery, User-defined Battery
    • Rated Charging Current: 30A
    • Maximum PV Input Voltage: 55V DC
    • Max. power point voltage range: 17~36V
    • Maximum PV Input Current: 27A
    • Solar Panel Charging Mode: Buck MPPT
    • MPPT Efficiency:>99%
    • PV input power is recommended: 400W
    • Generator (Starter Battery) System Voltage:12/24V
    • Starter Battery Type: Lead-acid Battery
    • Maximum Generator Input Voltage: 32V DC
    • Maximum Generator Input Current:35A
    • Conventional Generator: 13.2~16V/26.4~32V DC
    • Intelligent (Euro 6 Standard) Generator: 12~16V/24~32V DC
    • Generator charging mode: Buck , Boost , Buck-Boost
    • 12V Backup Battery:400W
    • Charging Voltage: 13.8V
    • Charging Current: ≤15A
    • No-load loss: <0.6W
    • Maximum Charging Conversion Efficiency: 98%
    • Communication method: TTL
    • Operating temperature: -35°C~65°C
    • Altitude: ≤3000m
    • Waterproof level: IP32
    • Product dimensions: 221*175.8*82.4mm

    Tips: The items in this bundle will be shipped separately, the packages may arrive at different times, please be patient and wait.

    GTIN: 9355348070309

    Estimated Delivery Time Frame:3-8 business days
